Model: PF-S20

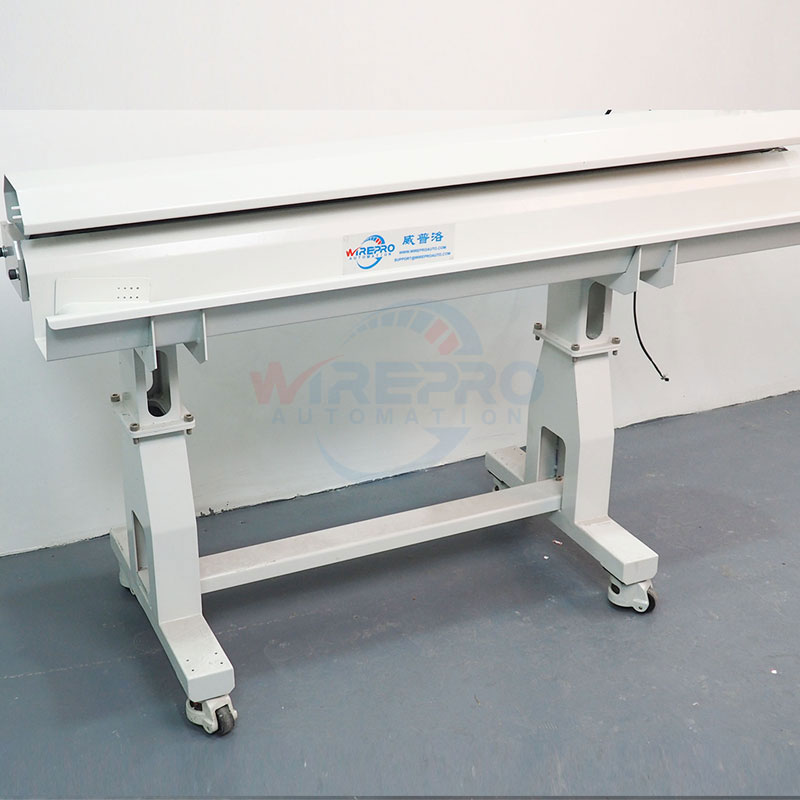

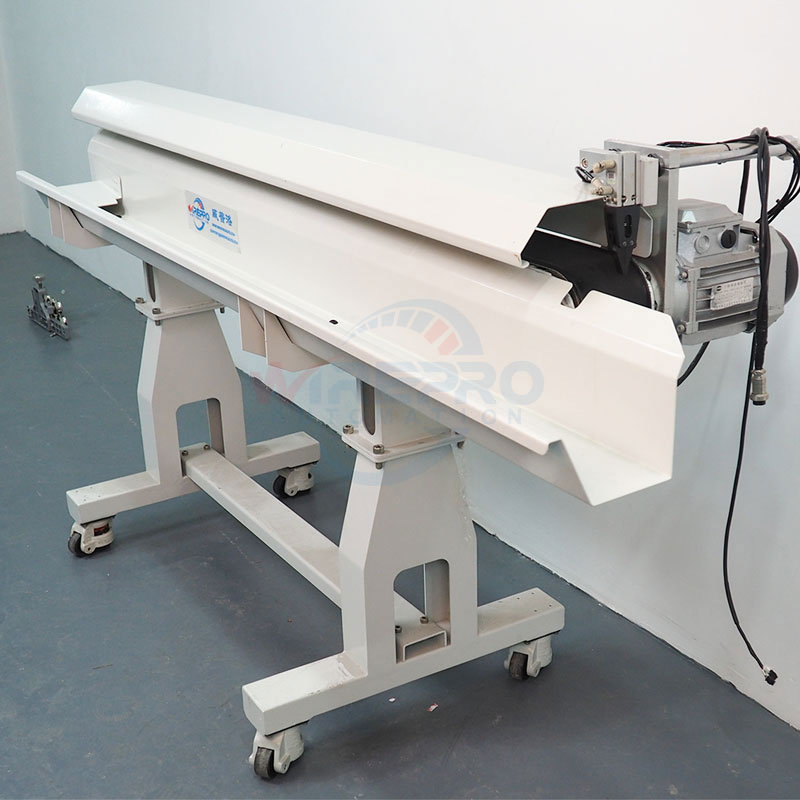

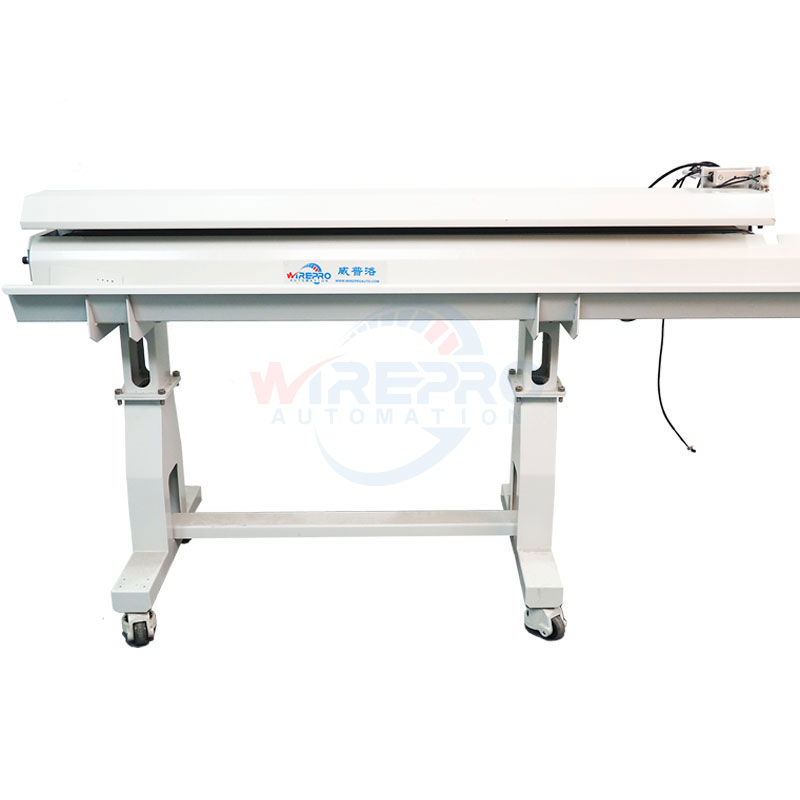

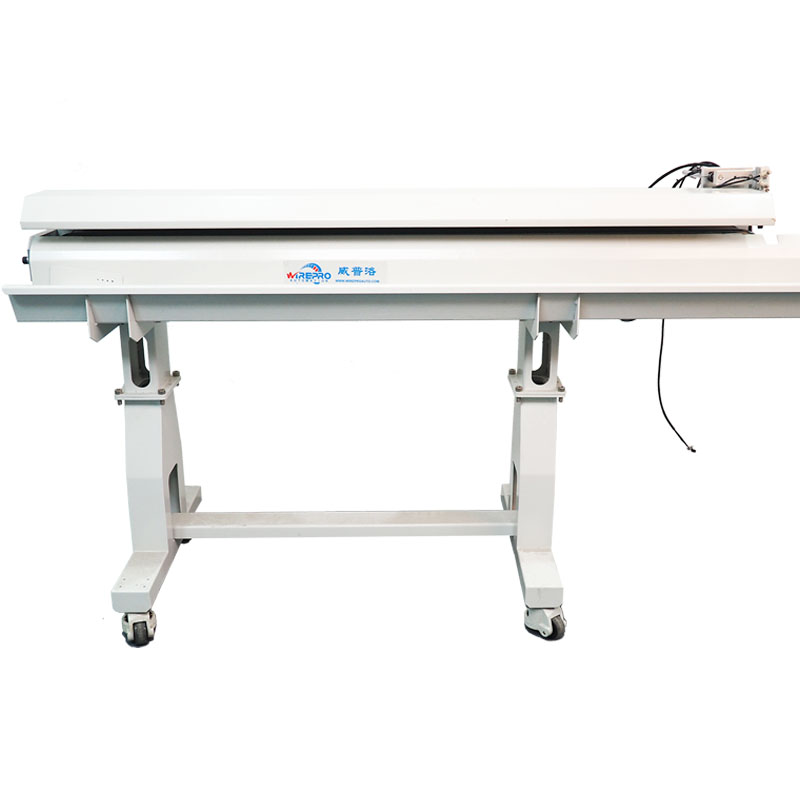

It is a passive wire stacking system with a guide channel and collecting tray. The max cable lengths can be custom.
PC-S20 work with automatic machine passive cable stacking wire stacker
Description
It is a passive wire stacking system with a guide channel and collecting tray. The max cable lengths can be custom.
After processing each wire, the machine sends a control signal to the wire stacker making it drop the wire from the collection tube into the collection tray.
Features:
1. Low-cost solution allowing unattended operation
2. Greatly reduces the labor involved in handling long wires
3. Passive design built for almost unlimited and trouble-free cycles
4. The handling lengths can be custom
6. Works equally well with short or long wires
Videos:
Technical Data
| Model | PC-S20 |
| Max Load Length | 2m, other lengths can be customed |
| Avaliable Cable | 0.5-120 sqmm (others can custom) |
| Avaliable Cable Dia | Max 25mm (other can customs) |
| Speed setting | 0 – 2m/s |
| Power Supply | 220V / 110V |
Application

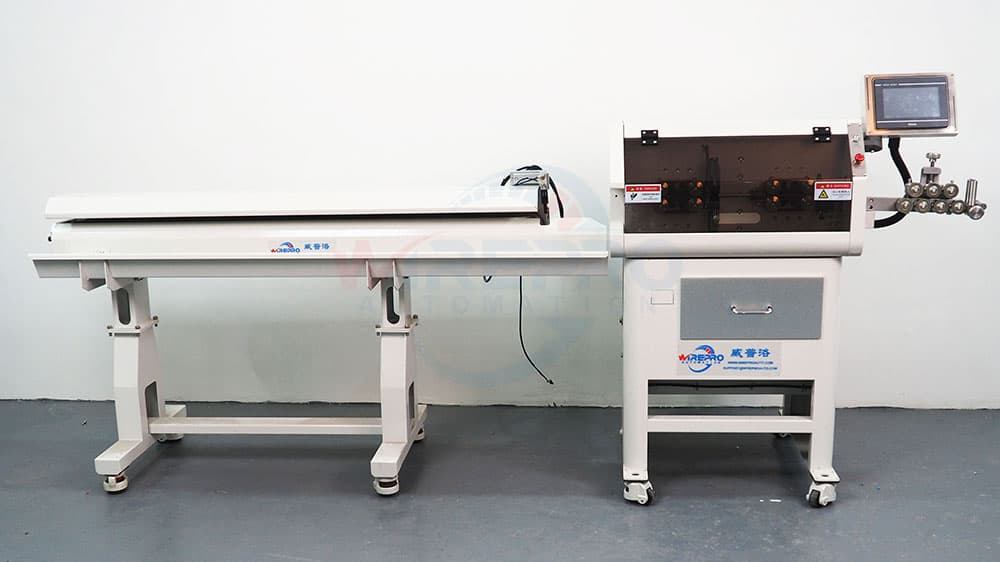

Work with full automatic wire cutting and stripping machine, terminal crimping machine and so on.
