Model: TS-R01

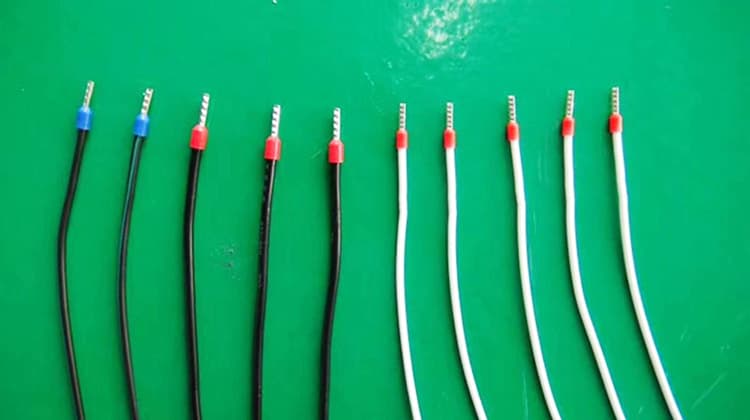

It can finish wire stripping, copper twisting and automatic ferrules crimping one time. Very good for multi-cores cable.

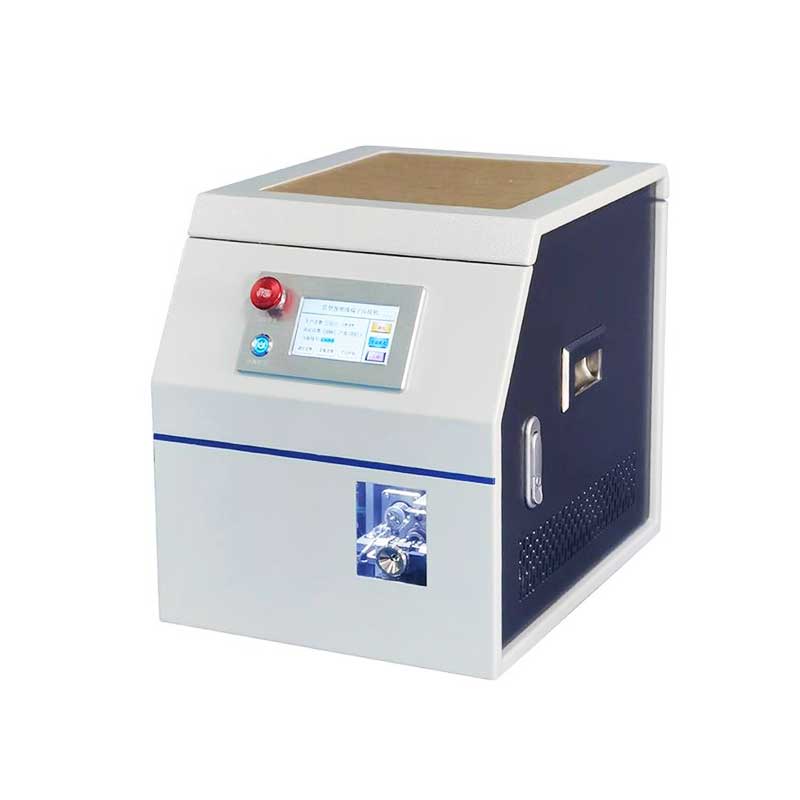

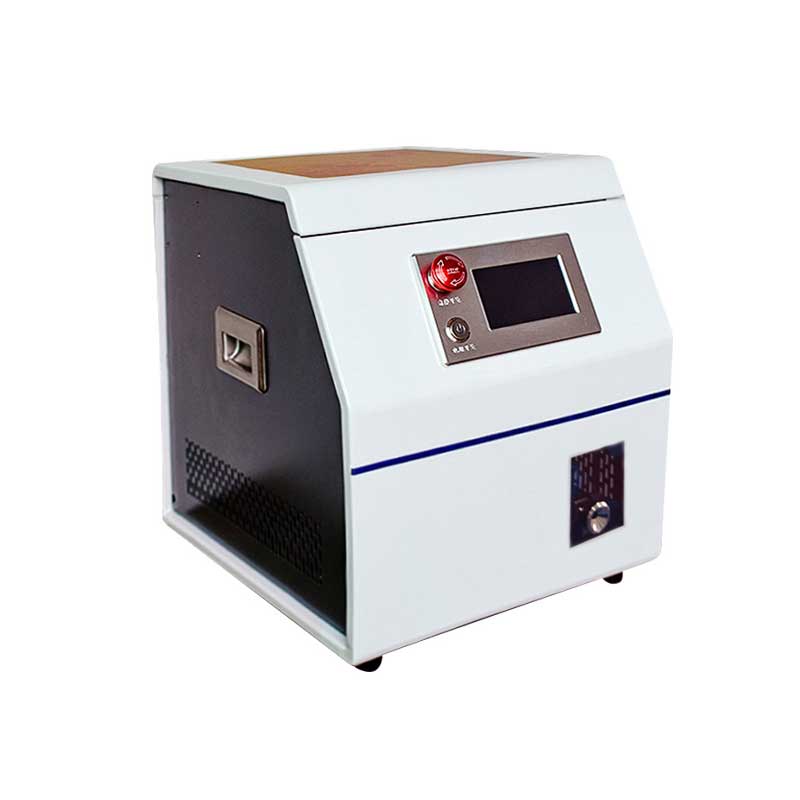

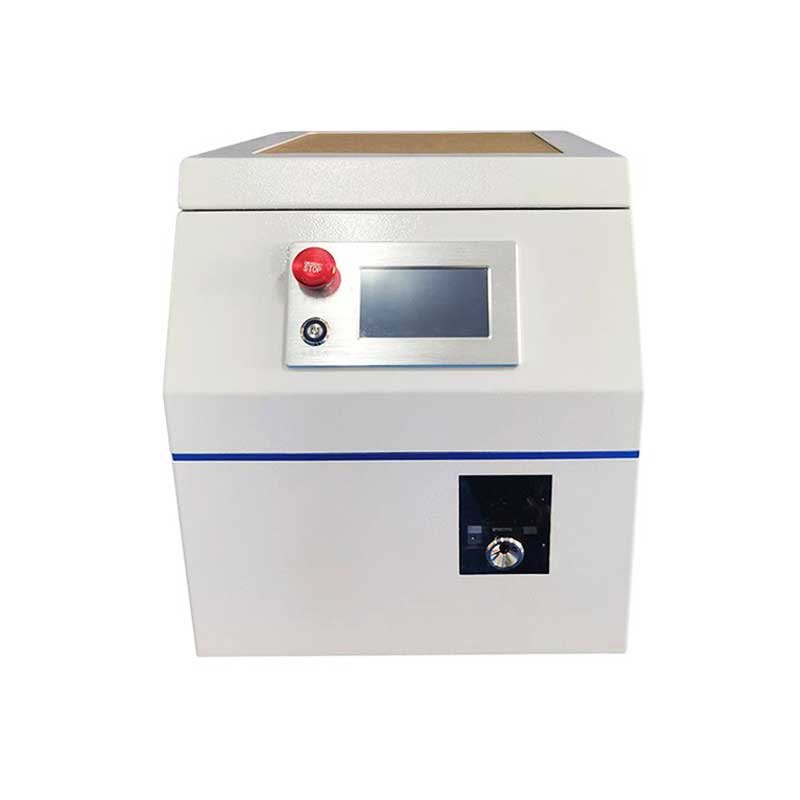

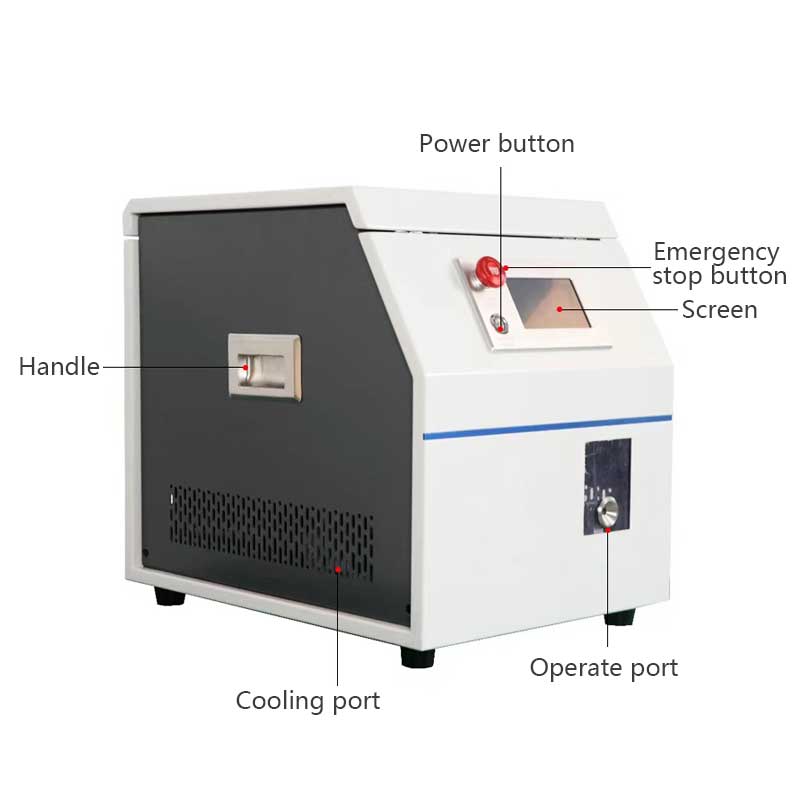

TS-R01 wire stripping and ferrule ring terminal crimping machine
Description
It can finish wire stripping, copper automatic ferrules crimping one time. Very good for multi-core cable.
Features:
1. The complex process can be simplified, finish wire stripping and ferrule crimping in one cycle. The efficiency is 3-4 times, which has a large cost advantage.
2. There is no need to change the vibration plate in the scope of the terminal, and instantly change the specifications of different terminals.
3. The strip diameter is automatically adjusted and the pressure height is adjusted automatically.
4. Sensitive pneumatic induction control is adopted, and the pressure is fast.
6. It is convenient and quick to replace the terminals by using vibrating disk feeding mode.
7. Machine stops working and sound alarm when lacks terminal.
Wire stripping machine and ring terminal crimping machine video:
Technical Data
|
Model
|
TS-R01
|
|
Function
|
Wire stripping and ring terminal crimping
|
| Available Wire |
BVR wire 0.5,0.75,1.0,1.5,2.5mm2
|
|
Available Terminal
|
Insulator length ≤7.5mm,conductor length≤10mm
|
|
Stripping Length
|
Max.17mm
|
| Production Rate |
2.5s /wire
|
|
Air supply
|
0.6-0.8Mpa
|
| Power |
AC220V/110V
|
| Dimensions |
40KG
|
| Weight |
35*45*40cm
|
Application
Wire stripping and ring terminal crimping
