Model: PF-S80
It is suitable for various big size wires and cables spool.

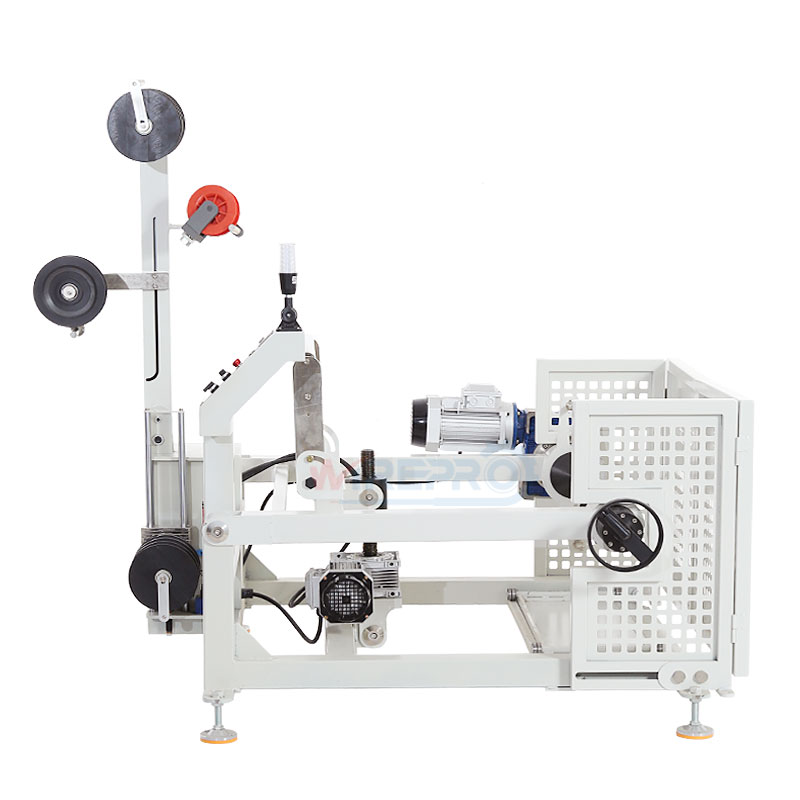

PF-S80 wire spool payoff machine automatic cable dereeler
Description
Wire spool automatic dereeler

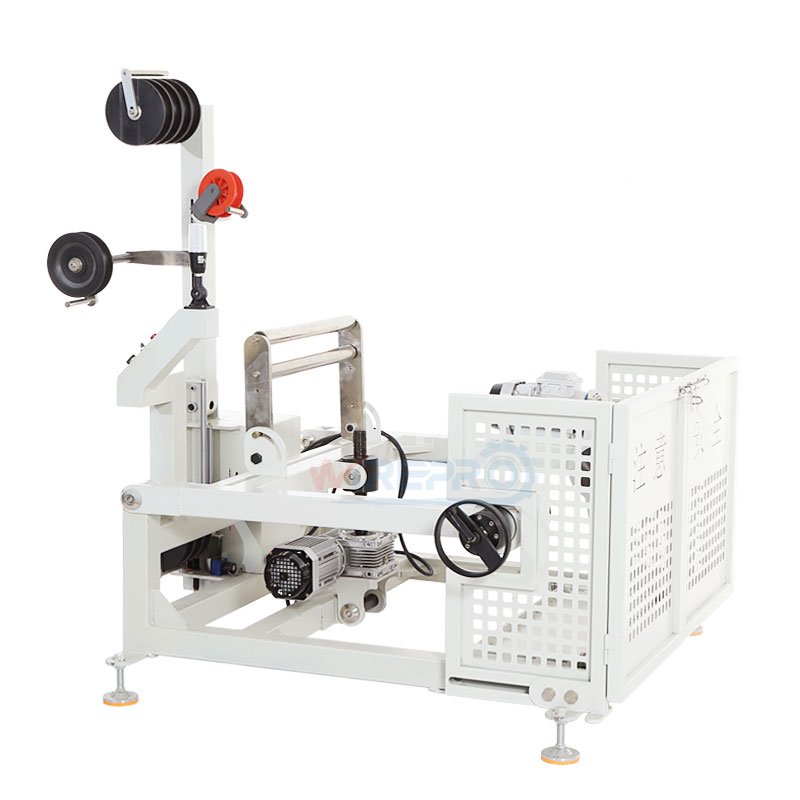

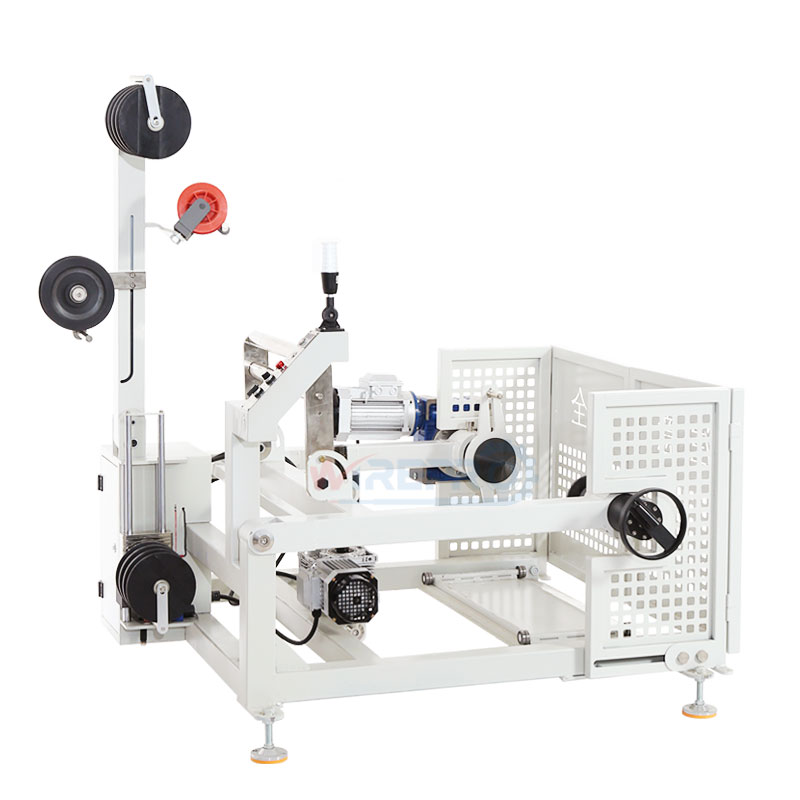

PF-S80 is an automatic wire spool payoff machine, also called an automatic cable dereeler.
It generally works with automatic machines, like wire and cable cutting & stripping machines.

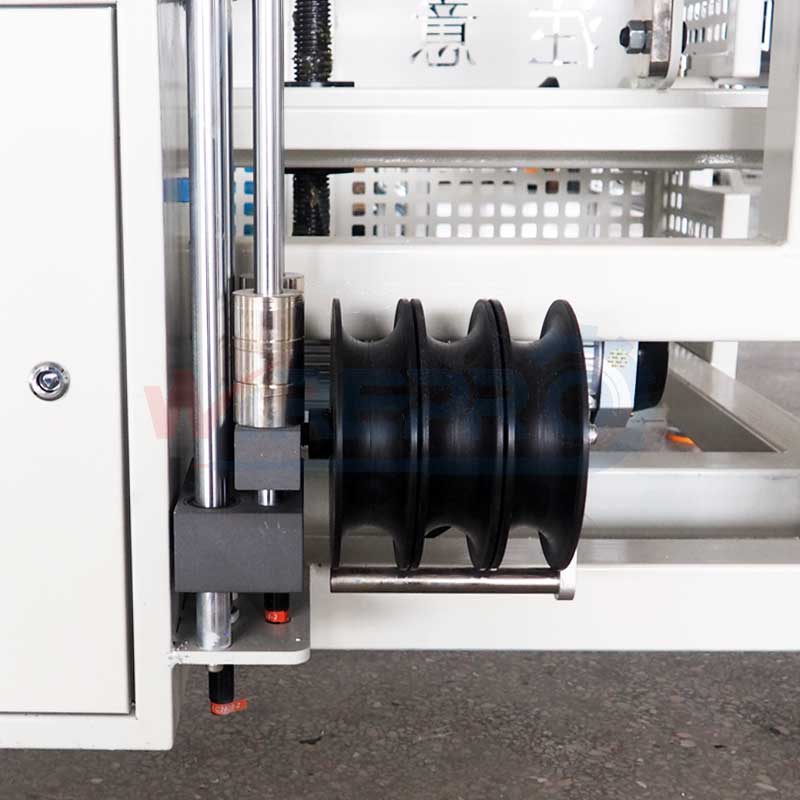

When the automatic machine works, the PF-S80 tension wheel moves accordingly, and the potentiometer rotates through the sprocket, and the potentiometer feeds back the signal to the inverter to control the speed of the pay-off motor, thereby controlling the feeding speed.
wire spool automatic dereeler
Technical Data
| Model | PF-S80 |
| Available Wire Diameter | ≤ Φ40mm |
| Available Spool Outer Diameter | 500 -1000mm |
| Available Spool Inner Diameter | 53 – 85mm |
| Available Spool Width | 480 – 800mm |
| Max Load Weight | 700kg |

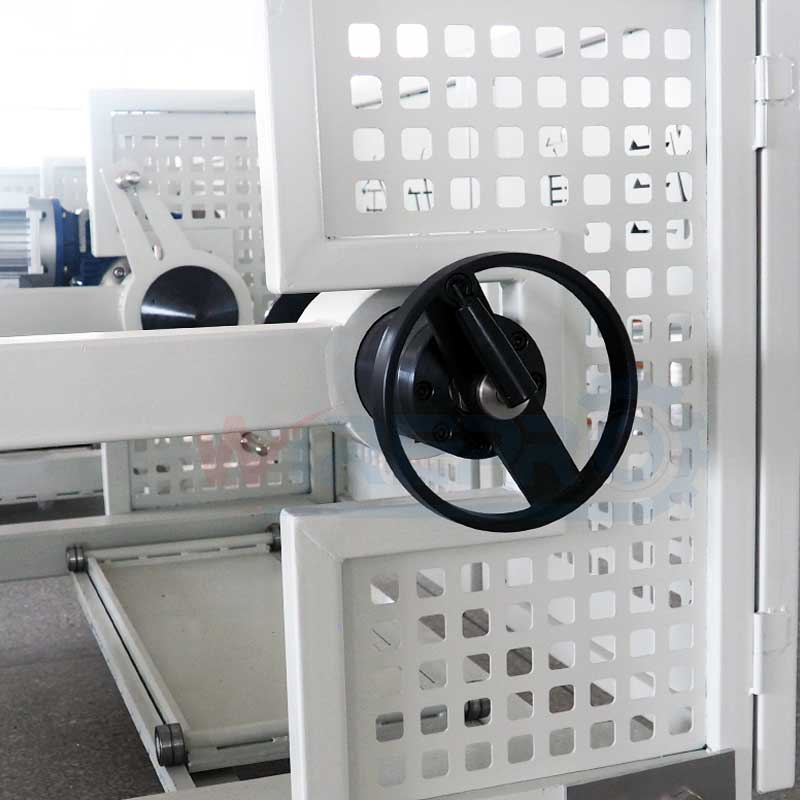

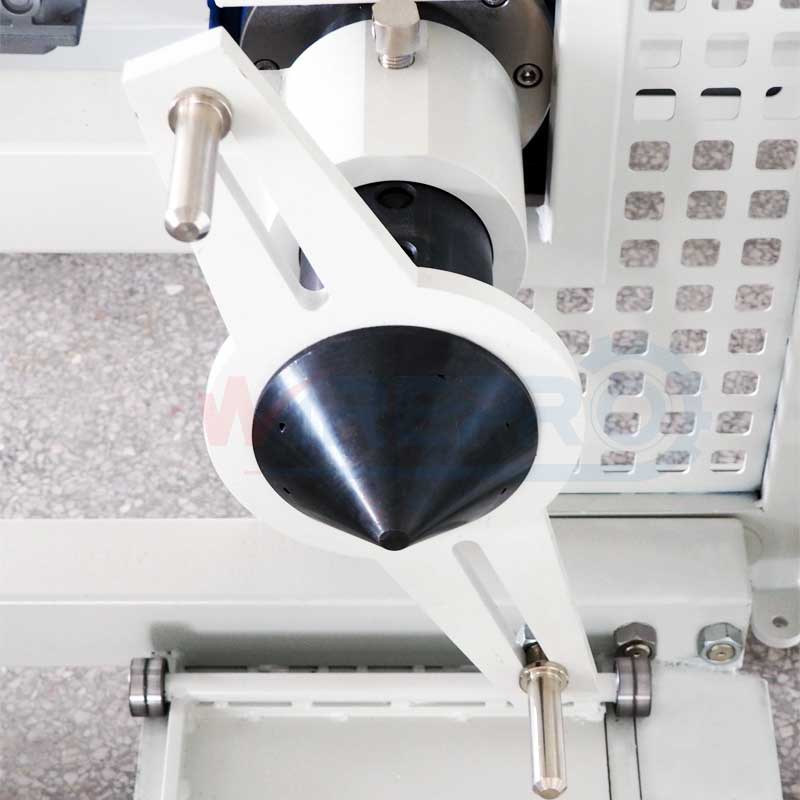

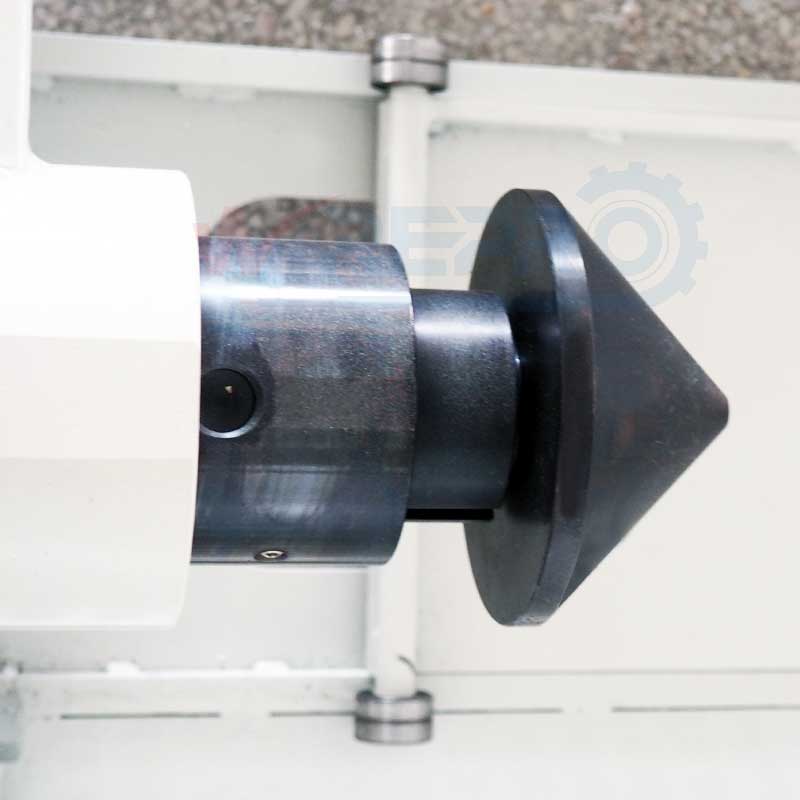

| Spool Installation | Electric lifting, double clamp top press type |
| Feeding Speed | Adaptive speed regulation |
| Power Supply | 380V, 3-phase |
| Power | 3000W |
| Available Wire | Wire, cable etc. |

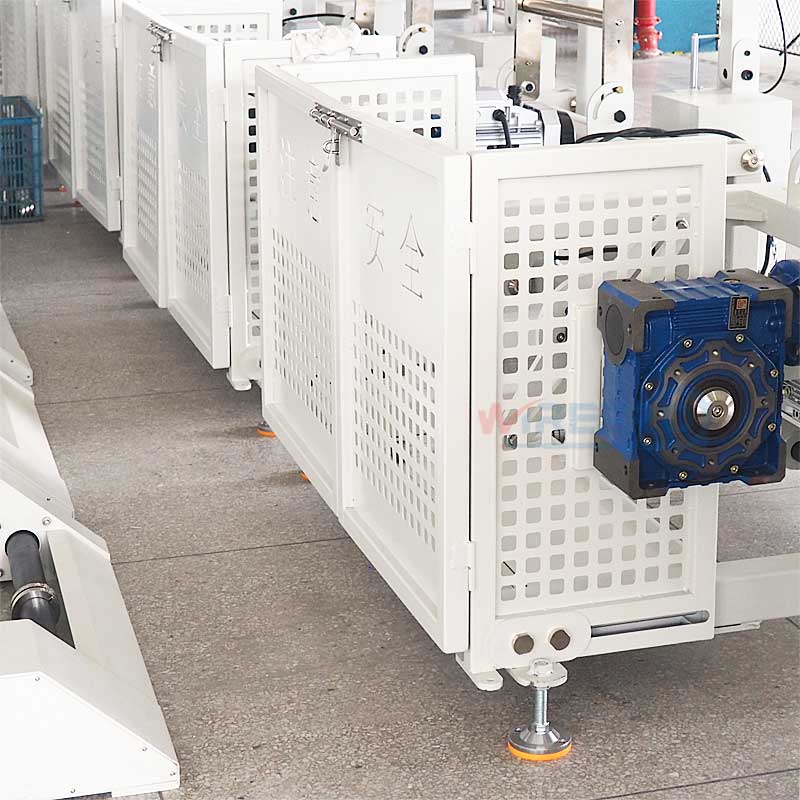

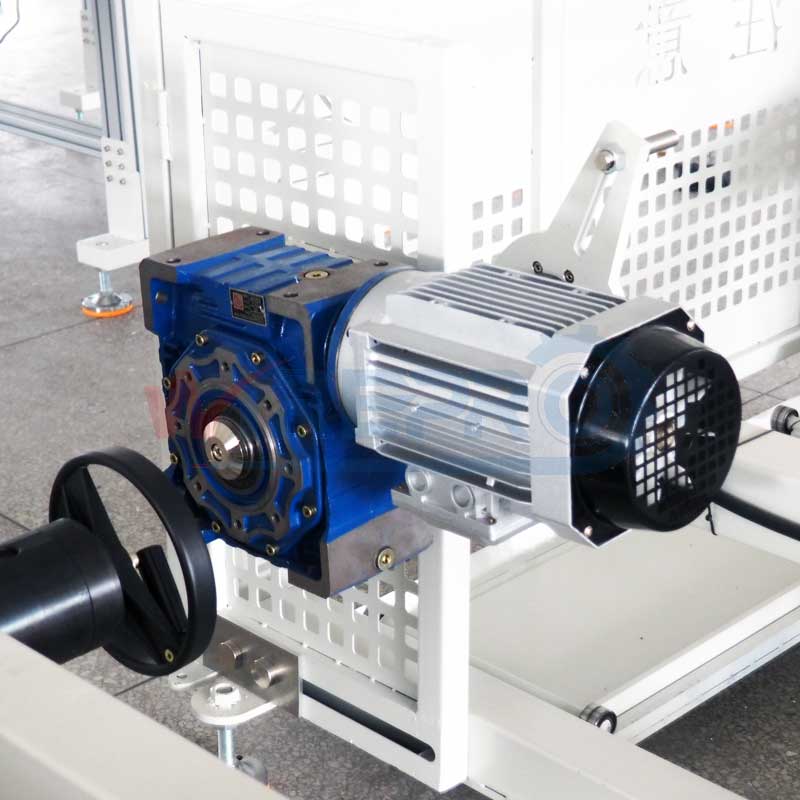

| Drive Type | Inverter & motor & reducer |
| Dimensions | 165*180*160 cm |
| Packing Dimensions | 175*190*170 cm |
| Weight | 450kg |
Application
This fully automatic wire feeder eliminates the trouble of manual wire feeding.
