Model: SP-R30
Rotary knife stripping, widely used in single-strand soft wire, multi-strand soft wire, hard wire, sheath wire, flat wire stripping, etc.

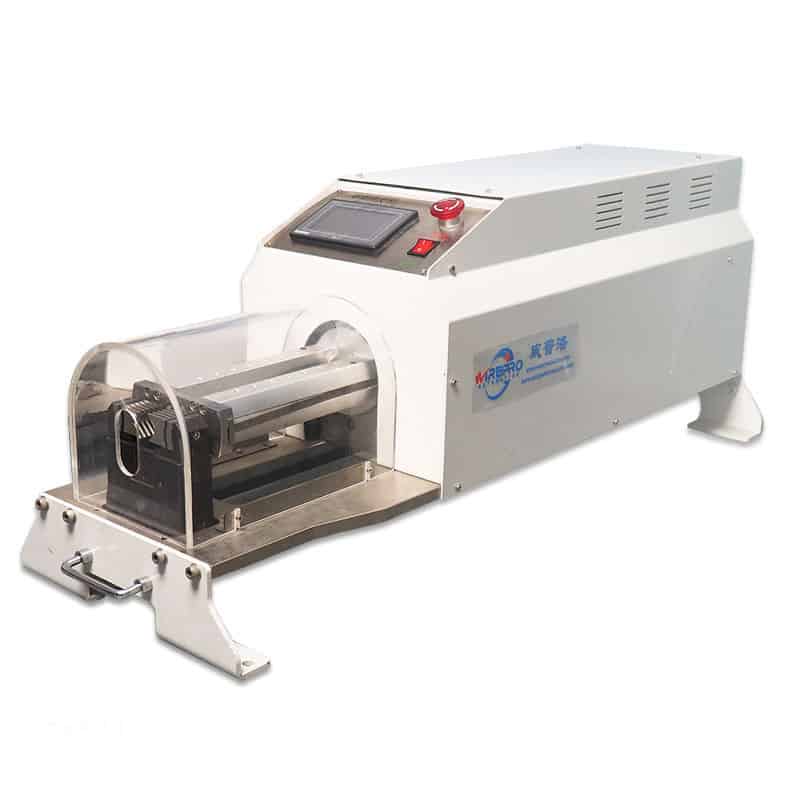

SP-R30 wire sleeve remover cable rubber jacket stripping machine
Description
This series of semi-automatic rotary knife stripping machines are designed for extremely difficult processing big-size cables, wire sleeve remover. Widely used in single-strand soft wire, multi-strand soft wire, hard wire, sheath wire, flat wire stripping, etc.
1. Large diameter cable is available
2. Strong stripping ability
3. With special axial positioning and double-rotating blade cutter tools,high-precision rotation
4. Good performance and cost-effective
Cable rubber jacket stripping machine video
Technical Data
| Model | SP-R30 |
| Features | Pneumatic rotary stripping |
| Available Wire Dia | 12-50mm |
| Stripping Length | 1-300mm |
| Stripping Tolerance | ±0.2mm |
| Production Rate | 10-30 pcs/min |
| Cutting blade Stroke | 0-34mm |
| Control System | Dedicated controller |
| Air Connection | 0.5-0.7 Mpa |
| Power Supply | 110/220VAC, 50/60Hz |
| Power | 300W |
| Weight | 160kg |
| Dimensions | 140*35*43cm |
Application
The series machines are designed for stripping big-size cable.
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
