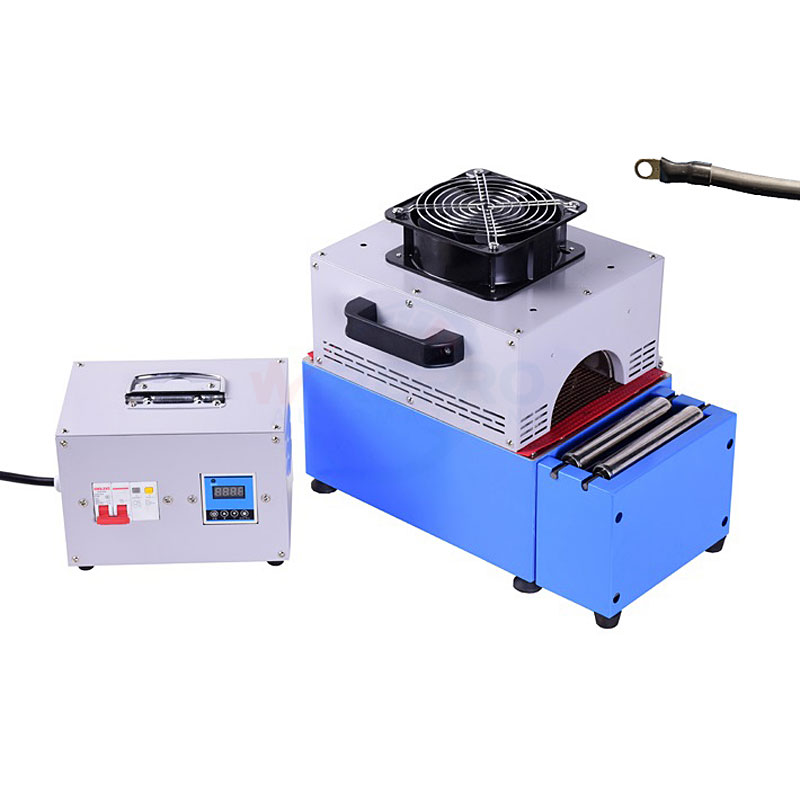

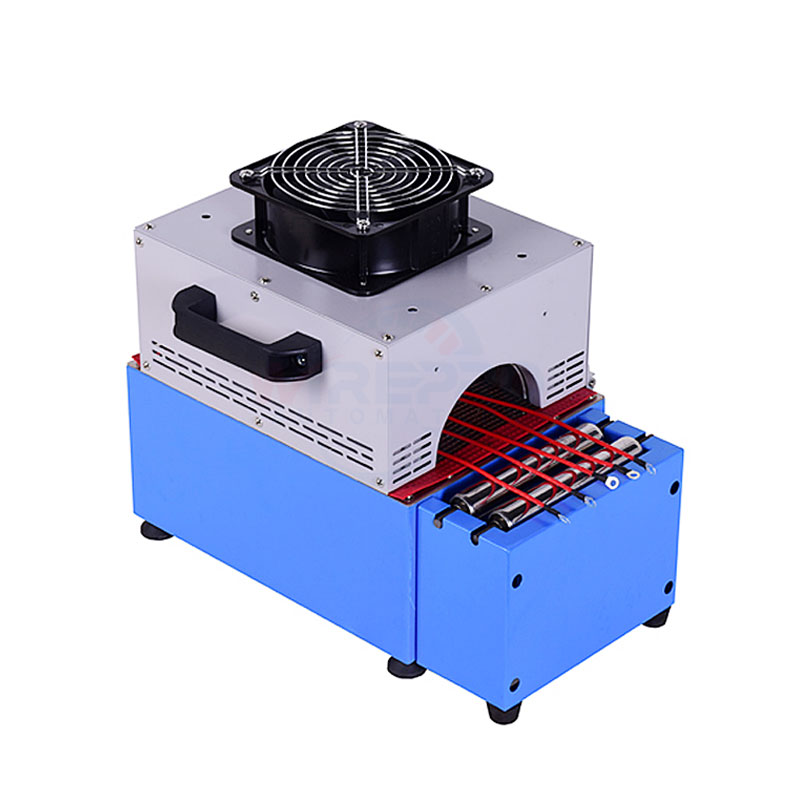

The RS-M60 Wire harness shrinking ovens, it’s a shrink sleeves heater tunnel, with a semicircular heating part.
The shrinking time is short, suitable for any length of wire harness, heating many tubes one time, can work continuously for 24 hours without interruption.
Equipment composition: heating system + control system

Features:

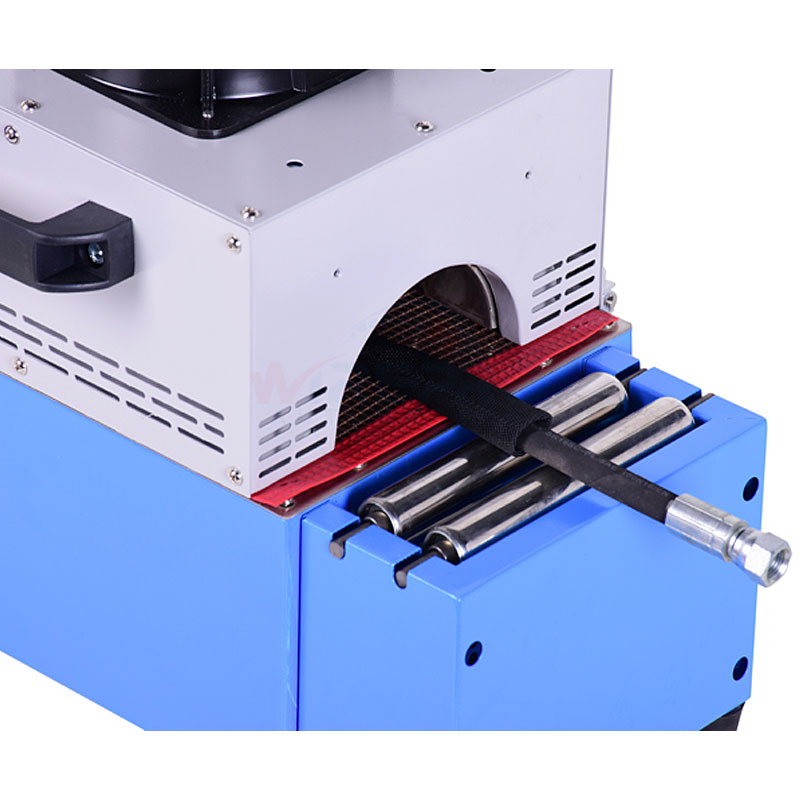

1. It adopts approximately half-enclosed ring-shaped infrared radiation heating to increase the uniformity of heating.
2. Two heating control modes:
The tube is approached, triggered by induction, and heating.
Run in automatic cycle heating start-stop mode.
3. Heating time
Can adjust the heating time according to the requirements of the production process. The heating time and stop time of the heat-shrinkable tube can be set freely.
4. Heat insulation design of heating zone
The double design of the heating zone shell is filled with thermal insulation material to isolate the internal and external temperature, which saves energy and protects the working environment.
