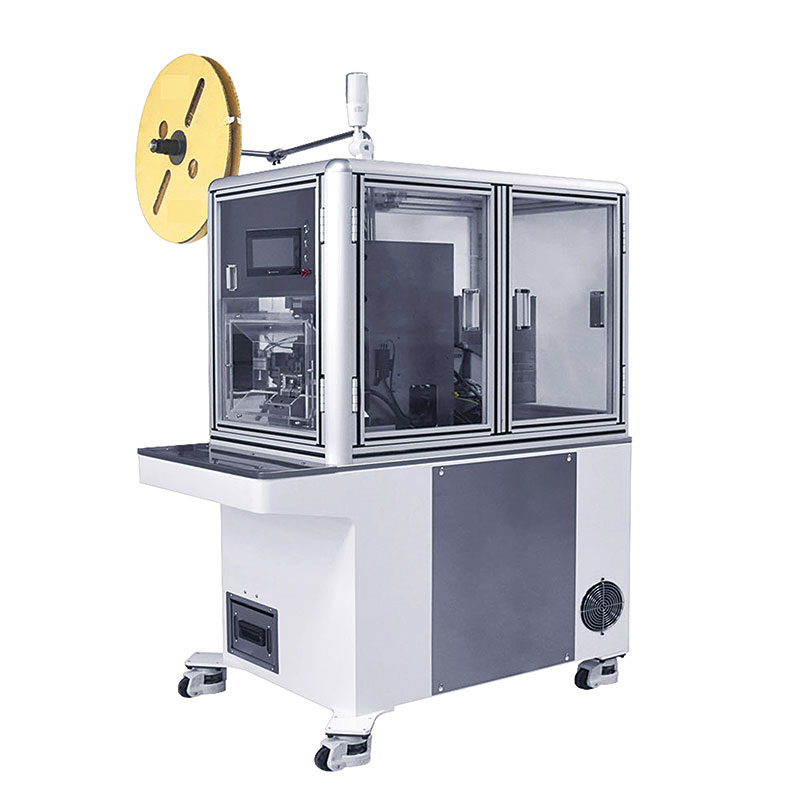

TS-W01 wire connector seals loading wire stripping and crimping machine

Model: TS-W01

TS-S01 is a semi-automatic rubber wire seal loading machine. It has an automatic feeding system for wire seal, the operator just needs to put the wire in the designated position, the machine will strip, twist wire, load wire seal, and crimping terminal.

Description

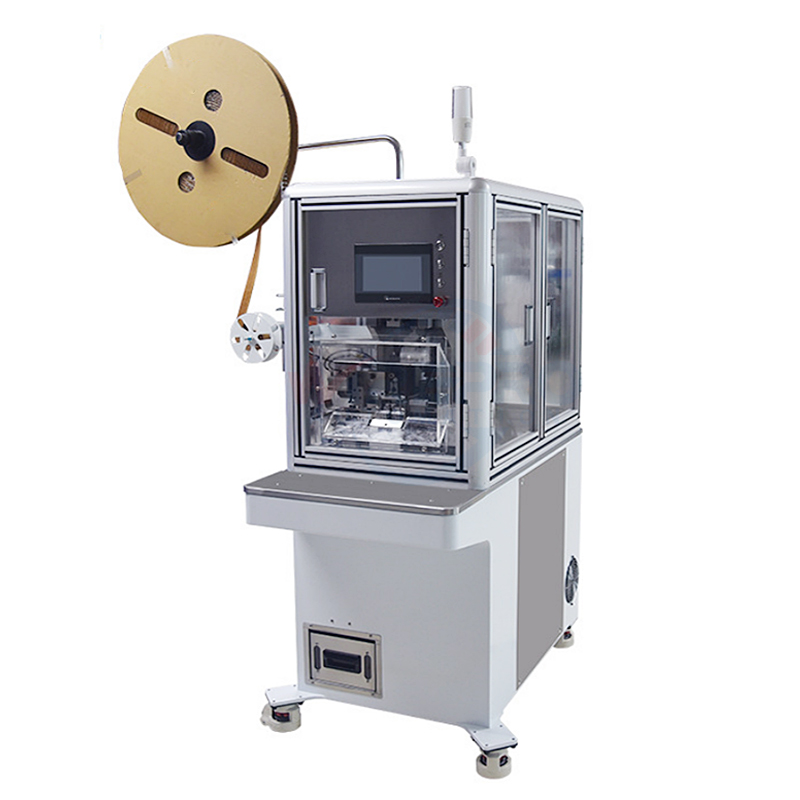

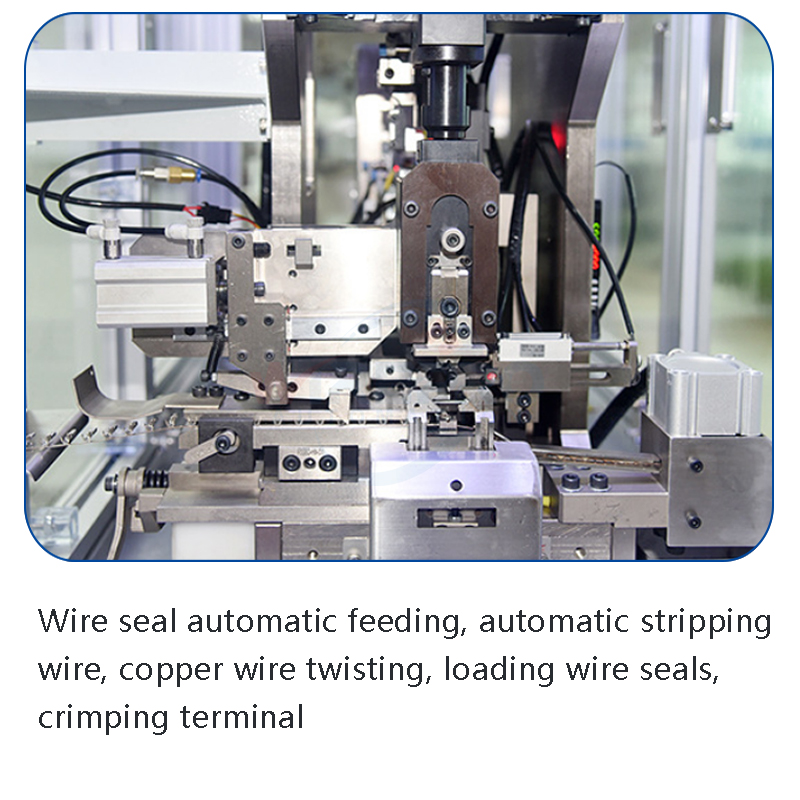

TS-W01 is a semi-automatic machine, it realizes the three processes of wire seal loading, wire stripping twisting, and terminal crimping at the same time.
The biggest highlight of this machine is that it can custom two-wire stripping and two wires seal load together.
This machine adopts servo drive and guide rail screw positioning.
Features
1. The stripping length can be adjusted via data sets, and the wire seal insertion depth is adjusted according to the data of the glue position between the stripping port and the wire seal.

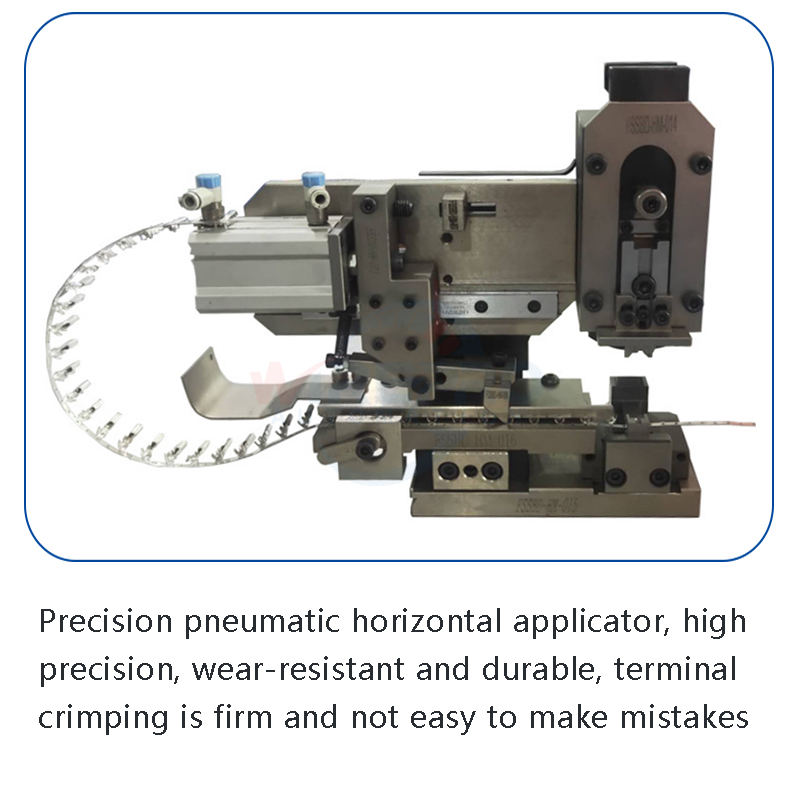

2. The crimping depth can be adjusted according to the position of the top wire.

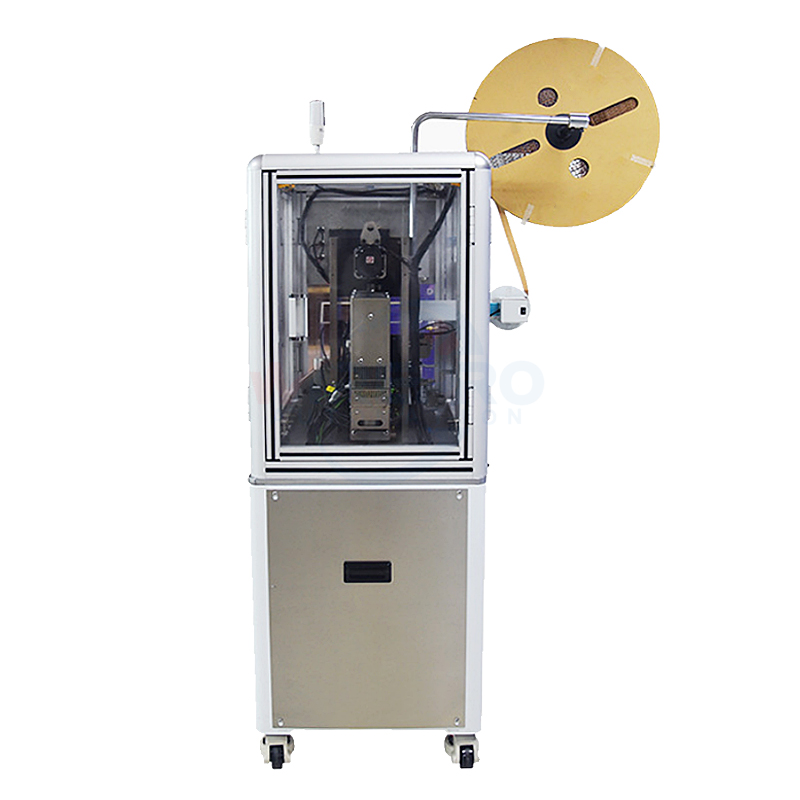

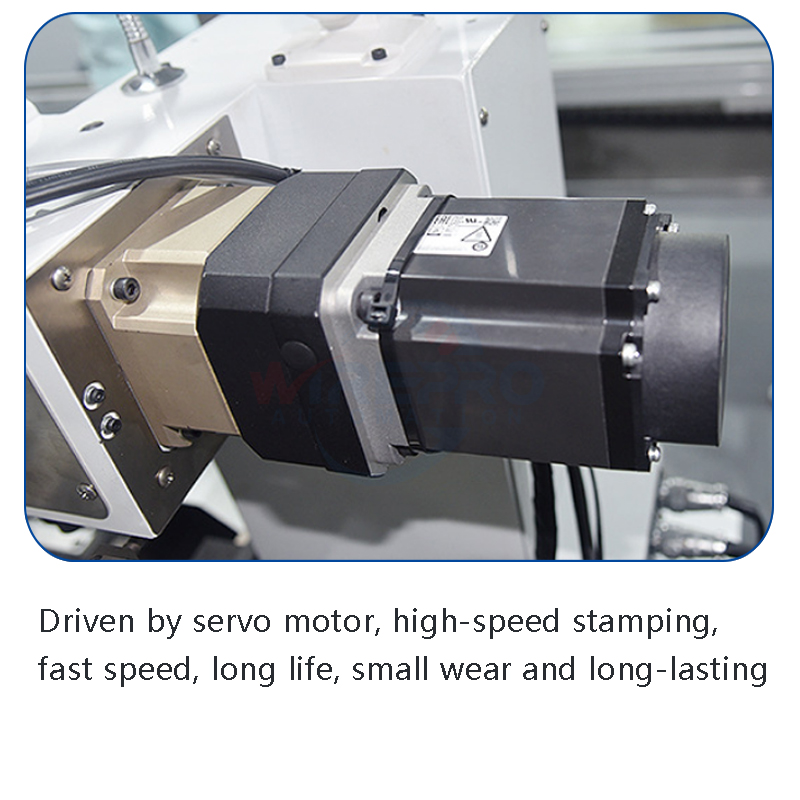

4. The stripping slide table is driven by a screw rod, stripping mechanism is driven by a motor plus screw to ensure accurate stripping length.
5. The waterproof wire seal feeding structure is simple and easy to replace, which meets the requirements of customers with many products and varieties.

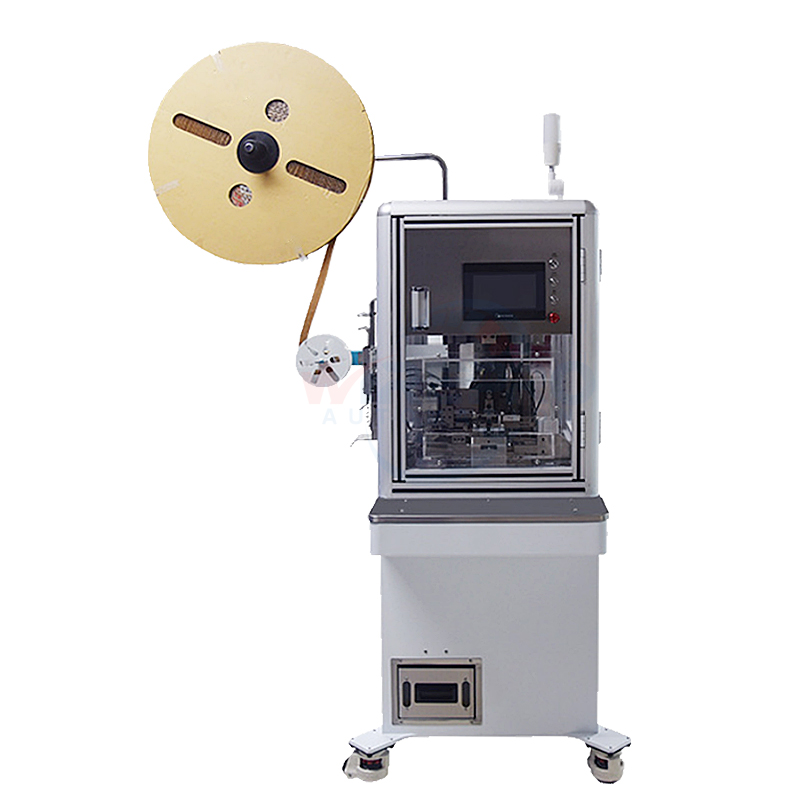

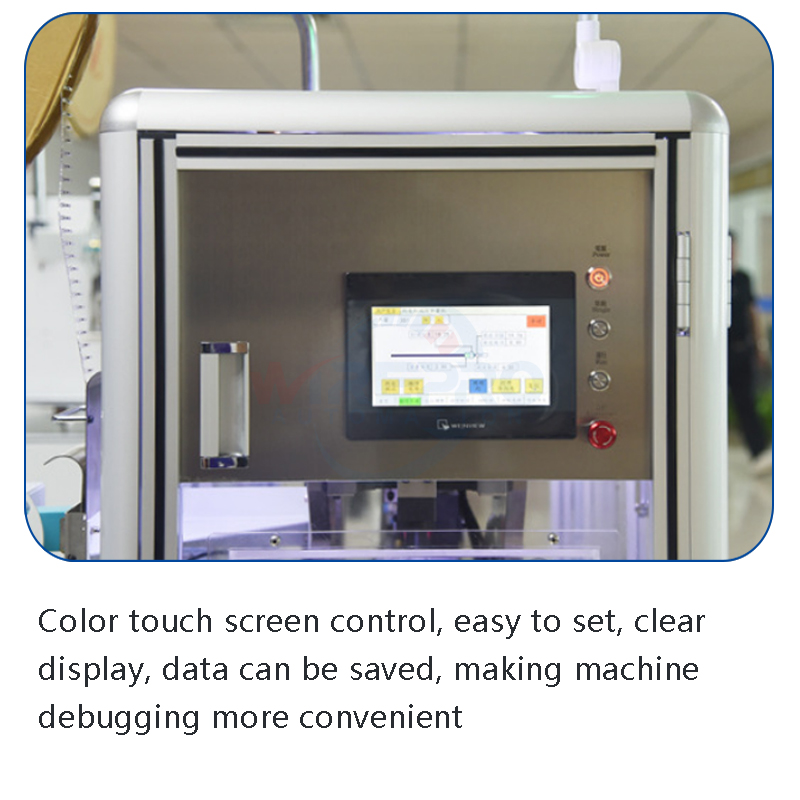

6. The machine is easy to operate, stable in quality, and most work is concentrated in one workstation.

Technical Data

Model TS-S01
Avaliable Wire 0.2-2.5 sqmm
Avaliable Wire seal  ≤ 10 * 10mm
Stripping Length 0-10 mm
Crimping Force  3T
Stroke 40mm
One Process Time 2.5 seconed
Air Supply 0.5~0.7Mpa
Power Supply AC 220
Dimension L850*W880*H1300 mm
Weight 300KG
Notice:  need to customize feeding rail according to different wire seal

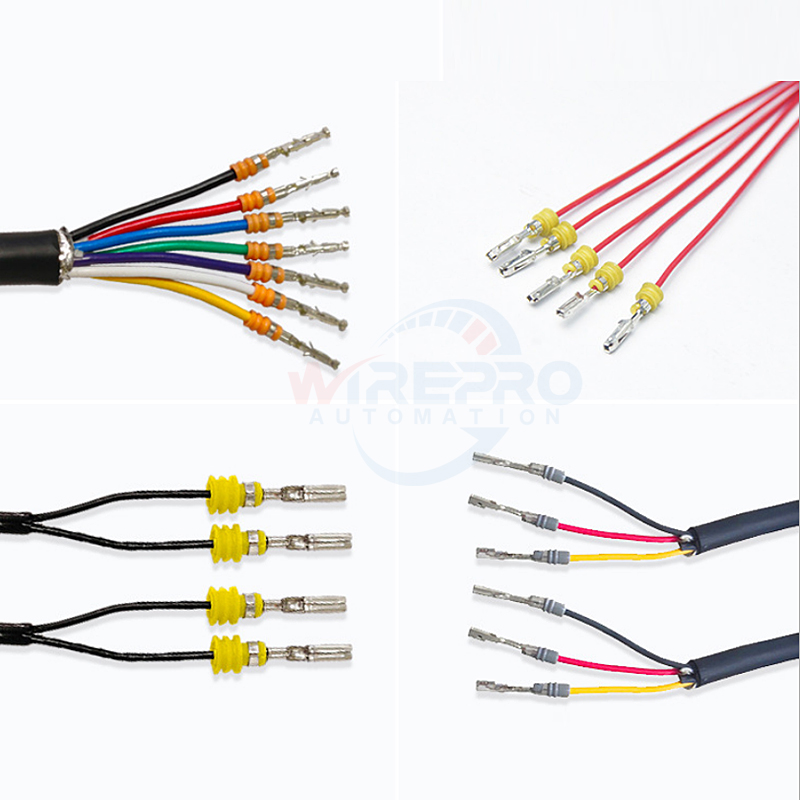

Application

1. Terminal crimping monitoring device
2. Flat feeding type wire seal rail jig

Download

If you wish to have the datasheet of this or other products, you can let us know here: CONTACT

Or email to [email protected], we will send you the machine introduction.
