Model: HB-B35 HB-B45 HB-B80
This machine can wind wire to round shape & 8 shape and automatic cut the cable tie & twist it.

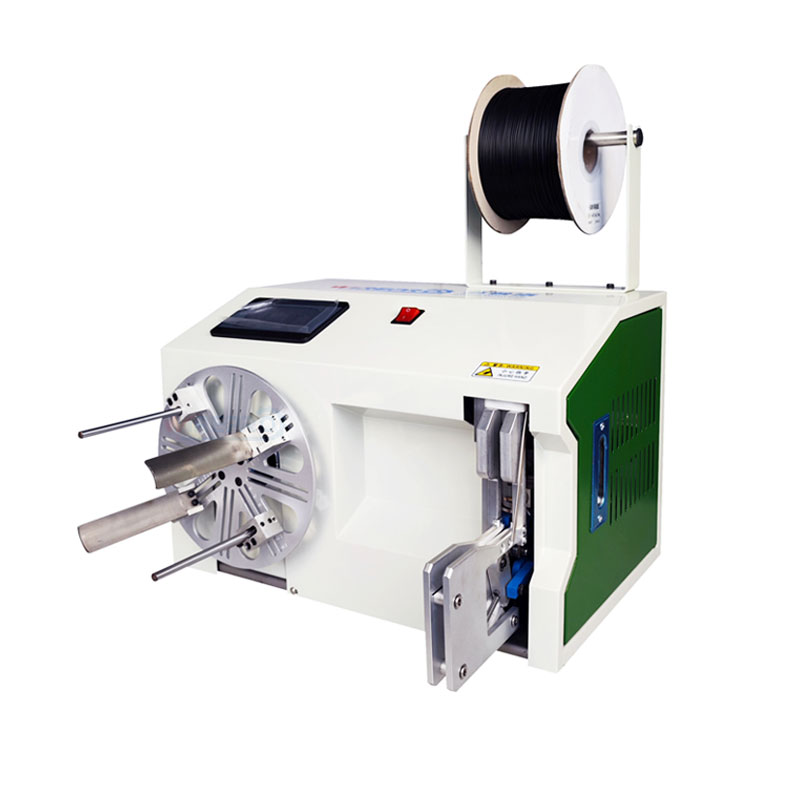

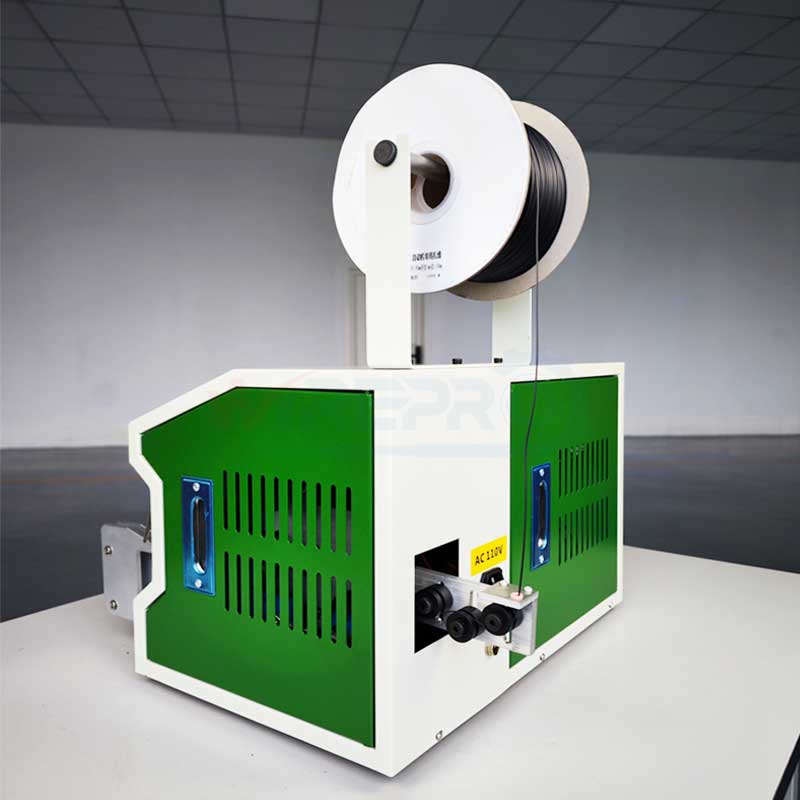

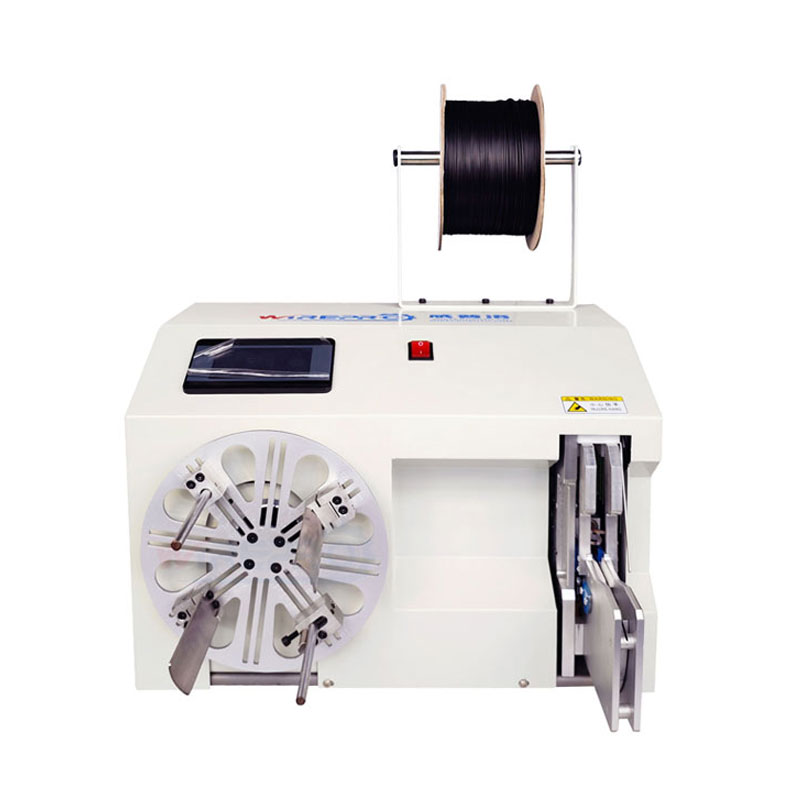

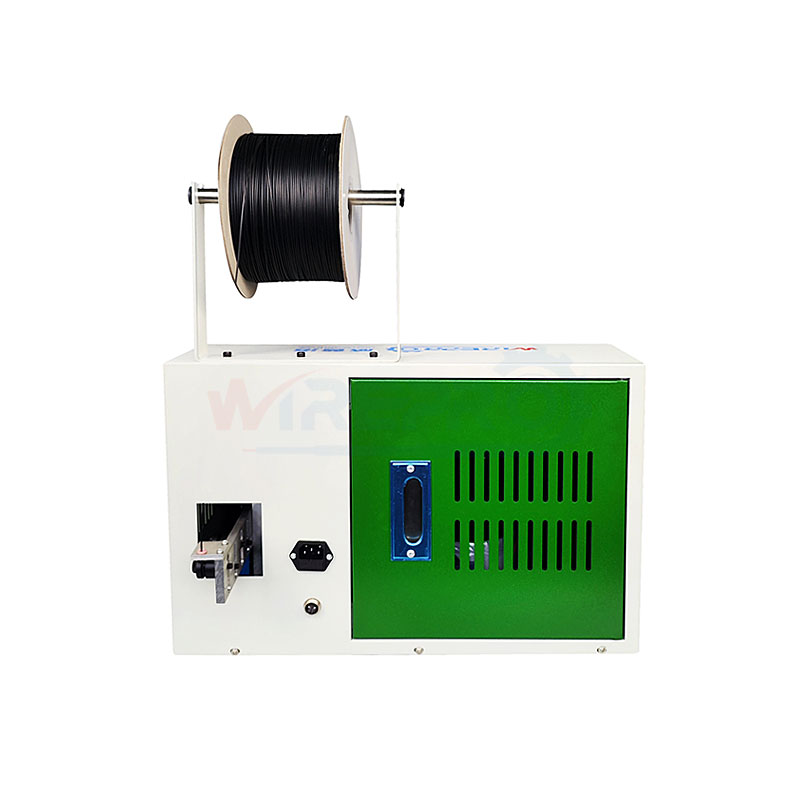

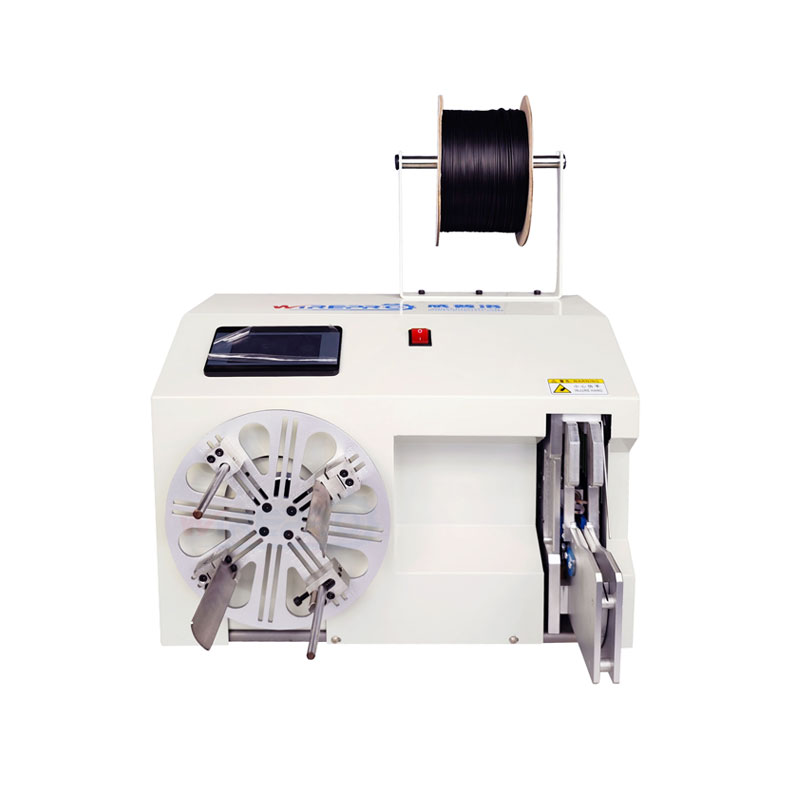

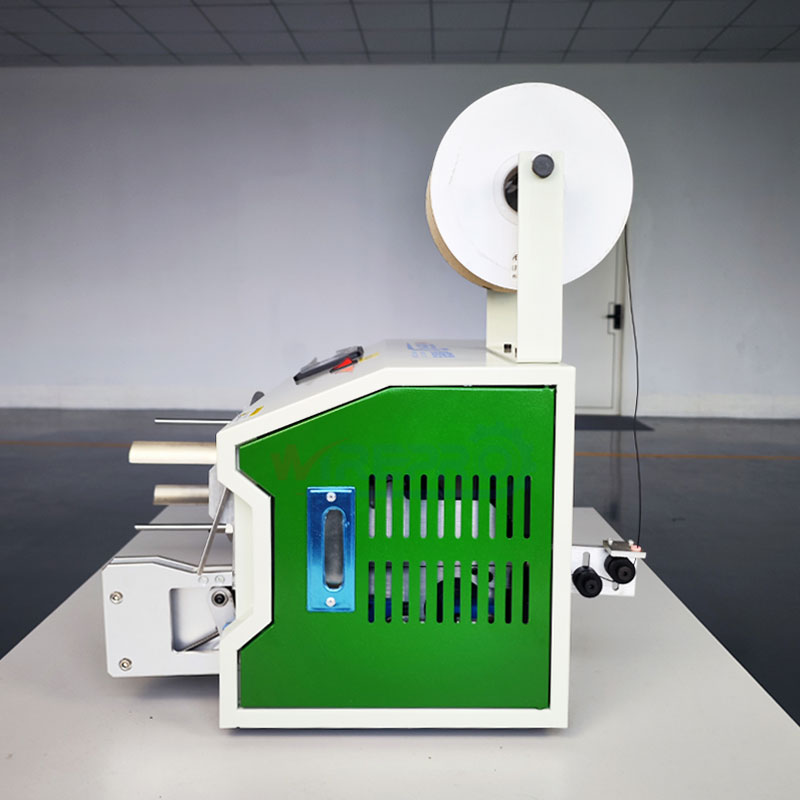

HB-B35 HB-B45 HB-B80 wire coiling and cable bundling machine
Description

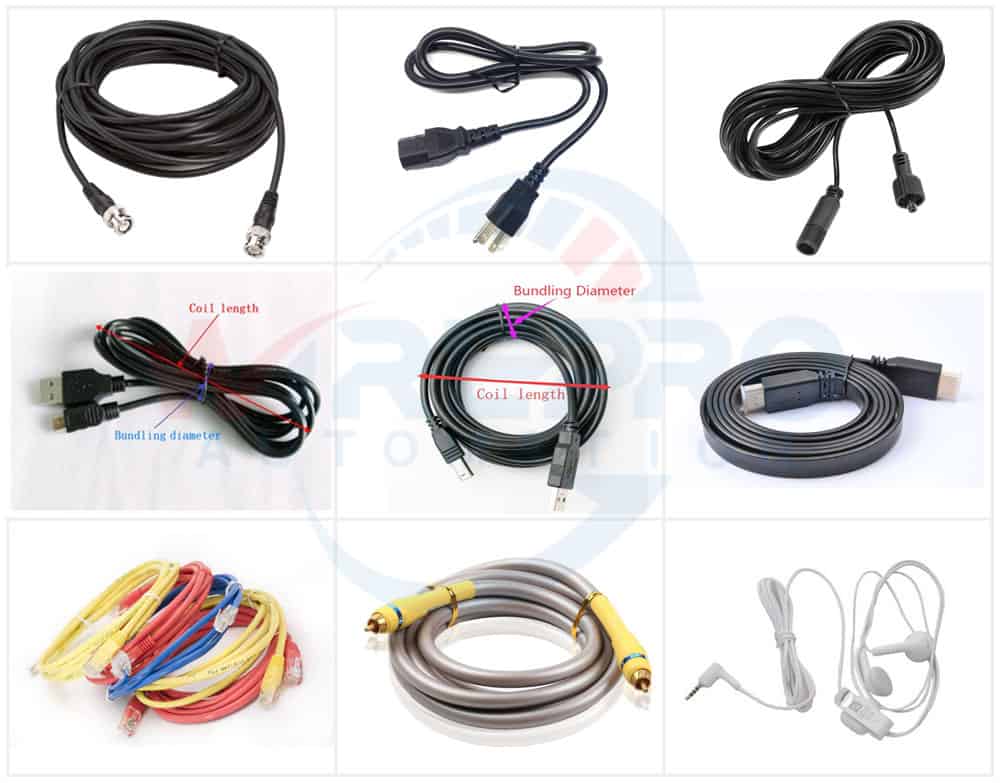

This semi-automatic coiling and tying machine is versatile, designed for winding and tying various types of cables and tubes, including USB cables, headphone cables, AC/DC power cables, network cables, telephone cables, audio/video cables, HDMI cables, water hoses, rubber tubes, and more.
Operate steps:

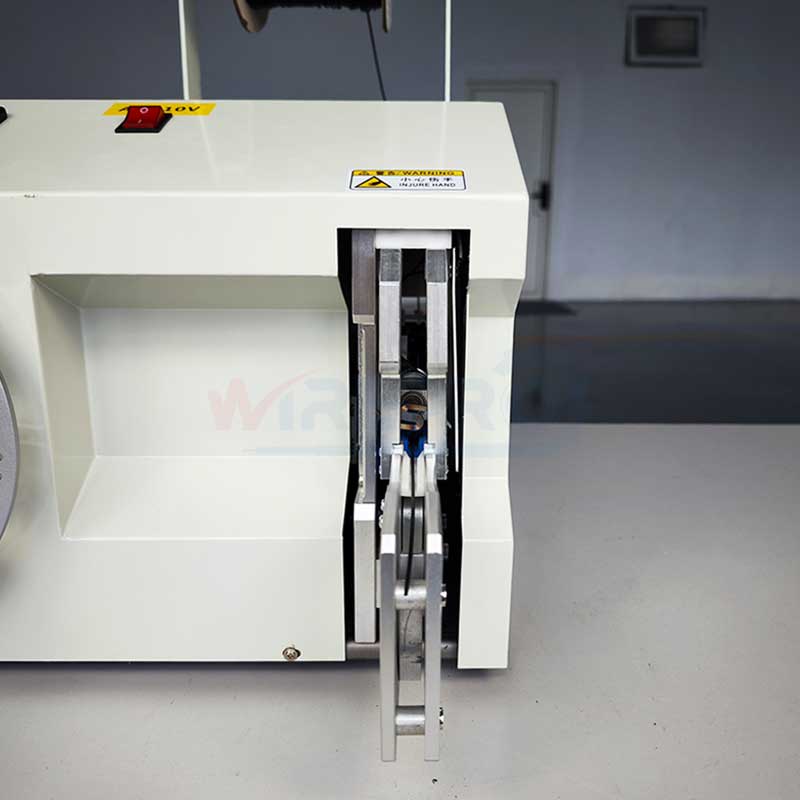

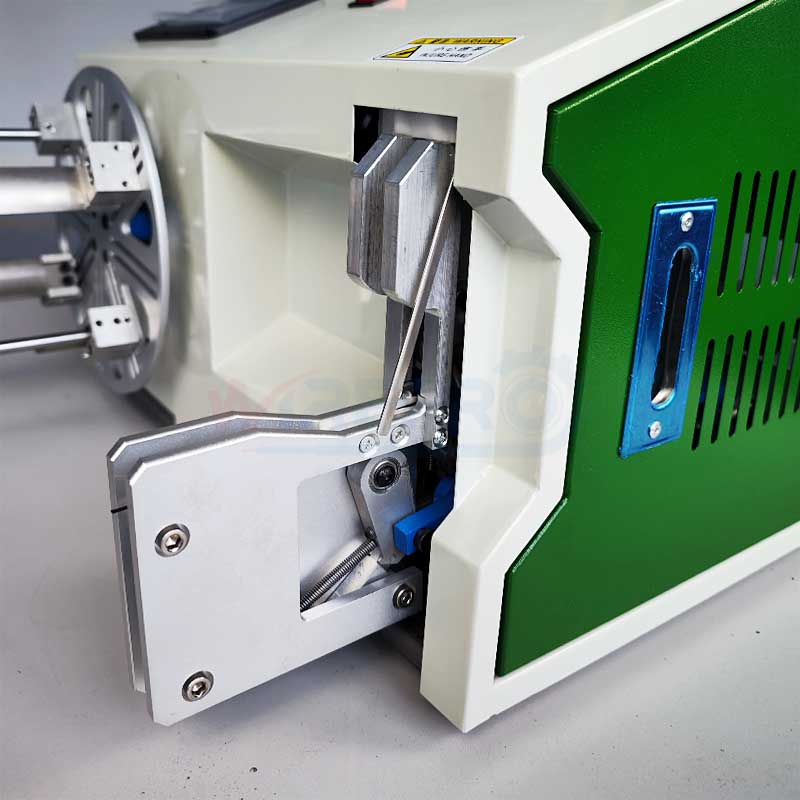

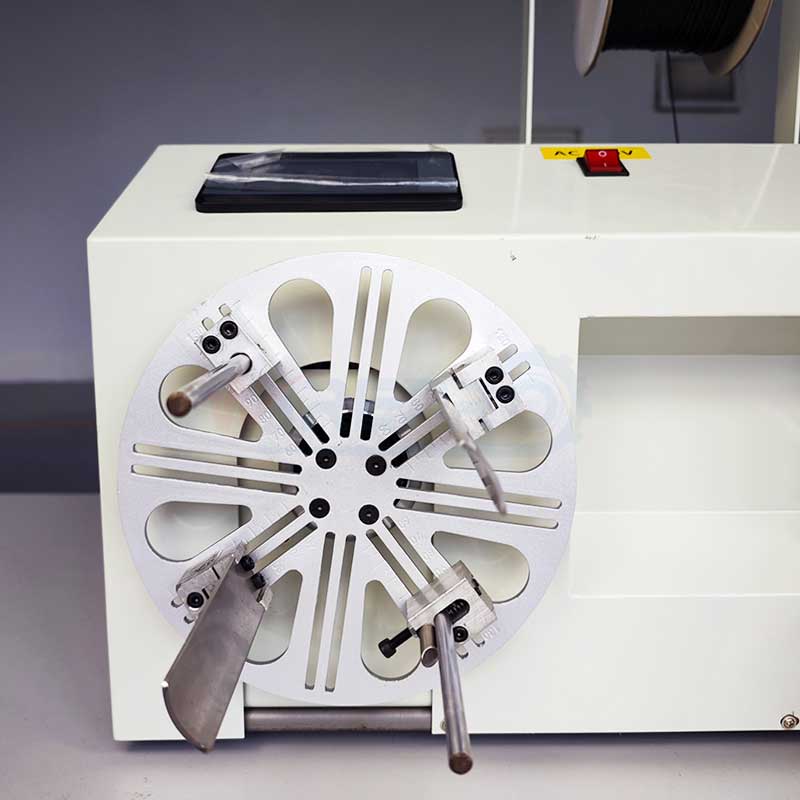

All that’s required is to place the wire on the winding port and depress the foot pedal once to initiate automatic winding. Then, simply position the coiled wire at the tying port, and the machine takes care of the tying process automatically.
Features:
1. It boasts LCD text parameter setting, ensuring user-friendly operation.
2. Utilizing a stepper motor, this machine simplifies the process for workers.
3. Moreover, the machine allows for customization of the number of coils, the number of ties, and the length of the cable tie to meet specific requirements.
4. For added convenience, the motor comes equipped with brake control, enabling the reel to be precisely turned and stopped at a designated point, facilitating subsequent operations.
Video:
| Model | HB-B35 | HB-B45 | HB-B80 |
| Length of 8 Shape | 50-200mm (can be adjusted, can be customized) |
50-300mm (can be adjusted, can be customized) |
|
| Dia of Round Shape | Φ50-200mm (can be adjusted, can be customized) |
Φ50-300mm (can be adjusted, can be customized) |
|
| Bundling Diameter | Φ8-30mm | Φ18-45mm | Φ40-80mm |
| Cable Tie Length | 75-140mm | 120-200mm | 220-300mm |
| Winding Speed | 1-13 r/s, can be set, | ||
| Number of Bindings | Can be set, 2-6 cycles is good | ||
| Cable Tie | Plastic or rubber coated iron core wire | ||
| Power Supply | 110/220VAC,50/60Hz | ||
| Power | ≤200W | ≤250W | ≤300W |
| Dimensions | L48*W43*H35cm | L48*W43*H35cm | L55*W61*H42 cm |
| Weight | 40kg | 42kg | 70kg |
Application
Wire roll, small wire spool winding
