Model: HB-AB0

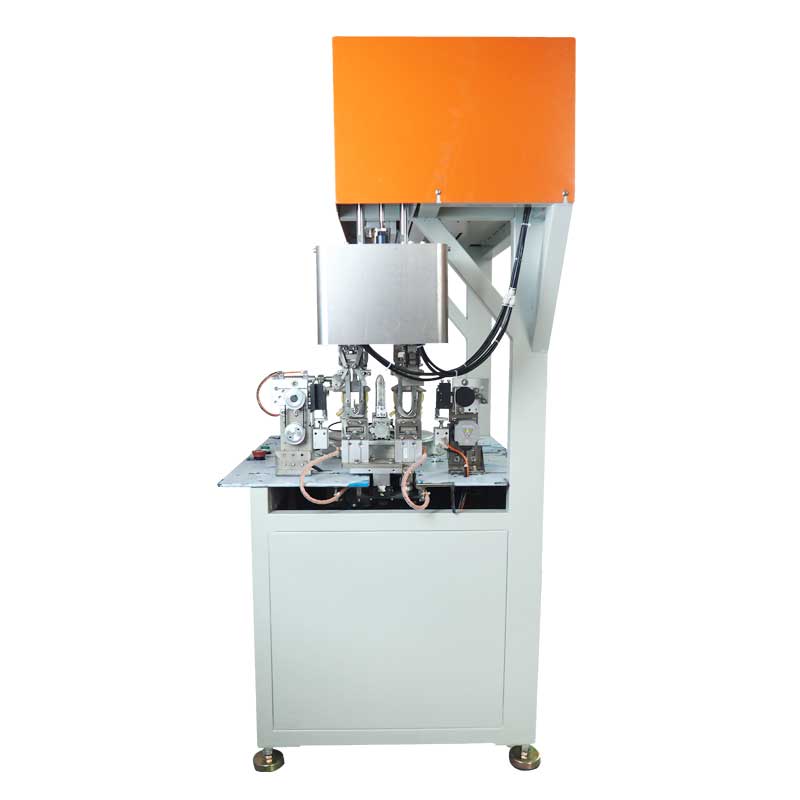

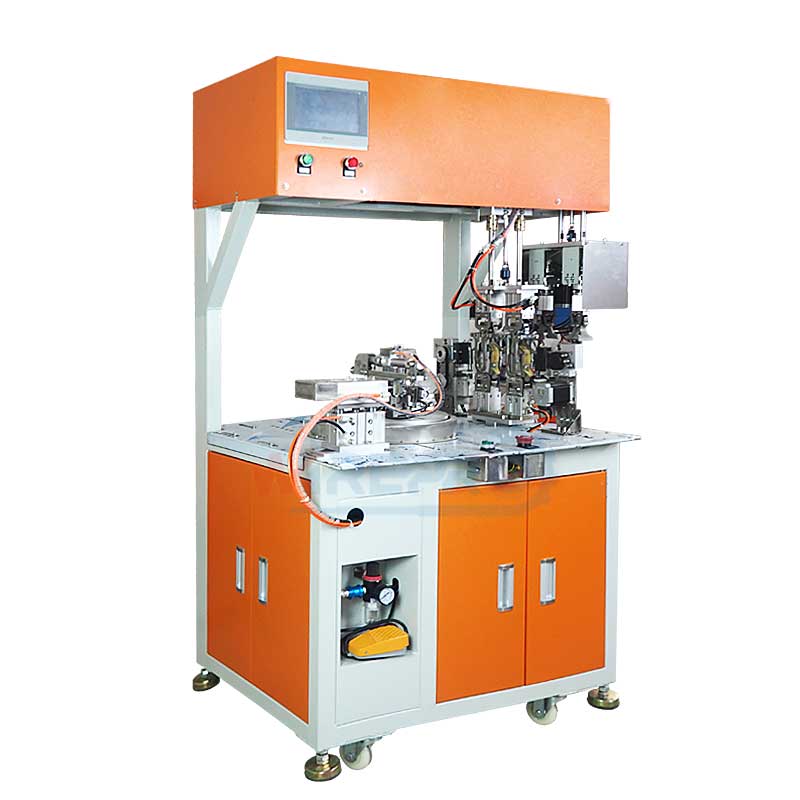

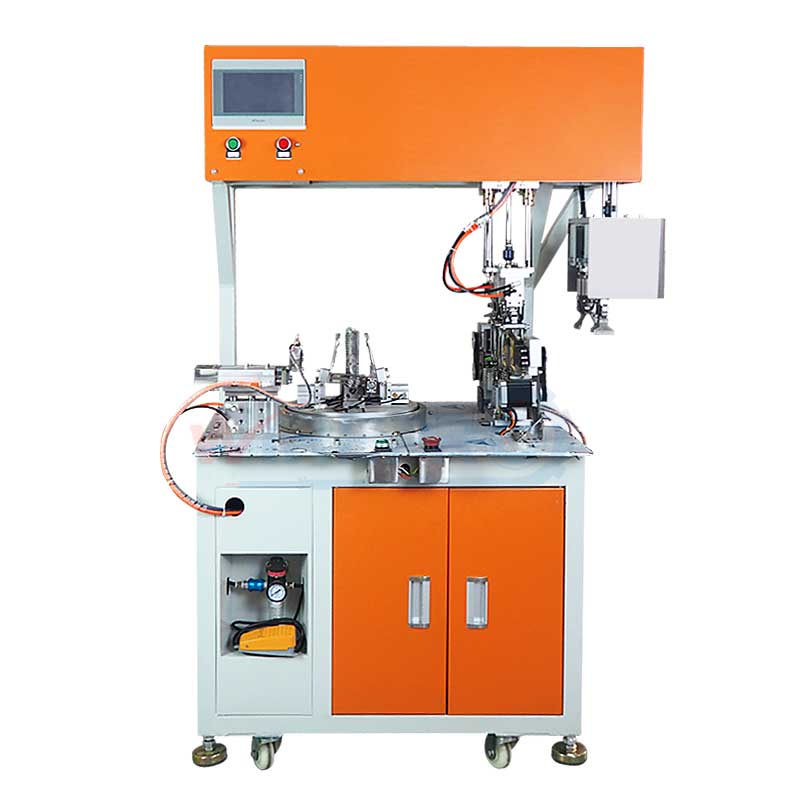

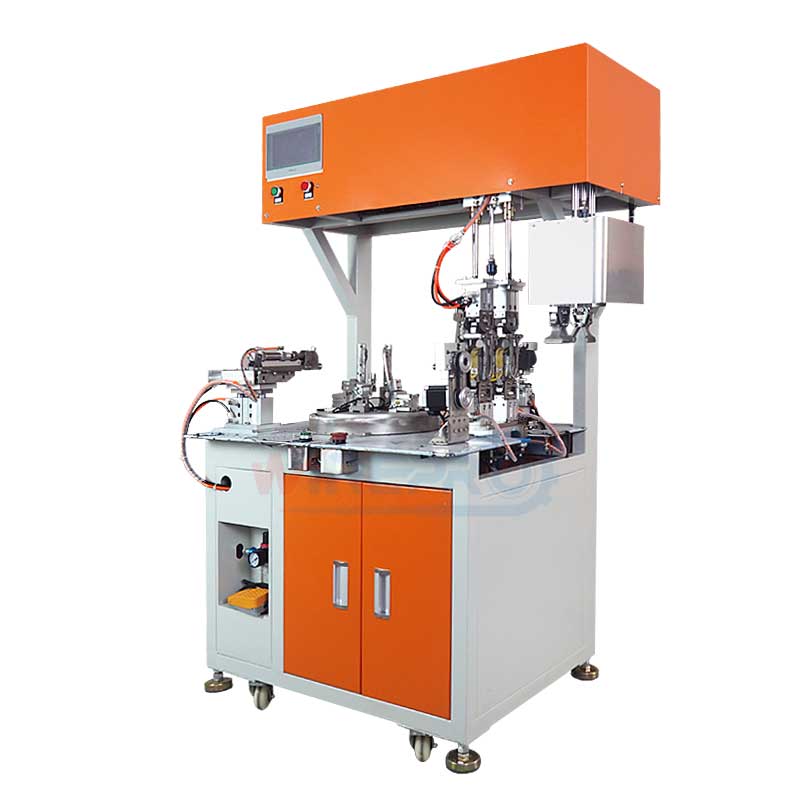

HB-AB0 wire cable round shape winding and automatic bundling machine
Description
HB-AB0 machine function: automatic winding circle shape and bundling coil. It suits different size materials, like the variety of wire, pipe and string materials etc.
1. Humanized design to reduce the fatigue strength of the operator
2. High performance, speed up to 1200 per hour, save labor costs
3. Strong compatibility, applicable to a variety of materials
4. Small size, easy operation, easy to maintain
5. Finished product generous, neat, tying strong, easy to pack
Video
Technical Data
| Model | HB-AB0 |
| Finished Coil Type | Circle shape |
| Available Wire Dia | ≤ 10mm |
| Winding Inner Dia | 80-180mm |
| Bundling Diameter | < 45mm |
| Reserved Head Length | ≤ 150mm |
| Reserved Tail Length | ≤ 150mm |
| Tying Wire Materials | Plastic or rubber coated iron core wire |
| Production Rate | ≤ 1200 pcs/h |
| Power Supply | 110/220VAC,50/60Hz |

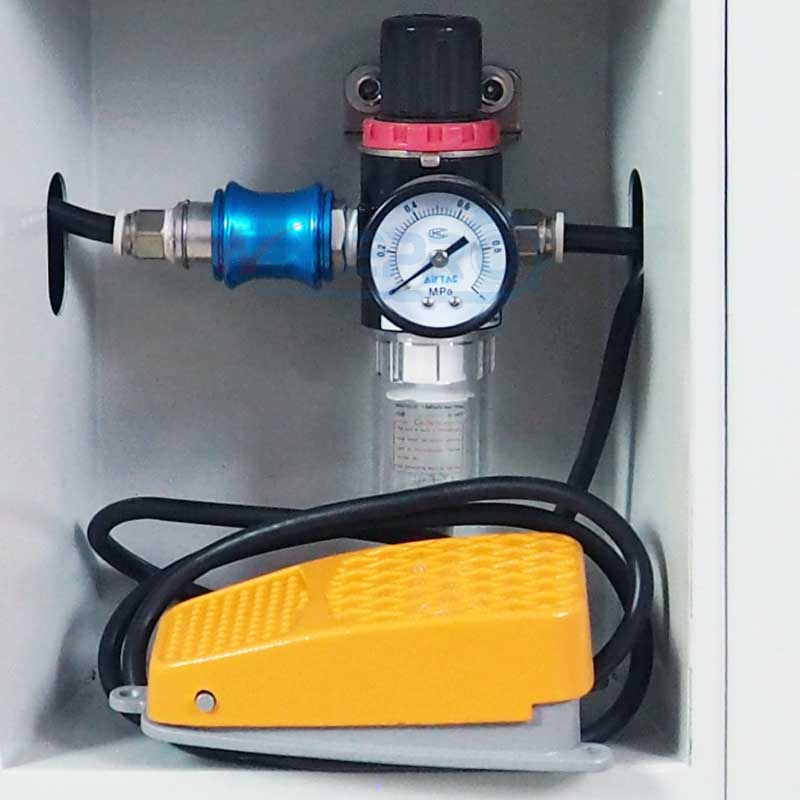

| Air Connection | 0.4-0.55MPa |
| Dimensions | 110* 72 * 160 cm |
| Weight | 120kg |
Application
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
