Model: TP-S04
This wire splicing machine works with a copper strip, which replaces the traditional welding method.

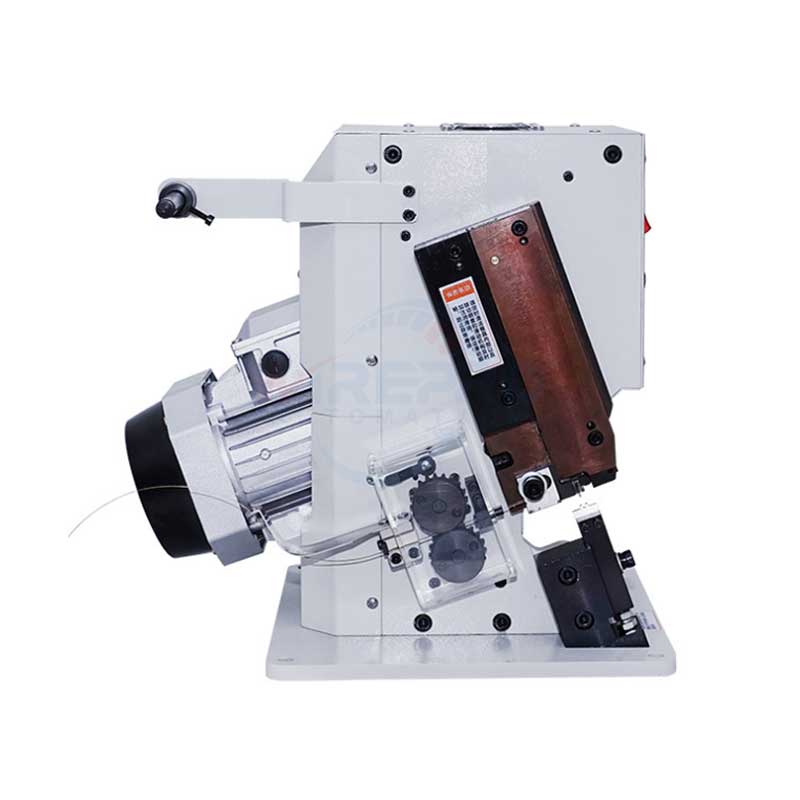

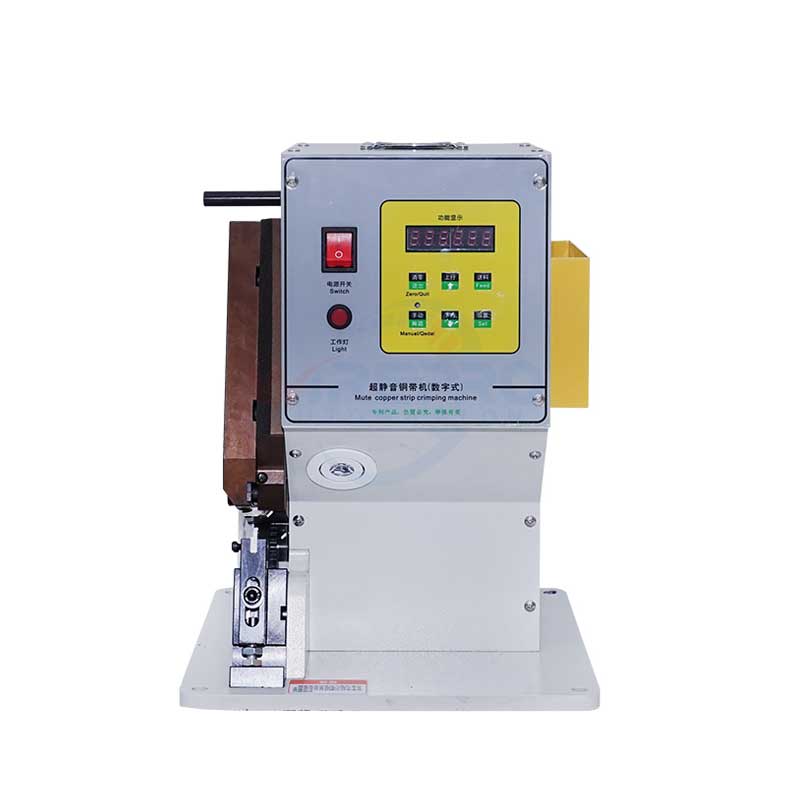

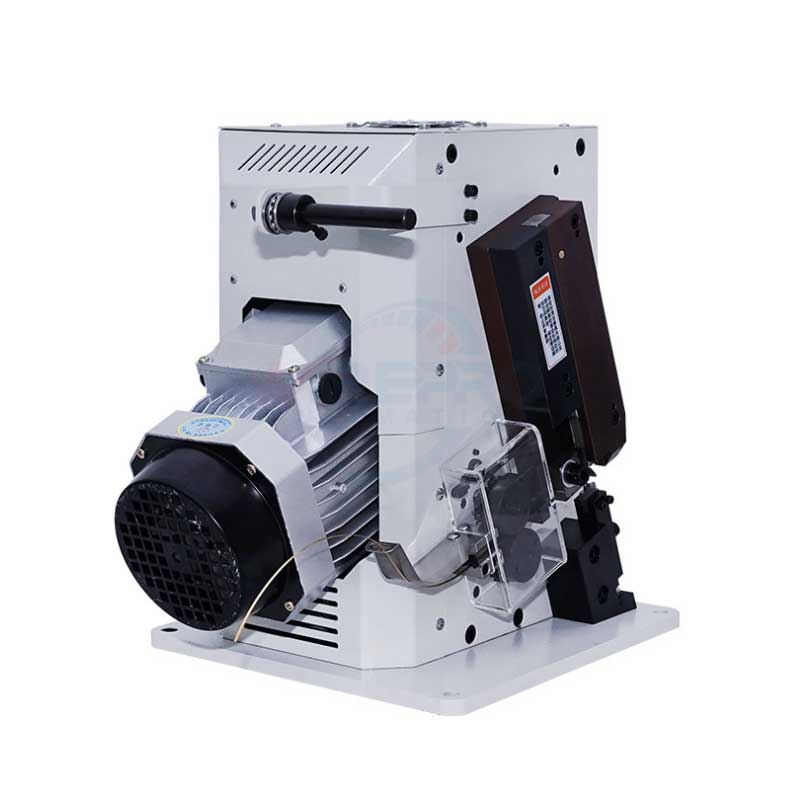

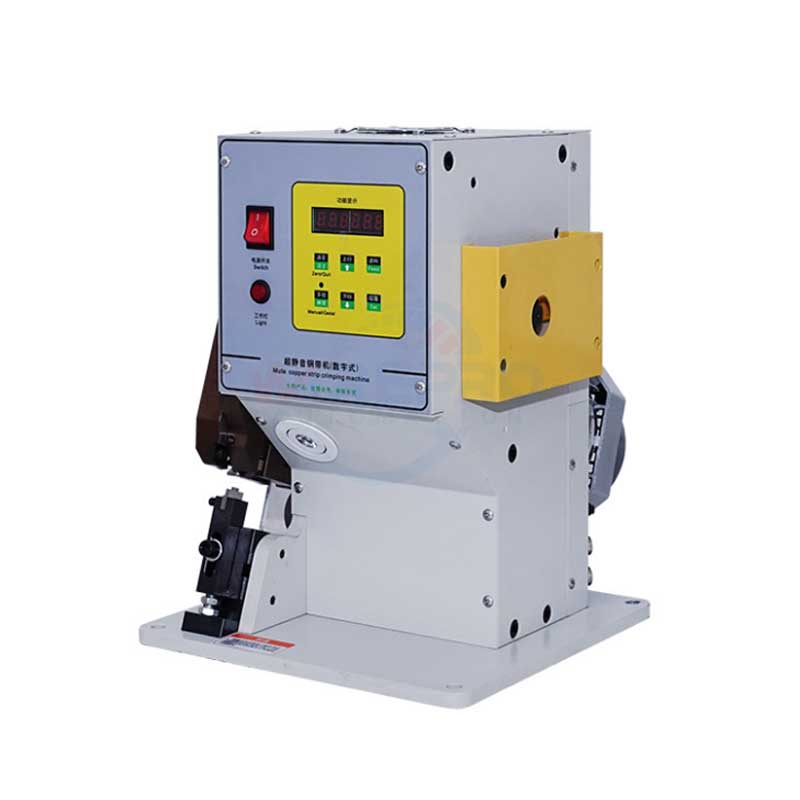

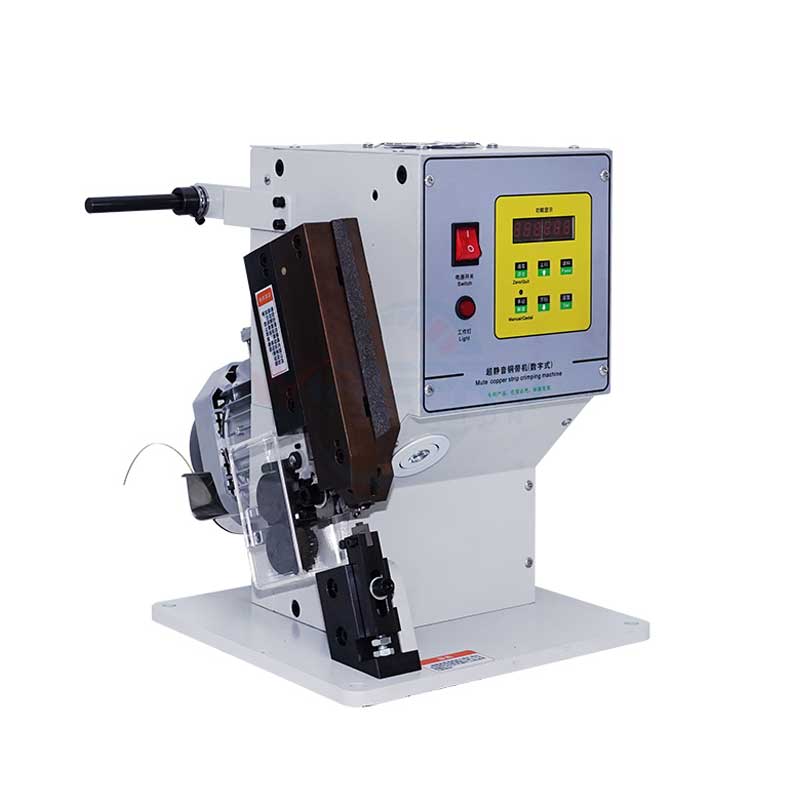

TP-S04 4T Wire cable harness copper belt splicing machine
Description
This wire splicing machine works with a copper strip, which replaces the traditional welding method.
Using a special continuous copper strip terminal, cutting and splicing can be done at once.
Machine features:
1. The three axles through-type spindle mounting method, front and back support, concentric axles without gap, keep the crimping force much firmer.
2. The stepping motor drives the feeding, digitizes the length, the adjustment is simple and fast, and the feeding is stable.
3. The diameters of the main axle and eccentric shaft are expanded to lead the main axle to have a better intensity and be more durable.
4. The optimized box structure with the machine head in the box has stronger bearing strength than the traditional machines in which four screws are used to connect the machine head to the middle base.
5. Optimize the operating height, lower the operating height to the height of the fist, and support the bottom of the machine to reduce the operating fatigue during operation.
6. The copper belt is treated by special grain, and the endurance is very strong after riveting.
Video:
Technical Data
|
Model
|
TP-S04
|
|
Stroke
|
23mm
|
|
Crimping force
|
4T
|
| Maximum Copper Strip Width | 12 MM |
| Maximum Crimping Width | 12 MM |
|
Maximum pulling force
|
500N
|
|
Power
|
1500 W
|
|
Power supply
|
220V/50HZ
|
|
Weight
|
100KG
|
|
Dimension
|
40*60*65cm
|
Application

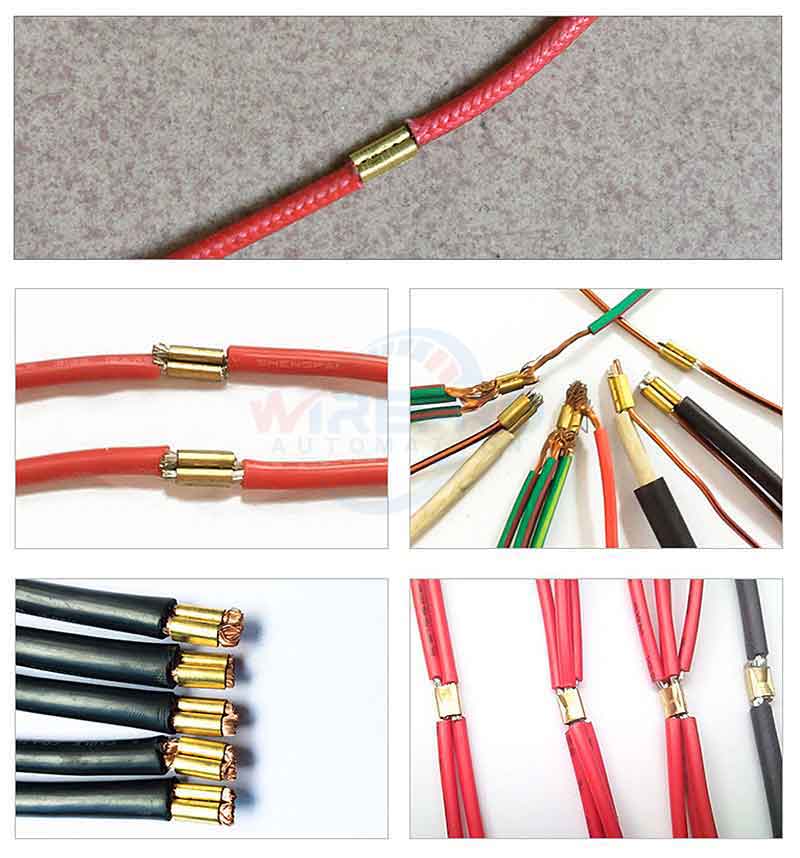

The connection between the xenon lamp and the resistor, the connection between the slide switch and the wire, the connection between the high-temperature heating elements, and the connection between the thermosensitive elements.
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
