Model: TP-T18
TP-T18uses advanced ultrasonic technology, independent research, and the development of generators, horns, welding heads, etc., and the overall performance of the machine has been greatly improved.

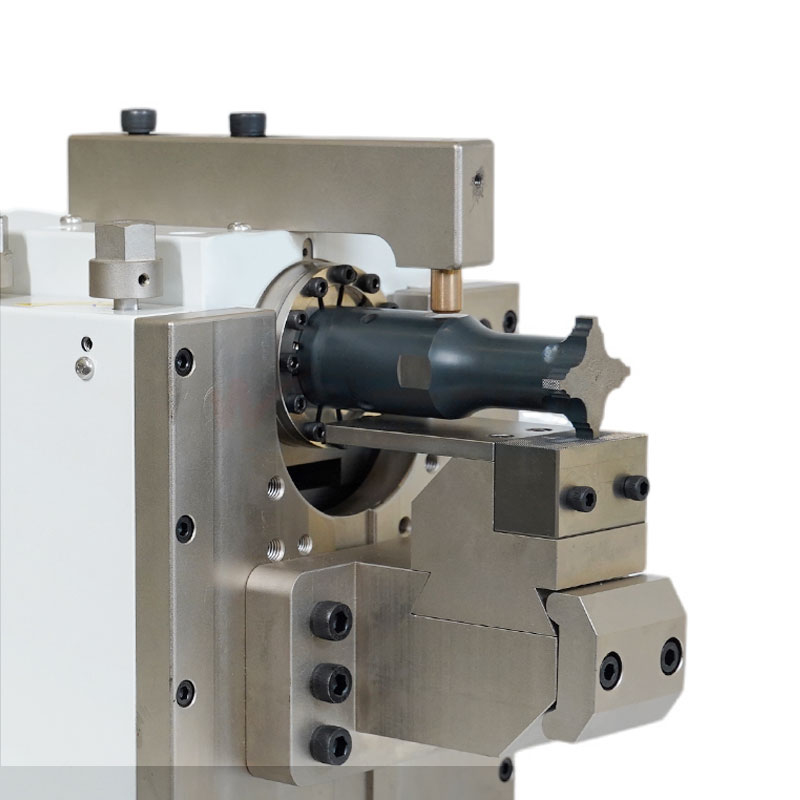

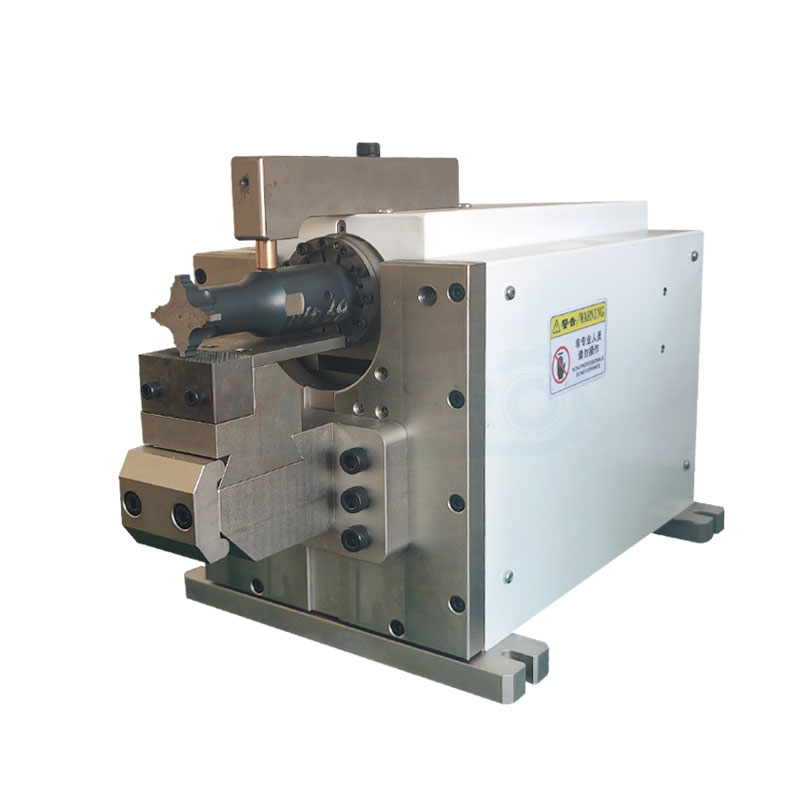

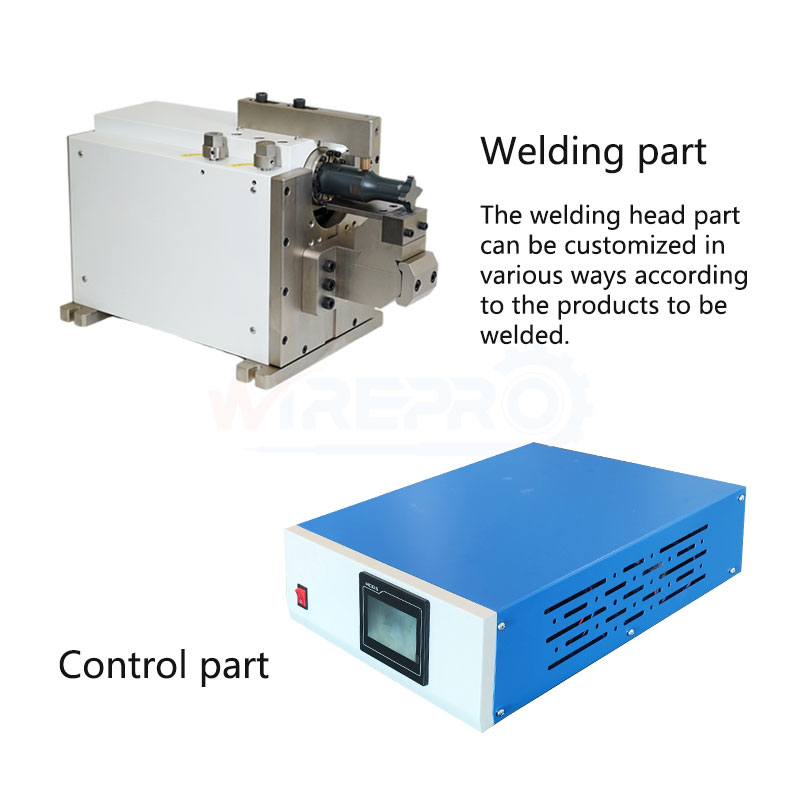

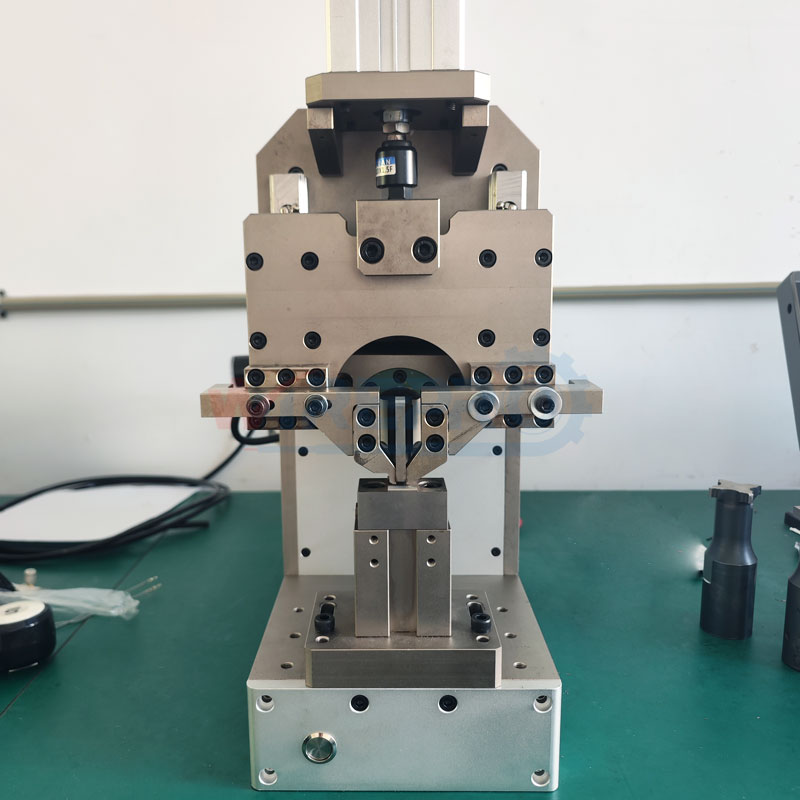

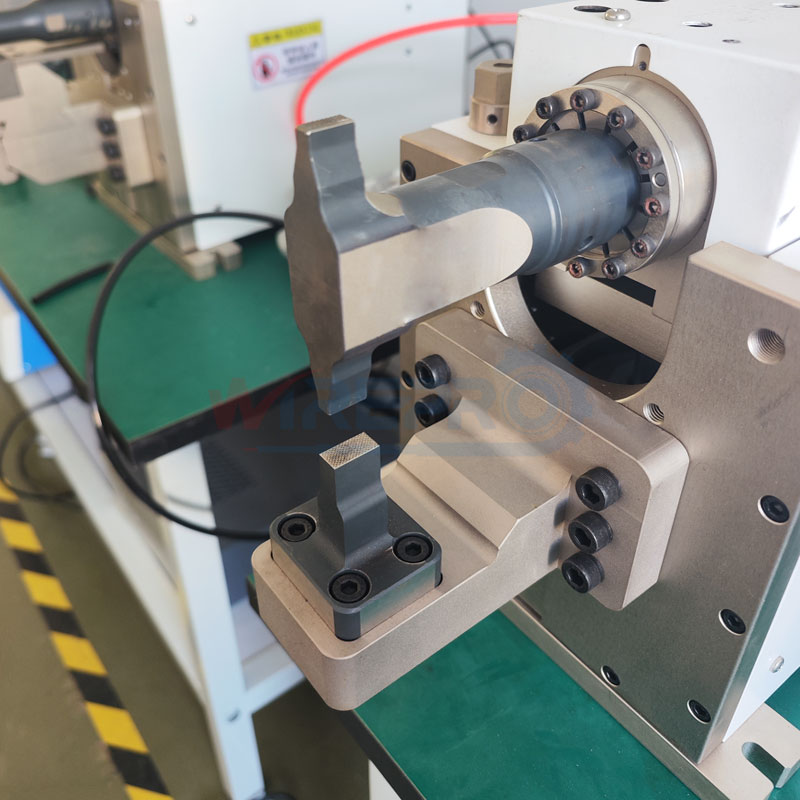

TP-T18 Wire and metal terminal ultrasonic welder
Description
TP-T25 uses advanced ultrasonic technology, independent research, and the development of generators, horns, welding heads, etc., the overall performance of the machine has been greatly improved.
Features:
1. It adopts a four-cylinder double-solenoid valve motion system, which is easy to use and operate.
2. Only need to choose the corresponding welding parameters and use the welding head according to the standard width of the wire harness square, and then welding can be carried out
3. With the function of preventing empty welding, it can effectively prevent damage to the welding head
4. The welding power can be monitored in real-time during welding, which can effectively guarantee the yield rate during welding
5. With password protection and parameter storage and welding data storage
6. Error-proof function, low welding maintenance cost
7. Support multiple welding modes
Video:
Technical Data
| Model | TP-T18 |
| Welding capacity | Wire size range: 1-18mm2 |
| Production Rate | About 0.7s/pcs, based on the wires |
| Power Supply | 220VAC,50Hz |
| Power | 3000W |
| Dimension | 23*50*53 cm + 52*28*37cm |
| Weight | 50kgs |
Application
The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
