Model: CB-V07
The machine CB-V07 precision cutting long corrugated tube wave valley. It has a visual sensor system to make sure cut position.

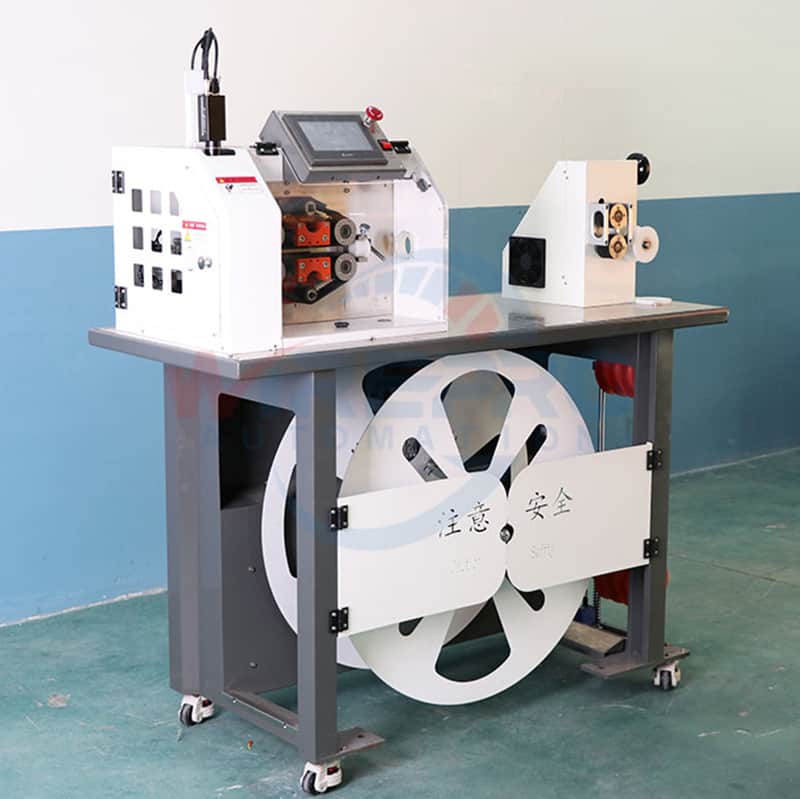

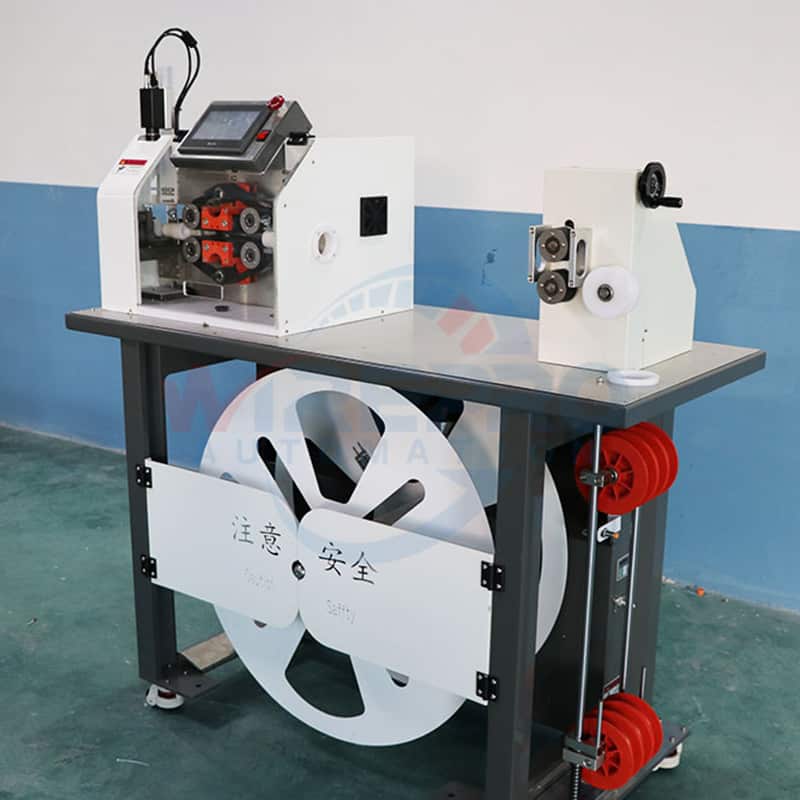

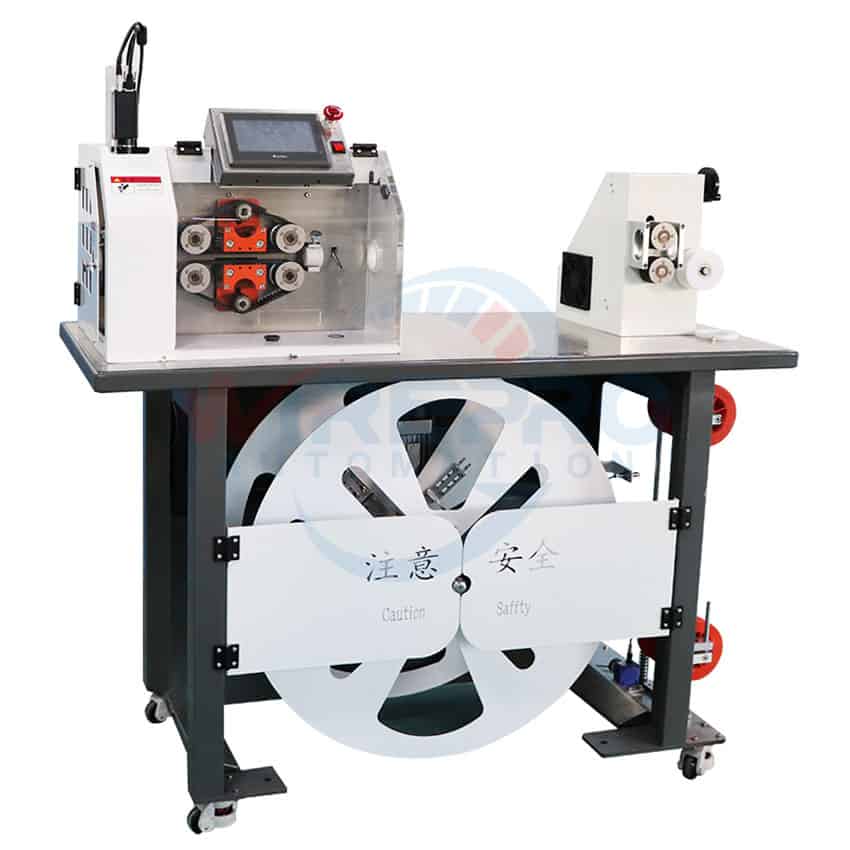

CB-V07 Visual precision cut bellows wave valley tube cutting machine
Description
The machine CB-P06 and CB-V07 are designed for precision cutting long corrugated tube wave peak or wave valley. The machines adopt belt traction and displacement sensor, automatic pre-release tube and deliver the tube, achieving high cutting speed and accuracy.
Feature:
1. Touch screen, English and Chinese operating system, PLC control, operation digitalization
2. Automatic tube pre-release, pre-delivery, cutting efficient and accurate
3. With an Integrated circuit, work stable and simple maintenance
4. CB-P06 accurate cut tube wave peak, CB-V07accurate cut tube wave valley
5. Can custom splitting function.
Technical Data
| Model | CB-P06 | CB-V07 |
| Materials | Corrugated tube | |
| Feature | Accurate cut tube wave peak | Accurate cut tube wave valley |
| Available Diameter | 4-25mm (custom available) | |
| Cutting Length | 10-9999mm | |
| Cutting Speed | 10-60pcs/min | |
| Power | 220/110V | 220/110V |
| Power Supply | 1500W | |
| Dimensions | 177*66*155cm | |
| Weight | 230kg | |
Application
Cutting long corrugated tube wave valley.
