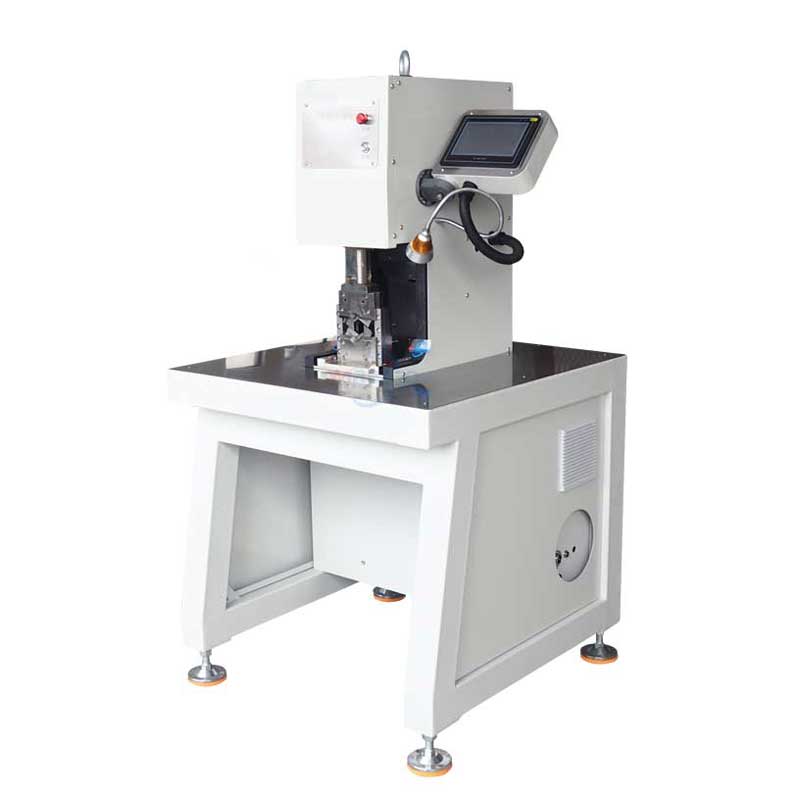

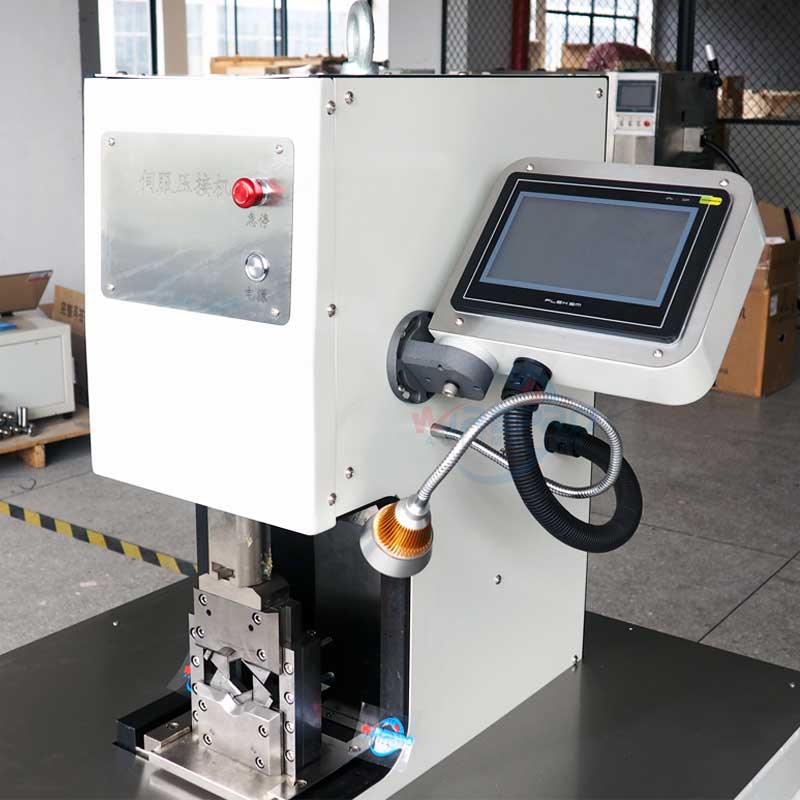

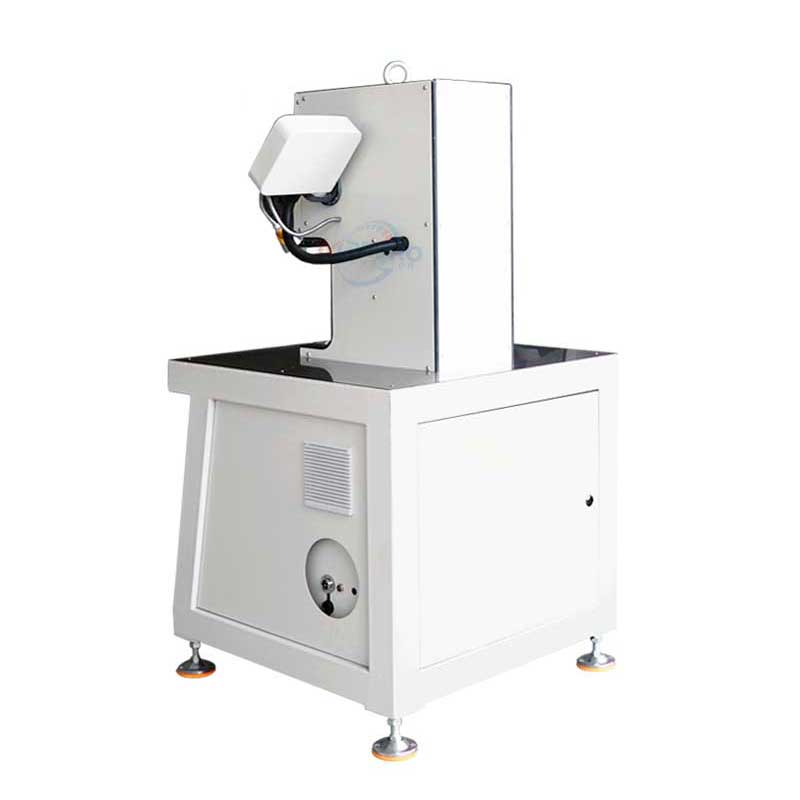

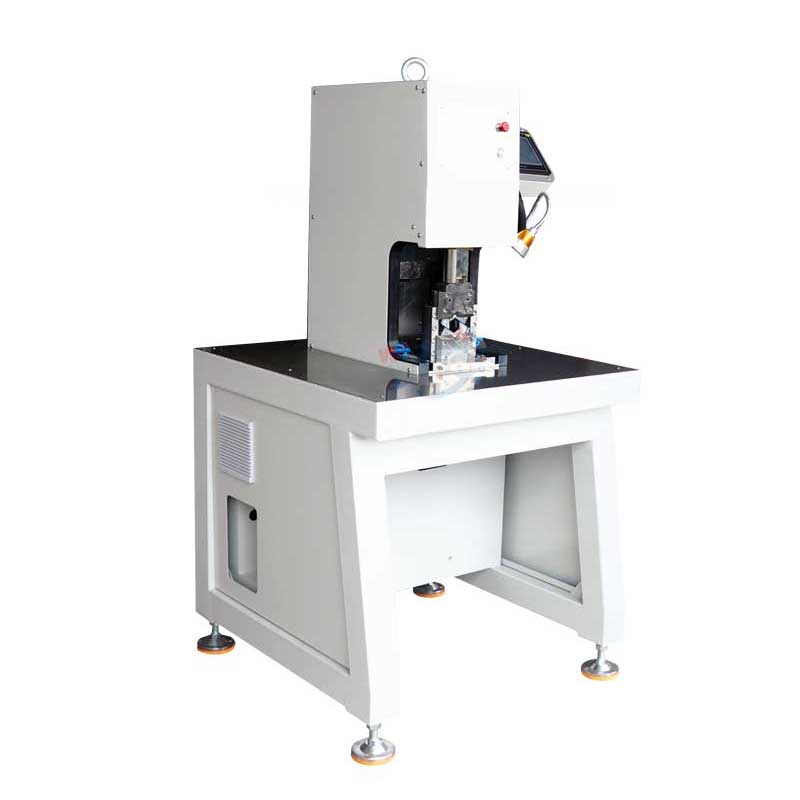

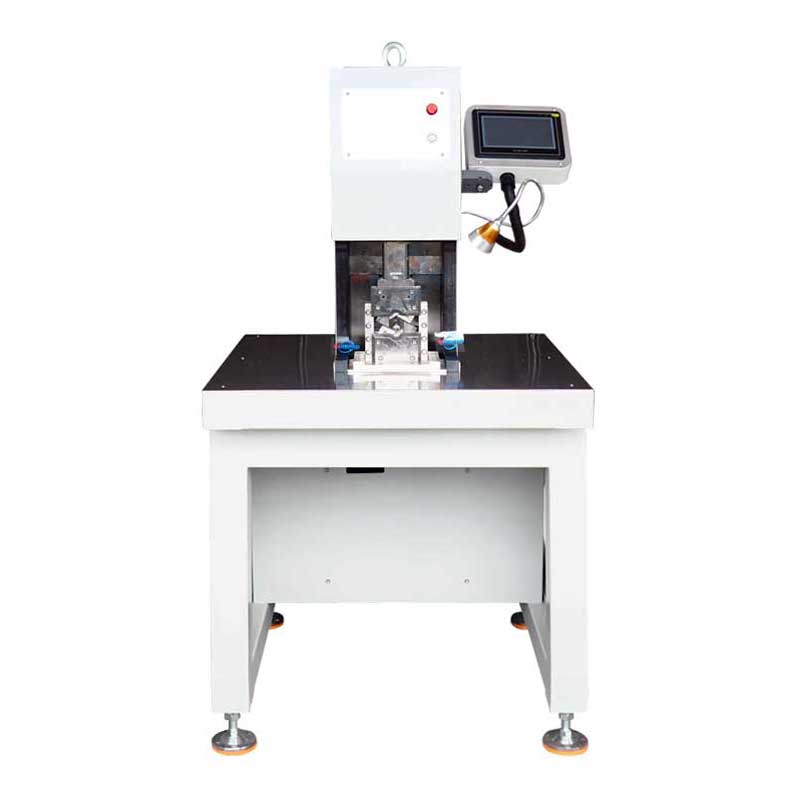

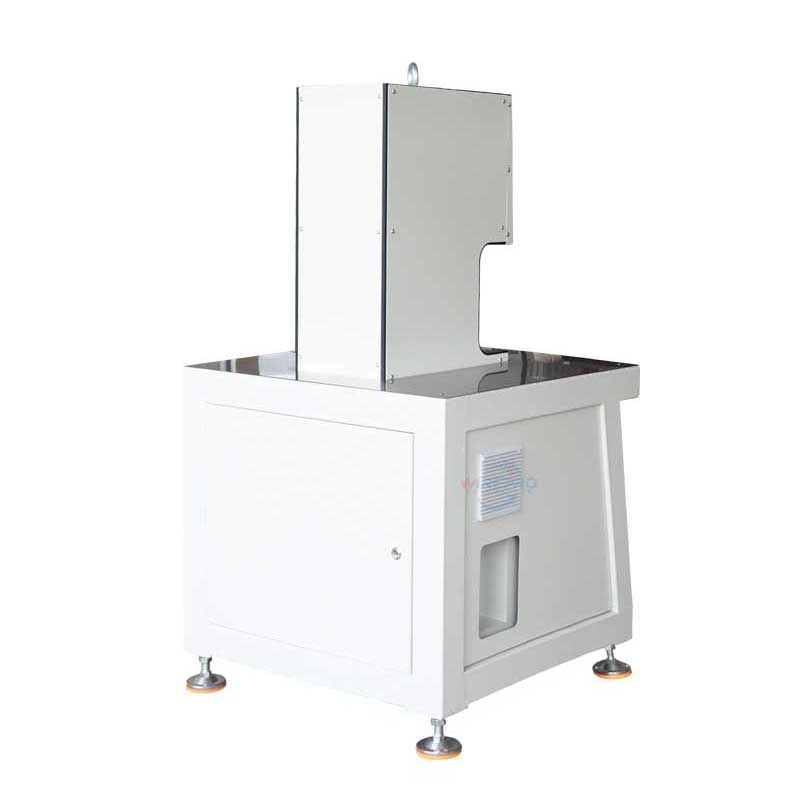

TU-S20 Servo motor big cable lug terminal crimping machine

Model: TU-S20

This series of semi-automatic terminal crimping machines are suitable for various terminals, very easy to change the applicator.

SKU: TU-S20 Category: Tags: ,

Description

This series of semi-automatic terminal crimping machines are suitable for various terminals, very easy to change the applicator. Suitable for crimping computer terminals, DC terminal, AC terminal, single grain terminal, joint terminal etc.
Features:
1. Built-in frequency converter, high production rate and low noise
2. Crimping dies designed according to your terminal
3. Production rate is adjustable
4. Support manual mode and an automatic mode, easy to change
5. LED display shows crimped terminals quantity

Different sizes of wires and terminal thicknesses require crimping machines with different crimping force

Lug terminal pressing machine video

Technical Data

Model
TU-S15 TU-S20
Cable range
Min about 2.5mm²,Max 75mm²
Min about 2.5mm²,Max 120mm²
Crimping Force
15T
20T
Stroke
35mm
Crimping Tolerance
±0.03mm
Speed
10-30 pcs/min
Driving Mode
Ball Screw
Control System

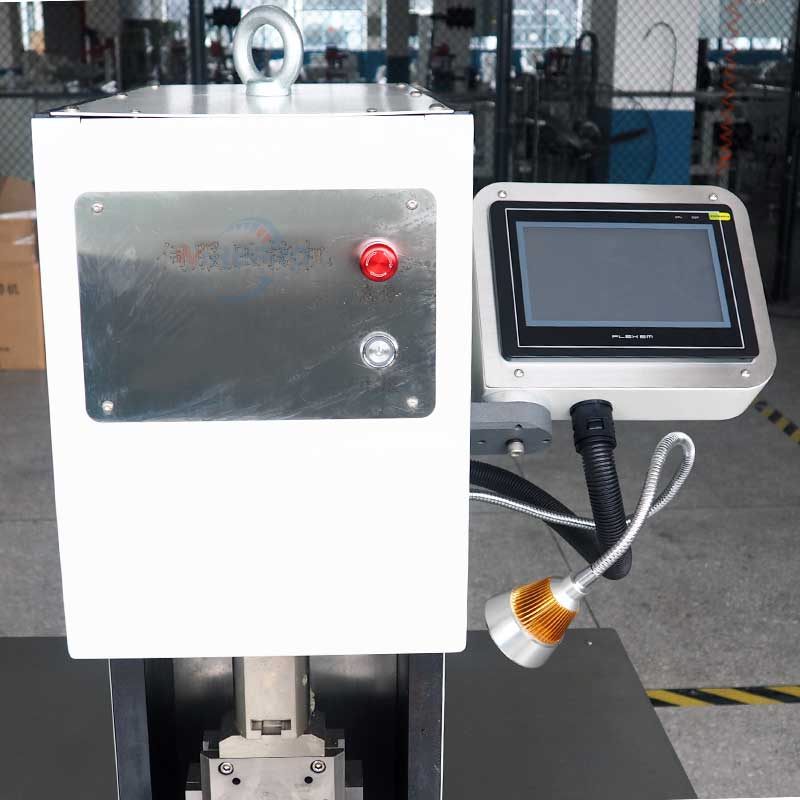

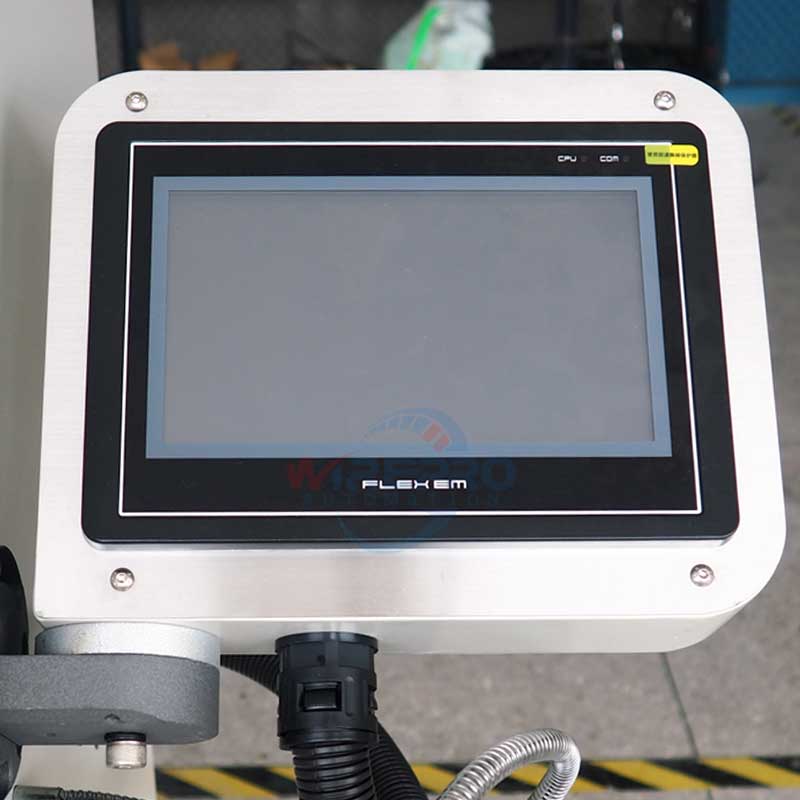

Motion Control Board + Touch Screen Control
Reducer
Planet Reducer
Adaptive Mold

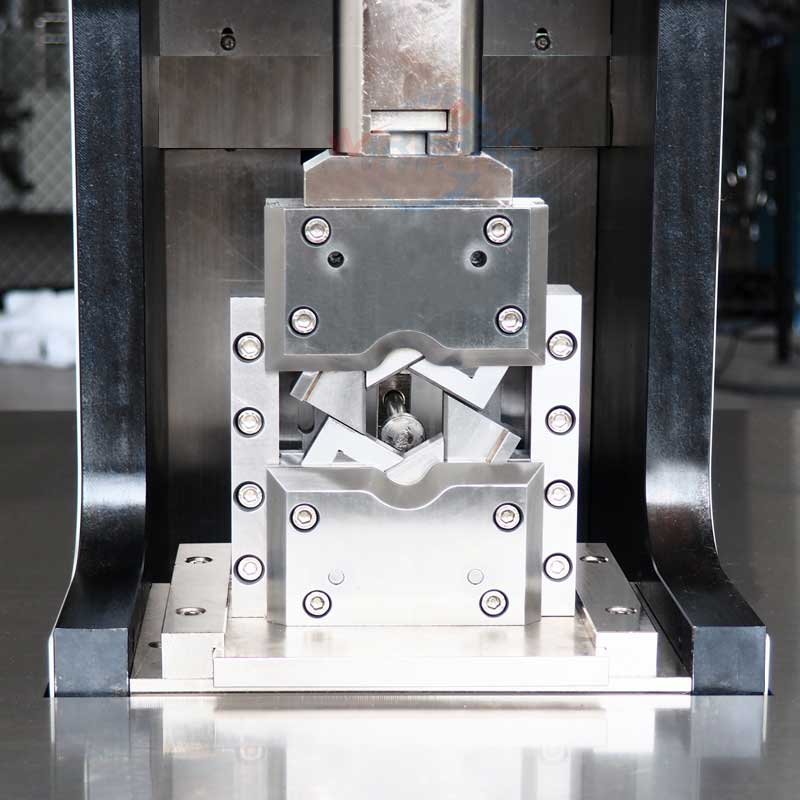

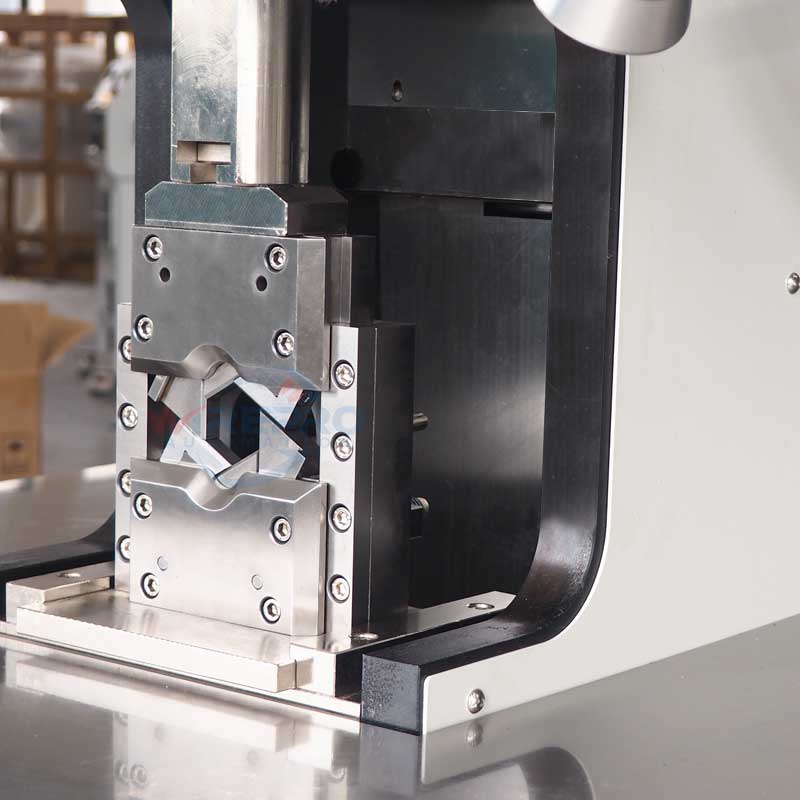

Hexagon Mold(Mold Exchange-Free), M-type,OPT, Quadrangle Mold
Power Source
220V 50-60Hz
Motor Power
2KW Servo Motor
2KW Servo Motor
Machine Size
74*74*150cm 74*74*150cm
Machine Weight
130kgs
150kgs

Application

Cable lug terminal crimping samples
