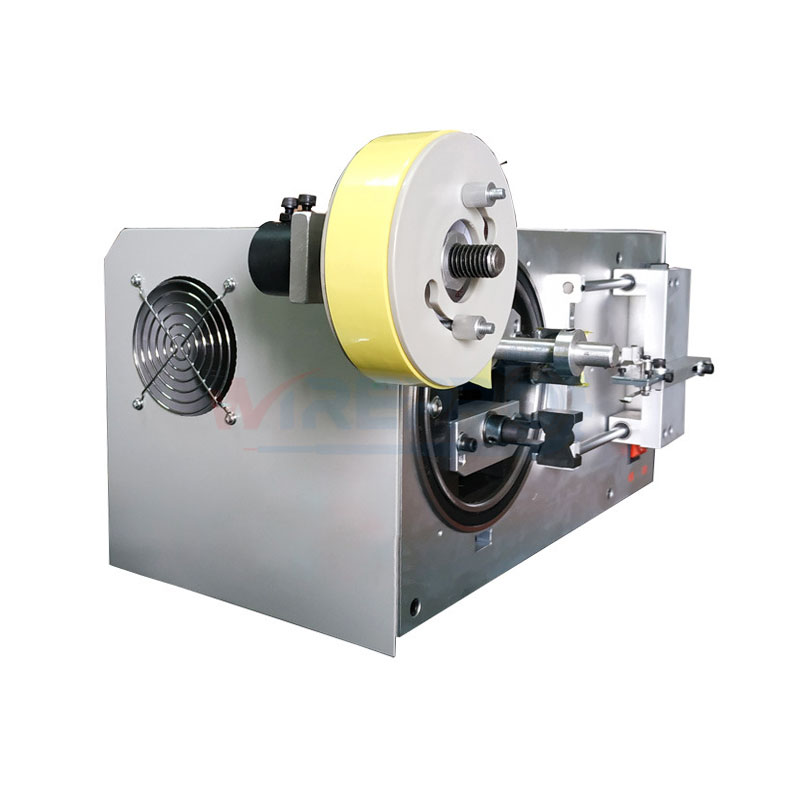

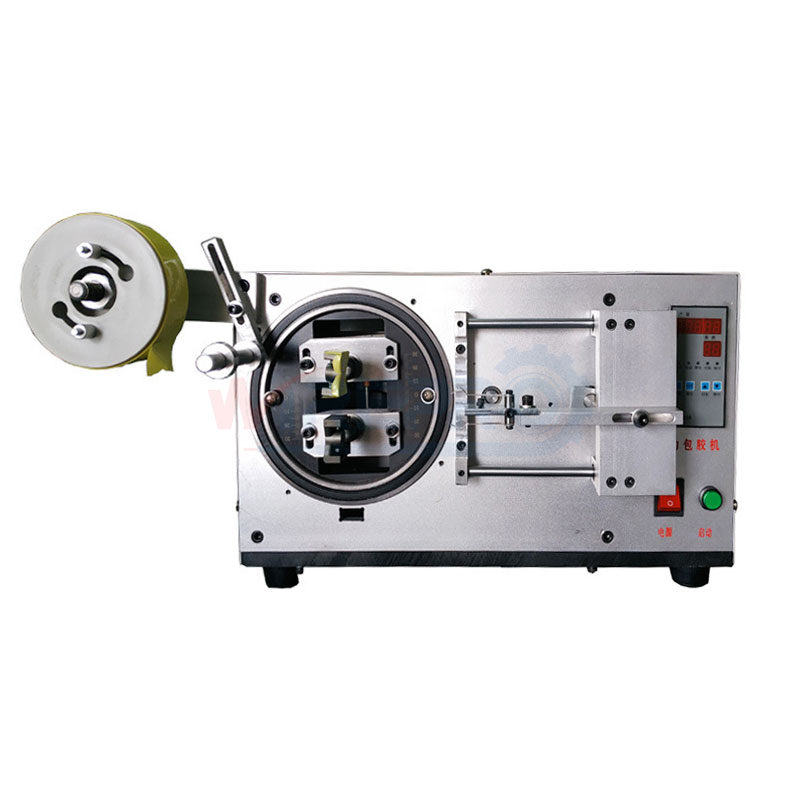

This machine is manually loaded, automatically wrapped with tape, and automatically cut. The number of turns can be set. It can be used to warp tape on coils, transformers, relays, aluminum sheets, voice coil products, core transformers, relays and other EE products. It is suitable for wrapping wire packages for EE, EF, PQ, (13–41) and patch transformers.

Features

1. The tape inner ring is suitable for both 34mm and 77mm;
2 Two-axis type of tape covering, the distance between the tape axis can be adjusted from 25mm to 85mm;
3. The position of the viscose cloth can be fine-tuned and the tensioner can be adjusted;

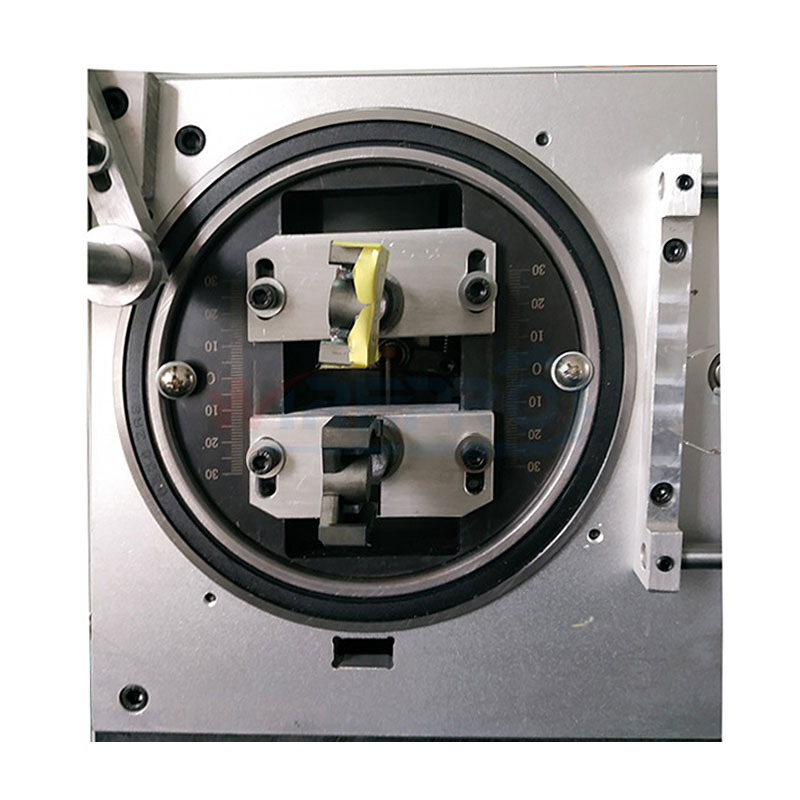

4 For different products, replace different fixtures;
5. Transformers, relays, and other EE products that can be coated with iron cores.
6. Light-sensitive positioning eliminates the fragile and short-life characteristics of micro switches, reduces maintenance, improves efficiency, and reduces costs.

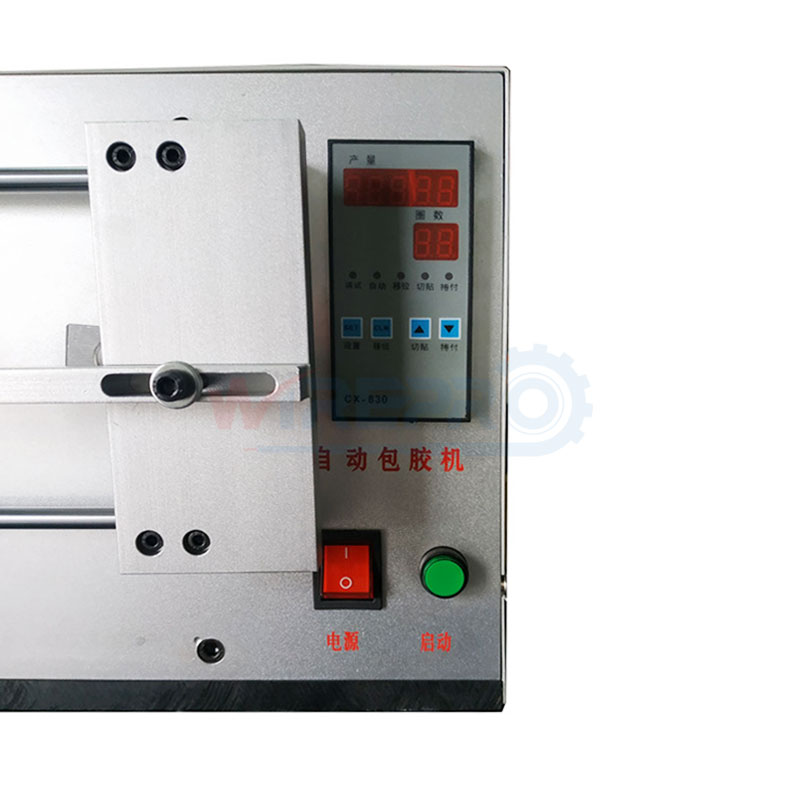

7. During the production process or machine adjustment, if there is misalignment, press and hold the corresponding inching motion for 3 seconds in the controller debugging mode, and the single-step movement will automatically return to the origin.
