Model: TP-FW3 TP-FW4

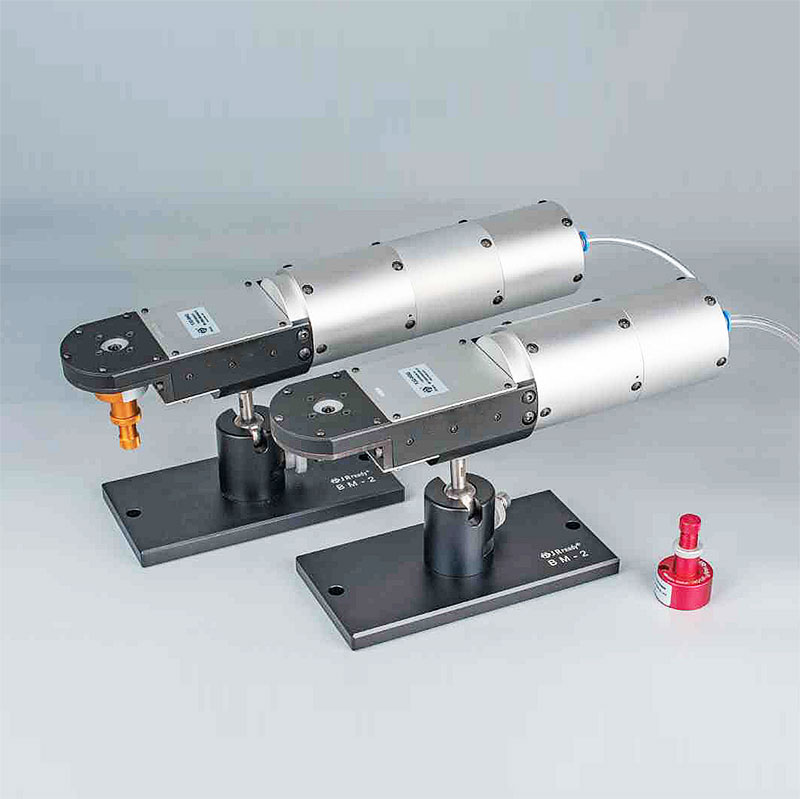

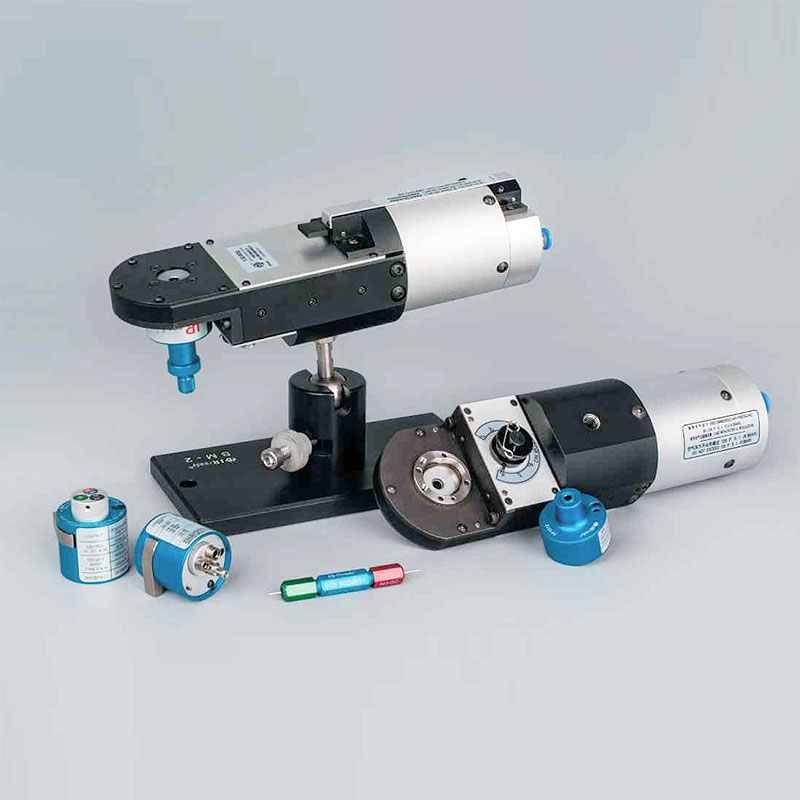

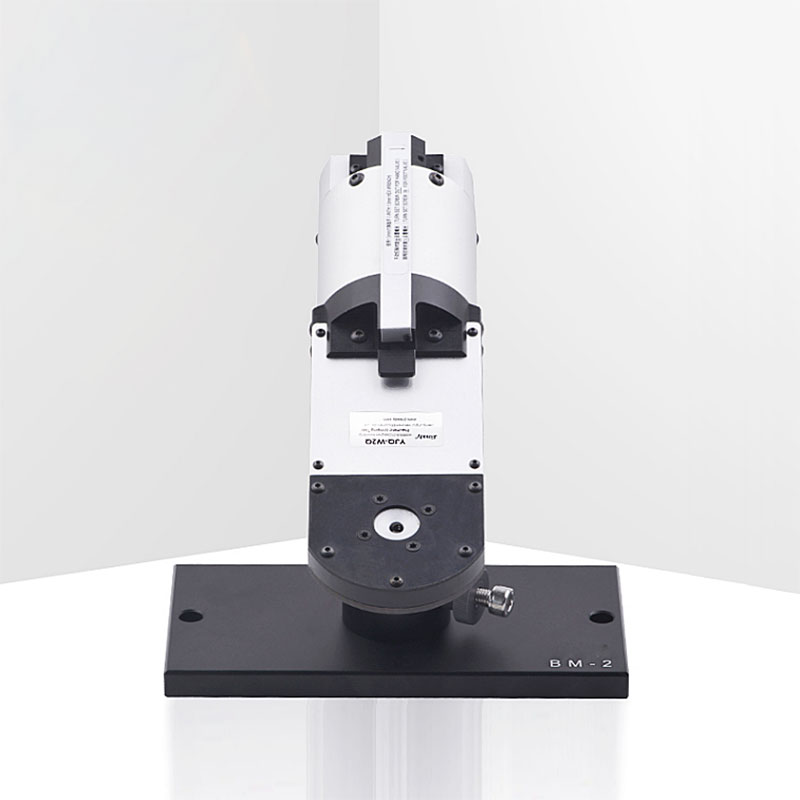

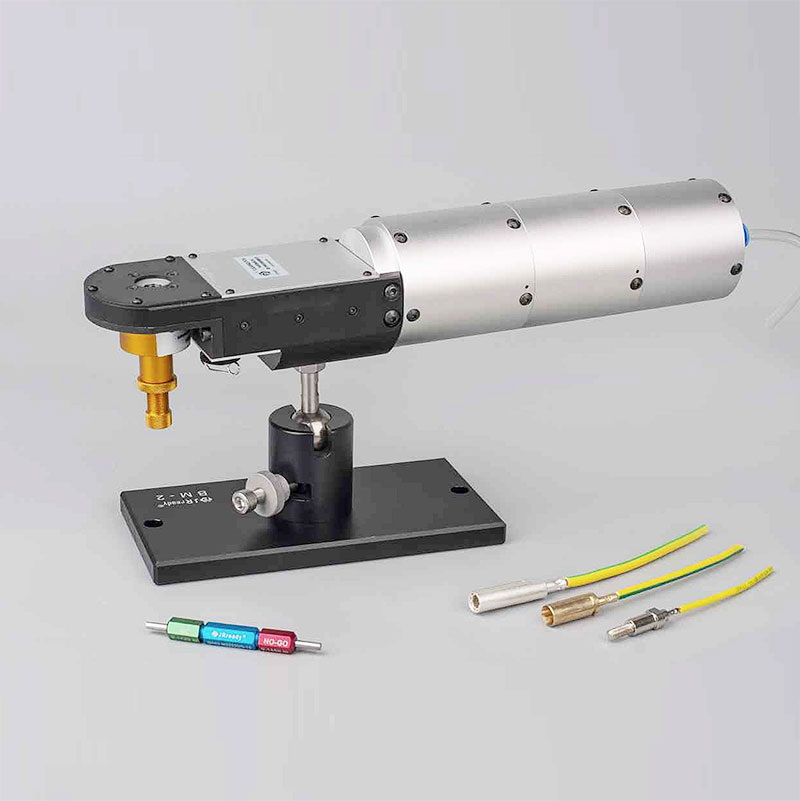

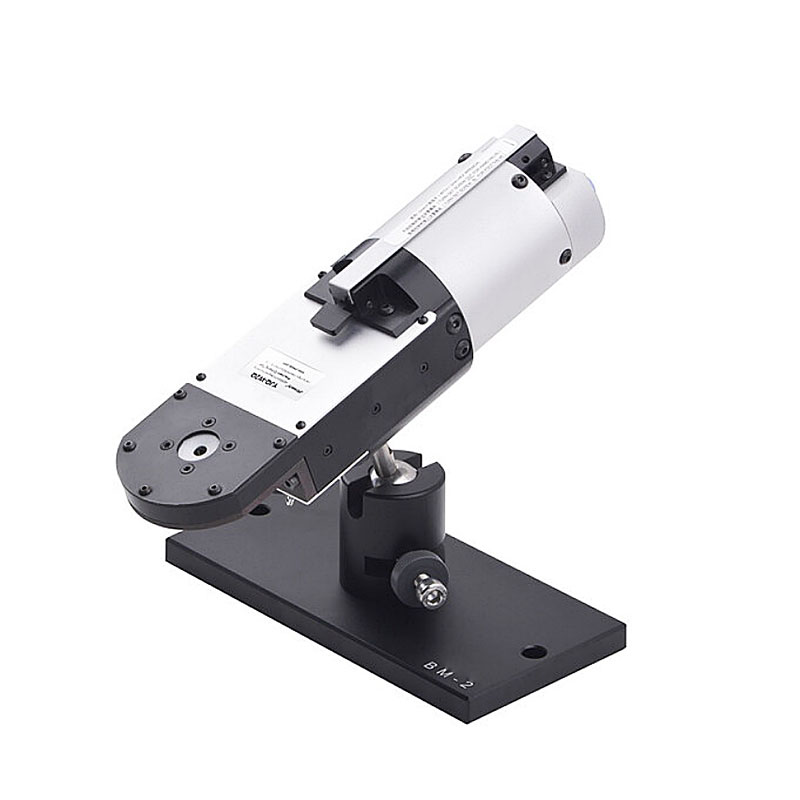

TP-FW3 TP-FW4 Four-indent terminal Crimping Machine
Description
Suitable for crimping copper lugs (DT, DTG, SC, JGK, JGY, JG, JM,
C45, GT – 1, GTY – 1), Contacts size below 35 mm2.
1. Fast crimping & one-time shaping， the pull force is 1.3 times that of a 6-sided crimp
2. Suitable for rotary contacts

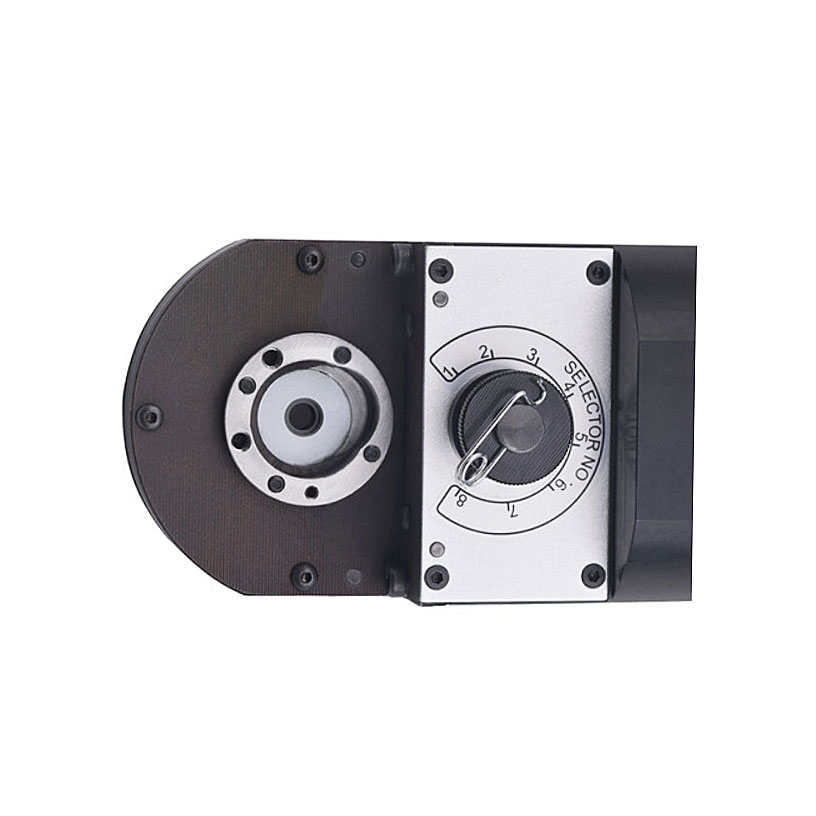

3. Continuously adjustable crimp depth; min adjusting range: 0.1 mm
4. Distance locking devices to ensure high crimping quality

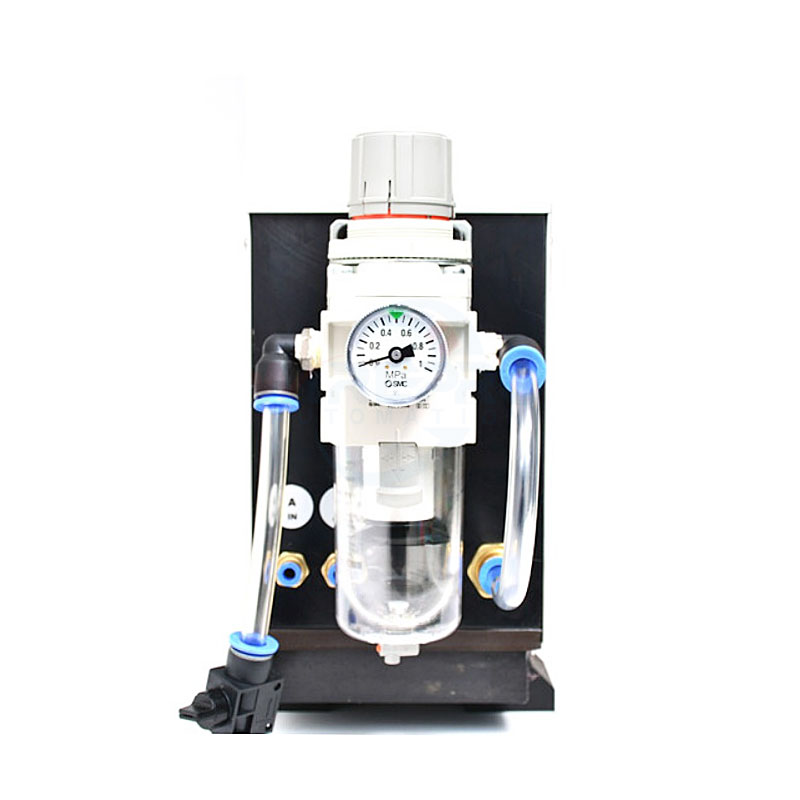

5. Force completely produced from compressed air, safe & energy saving
6. Convenient gauge calibration
7. Small size, suitable for line operation
| Model | TP-FW3 | TP-FW4 |
| Fetures | For middle-size wire | |
| Available Wire | 0.8-8mm² | 2.075-13.3mm² |
| Available Wire | AWG 8-18 | AWG 6-14 |
| Opening Dia | 8.3mm | 9.2mm |
| Indentation Length | 2.88mm | 2.88mm |
