Model: TP-F64 TP-F96
It is applicable to the crimping of IDC products. The product will be pressed automatically after being pushed in, and the cylinder will be reset after completion.

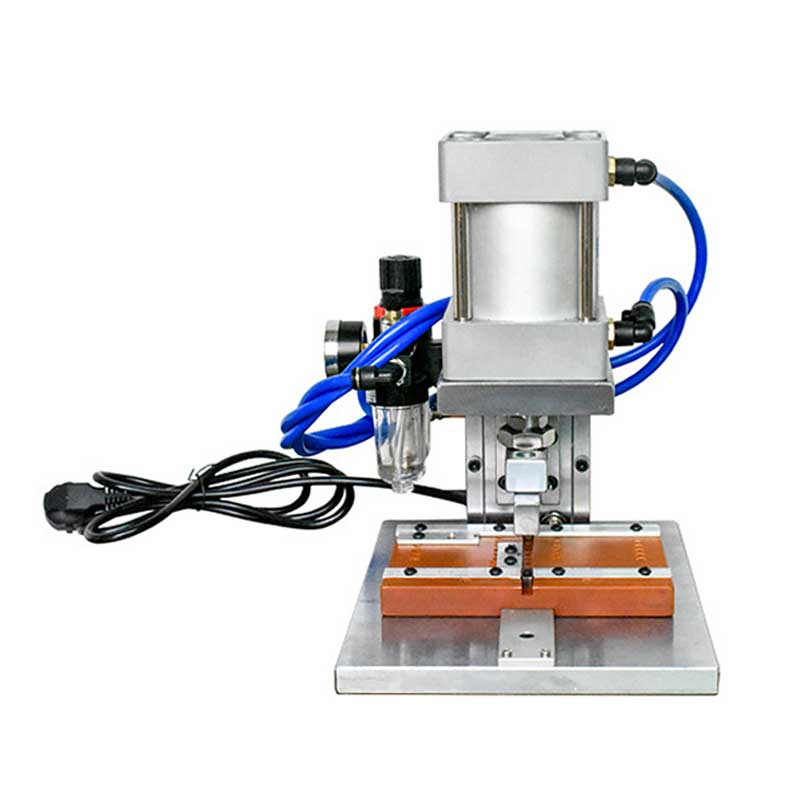

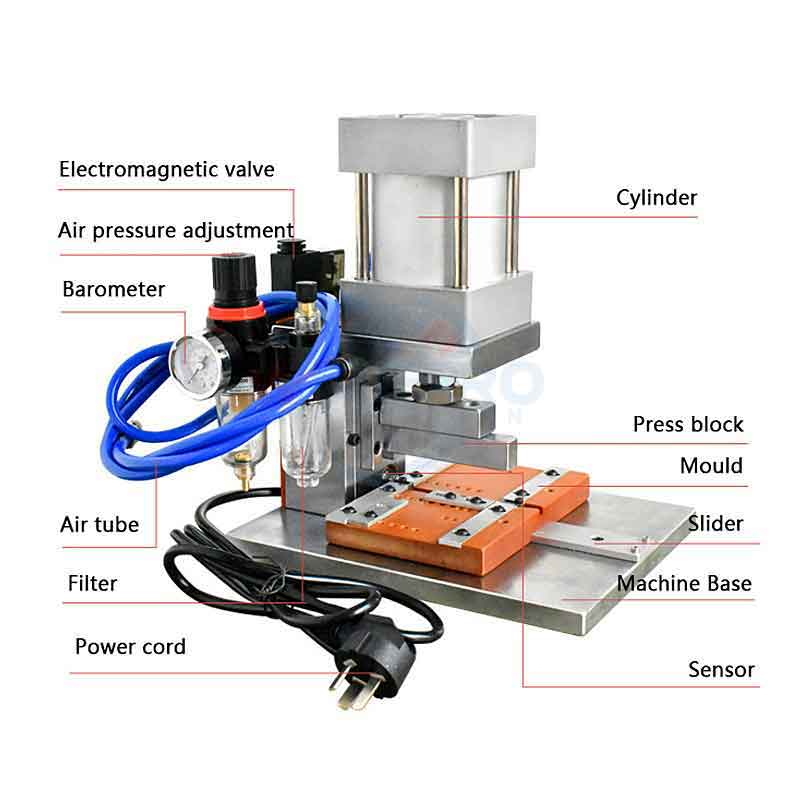

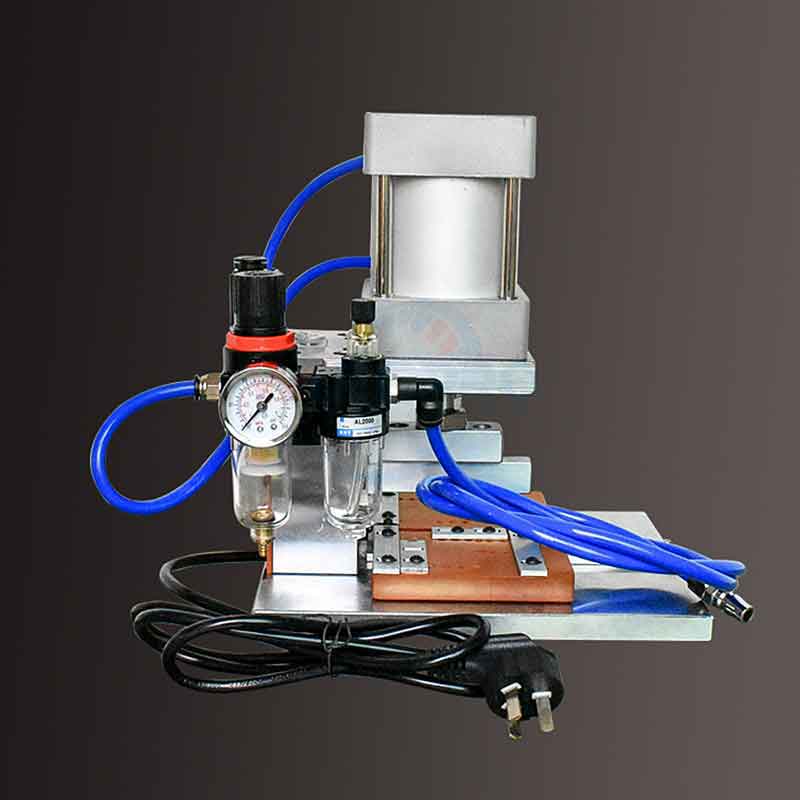

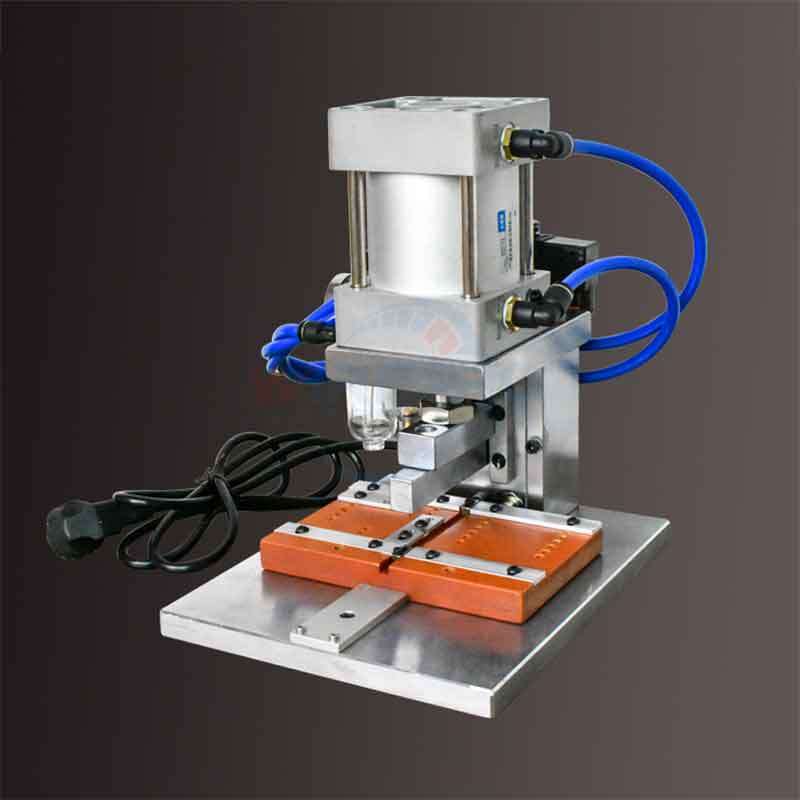

TP-F64 Multi-pin Flat Cable Connector Pressing Punching Machine
Description
It is applicable to the crimping of IDC products. The product will be pressed automatically after being pushed in, and the cylinder will be reset after completion.
Features:
1. Instead of hand pliers, it has high pressing efficiency, stable quality, and simple operation.
2. The operation is simple and easy to learn.
3. Finish 300~600 times per hour according to the product type.
4. Used with a bakelite base, it is simple to operate, wear-resistant, and high precision.
5. Low gas consumption, low failure rate, and easy maintenance.
6. The fuselage is made of steel, which is stable and durable, and the exterior is plated with the inscription, which is beautiful and does not rust.
Video:
Technical Data
| Model | TP-F64 | TP-F96 |
| Crimp Pin | 4-64 pin | 4-96 pin |
| Function | Terminal automatic feeding and terminal crimping | |
| Air connection | 0.6-0.8 Mpa | |
| Power Supply | 110/220VAC,50/60Hz | |
| Weight | 14 kgs | 17 kg |

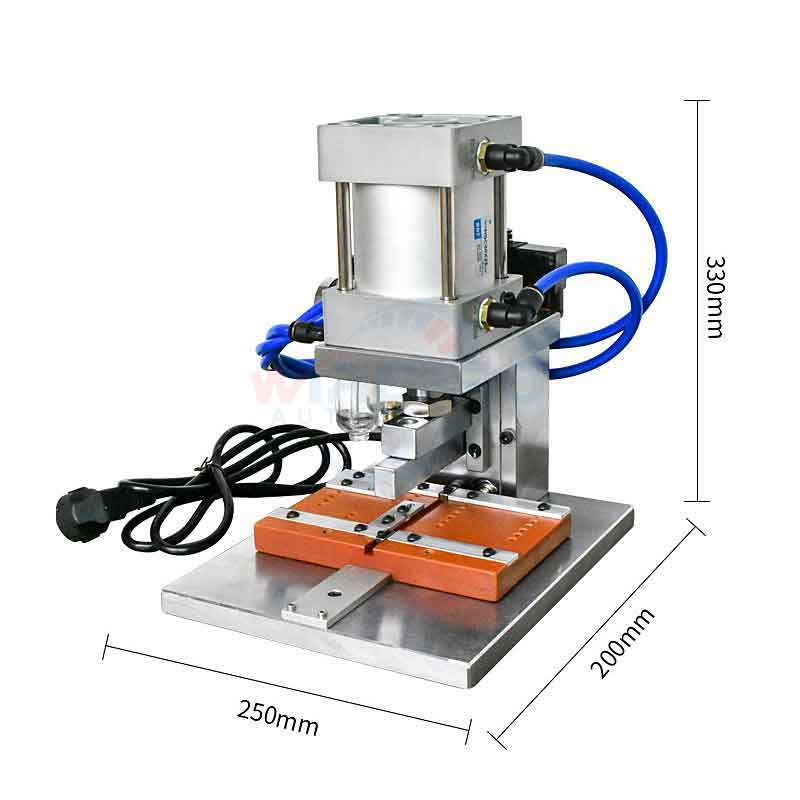

| Dimensions | 25*20*33 cm | 25*20*33 cm |
Application

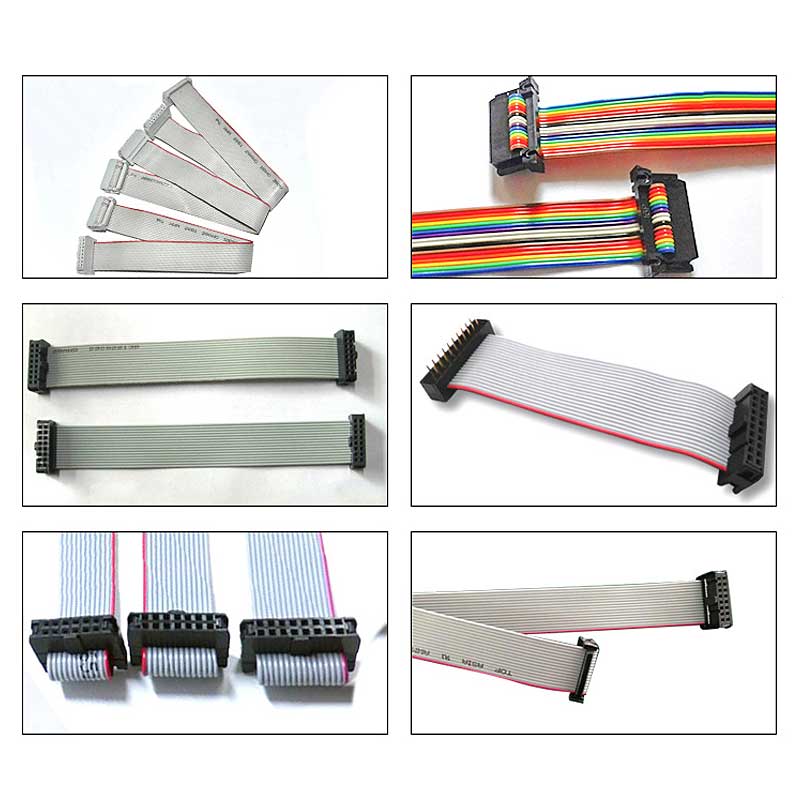

Cable lug terminal crimping samples
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
