Model: TA-S01
This series machine is a fully automatic one-ends wire cutting stripping and terminal crimping machine.

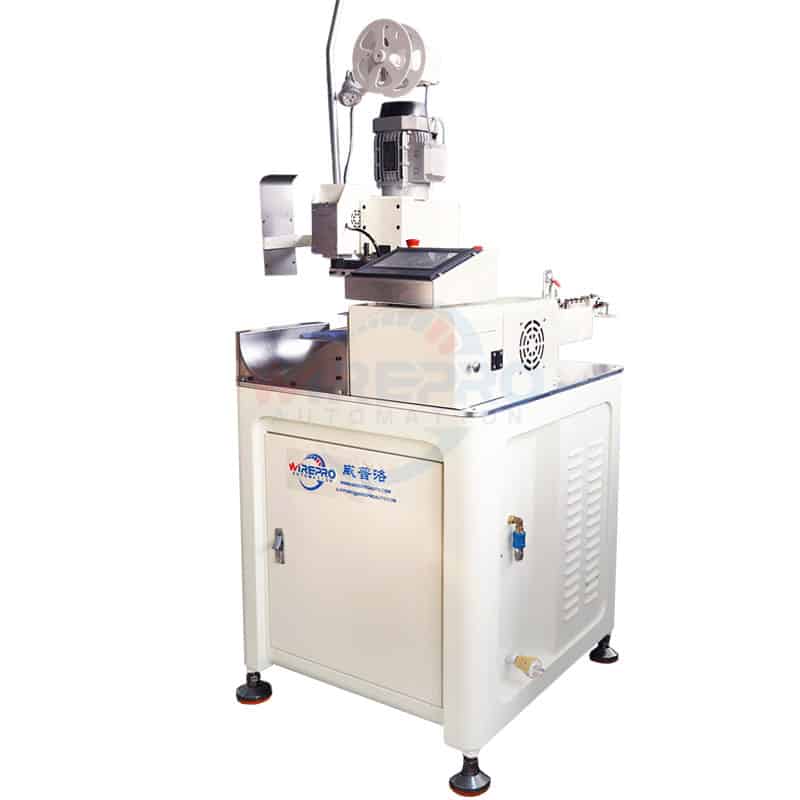

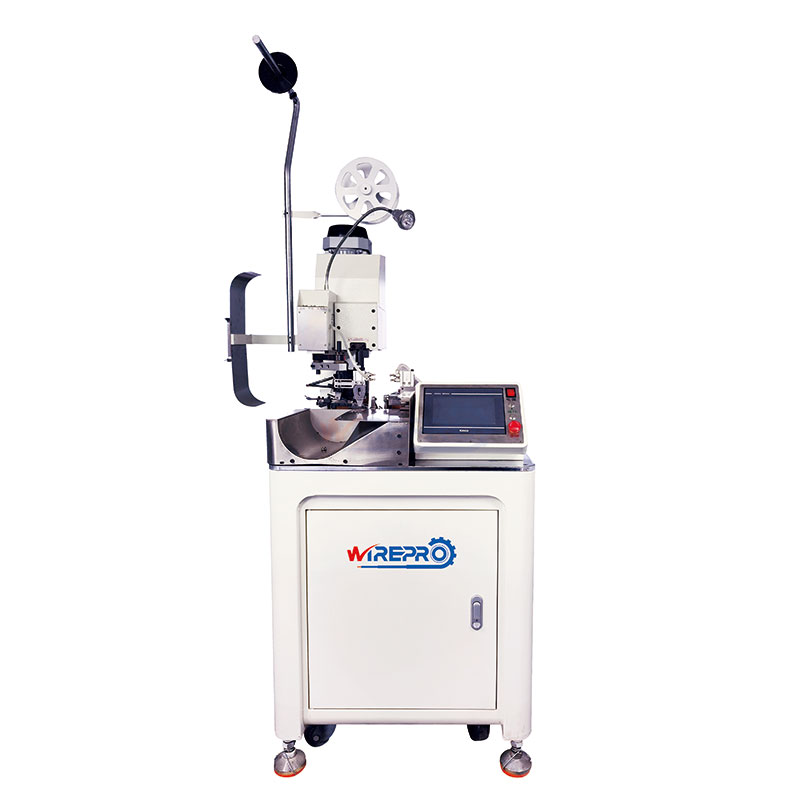

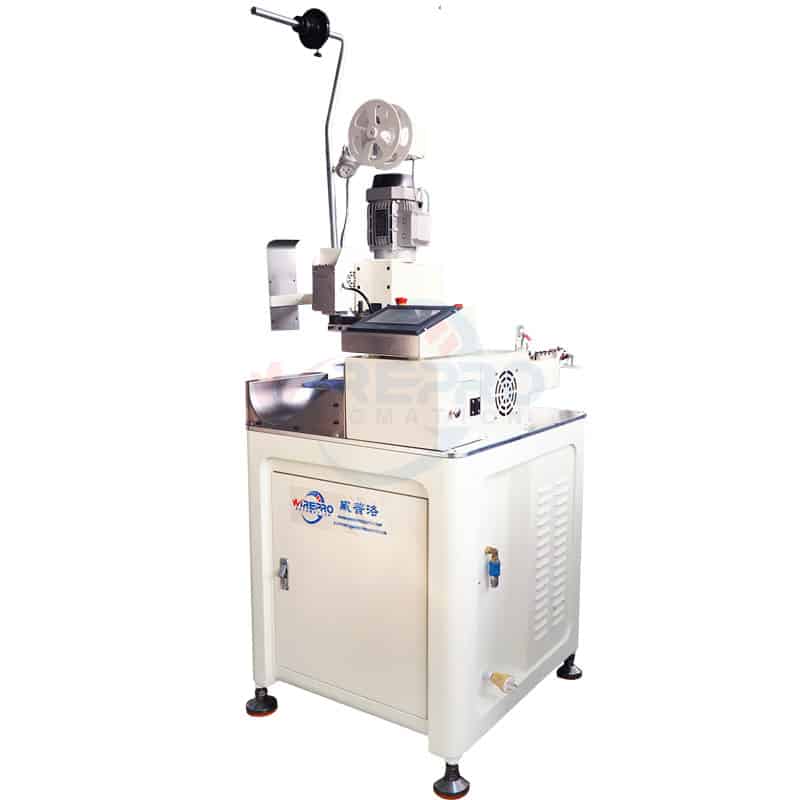

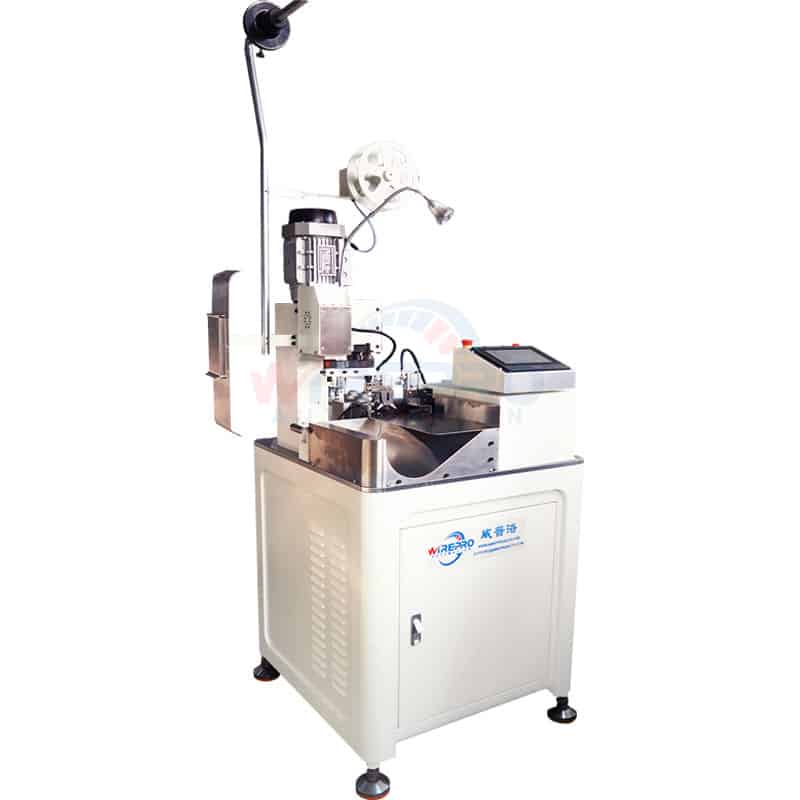

TA-S01 Automatic single end wire cut strip terminal crimp machine
Description

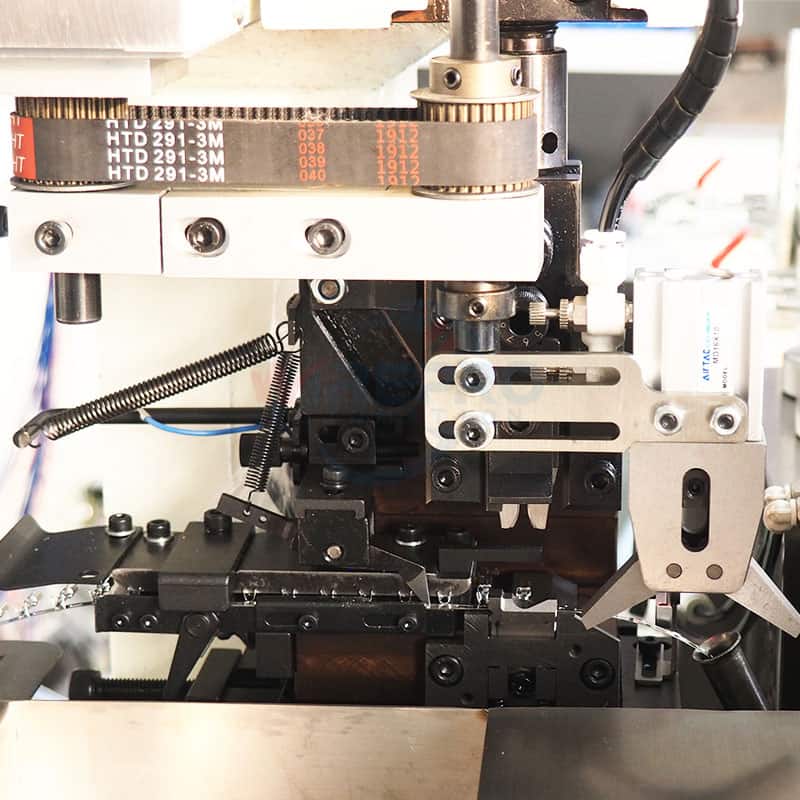

This is a fully automatic single-press termination machine, one side stripping and twisting, another side stripping and crimping.
1. Support many types of wires

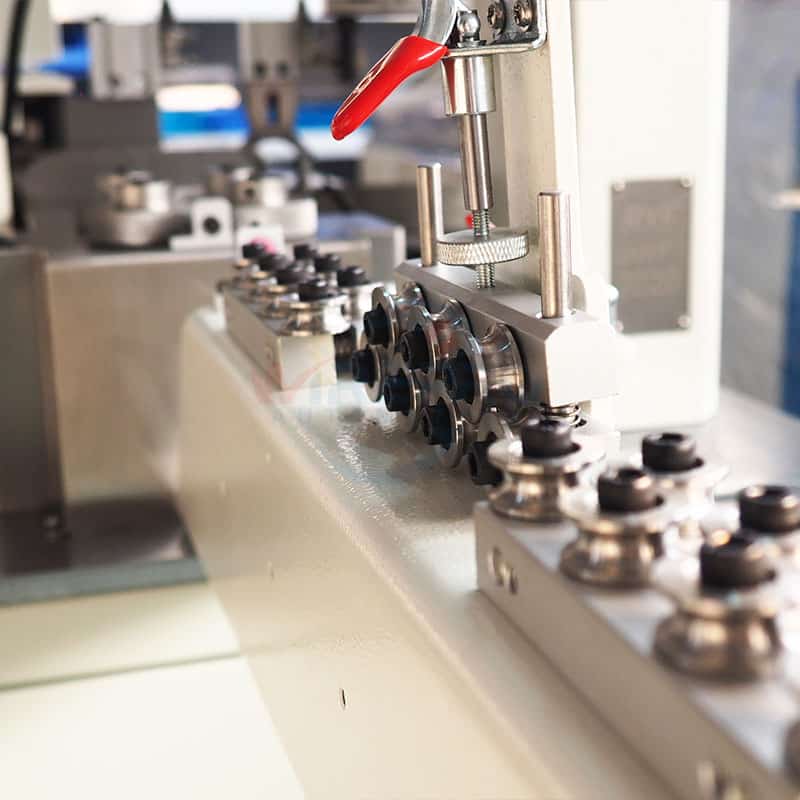

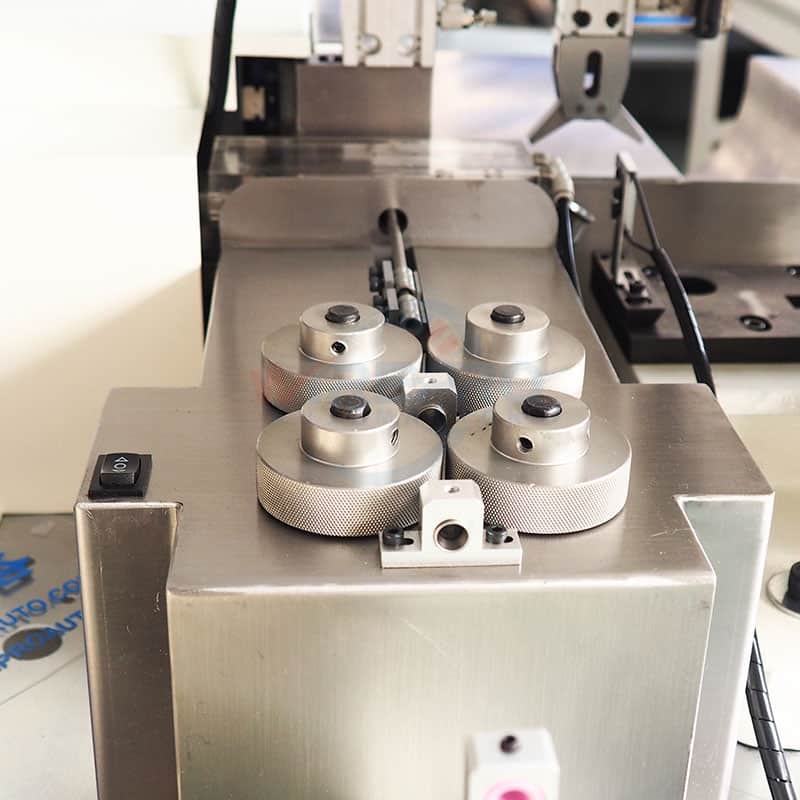

2. The four-wheel feeding mechanism ensures the accuracy and stability of the feeding
3. High quality and high-precision components to ensure the final products reliable quality
4. Visualization touch screen reducing the operation difficulty
5. Can store the processing parameters of different wires
Technical Data
| Model | TA-S01 | TA-S02 | TA-S03 |
| Features | Regular | Small wire | Big wire |
| Available Wire Size | AWG18-28# | AWG20-32# | AWG12-26# |
| Cutting Length | 45-999mm | ||
| Length Tolerance | ±0.2%*L | ||
| Stripping Length | 0-10mm | ||
| Detection Device | Lack wire detection, Lack terminal detection, Crimp detection, Pressure detection | ||
| Machine Production Rate | About 4000 pcs/h | ||
| Air Connection | 0.4-0.6MPa | ||
| Power Supply | 110/220VAC,50/60Hz | ||
| Power | 2100W | ||
| Weight | About 280kg | ||
| Dimensions | 120*60*200cm | ||
Fully automatic one-ends wire cutting stripping and terminal crimping machine.
