Model: SU-010

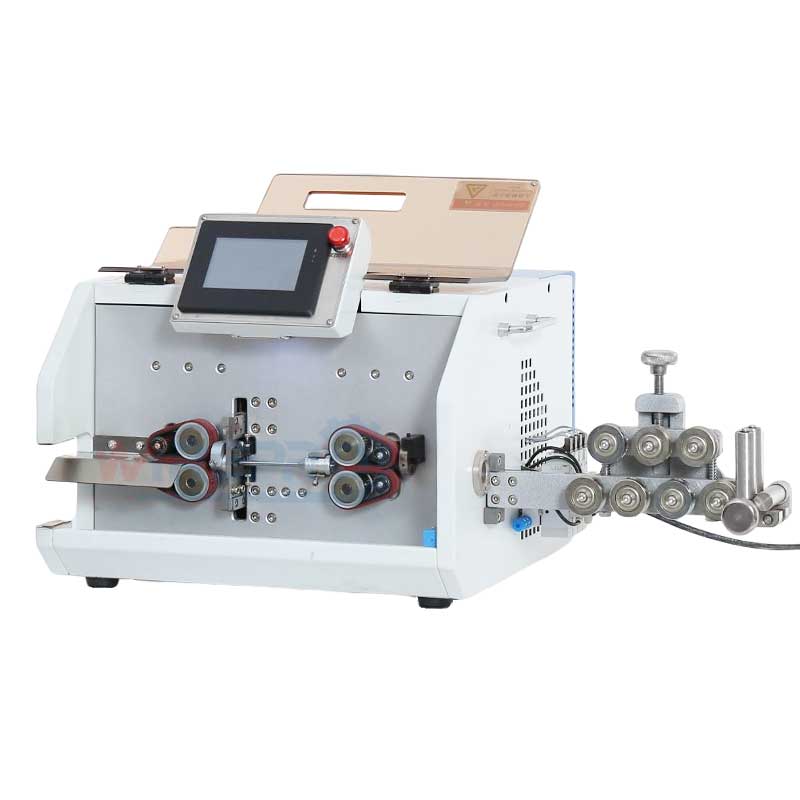

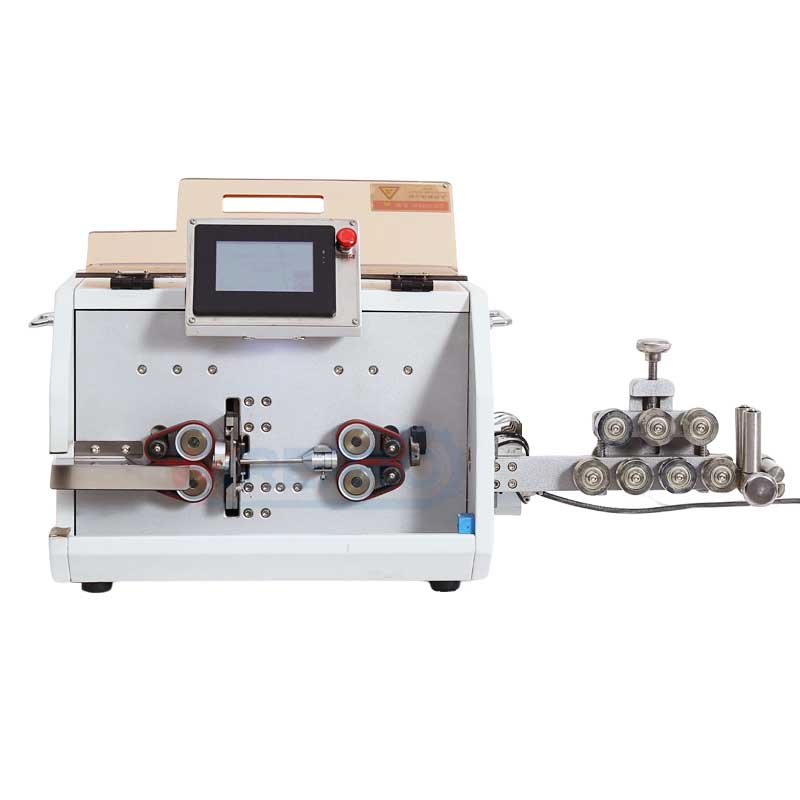

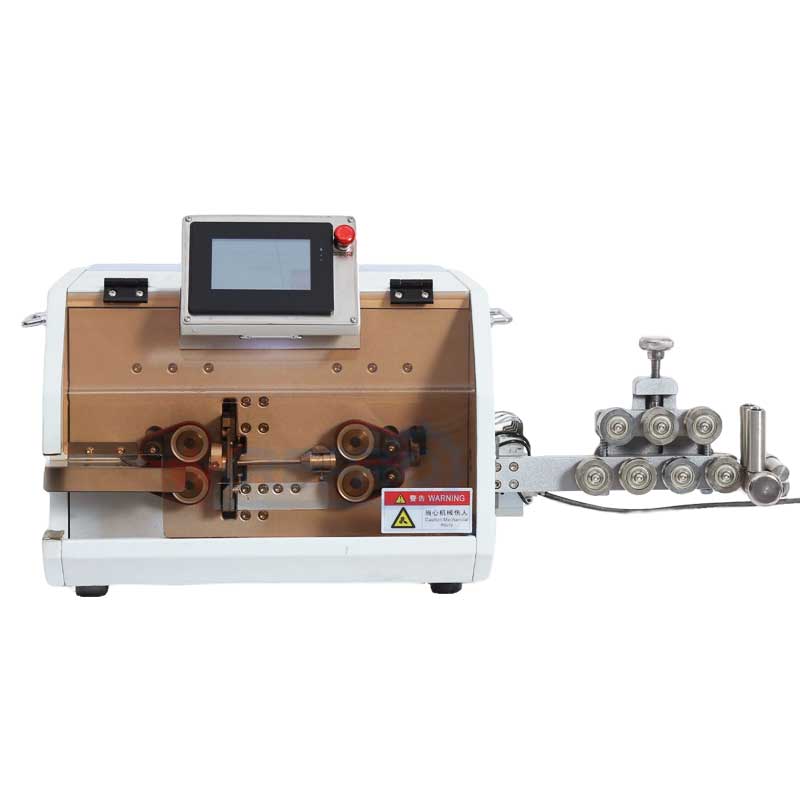

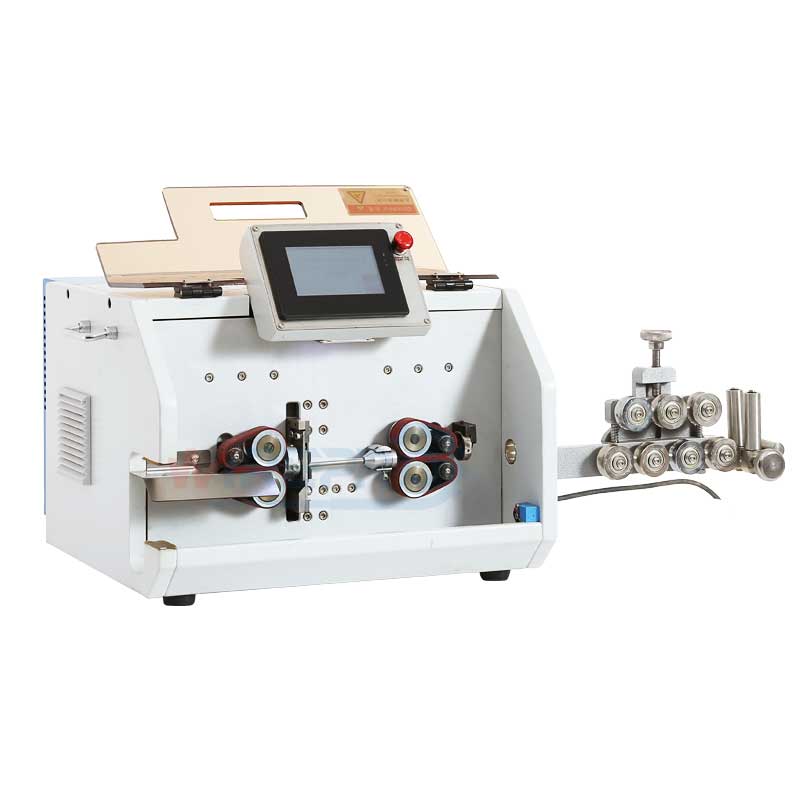

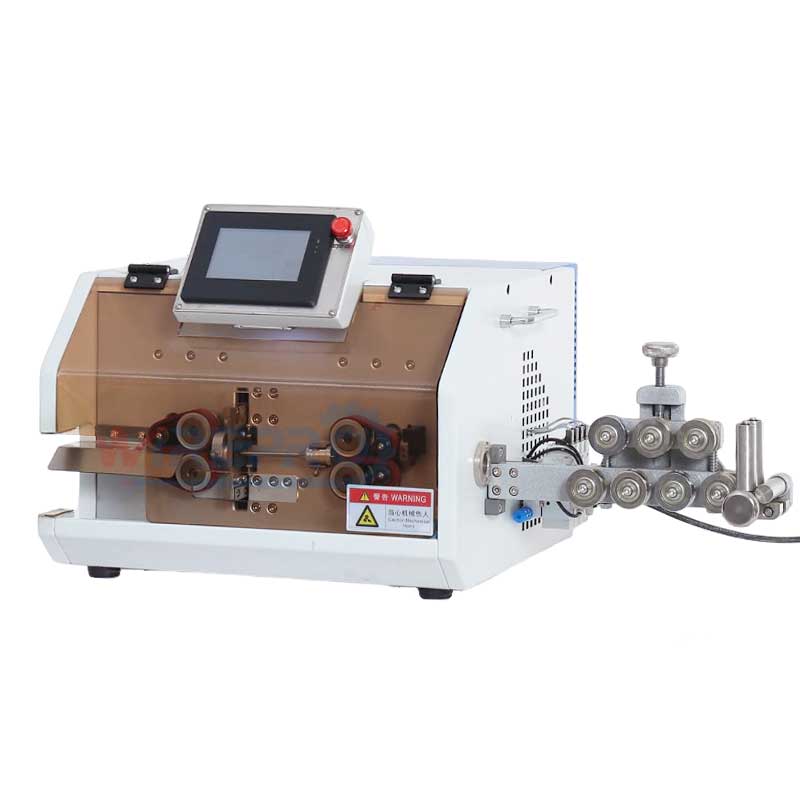

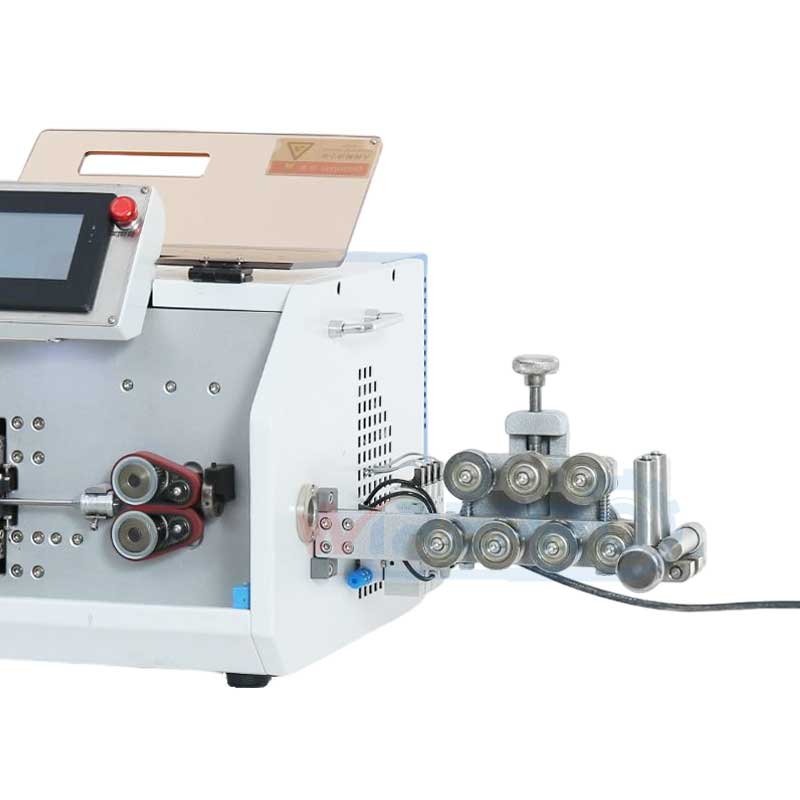

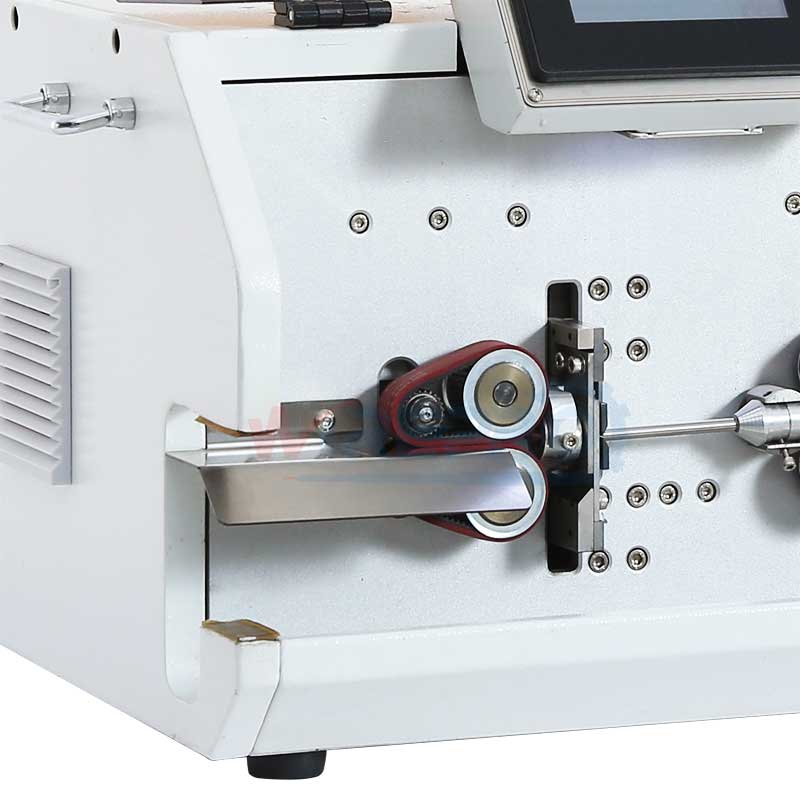

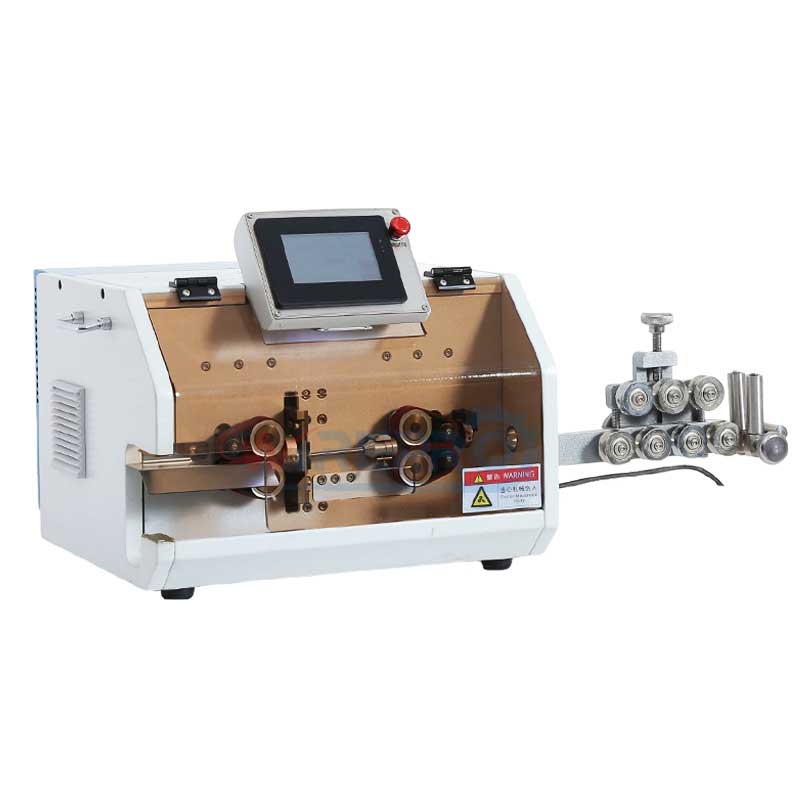

SU-010 max 10 sqmm small size electric wire cut and strip machines
Description
Technical Data
| Model | SU-010 |
| Conductor Cross-Section | 0.5-10mm² (stranded wire) |
| Max Cable Diameter * | Φ8mm |
| Cutting Length | 1-99999mm |
| Cutting Length Tolerances | ≤(0.002*L) mm |
| Stripping Length * |
Full stripping Head 1-50mm; Tail 1-50mm (based on wire) |
| Production Rate | 2000-3000pcs/h |
| Display Screen | 4.5 inch touch screen |
| Wire Feed Method | Belt feeding |
| Drive Method | 4 wheels drive |
| Power Supply | 220V/110V |
| Power | 1100W |
| Weight | 65kg |
| Dimensions | 50*55*85cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | |
Application
The series machines are designed for full-automatic cut and strip big size cable.
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
Get Details & Price Now
If you hope to inquiry just this product, please send a message here. If you hope to inquiry several products, please Add To Quote, quote all products on the Request Quote page.
WIREPRO will send quotes back to you ASAP : ）
