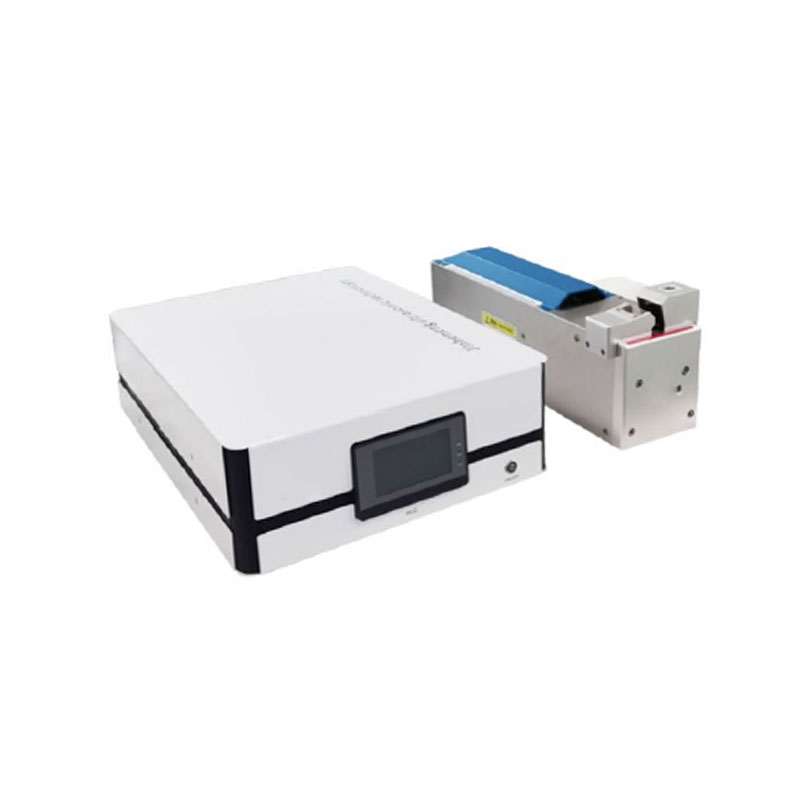

TP-W10 small wire ultrasonic welder machine

Model: TP-W10

TP-W10 is suitable for wire harness welding with a total cross-sectional area of less than 10 square millimeters, and has a good cost-effectiveness for users who only need to weld small wires. Mainly suitable for splicing copper wire, and aluminum wire.



Description

TP-W10 is suitable for wire harness welding with a total cross-sectional area of less than 10 square millimeters, and has good cost-effectiveness for users who only need to weld small wires. Mainly suitable for splicing copper wire, and aluminum wire.

It has the preventing empty welding function, which can effectively prevent damage to the welding head.
Adopt a pure cylinder motion system, easy to use and easy to operate.

Ultrasonic welding features

1. The welding material does not melt and does not destroy the metal characteristics;
2. After welding, the electrical conductivity is good, the thermal conductivity is good, and the resistivity is extremely low or nearly zero;
3. The requirements for the metal watch are low, and the oxidation or powerhouse layer can be welded;
4. There is no spark in the explosion connection, which is fast, environmentally friendly, and safe.

Video

Technical Data

Model TP-W10
Welding capacity Wire size range: 1-10mm2
Frequency 20Khz
Production Rate About 0.6s/pcs, based on the wires
Power Supply 220VAC,50Hz
Power 2000W
Dimension 570*220*175 mm / 385*350*165mm
Weight 35kgs / 18kgs

Application

The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
