Model: RD-E30 RD-E40
RD-E30 RD-E40 small size electric wiring heat shrink tubing heater machine
Description
RD-E30 RD-E40 electric wiring harness heat shrink tube heater is a small size machine. It mainly heats heat shrink tubes with hot air. Suitable for processing equipment such as electronic wire computer connectors, plug wires, audio wires, terminal connection wires, Teflon wires, isolation wires, casing new energy wires, etc.

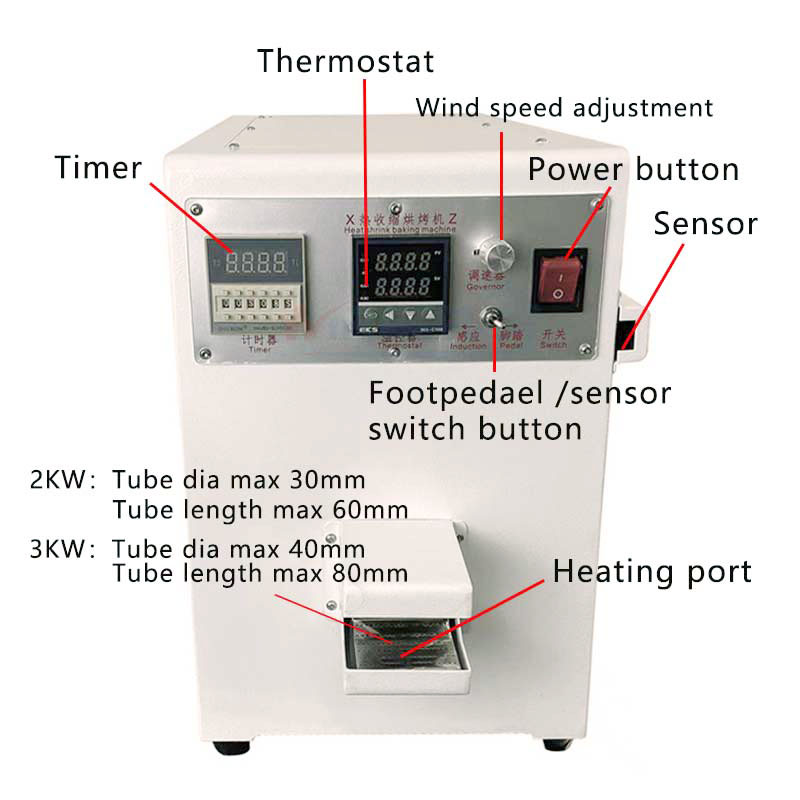

Features:
1. No air source is required, only power supply is required, easy to move
2. Maintain a constant temperature and the temperature will not drop when blowing air
3. Heat shrink time can be set
4. The air nozzle can be replaced at will
5. Optional infrared sensor or foot control
6. Wide range of applications, suitable for factories with diversified products but small quantities
Video
Technical Data
| Model | RD-E30 | RD-E40 |
| Recommend heating tube diameter | < 30mm | < 40mm |
| Heating length | < 60mm | < 80mm |
| Heating Temperature | 0-450 ℃ | |
| Adjustable parameter | Infrared radiation tube (2000W) | |
| Power supply | 220V | |
| Power | 2000W | 3000W |
| Dimension | 45*22*38cm | |
Application
