Model: PF-R12 PF-R15
This cable feeder device is designed for wire stripping, terminal crimping machine and other wire harness processing equipment.
Model: PF-R12 PF-R15
This cable feeder device is designed for wire stripping, terminal crimping machine and other wire harness processing equipment.
Designed for actively derailing small wire cable roller and spool. Extremely suitable for derailing thin cables.

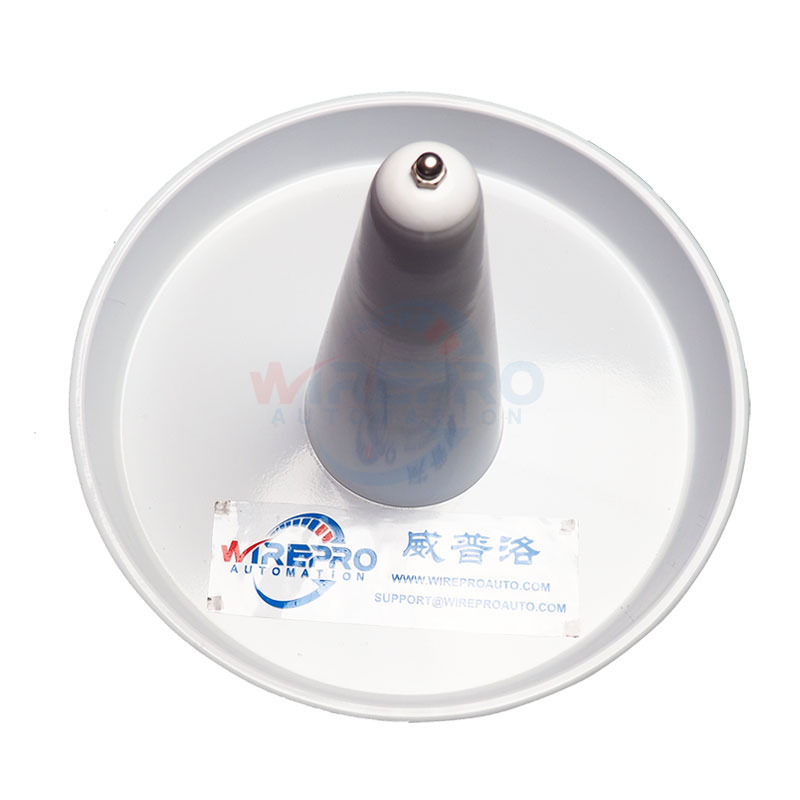

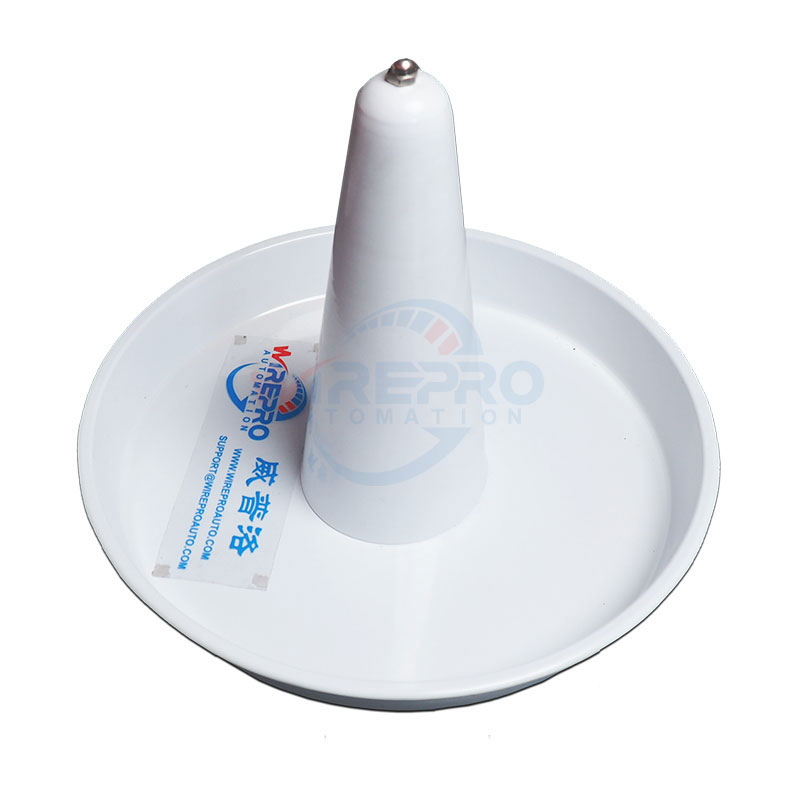

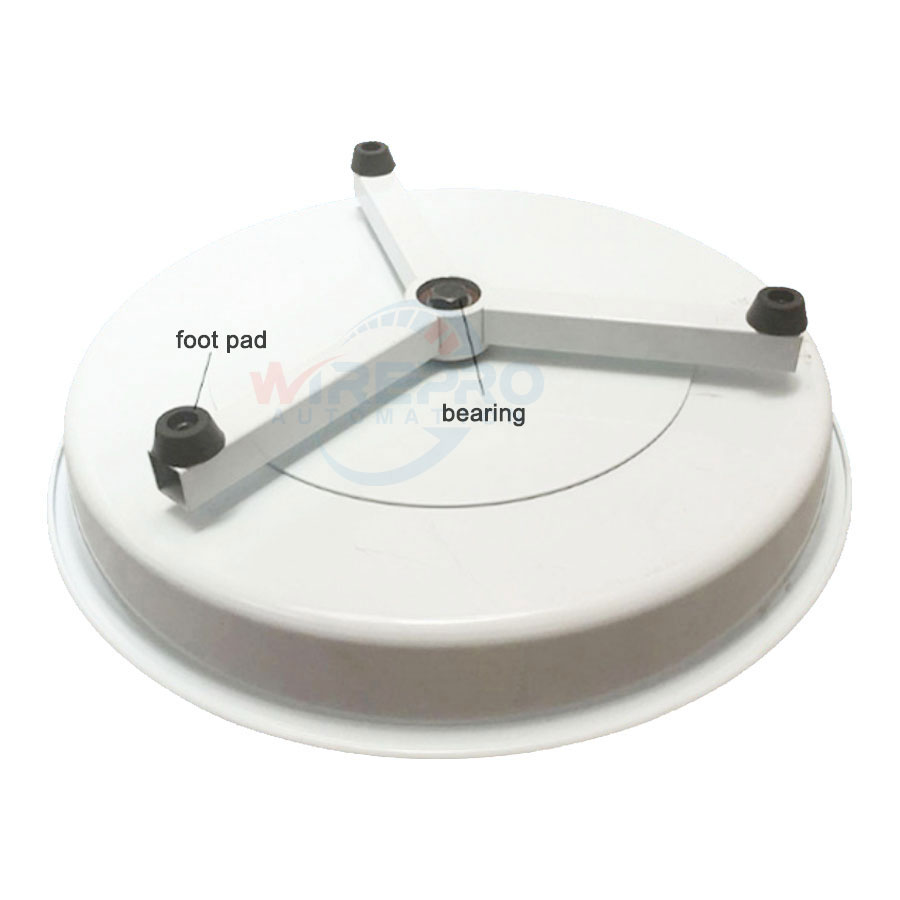

The rotary wire handling tray is designed for loose wire coils, the self-tension of the wire can make it rotate automatically while pulling wire from the coil center. It can prevent the wire from becoming twisted or knotted. On the consideration of economic cost and space-saving ideas, we made this very handy wire feeder
PF-R12: Compact structure and lightweight, suitable for a wide range of cables and wire processing equipment.

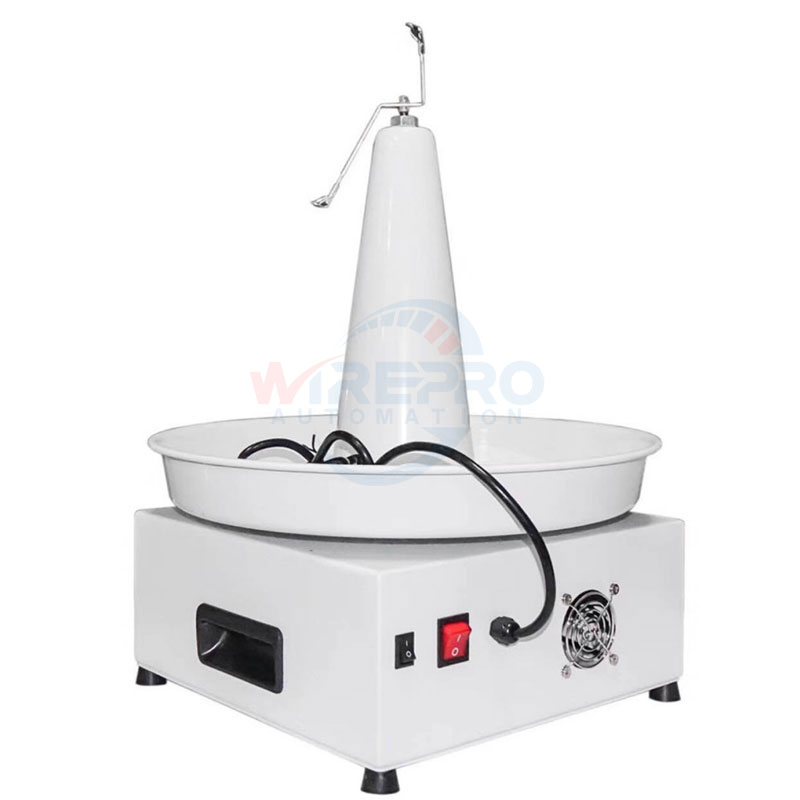

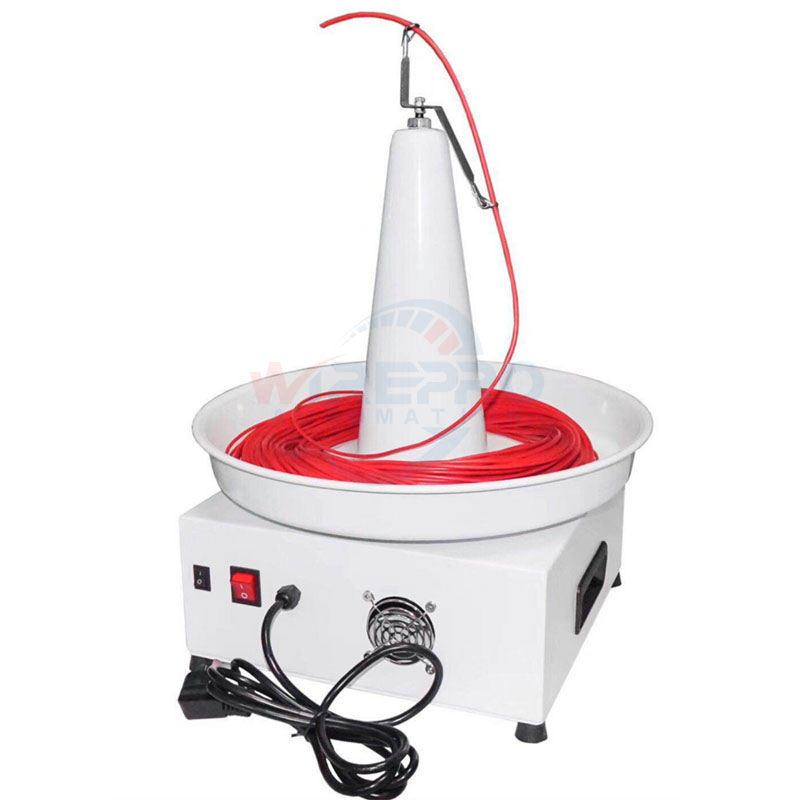

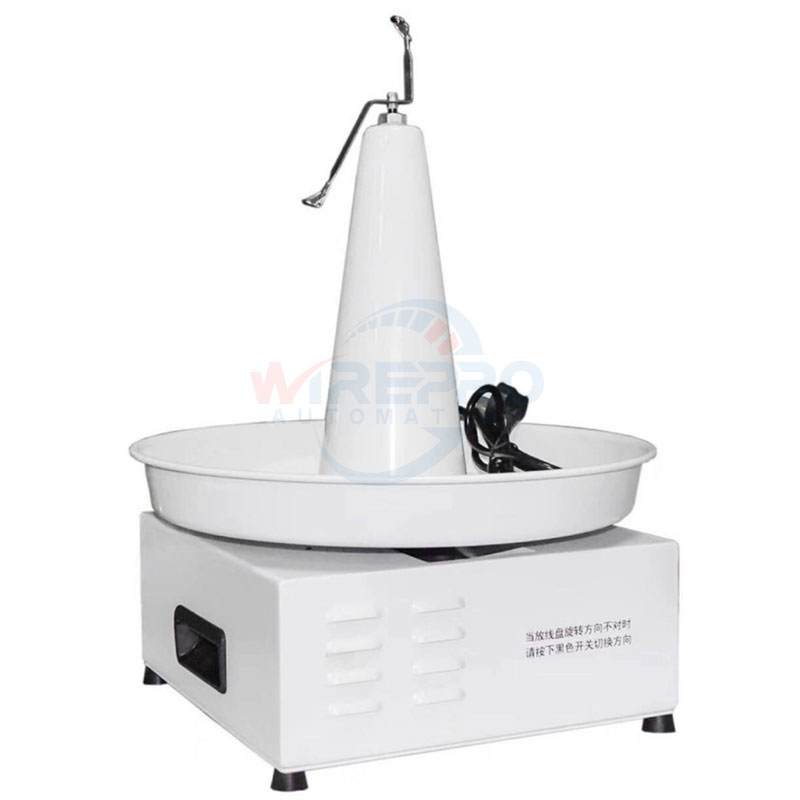

PF-R15: With a built-in microcomputer inductor to process wire prefeeding. Support positive and negative switching, and arbitrary feeding.
Model | PF-R12 | PF-R15 |
Max Load Weight | ≤12kgs | ≤14kg |
Suitable wires | Electric wires except for flat cables,generally for small wire, diameter not more than 3mm. | |
Wire Roll OD | Max 300mm | |
Wire Roll ID | 120mm | |
Voltage | AC 220V 50Hz | |
Rated power | 0 | 100w |
Dimensions | 38*38*35cm | 39*39*50cm |
Weight | 2.5kgs | 8.8kgs |
Small size wire roll feeding.
