Model: PB-030

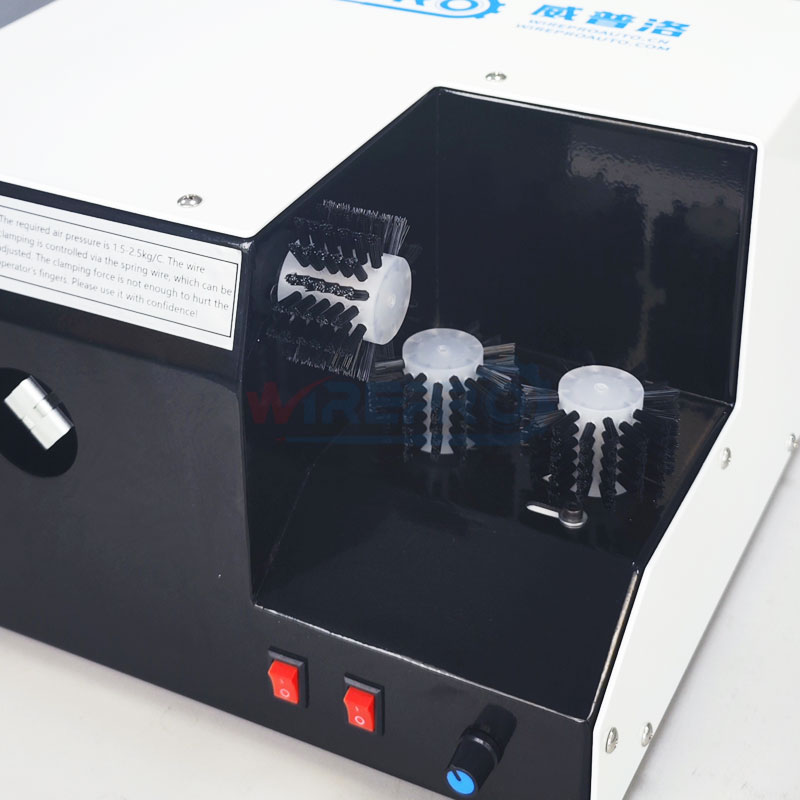

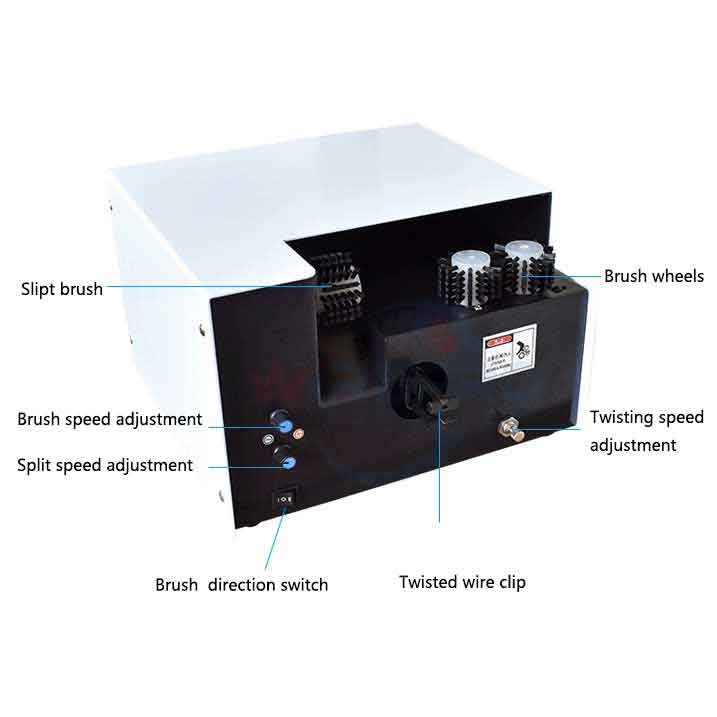

The brushing machine is mainly used for the processing braided shielding cable. It has three brushes.

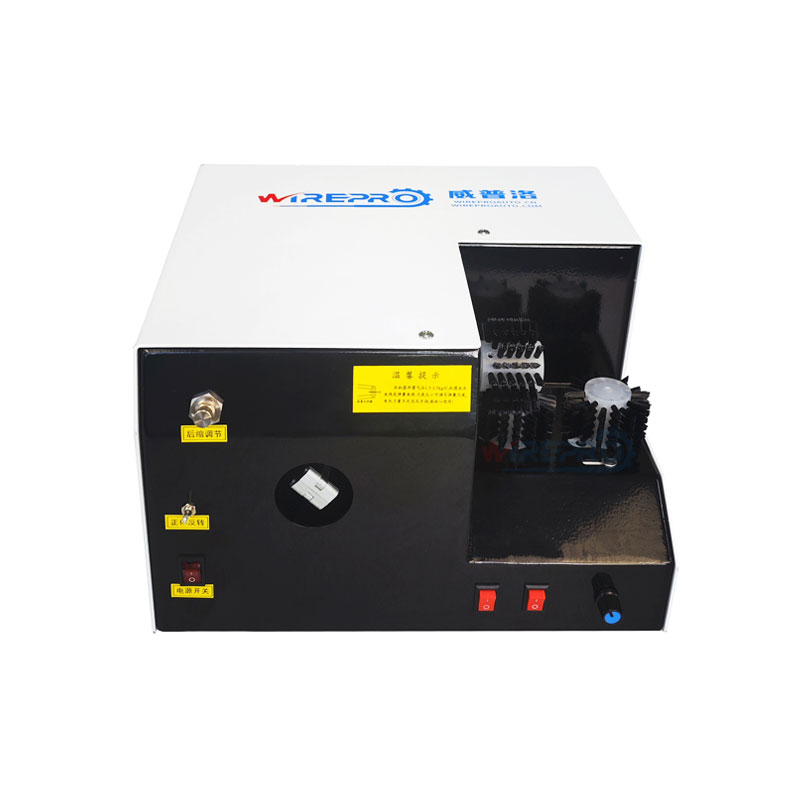

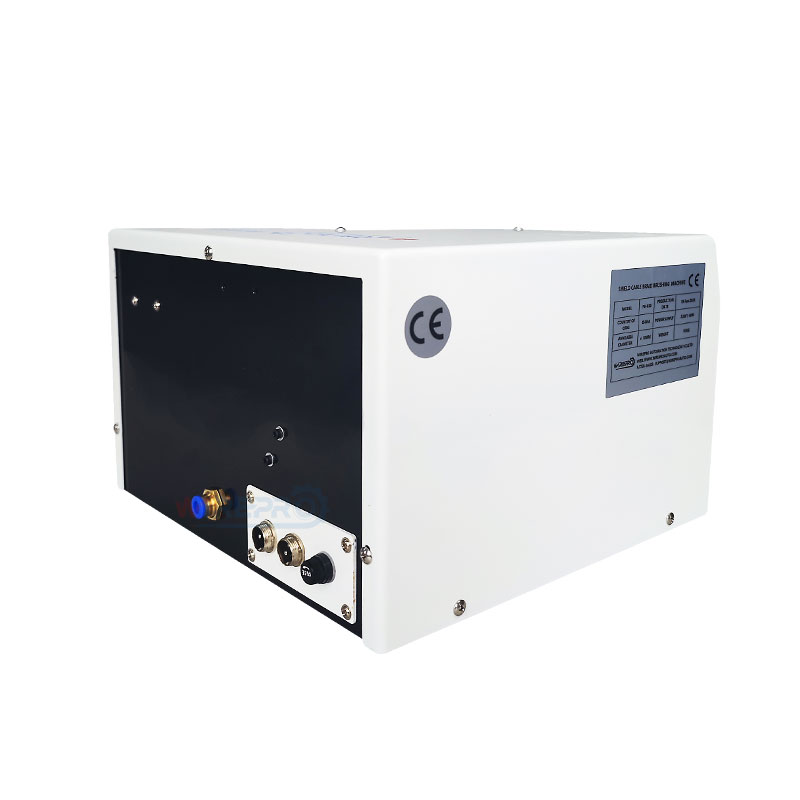

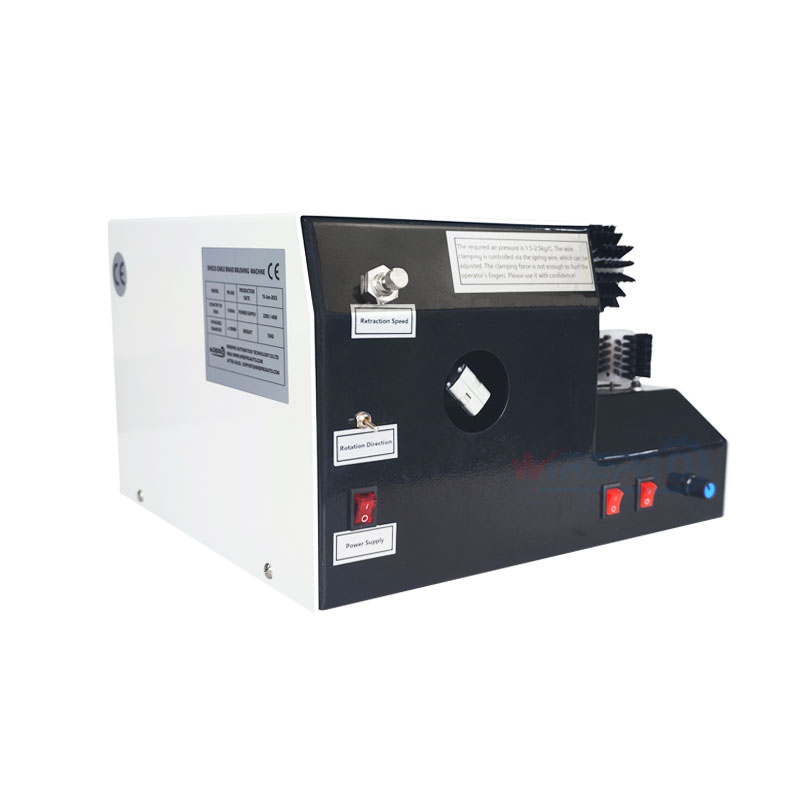

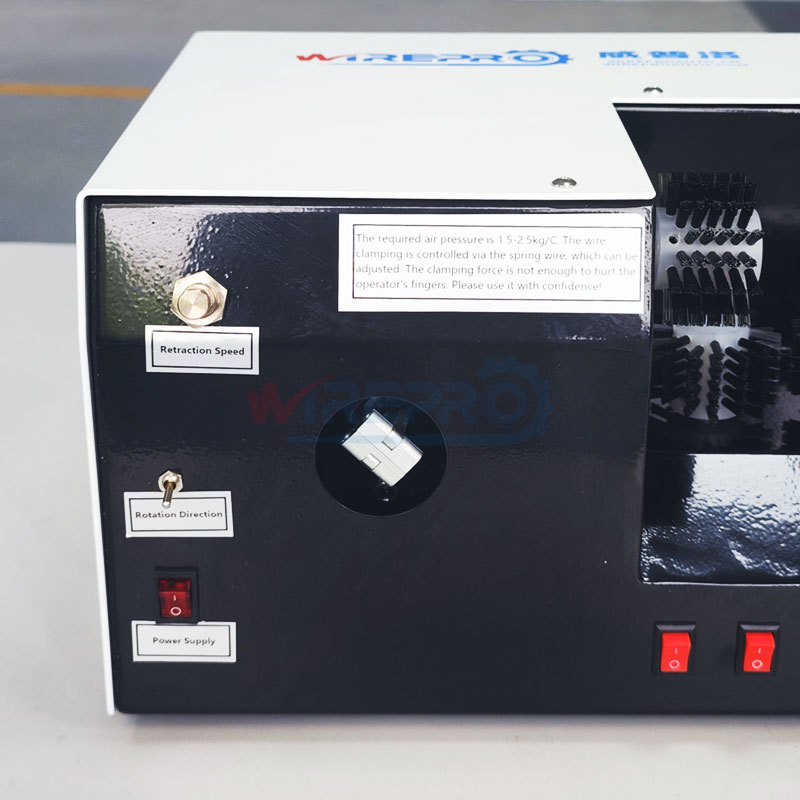

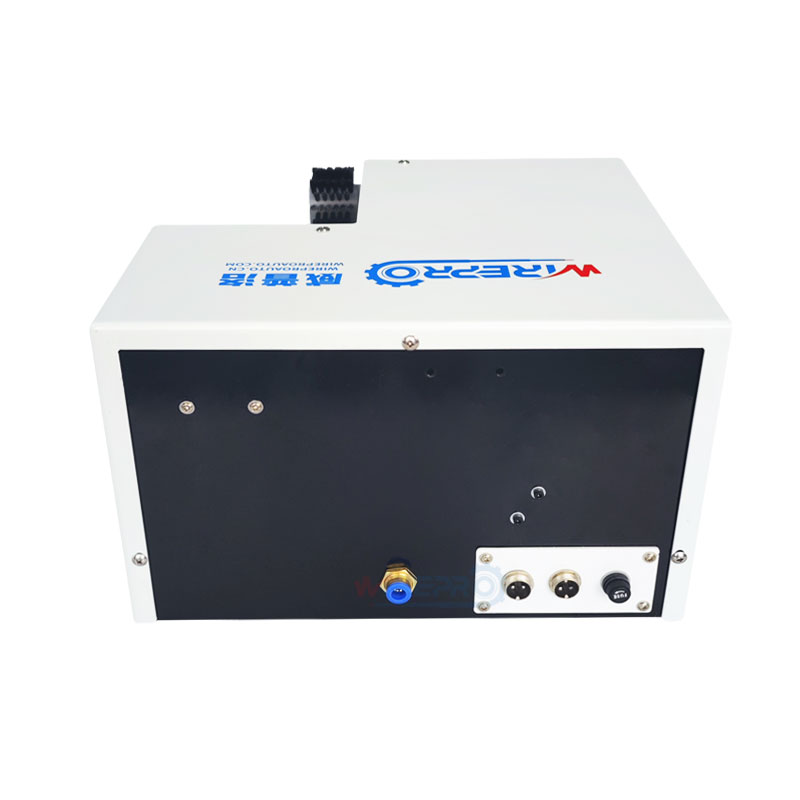

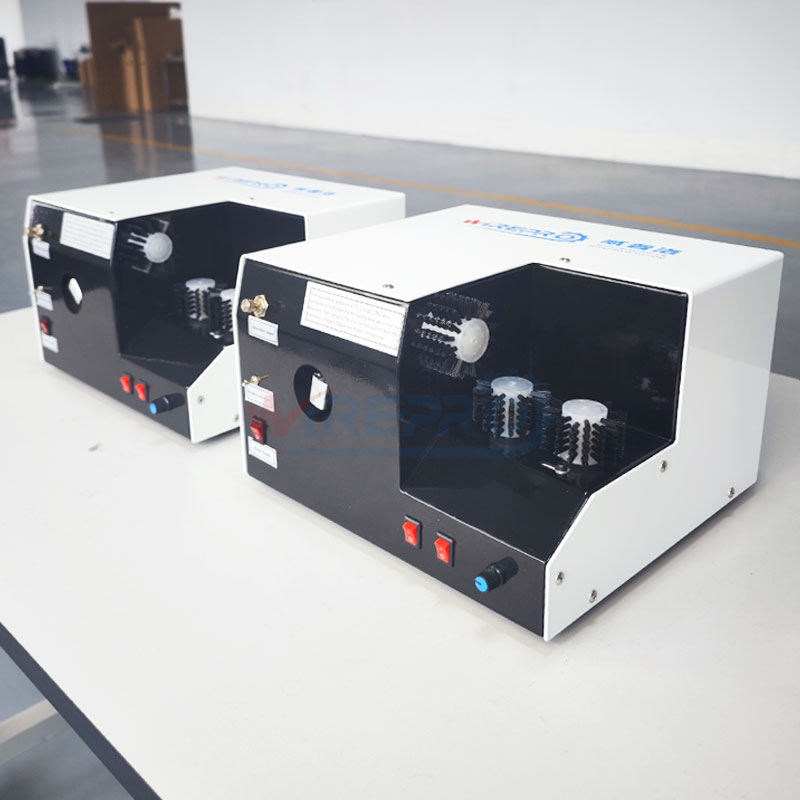

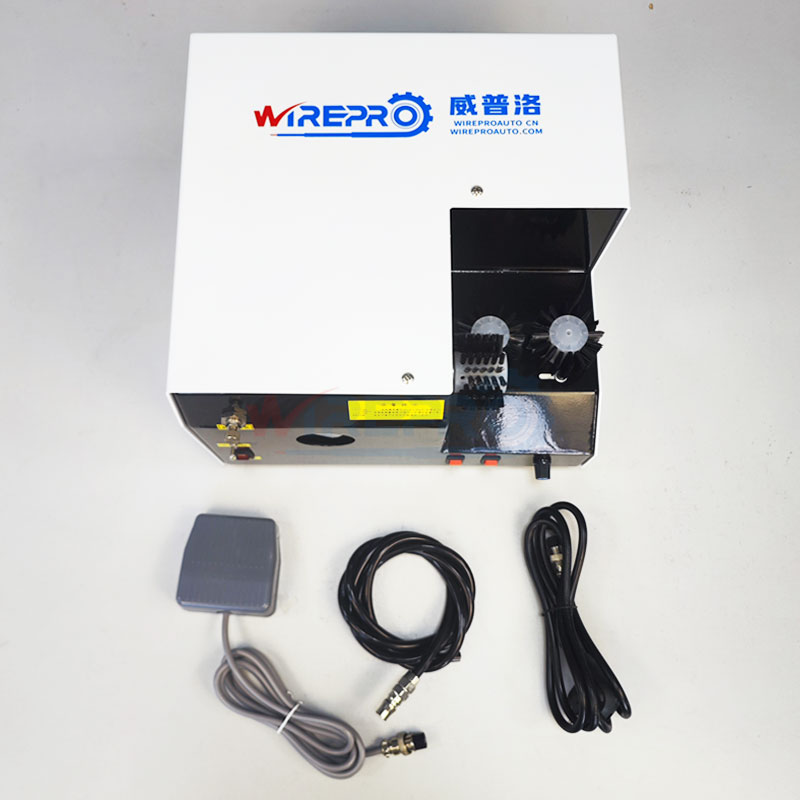

PB-030 Shield cable braid sliptting brushing and twisting machine
Description
The brushing machine is mainly used for the processing braided shielding cable. can be used for processing different kinds of ground cables, braided cables, shielded wires, etc.
Features:
1. The brushing twisting machine can be used for the data line shielded wire shielded cable brush, straightly brush to facilitate the
post-processing, the brush wire plate is divided into copper wire brush/nylon brush
2. The distance between the brush rollers can be adjusted according to different wires.

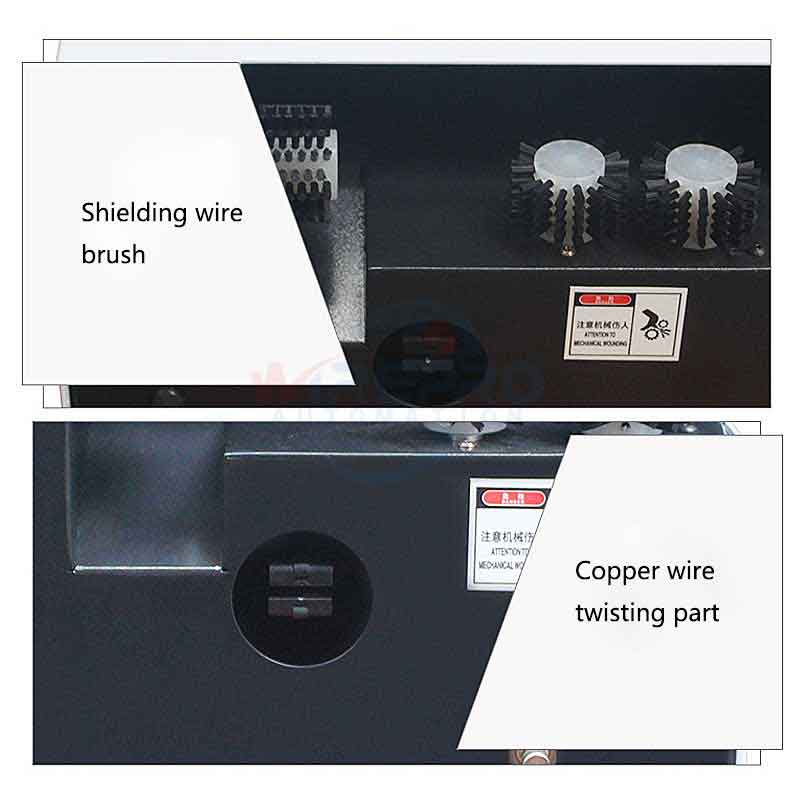

3. The cable shield brushing and twisting machine can brush and twist the cable braid layer simultaneously.
4. Beautiful shape, small size, portable
Technical Data
| Model | PB-030 |
| Brushing wire diameter range | 0.1-10 mm |
| Wire cross section range | 0.1-2 mm2 |
| Brushing length | 1 – 50mm (up to 60-80mm depending on net material) |
| Twisting length | 5 – 50mm (others customizable ) |
| Twisting speed | 1400 circle/s |
| Brushing motor | 3000 circle/s |
| Power supply | AC220V 50Hz |
| Power | 40W |
| Dimension | 320*310*200mm |
| Weight | 13kgs |
Application
