Model: SC-D07, SC-D10
This series of machines are designed for stripping coaxial cable. Applicable to all kinds of flexible and semi-flexible coaxial cable etc.

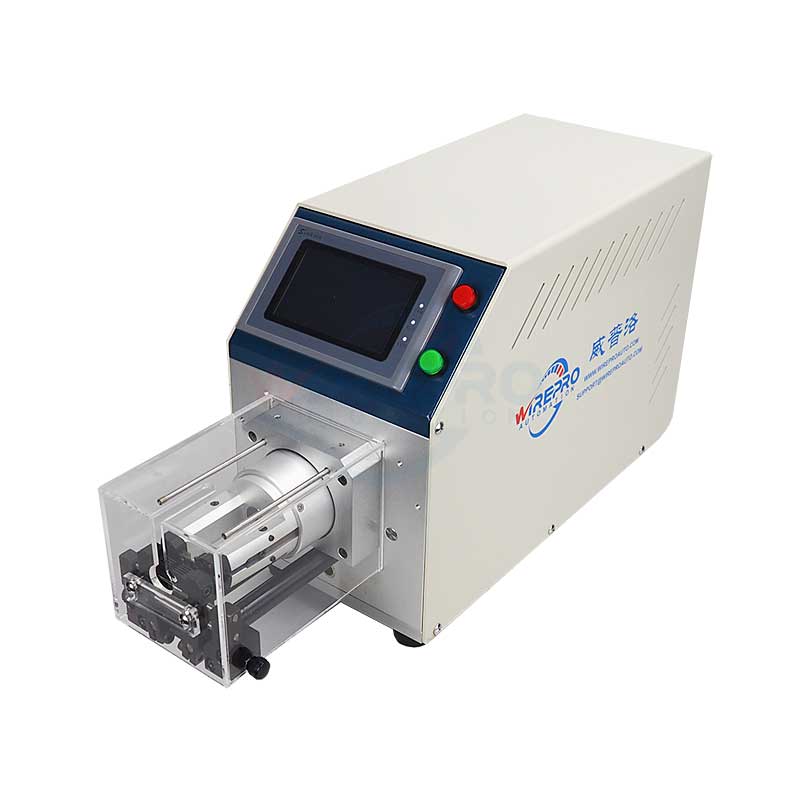

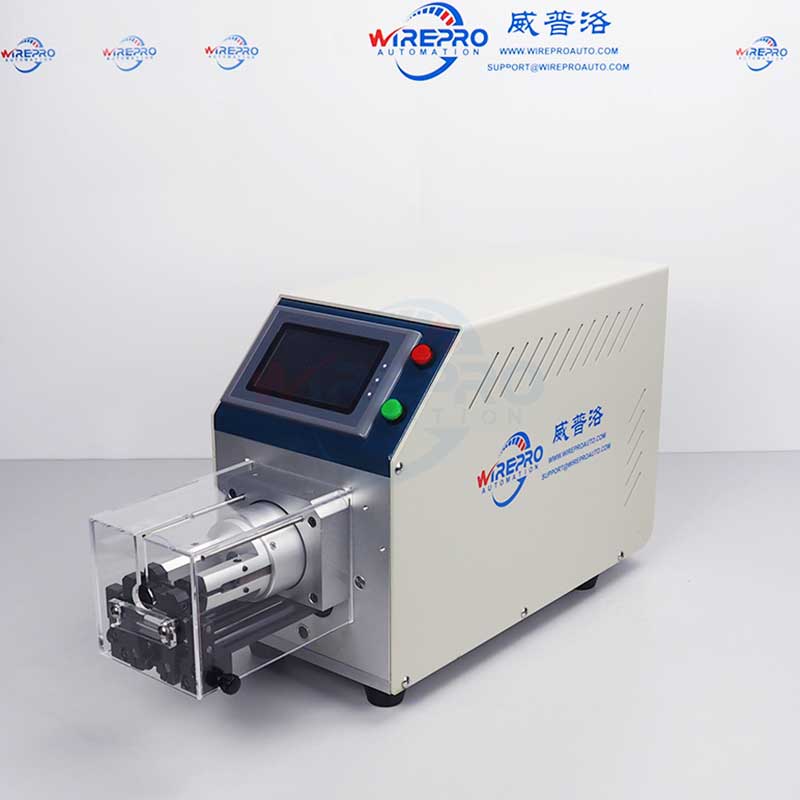

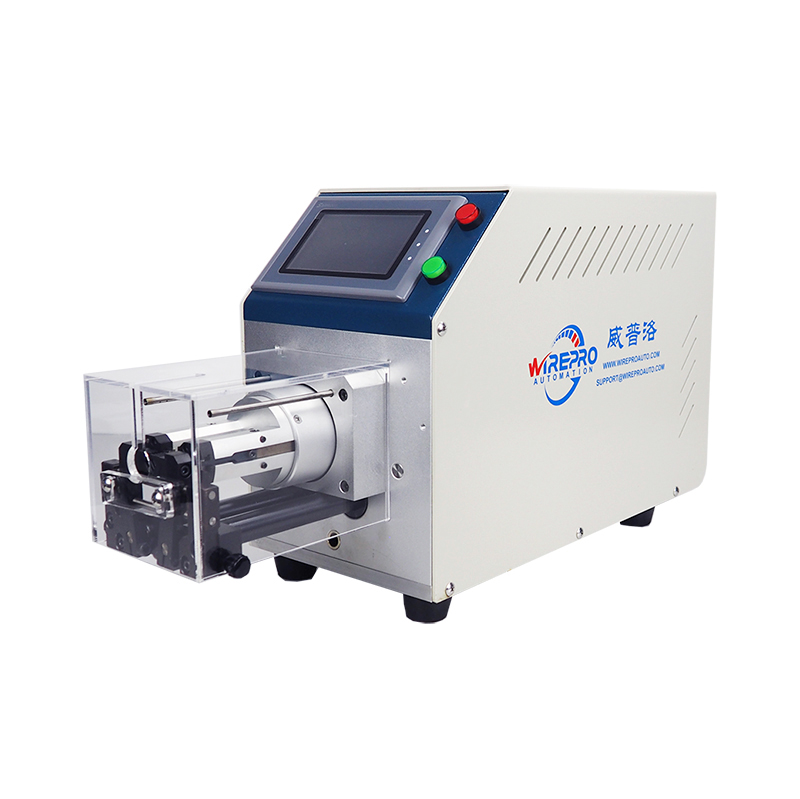

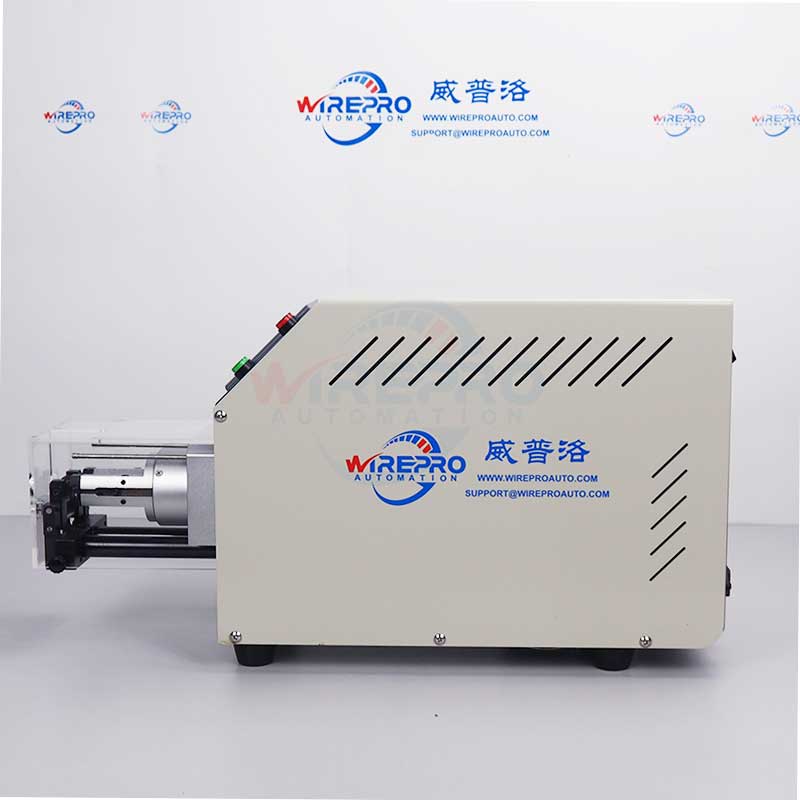

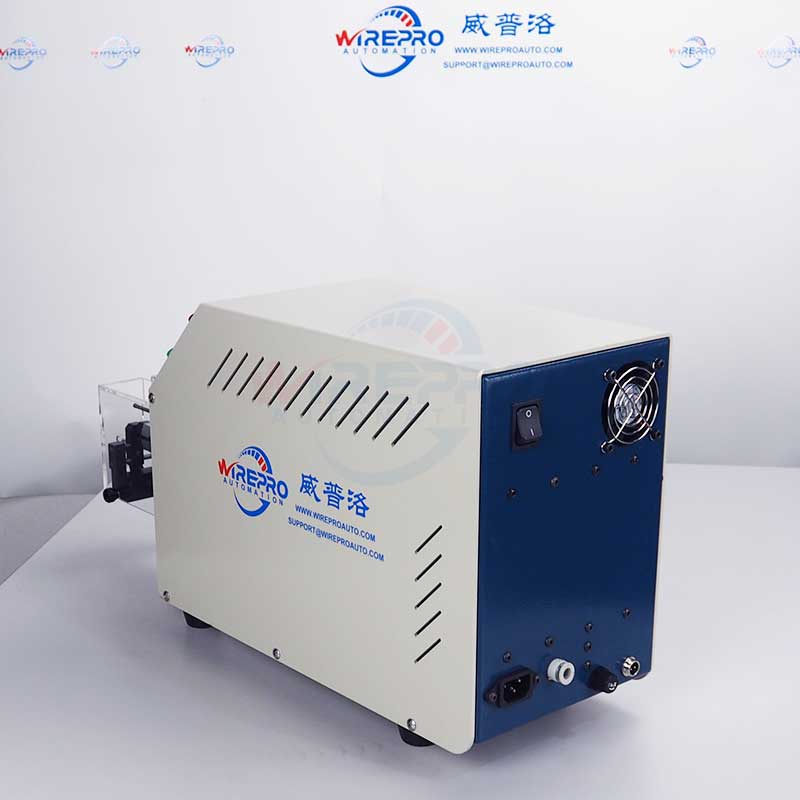

SC-D07 SC-D10 Semi-automatic coax cable stripper stripping machine
Description
This is a programable semi-automatic coaxial cable stripping machine, special four cutters design can be applied to process a wide range of wires or cables, even though too thin, too tough, and slightly less round material there is no problem to process.
The maximum diameter of cable can be, the longest length of stripping can be 65mm.

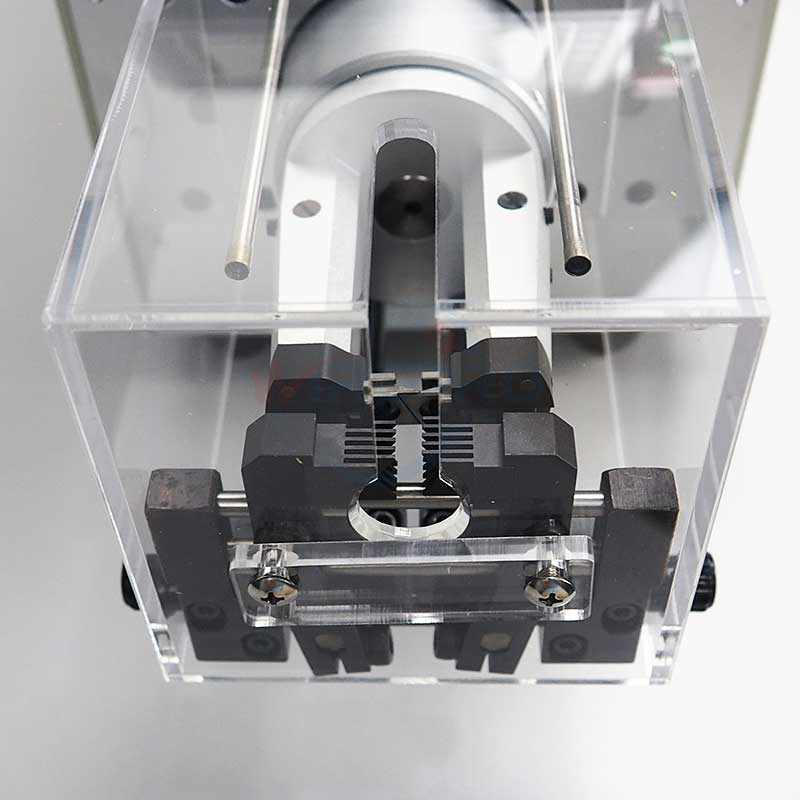

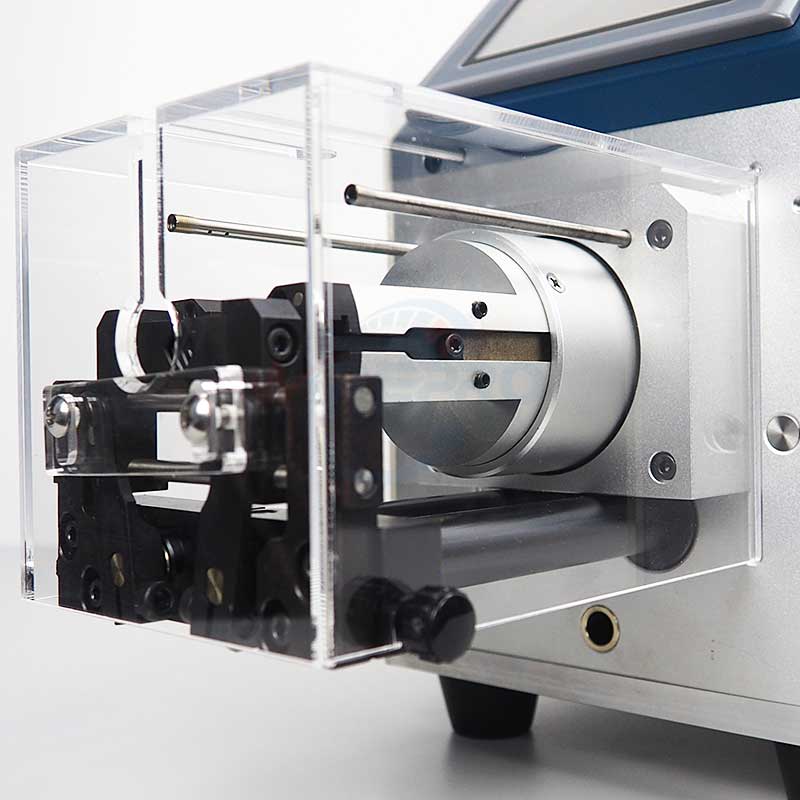

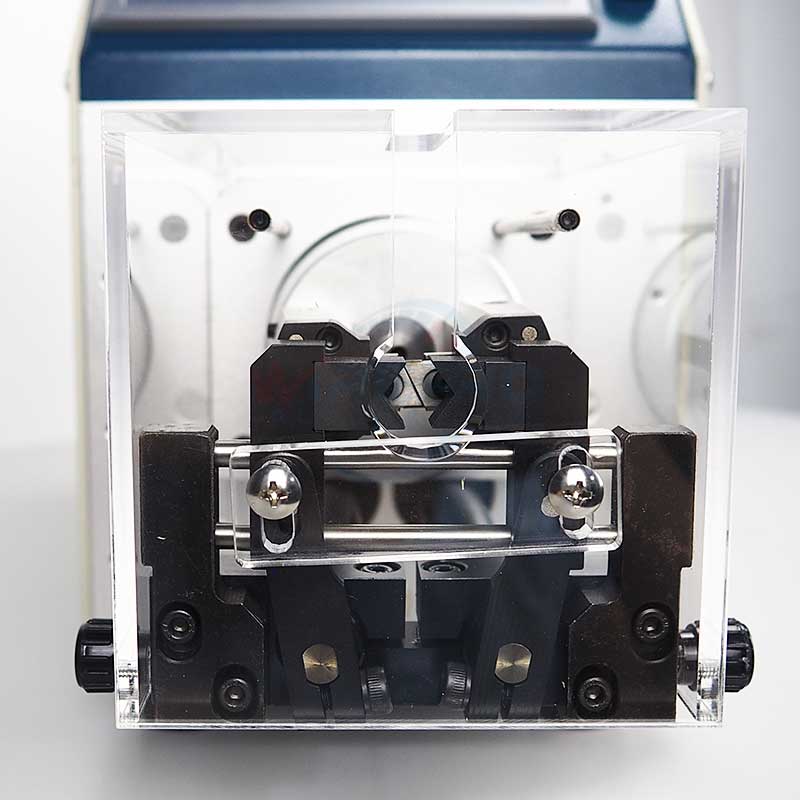

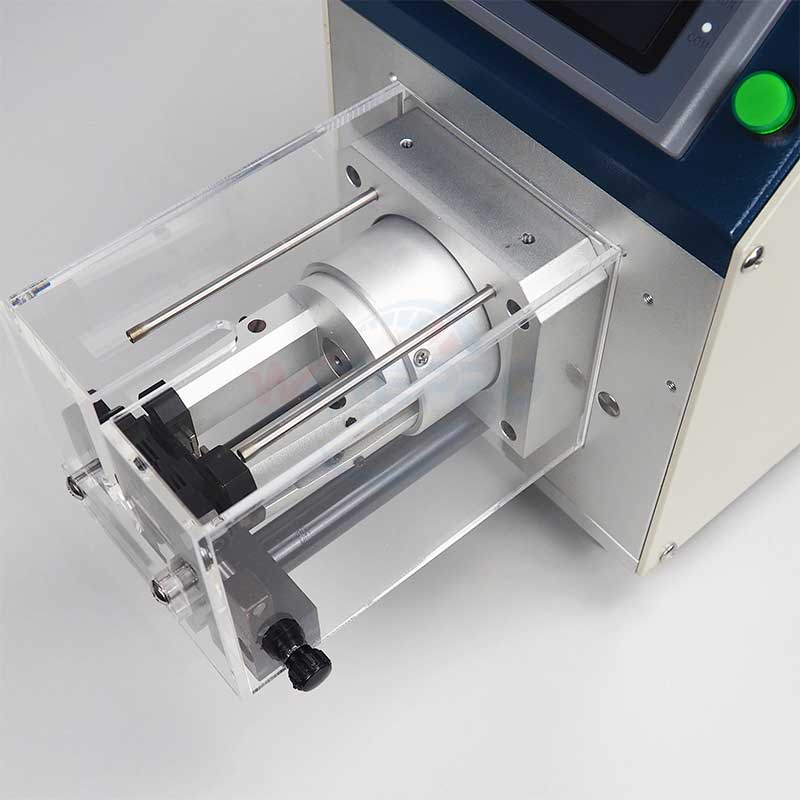

1. Rotary stripping head, exquisite structure improve the stripping stability and working life
2. Max stripping 9 layers
3. Support multi-layer peeling, multi-stage peeling
4. Servo motor, precision ball screw, and multi-point motion control system, work stable and high efficient
5. The stripping tool is made of high-quality steel and optionally coated with titanium alloy, sharp and durable
Coax cable stripping machine
Technical Data
| Model | SC-D07 | SC-D10 |
| Features | Rotary knife cutter stripping | |
| Available Wire Dia | 0.81-7mm | 1- 10mm |
| Stripping Length * | ≤48mm | ≤65mm |
| Blade Quantity | 2 pieces | 4 pieces |
| Production Rate | 700-1200pcs/h | 700-1200pcs/h |
| Stripping Layers | Max 9 layers | |

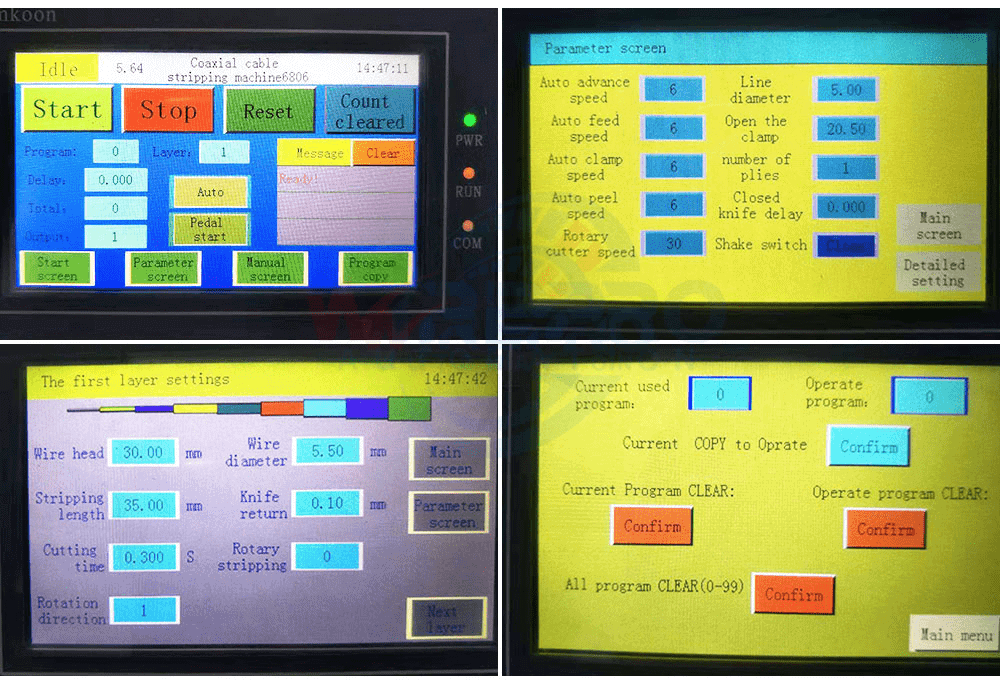

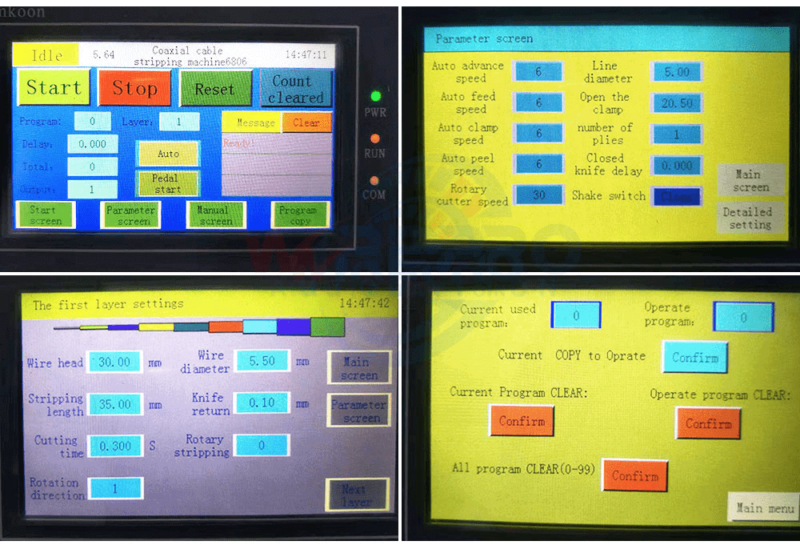

| Display Screen | Chinese / English touch screen | |
| Power Supply | 220V/110V | |
| Power | 240W | 400W |
| Dimensions | 60*18.5*28cm | 60*18.5*28cm |
| Weight | 24kg | 25kg |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | ||
Application
Stripping coaxial cable, max 9 layers.
Applicable to all kinds of flexible and semi-flexible coaxial cable in the communication industry and medical automotive industry etc.
