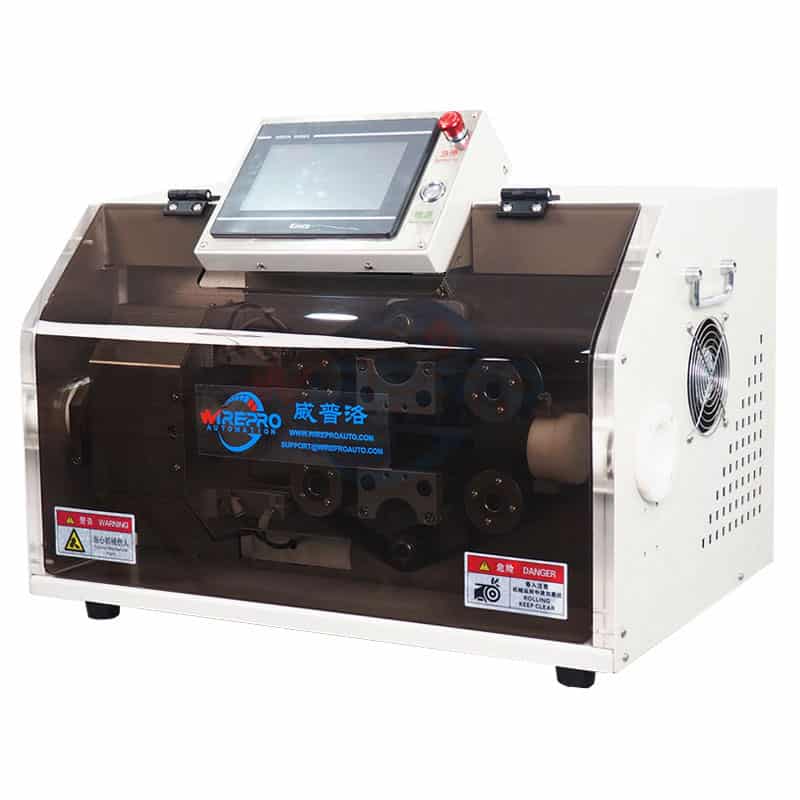

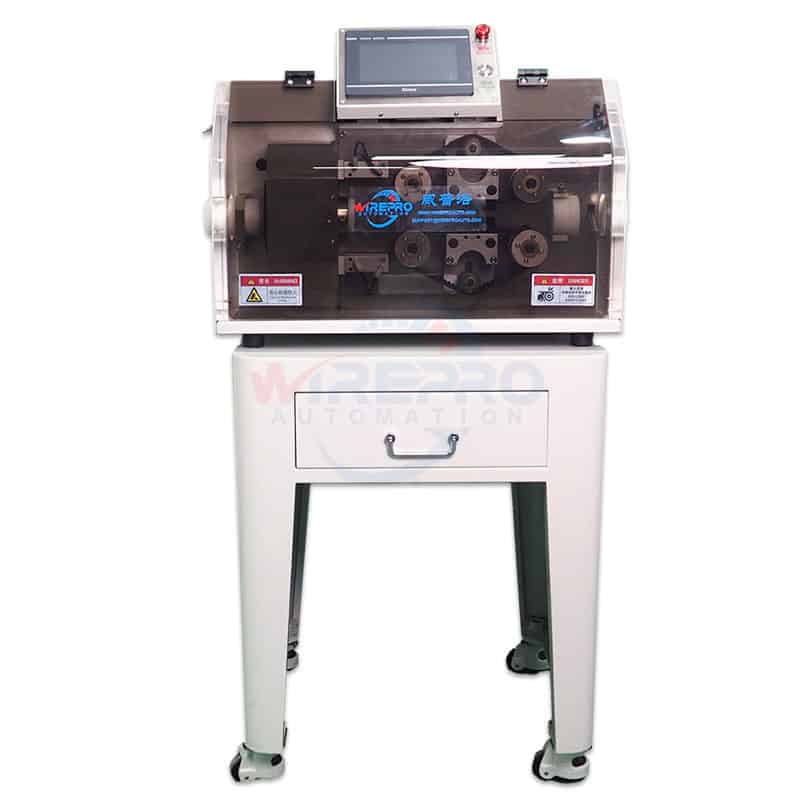

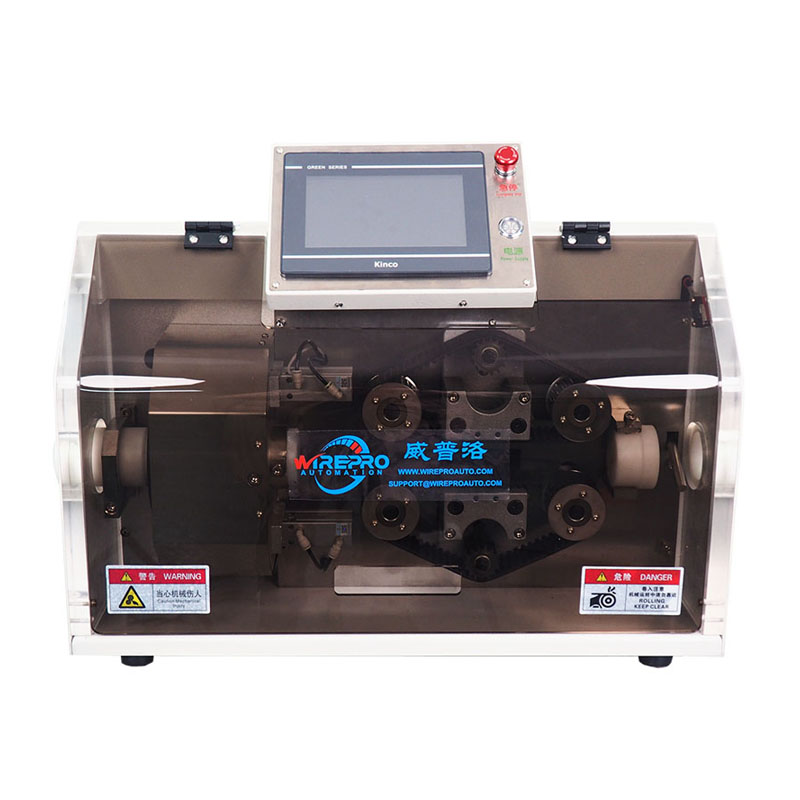

Model: CB-R03
CB-R03 works with rotating blades. It can cut more hard materials tubes than common blades.
CB-R03 Rotary blade cutter hard pipe plastic tube cutting machine
Description
CB-R03 works with rotating blades. It can cut more hard materials tube than common blades. It’s widely used in car harness, the new energy wire harness, aerospace, the motor train, urban rail traffic, the high voltage cabinet, and so on.
Feature:
1. High precisely rotated cutting, cutting surface smooth, no need for secondary processing

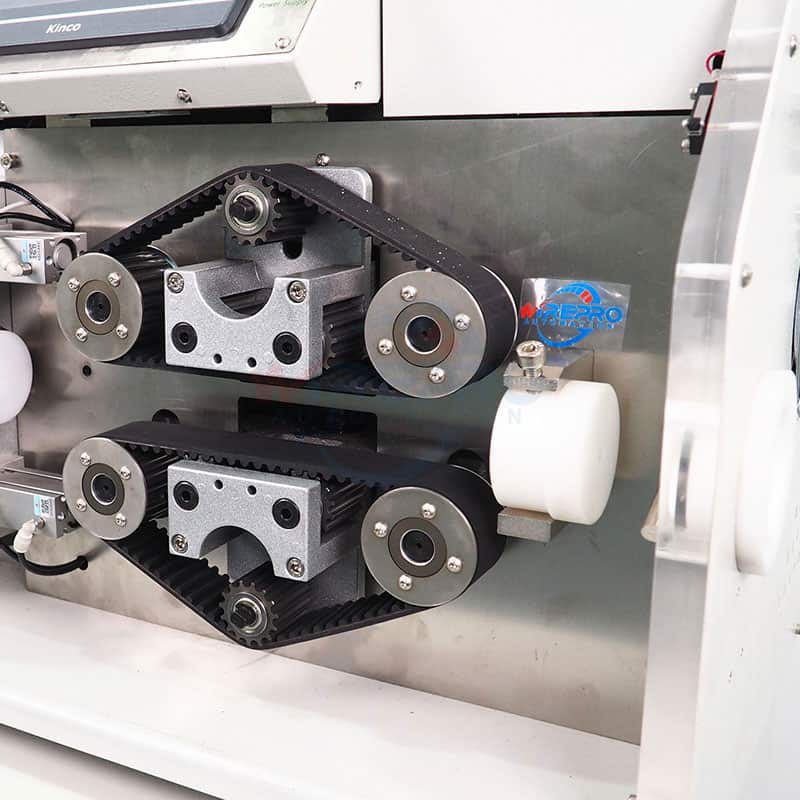

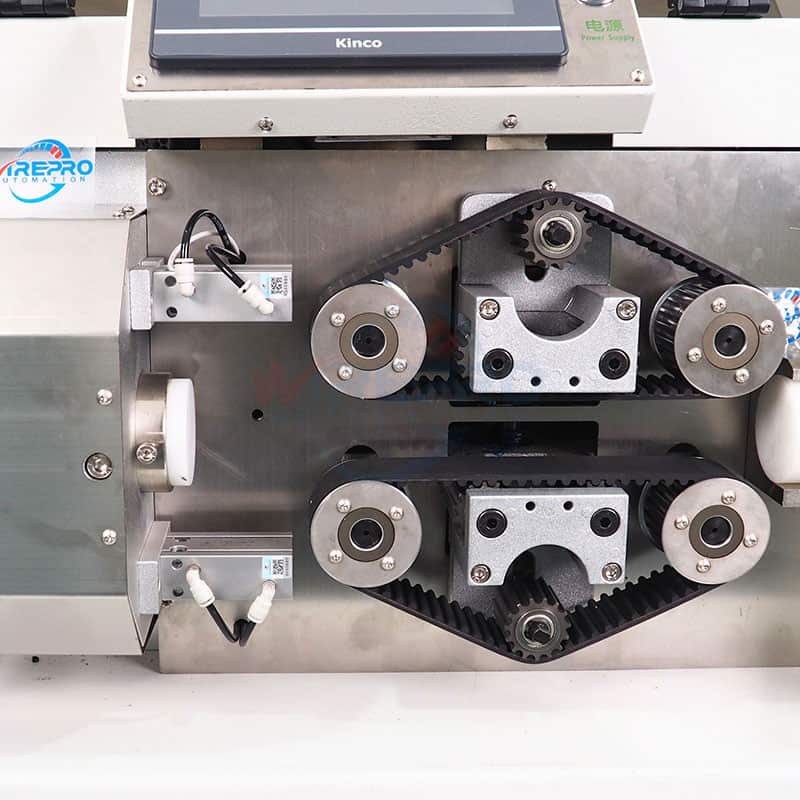

2. Belt traction, no indentation, no deformation
3. Can custom splitting function
4. No need to change tool, just need to change feeding tube when cutting different size tubes.
CB-R03 Rotary blade solid tube cutting machine video:
Technical Data
| Model | CB-R03 |
| Materials | For hard materials tube |
| Feature | Rotary blade |
| Available Diameter | 4-30mm (custom available) |
| Cutting Length | 5-9999mm |
| Cutting Speed | 60-110pcs/min |
| Power | 220/110V |
| Power Supply | 1000W |
| Dimensions | 84*54*71cm |
| Weight | 95kg |
Application
Rotating blades to cut hard materials tube.
