Model: SP-R20
Rotary knife stripping, widely used in single-strand soft wire, multi-strand soft wire, hard wire, sheath wire, flat wire stripping, etc.

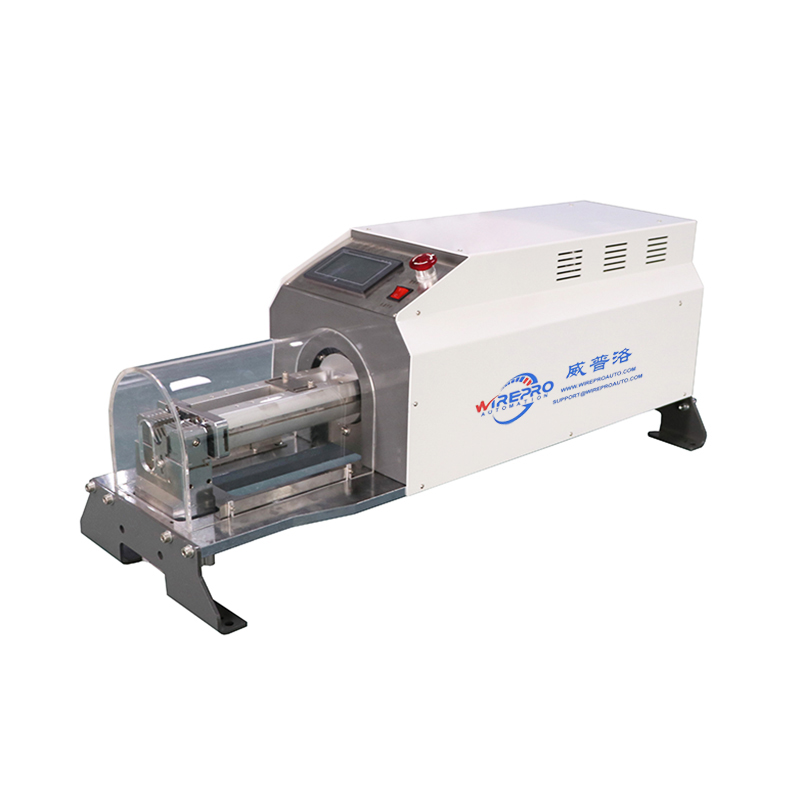

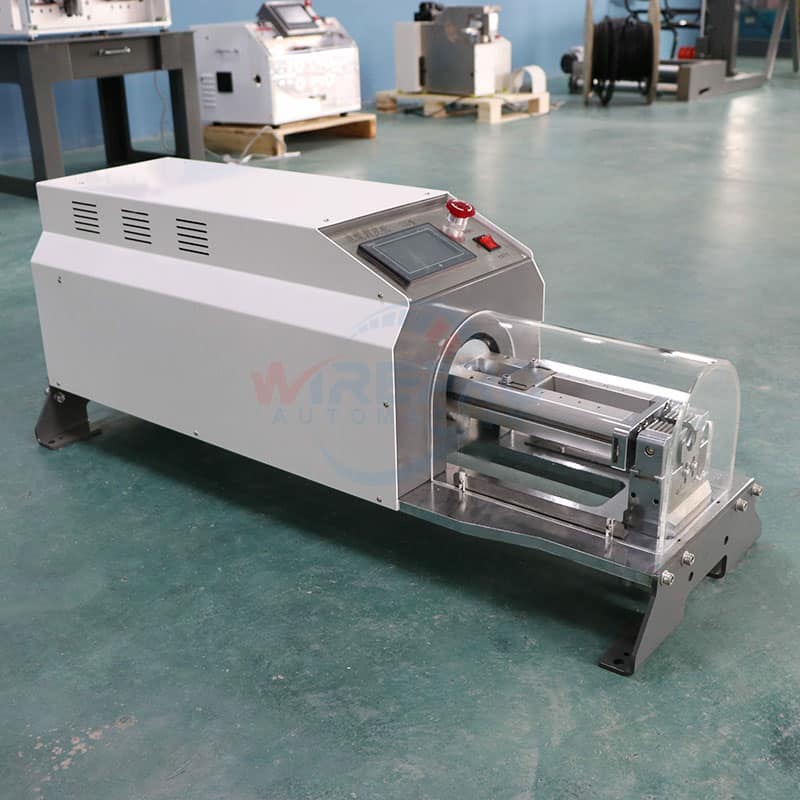

SP-R20 Pneumatic thick cable strip insulation peeling machine
Description
This series of semi-automatic rotary knife stripping machines are designed for extremely difficult processing big-size cables. Widely used in single-strand soft wire, multi-strand soft wire, hard wire, sheath wire, flat wire stripping, etc.
1. Large diameter cable is available
2. Strong stripping ability
3. With special axial positioning and double-rotating blade cutter tools,high-precision rotation
4. Good performance and cost-effective
Cable peeling machine video
Technical Data
| Model | SP-R10 | SP-R20 |
| Features | Rotary blade cutting, pneumatic cylinder peeling | |
| Available Wire Dia | 5-25mm | 5-25mm |
| Stripping Length | 1-100mm | 1-200mm |
| Stripping Tolerance | ±0.2mm | |
| Production Rate | 10-30 pcs/min | |
| Cutting Blade Stroke | 0-28mm0-28mm | |
| Control System | Dedicated controller | |
| Air Connection | 0.5-0.7 Mpa | |
| Power Supply | 110/220VAC, 50/60Hz | |
| Power | 100W | 100W |
| Weight | 80kg | 95kg |
| Dimensions | 100*33*43cm | 100*45*35cm |
Application
The series machines are designed for stripping big-size cable.
