Model: TP-C10
Pneumatic aviation terminal crimper four-spot coaxial crimping machine, connector pin four-point crimping machine.

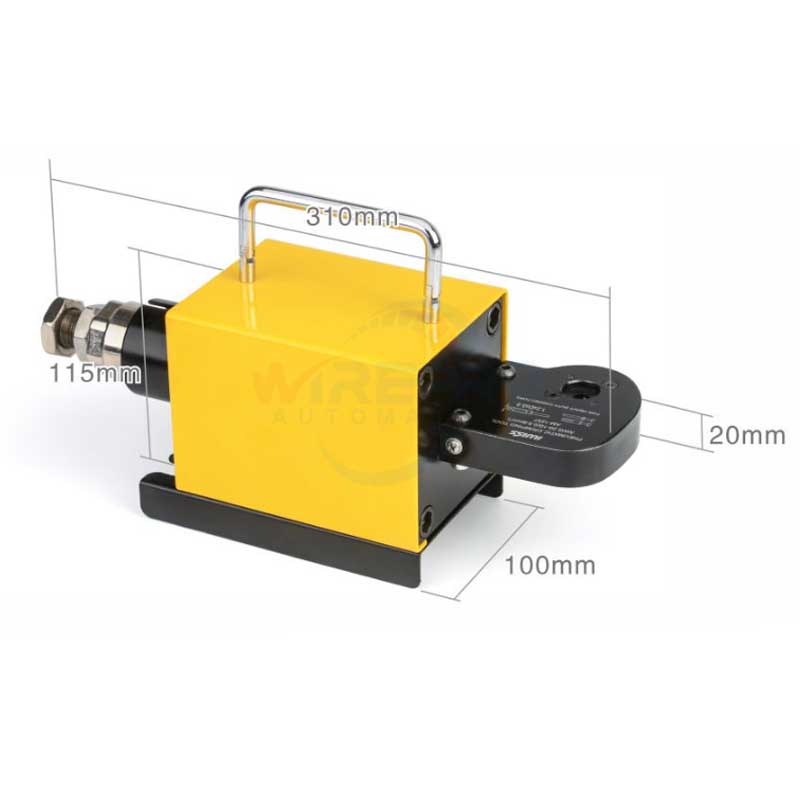

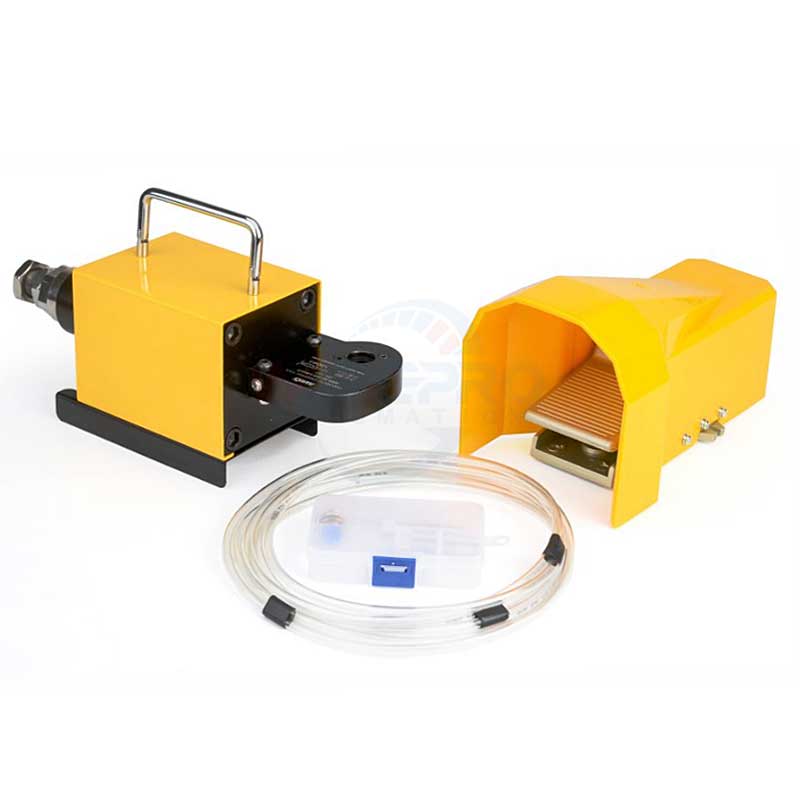

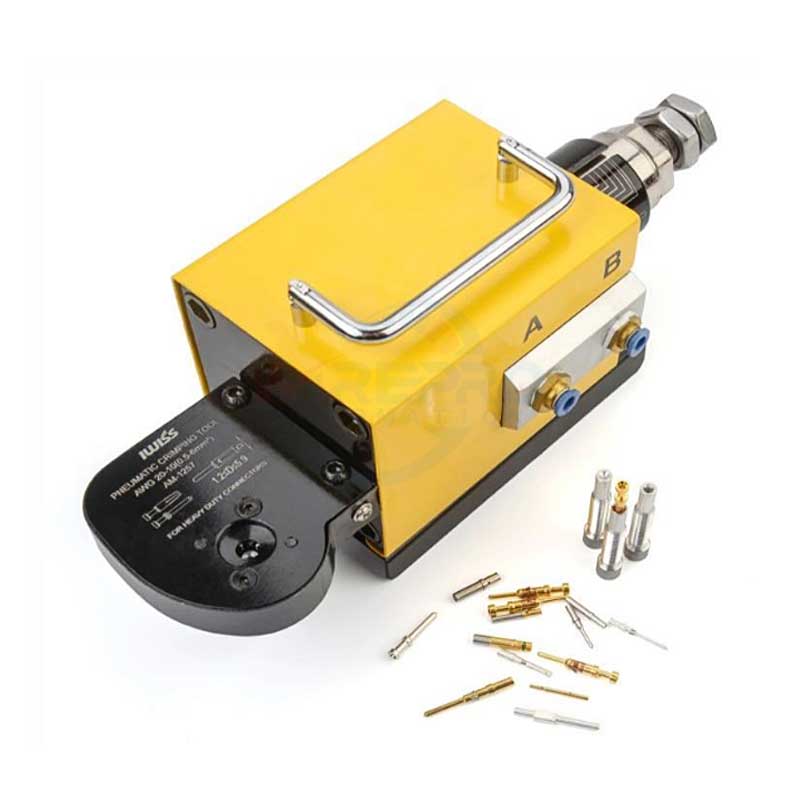

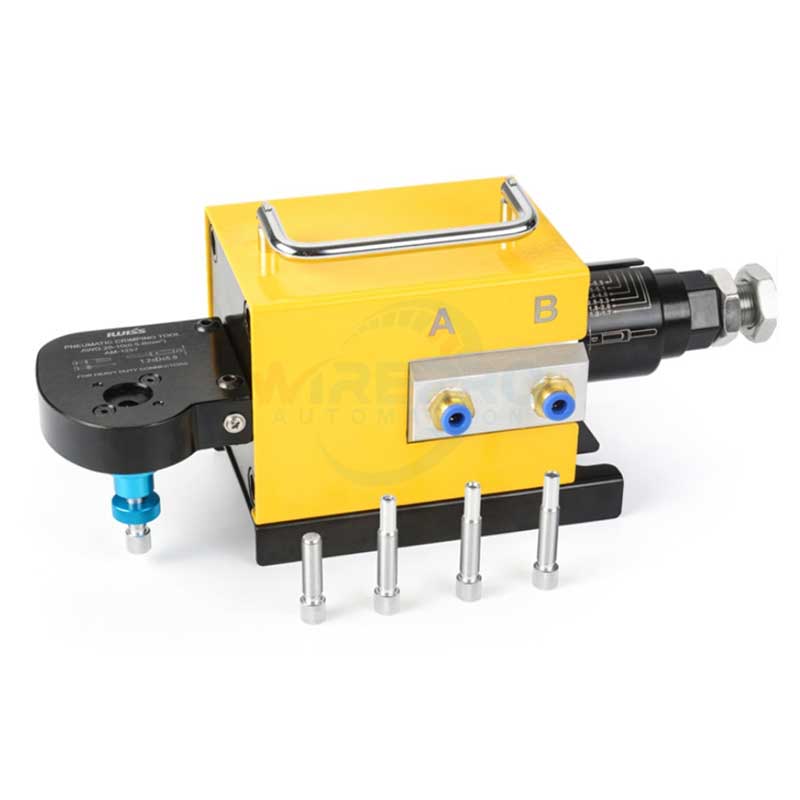

TP-C10 Pneumatic coaxial cable coax wire terminal crimping machine
Description
Pneumatic aviation terminal crimper four-spot coaxial crimping machine, connector pin four-point crimping machine.
Four-core pinpoint crimping, used for cold press connection of coaxial cable and terminals in electrical connectors.

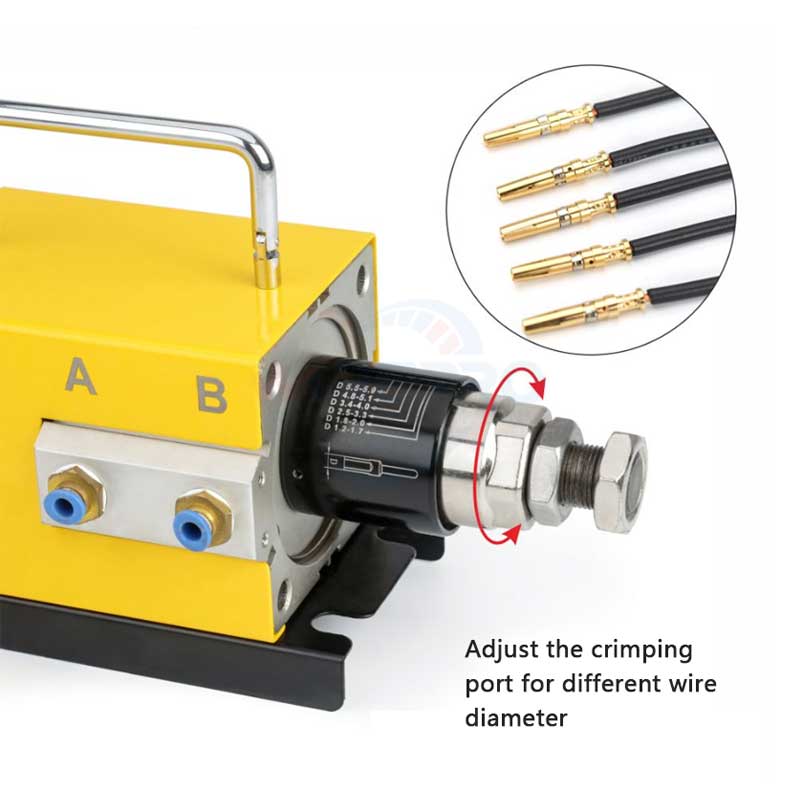

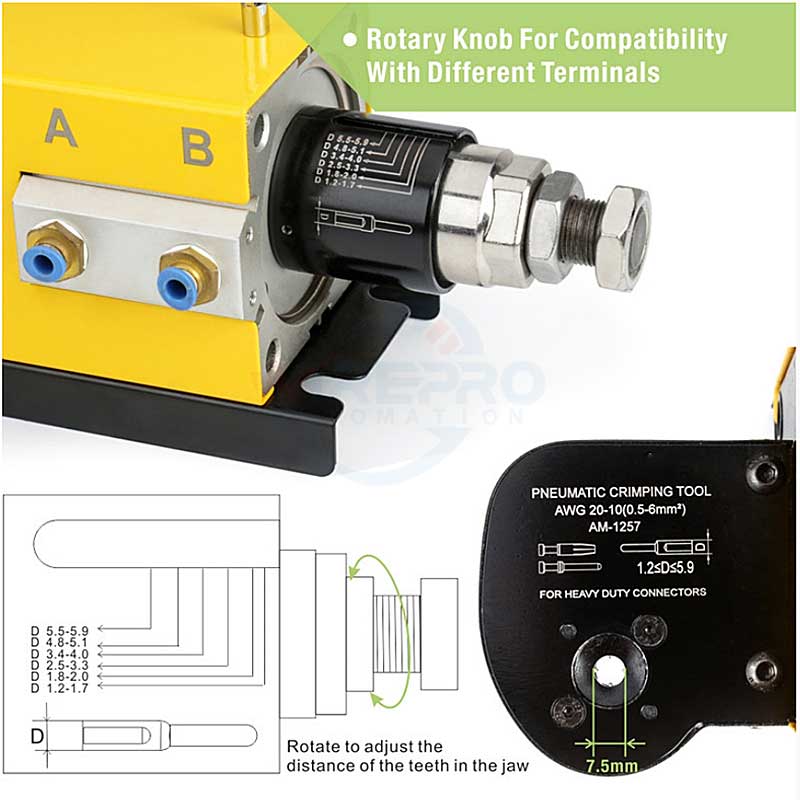

There is a multi-function locator, which can adjust different depths, corresponding to pins of different lengths.
Crimping range: Dia 1.2-5.7 mm (AWG 20- AWG 10)
Terminal material: alloy material
Terminal crimper video:
Technical Data
| Model | TP-C10 |
| Conductor Cross-Section | 0.5-6sqmm / 0.03`0.52sqmm / |
| Wire Size | AWG 20 -10 / AWG 32 – 20 / AWG 10 – 6 |
| Dimensions | 120*80*110cm |
| Weight | 125kgs |
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
Get Details & Price Now
If you hope to inquiry just this product, please send a message here. If you hope to inquiry several products, please Add To Quote, quote all products on the Request Quote page.
WIREPRO will send quotes back to you ASAP : ）
