Model: TP-90L, Tp-300L
This pneumatic terminal crimper is suitable for big wires, max 90 sqm or 300sqmm.
TP-90L TP-300L Pneumatic big wire terminal crimping machine
Description

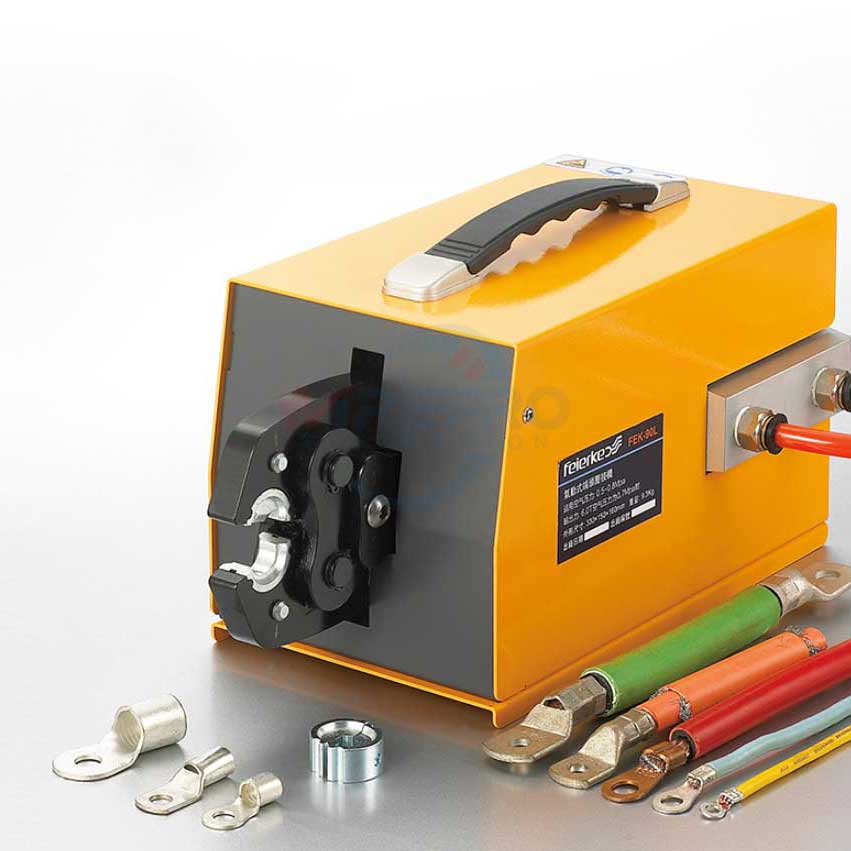

The crimping dies are interchangeable for crimping different terminals, the crimping dies of the front feed or side feed can be selected.

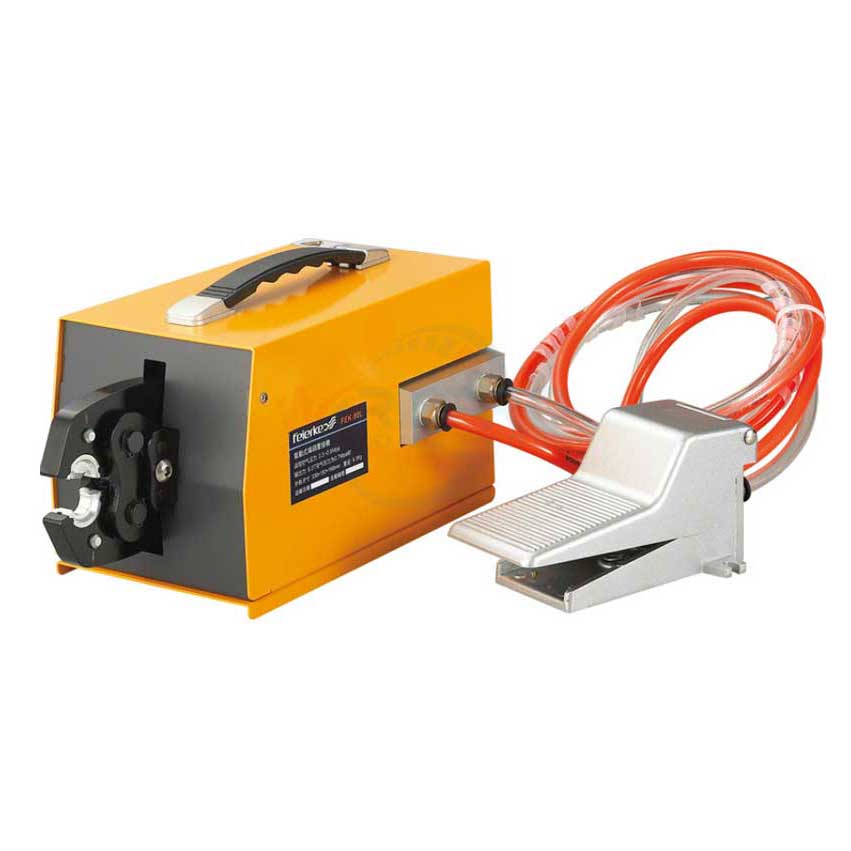

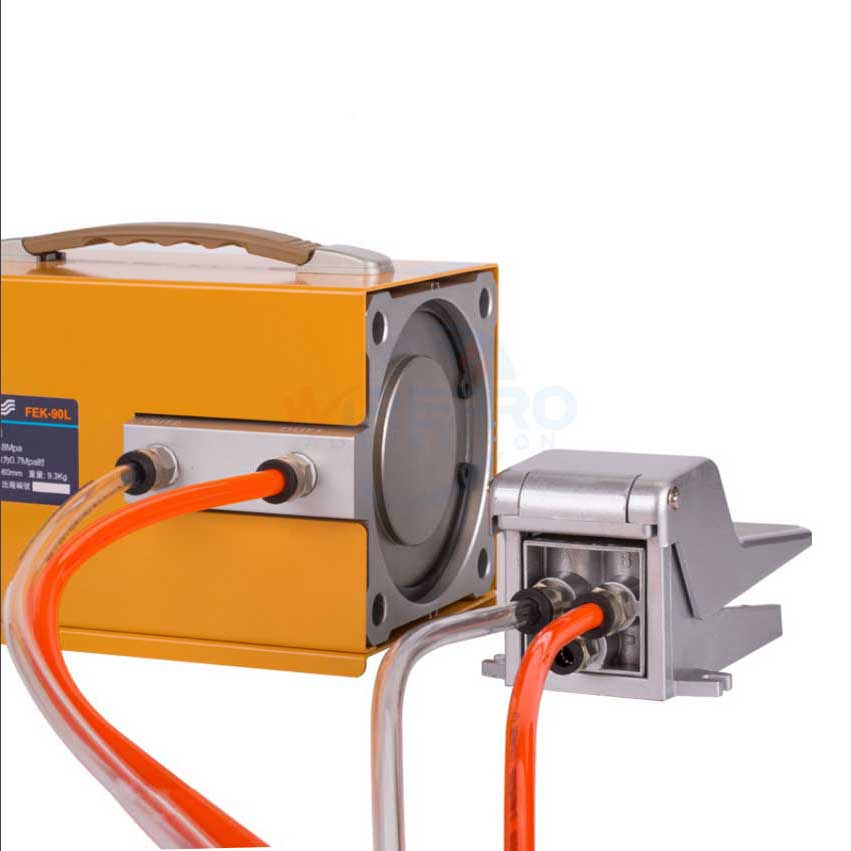

1. The machine is by dual-action normal cylinder, which has advantages of high efficiency and quality in crimping force and speed. Operated by footswitch.
2. The machine is fit for crimping many kinds of terminals.
3. The die sets are interchangeable with our manual crimping tools.
4. We can provide you all kinds of die sets for crimping.
5. Reliable, stable, high efficiency, compact and lightweight
5. Accessories: one die set, one-foot air valve, two air pipes.
Terminal crimper video:
Technical Data
| Model | TP-90L | TP-300L |
| Crimping range | 6-90mm2 | 6-300mm2 |
| Crimping Force | 6T | 9T |
| Crimping range | 6-90 mm2 | 6-300 mm2 |

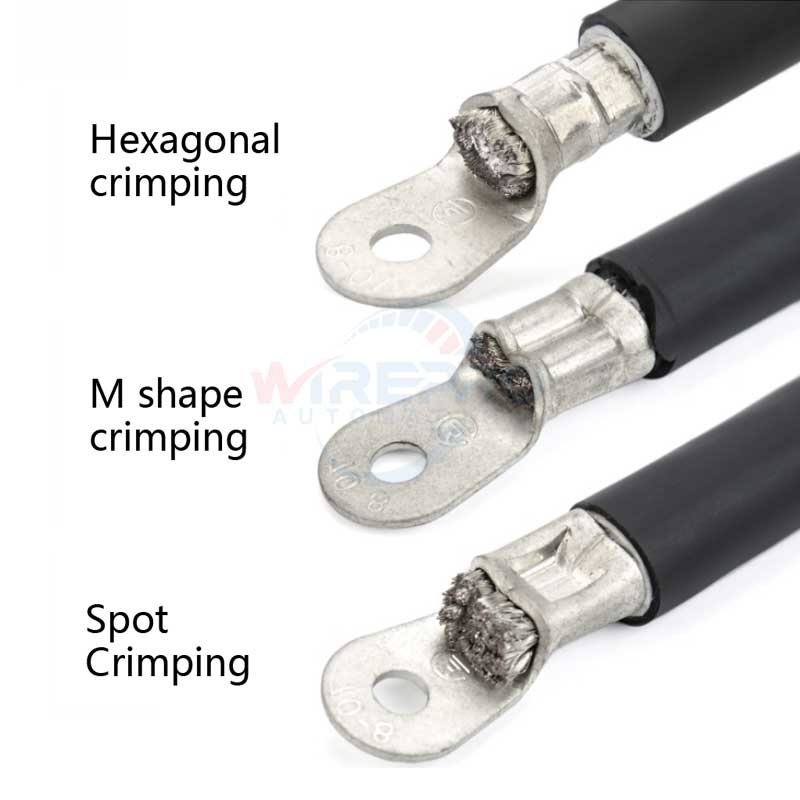

| Crimping Type | Hexagonal crimping, spot crimping and M shape crimping | |
| Accessories | Series Crimping Dies, PU Tube, Foot Control Switch | |
| Air Pressure | 0.7-0.95 Mpa | |
| Dimension | 33X15X16 cm | 40x20x21 cm |
| Weight | 9.5kgs | 22 kgs |
Application
Wire stripping and ring terminal crimping
