Model: PF-S38
This fully automatic wire feeder eliminates the trouble of manual wire feeding. It is suitable for various wires and cables.

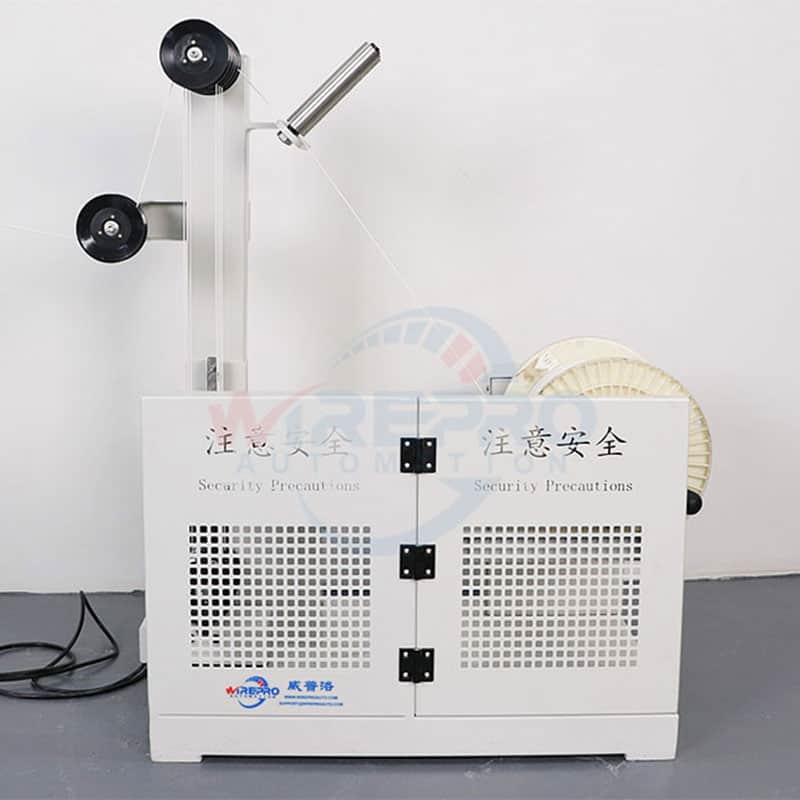

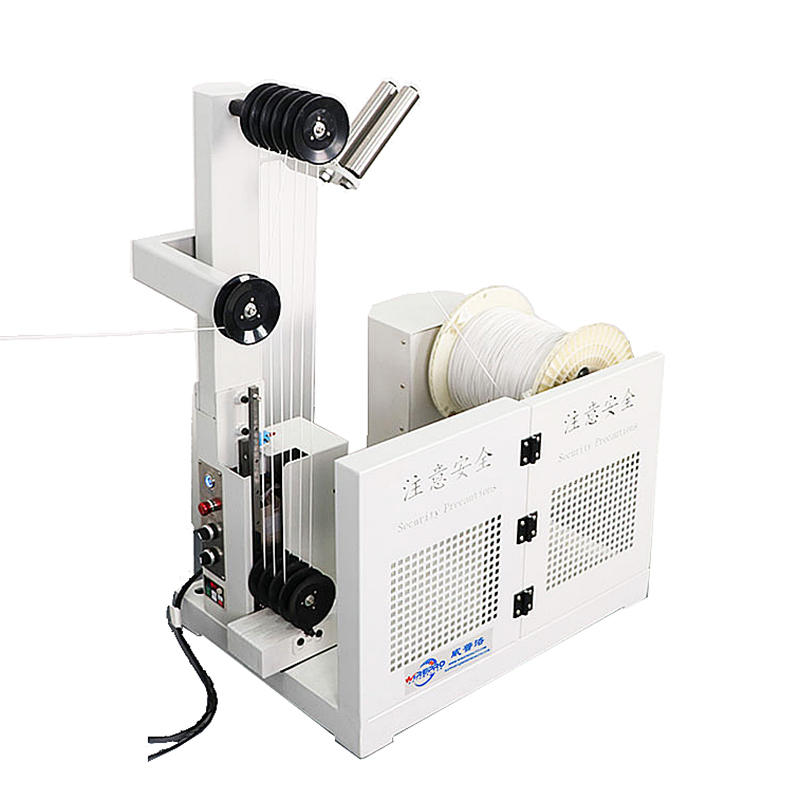

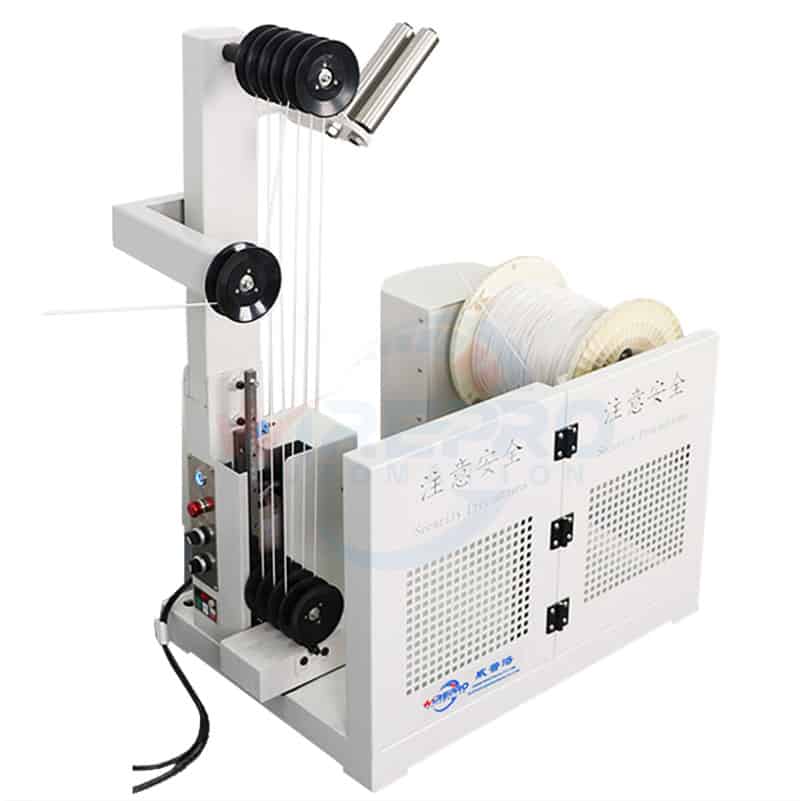

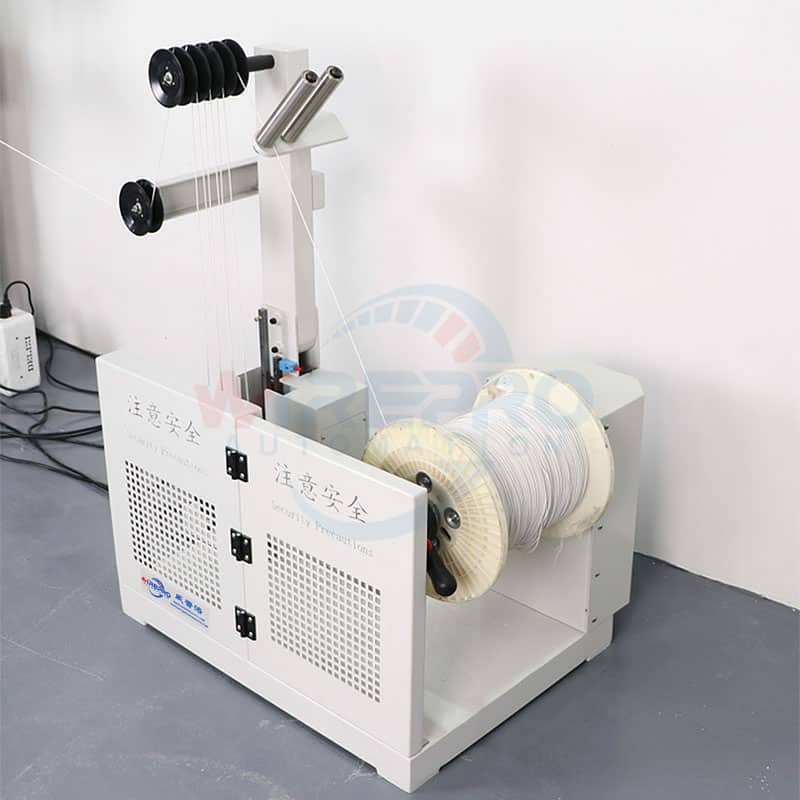

PF-S38 max 60kgs wire spool unwind machine prefeeder
Description
This fully automatic wire feeder eliminates the trouble of manual wire feeding. It is suitable for various wires and cables.
Main body material: welded with high quality national standard rectangular tube, the structure is firm and the appearance is beautiful
The maximum feeding speed is 4 m/s, and the maximum wire diameter is 18mm.
PF-S38 wire pre feeder video
https://youtu.be/bRs0EkXdAGY
Technical Data
| Model | PF-S38 |
| Available Wire Diameter | ≤ Φ18mm |
| Available Spool Width | 380mm |
| Available Spool Out Diameter | 100-400mm |
| Available Spool Inner Diameter | 38-45mm |
| Max Load Weight | 60kg |
| Feeding Speed | 0-4m/s |
| Power Supply | 220/110V,50/60Hz |
| Power | 750W |
| Available Wire | Wire, cable etc. |
| Drive Type | Inverter & motor & reducer |
| Dimensions | 75*40*110cm |
| Weight | 80 kg |
Application
This fully automatic wire feeder eliminates the trouble of manual wire feeding.
