Model: TS-U015 TS-U02
This series machine supports wire stripping and terminal crimping in one time.

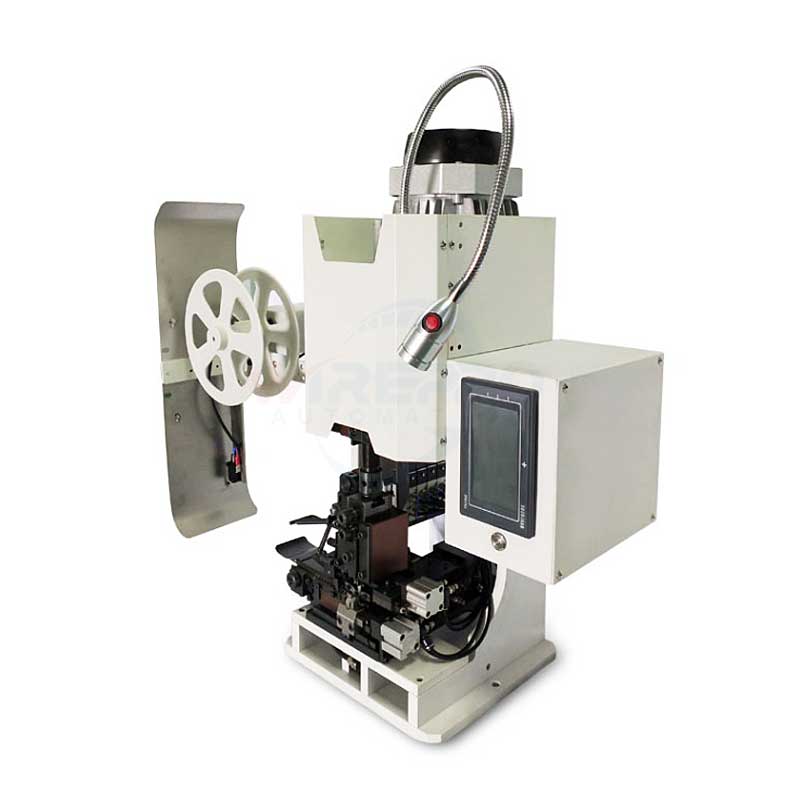

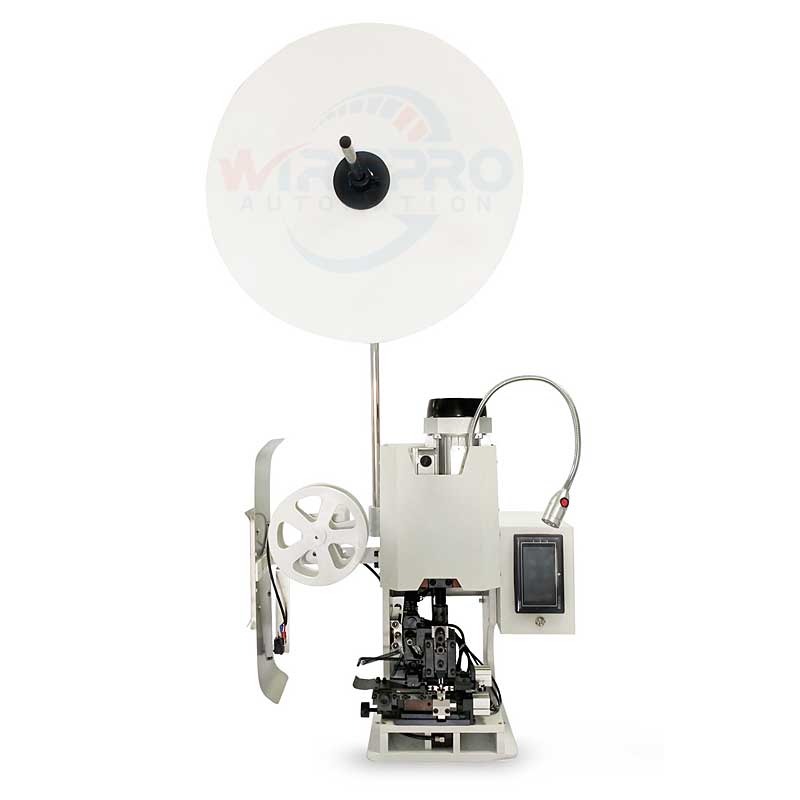

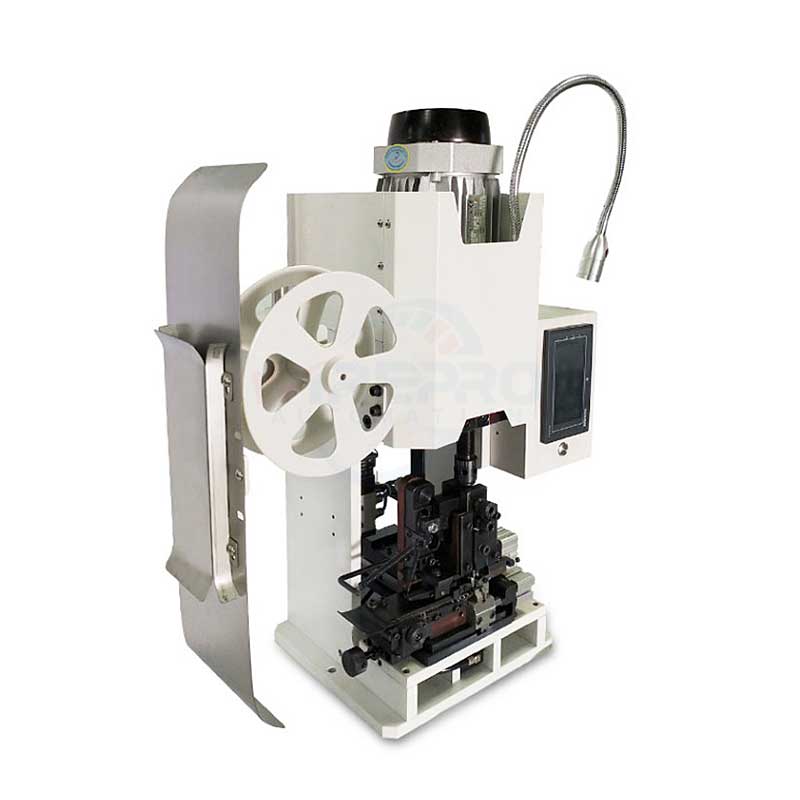

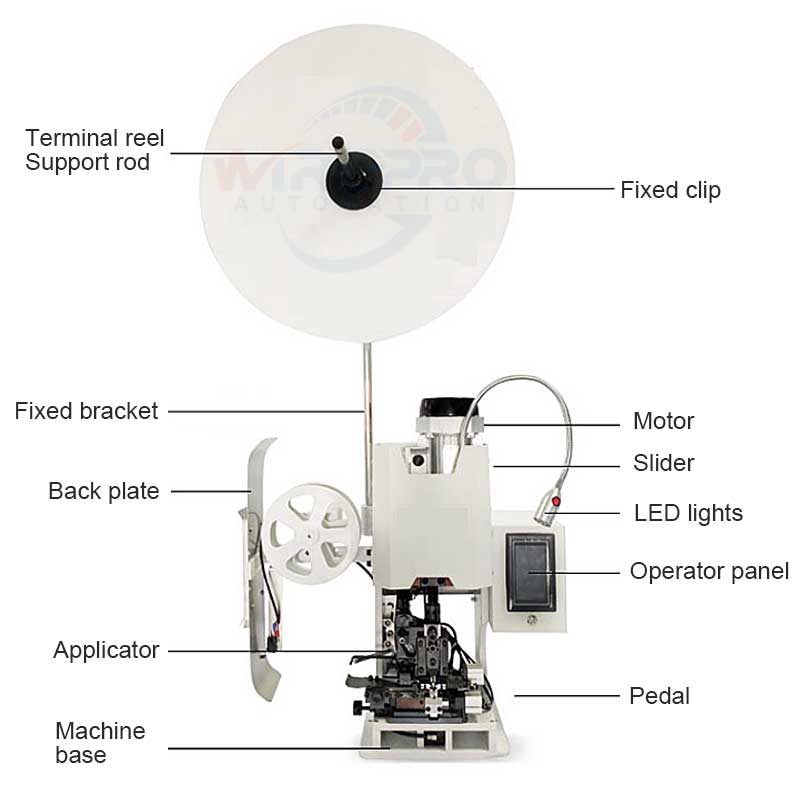

TS-U015 TS-U02 one core electric wire stripping and terminal crimping machine
Description
This series machine supports wire stripping and terminal crimping in one time. Mainly used for computer core wire, isolation wire, telephone wire, USB data cable, headphone cable and other multi-cores cable and flat cable.
Main features:
1. Wire stripping and crimping terminals are completed in one step
2. Microcomputer control, driven by cylinder, accurate positioning and work fast
3. The stripping waste jacket is vacuum suctioned, clean and convenient
4. Small noise, the motor just works when foot pedals
5. Can adjust the gas valve to change the speed
Video:
Technical Data
| Model | TS-U015 | TS-U02 |
| Available applicator | Horizontal applicator | Vertical applicator |
| Crimp Force | 1.5 Ton | 2.0 Ton |
| Available wire | AWG16 – AWG24 | AWG16 – AWG24 |
| Stoke | 30mm | 30mm |
| Stripping length | 0.8-7mm | 0.8-7mm |
| Stripping length tolerance | 0.05- 0.1 mm | 0.05- 0.1 mm |
| Power Supply | 110/220VAC,50/60Hz | 110/220VAC,50/60Hz |
| Air Connection | 0.3-0.4MPa | 0.5-0.6MPa |
| Weight | 62kg | 65kg |
| Dimensions | 40*36*66cm | 40*36*66cm |
Application
Wire stripping and terminal crimping
