Model: TP-E10
The ultrasonic wire welding machine is on the principle of ultrasound, the microprocessor automatically controls the frequency tuning, and simultaneously detects the current and phase frequency. Max 20 sqmm.

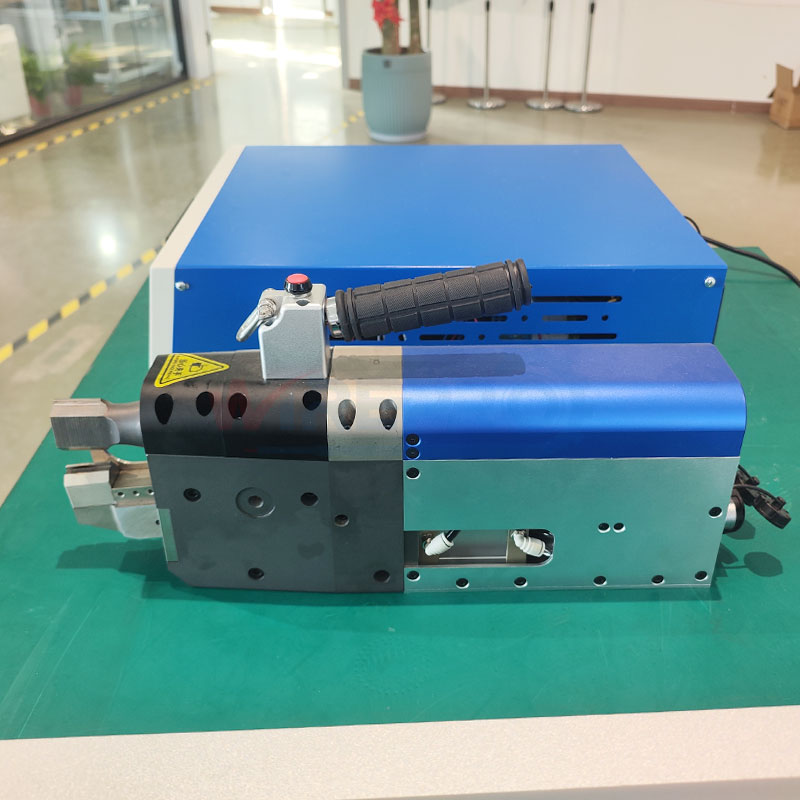

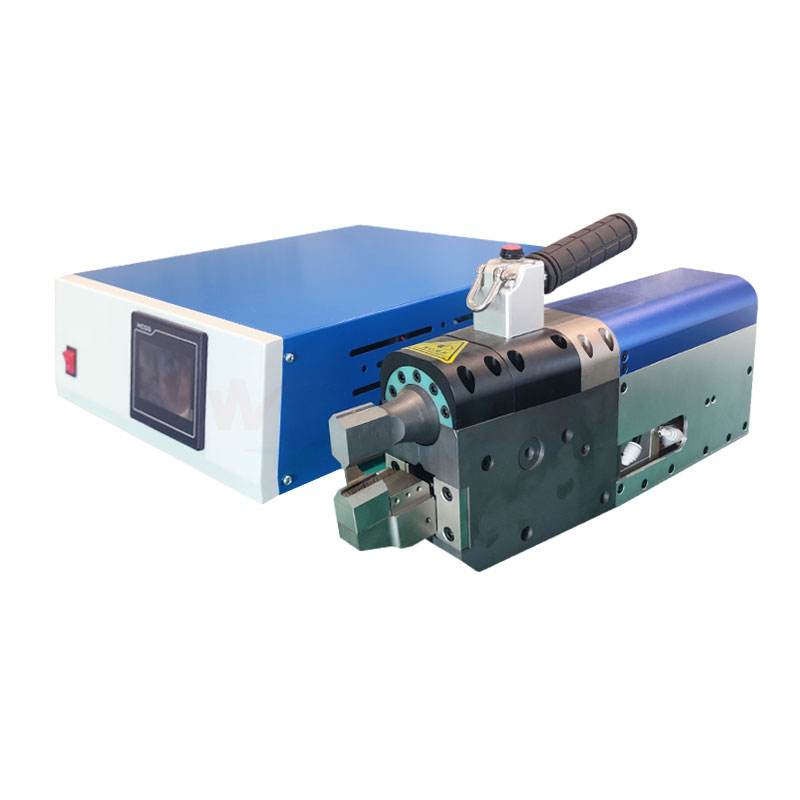

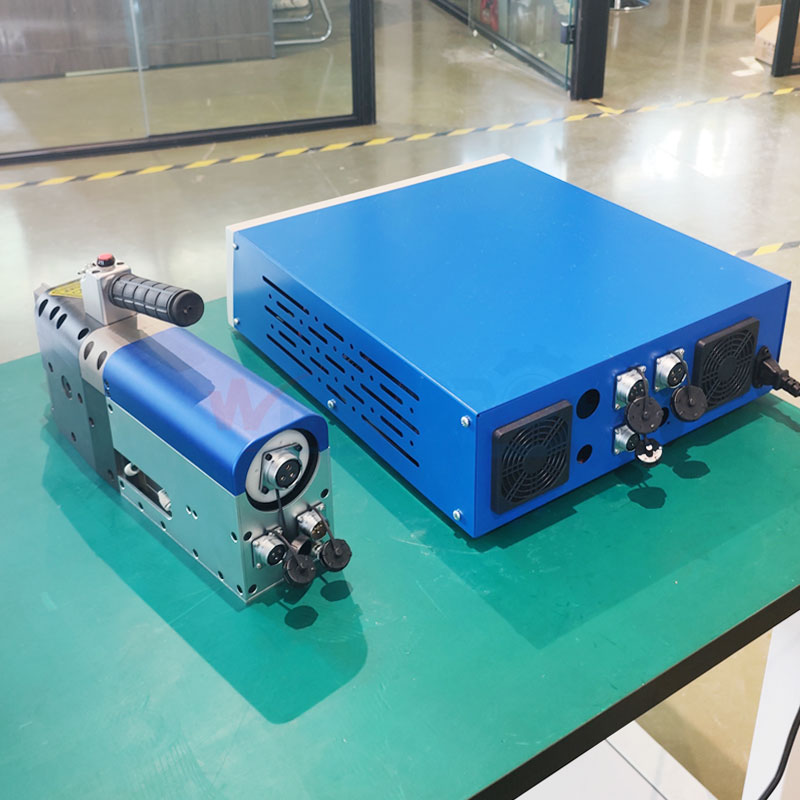

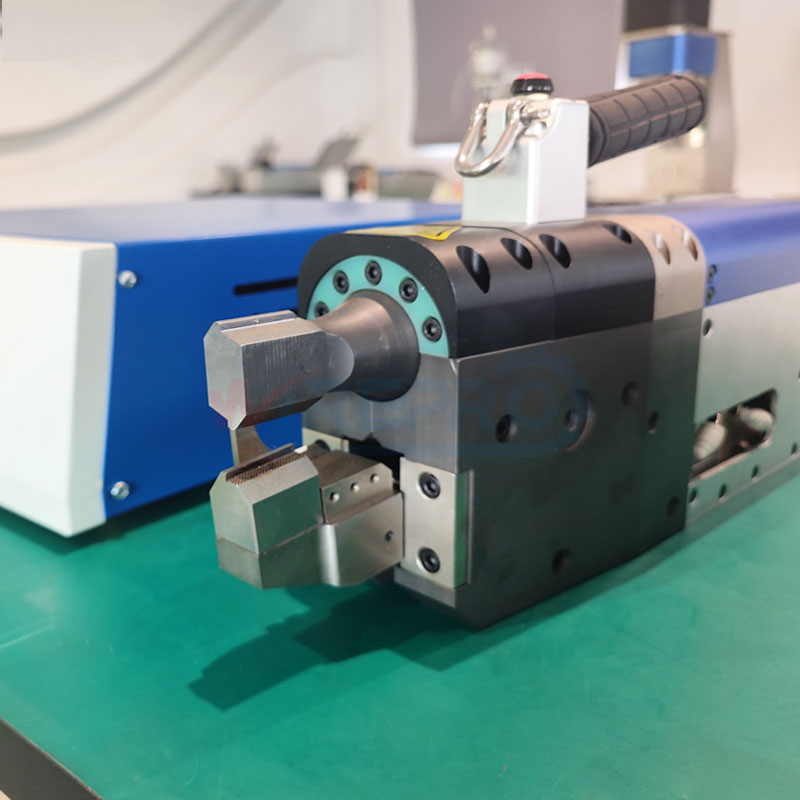

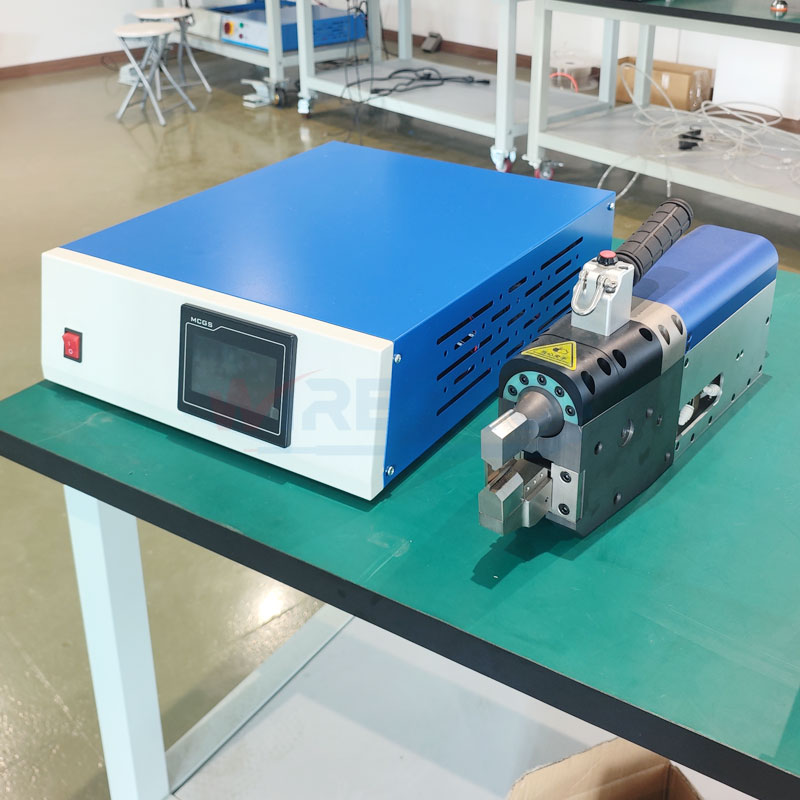

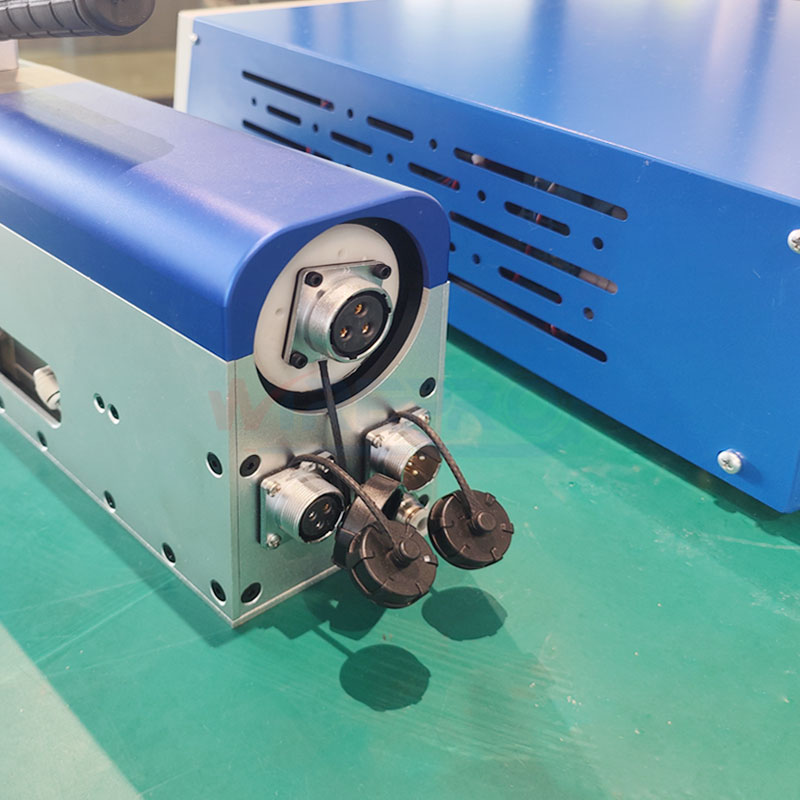

TP-E10 Metal tube sealing machine ultrasonic tube sealers
Description
The TP-E10 ultrasonic tube sealer is a newly developed product designed for the airtight welding of copper tubes, which are essential for circulating refrigerant in refrigeration circuits. This product is widely used in industries such as refrigerators, air conditioners, and temperature control equipment.
The TP-E10 is engineered with strict standard deviation and high process capability, ensuring strong welding strength through a modular design combined with an advanced control system.
Features:
Automatic Defect Alarm: The machine includes an automatic alarm function for defective welding products, ensuring high automation integration and consistent welding quality.
Excellent Weld Stability: Provides stable and reliable welds.
Compact Structure: Designed for welding in narrow areas, making it versatile and space-efficient.
Advanced Operating System: Includes multi-level password protection and hierarchical authorization for secure and controlled operation.
User-Friendly and Safe: Ultrasonic welding is easy to operate, with no open flames, smoke, or odors, making it safer for operators compared to traditional welding methods.
Video:
Technical Data
| Model | TP-E10 |
| Welding capacity | Tube diameter range:2-10mm (other size please check with WIREPRO) |
| Frequency | 20KHZ |
| Power Supply | 220VAC,50Hz |
| Power | 3000W / 4000W |
| Weight | 15kg + 15kgs |
Application
The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
