Model: PF-SC25
Coaxial cable pay-off machine

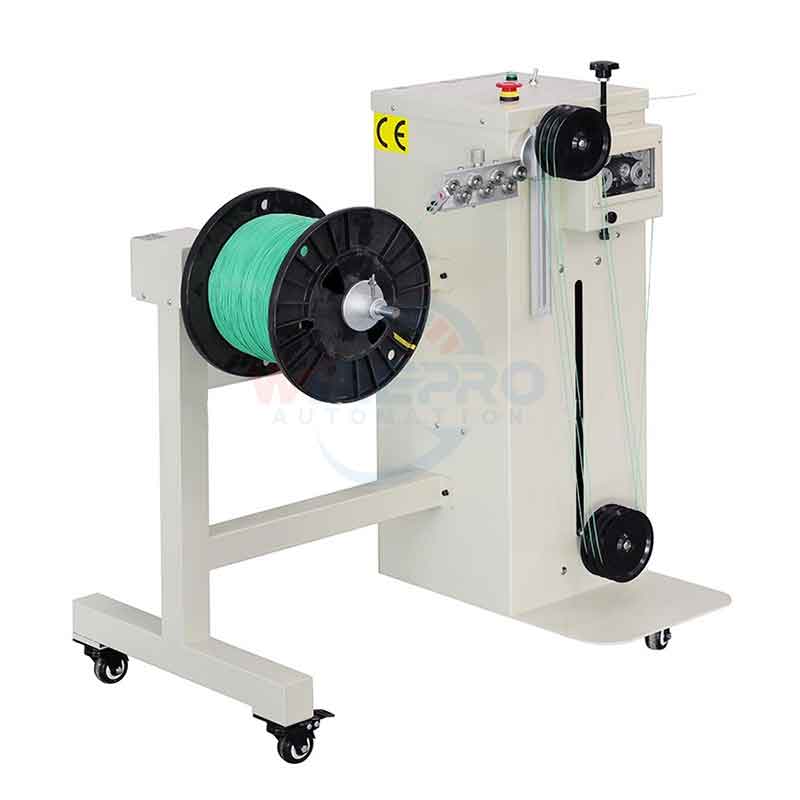

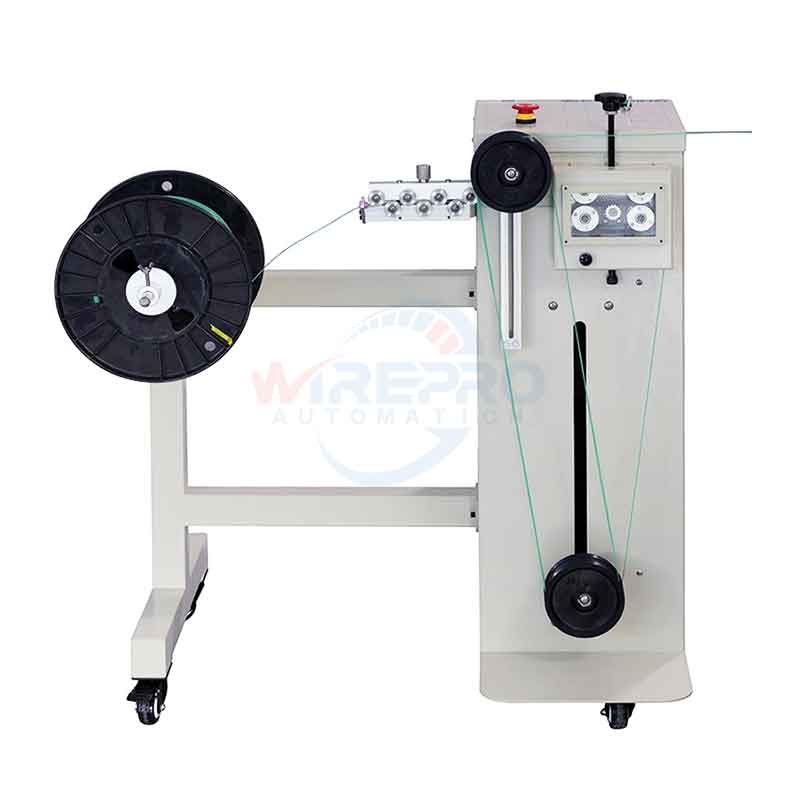

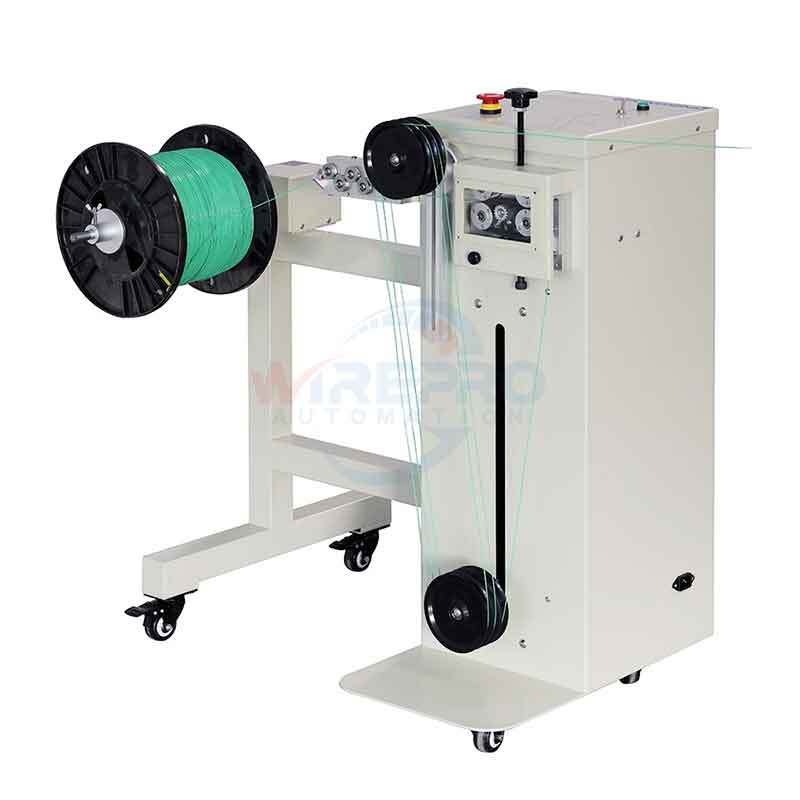

PF-SC25 max 25kgs coax wire coaxial cable prefeeding machine
Description

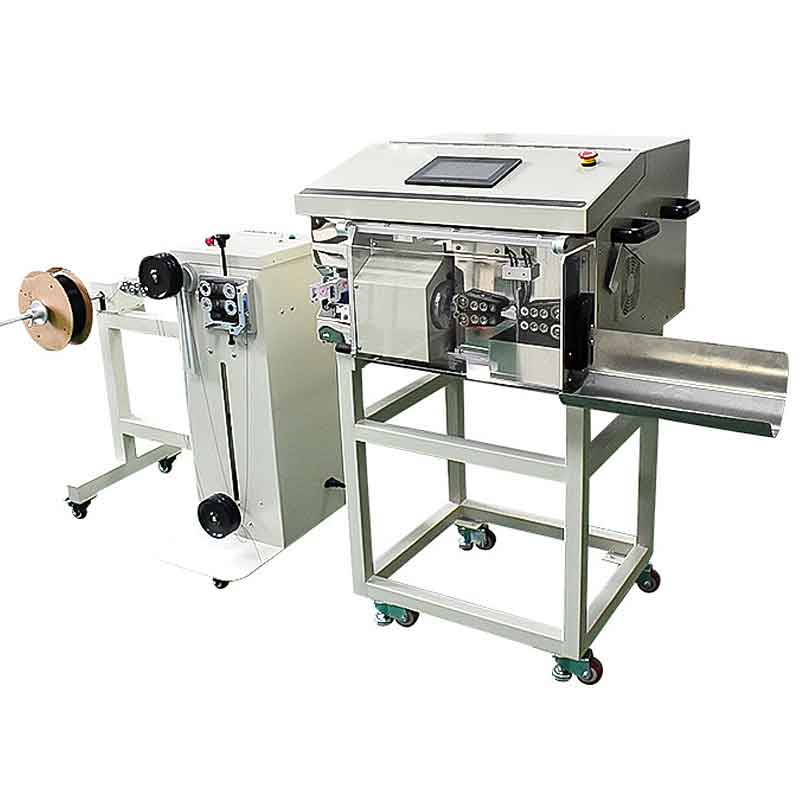

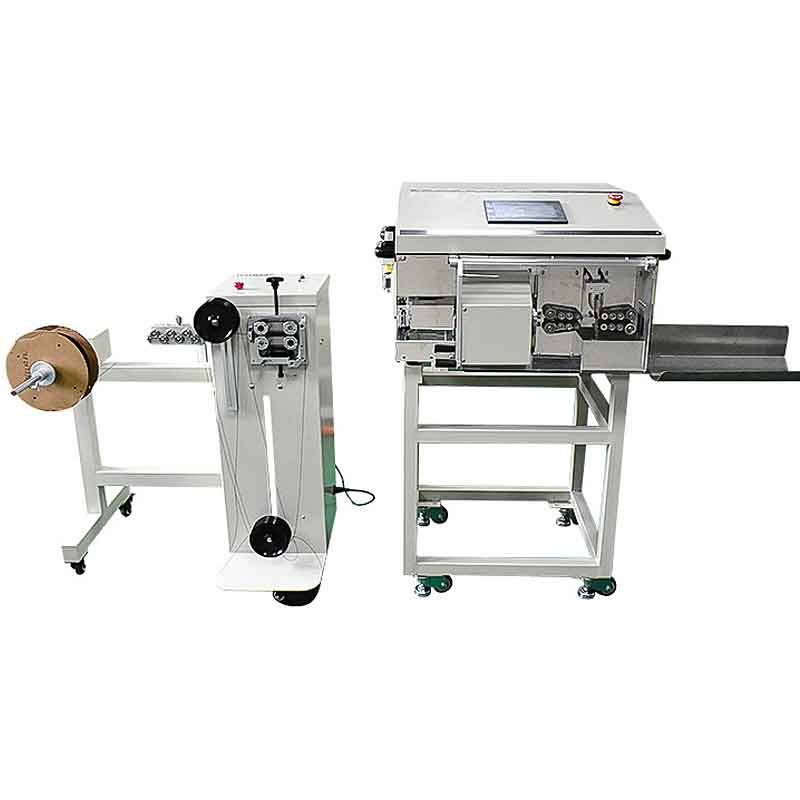

This wire prefeeding machine is specially designed for automatically feeding cables to the coaxial cable stripping machine. It ensures that the wire is always in a state of uniform relaxation and improves the wire feeding precision of the automatic coaxial wire stripping machine.
Built-in 2 sets of motors and multiple sets of sensors, the middle section is equipped with a wire straightener, which can automatically straighten the wire at the same time as the wire is fed. It can easily respond to the typical intermittent starting and stopping actions associated with automatic wire processing machines.
PF-RS20 wire pre feeder video
Technical Data
| Model | PF-SC25 |
| Max Load Weight | 30kgs |
| Wire diameter | 0.6-5mm |
| Feeding speed | Max 2.5m/s |
| Power Supply | 220V |
| Power | 120W |
| Dimensions | 850*430*760 mm |
| Weight | 58kgs |
Application
This fully automatic wire feeder eliminates the trouble of manual wire feeding.
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
