Model: SU-120; SU-150
Full-automatic cut and strip big size cable, like the automotive industry power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness, high power supply shielding cable, charging pile harness.

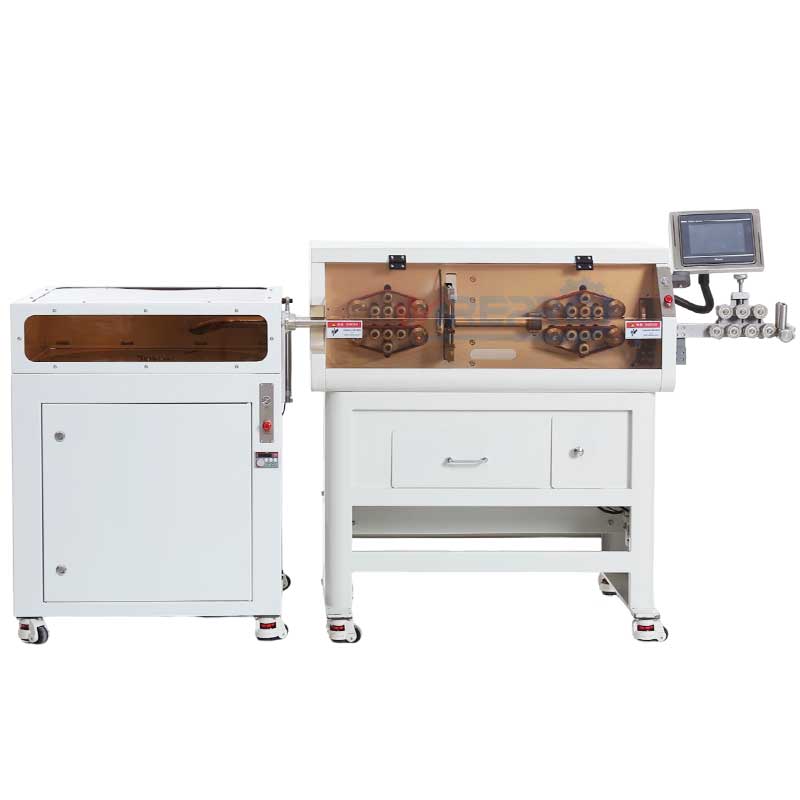

SU-120 SU-150 max 150 sqmm cable cutting stripping machine
Description
The series machines are designed for full-automatic cut and strip big size cable, like the automotive industry power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness, high power supply shielding cable, charging pile harness. It’s good for Silicone wire, high-temperature wire and signal wire, etc.
1. Processing cable below 120 /150 sqmm, improving working efficiency
2. Long stripping length than normal machines
3. Belt feeding cable, no embossing, no scratches
4. Automatically identify the machining center, increase the production rate
5. Uses specific axial positioning and advanced tool holders, improving accuracy and production rate.
6.Digitally Display Screened cutting wire diameter, high-quality pneumatic components, more energy-saving, and work stably.
7. Optional auxiliary equipment: automatic wire feeder, wire stacker or coiler etc.
Big cable cutting and stripping machine video
Technical Data
| Model | SU-120 | SU-150 |
| Available Wire Size | AWG7 – 120mm² | AWG7 – 150mm² |
| Conductor Cross-Section | 10-120mm² | 10-150mm² |
| Cutting Length | 1-99999.99mm | 1-99999.99mm |
| Cutting Length Tolerances | ≤(0.002*L) mm | ≤(0.002*L) mm |
| Stripping Length * |
Head 1-800mm; Tail 1-400mm |
Head 1-800mm; Tail 1-400mm |
| Conduit Diameter * | Φ30mm | Φ33mm |
| Production Rate | 1000-1800pcs/h | 1000-1800pcs/h |
| Display Screen | 7 inch touch screen | 7 inch touch screen |
| Wire Feed Method | Belt feeding | Belt feeding |
| Drive Method | 32 wheels drive | 32 wheels drive |
| Power Supply | 220V/110V | 220V/110V |
| Power | 2000W | 6900W |
| Weight | 220kgs | 240kg |
| Dimensions | 102*61*115cm | 150*76*134cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | ||
Application
The series machines are designed for full-automatic cut and strip big size cable.
