Model: TH-A76 TH-A102 TH-A150

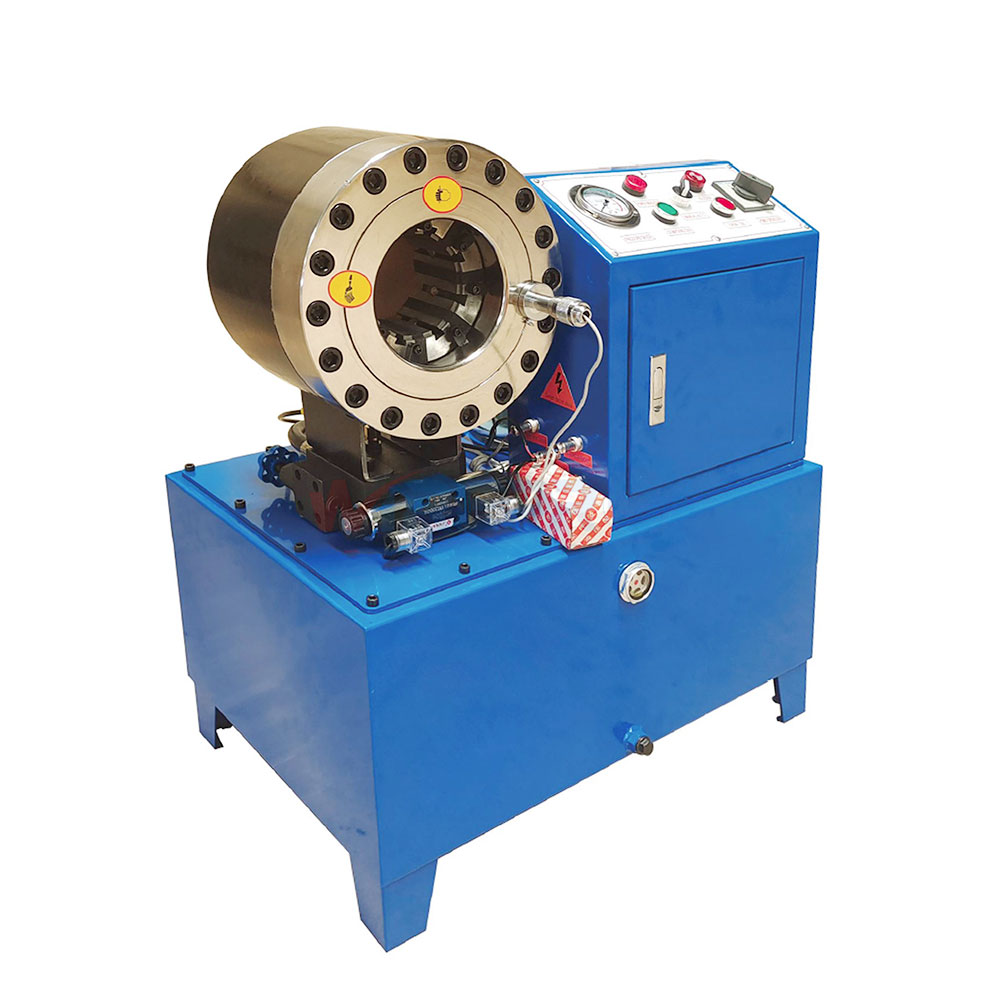

TH-A76 TH-A102 TH-A150 hydraulic hose steel tube pressing machine
Description
This machine is characterized by its compact and portable design, powerful force, low noise, and ease of operation. The crimping amount can be precisely adjusted using a scale. The double inclined plane eight-flap mold seat, equipped with a high-accuracy guiding device, ensures more even mold base division.
Features:
1. Forge Steel Machine Head: More durable than general steel.
2. CNC Operation Panel: Simple controls and easy operation.
3. CNC System: High crimp accuracy within 0.01mm.
4. Foot Pedal: Convenient for hands-free operation.
5. Magnetic Dies (Patented): Easy removal and installation of dies.
The TH-051 hose crimping machine combines durability, precision, and user-friendly features, making it an excellent choice for high-pressure rubber pipe crimping needs.
|
Model
|
TH-A76 | TH-A102 | TH-150 |
| Hose size | 6-76mm | 6-102mm | 1/4-6inch |
| Max opening | 156mm | 200mm | 230mm |
| Crimping pressure | 650T | 800T | 900T |
| Dies sets | 14 sets | 17sets | 20sets |
| Ruler precision | 0.01mm | 0.01mm | 0.01mm |
| System pressure | 31.5Mpa | 31.5Mpa | 31.05Mpa |
| Power | 4KW | 4KW | 5.5KW |
| Power supply | 220V/380V/110V | 220V/380V/110V | 220V/380V/ |
| Open-Close time | 12S | 13S | 15S |
| Weight | 360kg | 590kgs | 880kgs |
| Dimension | 73*47*95cm | 88*52*102cm | 100*60*114cm |
Application
The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
