Model: TH-A51

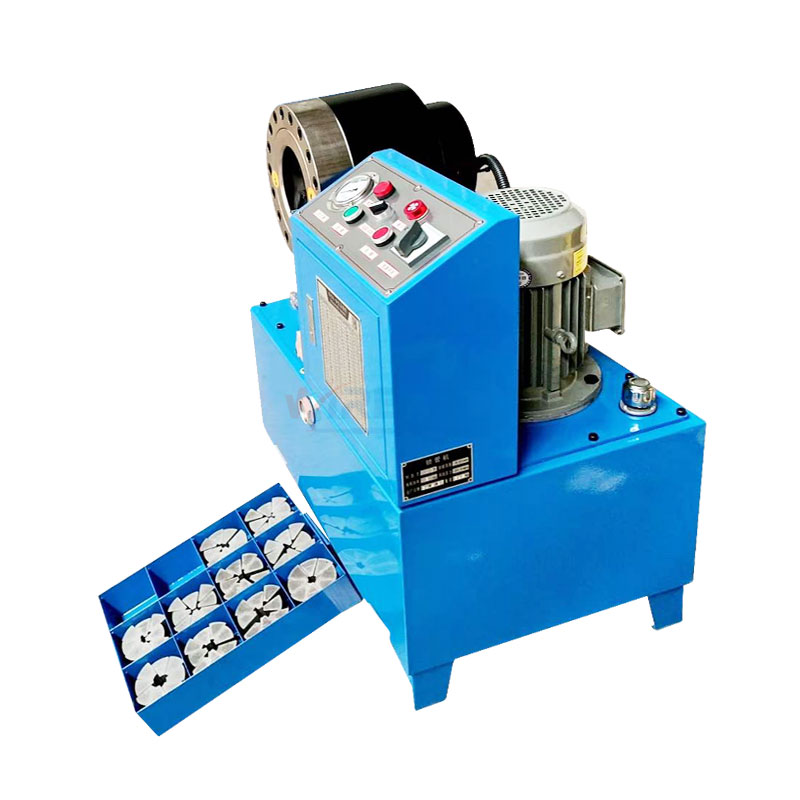

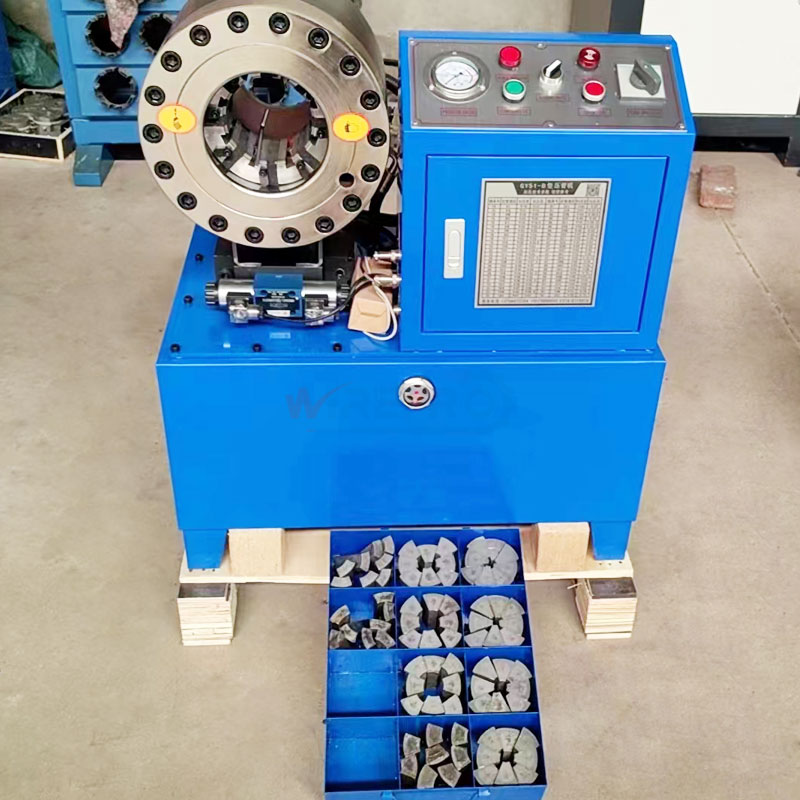

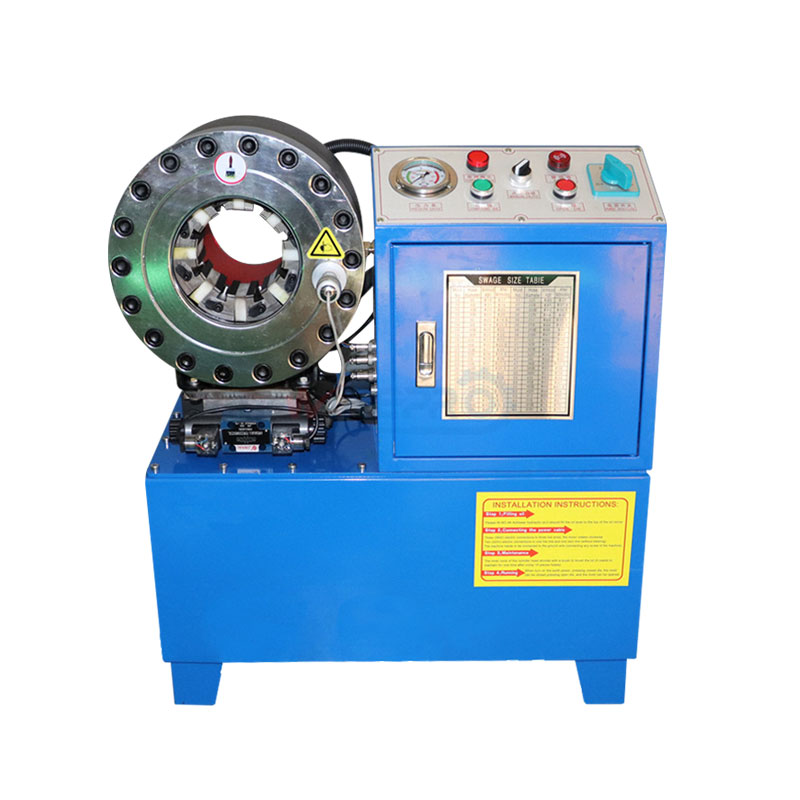

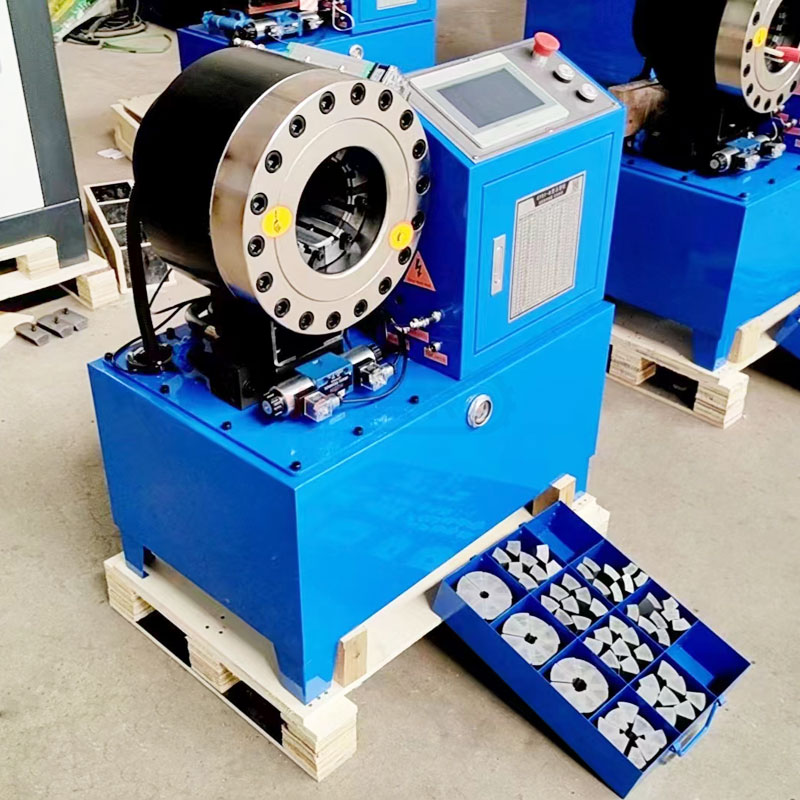

TH-A51 hydraulic hose crimper hose crimping machine
Description
The TH-051 hose crimping machine is primarily designed for crimping high-pressure rubber pipe assemblies used in mechanical engineering. It is also suitable for crimping two-way bends, especially large and irregularly shaped bends.
This machine is characterized by its compact and portable design, powerful force, low noise, and ease of operation. The crimping amount can be precisely adjusted using a scale. The double inclined plane eight-flap mold seat, equipped with a high-accuracy guiding device, ensures more even mold base division.
Features:
1. Forge Steel Machine Head: More durable than general steel.
2. CNC Operation Panel: Simple controls and easy operation.
3. CNC System: High crimp accuracy within 0.01mm.
4. Foot Pedal: Convenient for hands-free operation.
5. Magnetic Dies (Patented): Easy removal and installation of dies.
The TH-051 hose crimping machine combines durability, precision, and user-friendly features, making it an excellent choice for high-pressure rubber pipe crimping needs.
|
Model
|
TH-A51 |
| Hose size | 6-51mm |
| Max opening | 115mm |
| Crimping pressure | 450T |
| Dies sets | 10 sets |
| Ruler precision | 0.01mm |
| System pressure | 31.5Mpa |
| Power | 3KW |
| Power supply | 220V/380V/110V |
| Open-Close time | 30S 20S |
| Weight | 260kg |
| Dimension | 73*47*86cm |
Application
The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
