Model: HW-D30
HW-D30 is a powerful machine, automatic feeding wire harness, supporting a variety of tape wrapping methods.

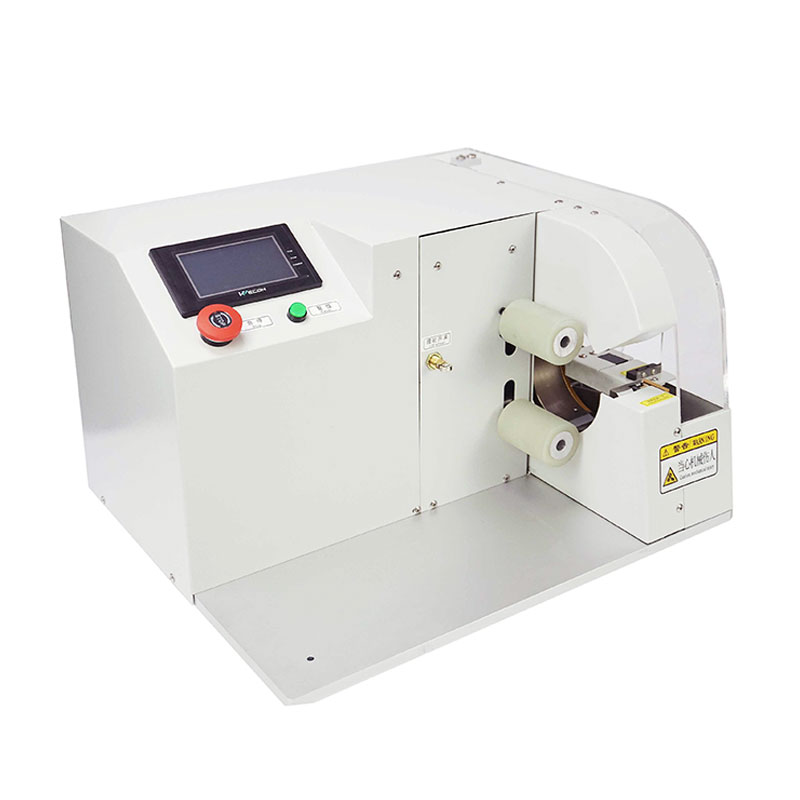

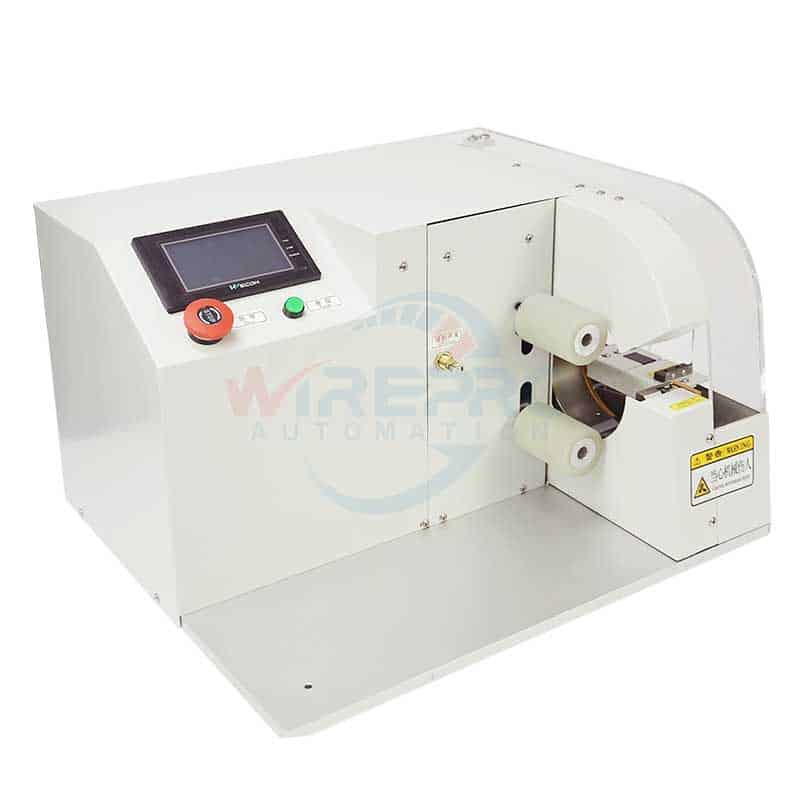

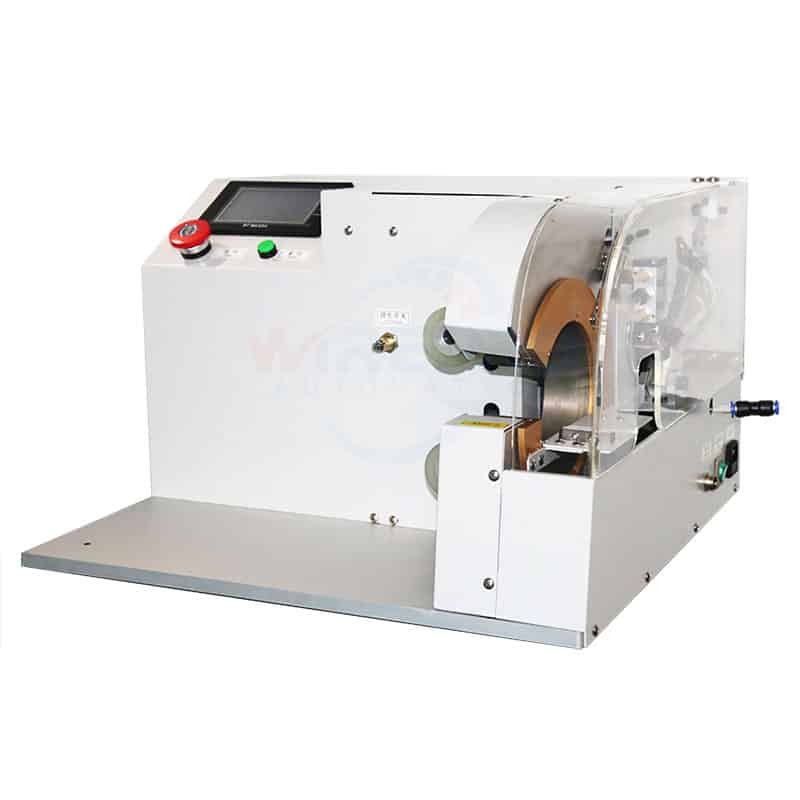

HW-D30 automatic feeding electrical wiring harness taping machine
Description
HW-D30 is powerful and can support a variety of tape wrapping methods.
1. Fully automatic cut the tape when finish wrapping

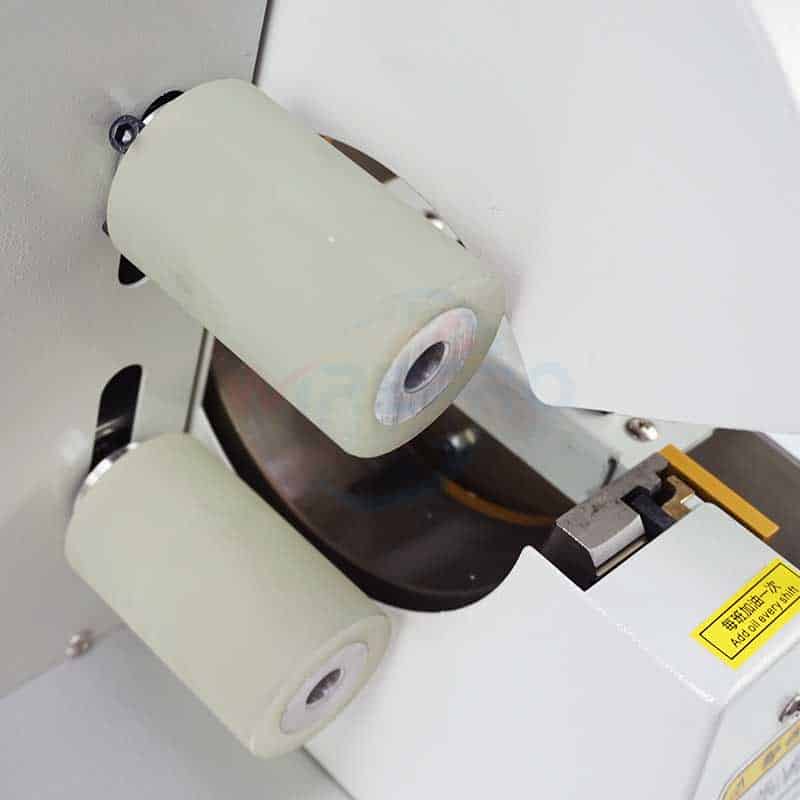

2. Support point wrapping: the number of winding turns can be set
3. Support full wrapping: the tape is overlapped and wraps the entire wire harness, and the area of the tape overlapping is adjustable
4. Support multi-segment wrapping: 50 segments are provided for the setting
5. Support transposed wrapping: the tape is not overlapped and separated by a distance, and the separation distance is adjustable

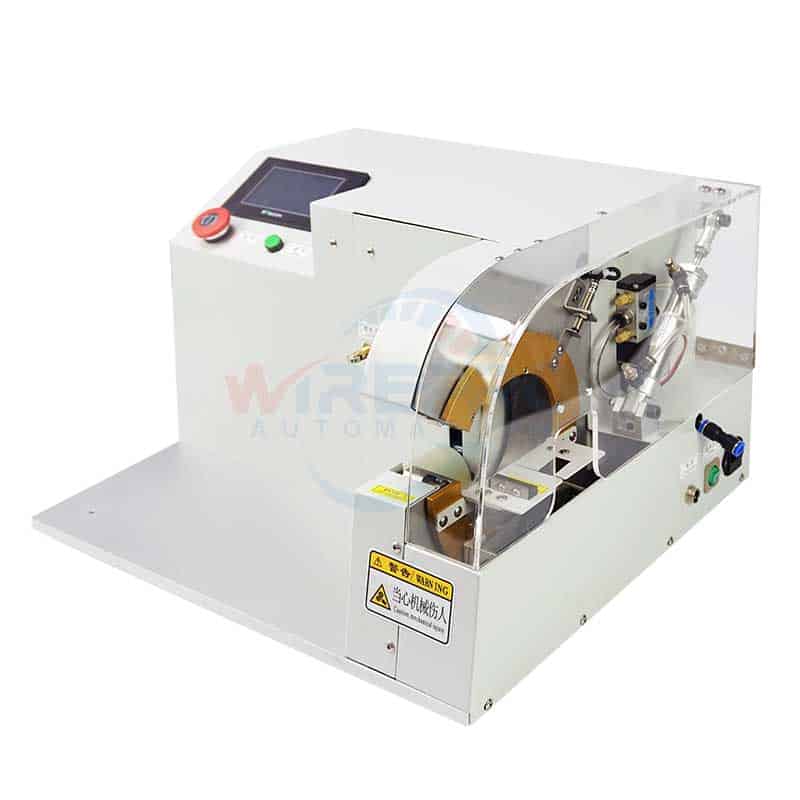

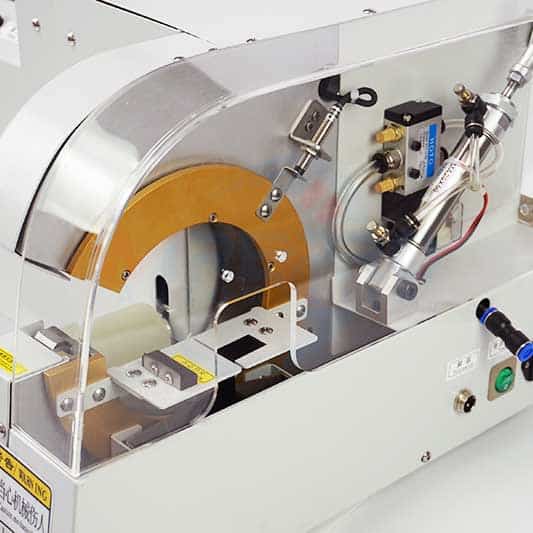

6. The protective cover can be raised or lowered automatically according to the working condition, safe and easy to operate
HW-D30 automatic feeding the harness video:
| Model | HW-D30 | HW-D30H |
| Features | Auto control feeding speed | |
| Available Wire Harness Dia | Max 30mm | Max 30 (Tape Inner Dia < 170) Max 40mm (Tape Inner Dia < 140) |
| Tape Width | 5-25mm (other can custom) | 5-25mm (other can custom) |
| Tape inner diameter | common Ф32, Ф37, others custom available | common Ф37, Ф72, others custom available |
| Tape out diameter | Max 110mm | Max 170mm |
| Wrapping Length | No limit | No limit |
| Wrapping Speed | Max 4500r/min | |
| Power Supply | 110/220VAC 110/220VAC | |
| Dimensions | 56*50*35cm | 56*54*39cm |
| Weight | 45kg | 55kg |
Application
HW-HD35 supports wire harness continuous & spot taping.
