Model: HW-D25
It supports wire harness continuous & spot taping. It’s a very good cost-effective choice if you have limited budget.

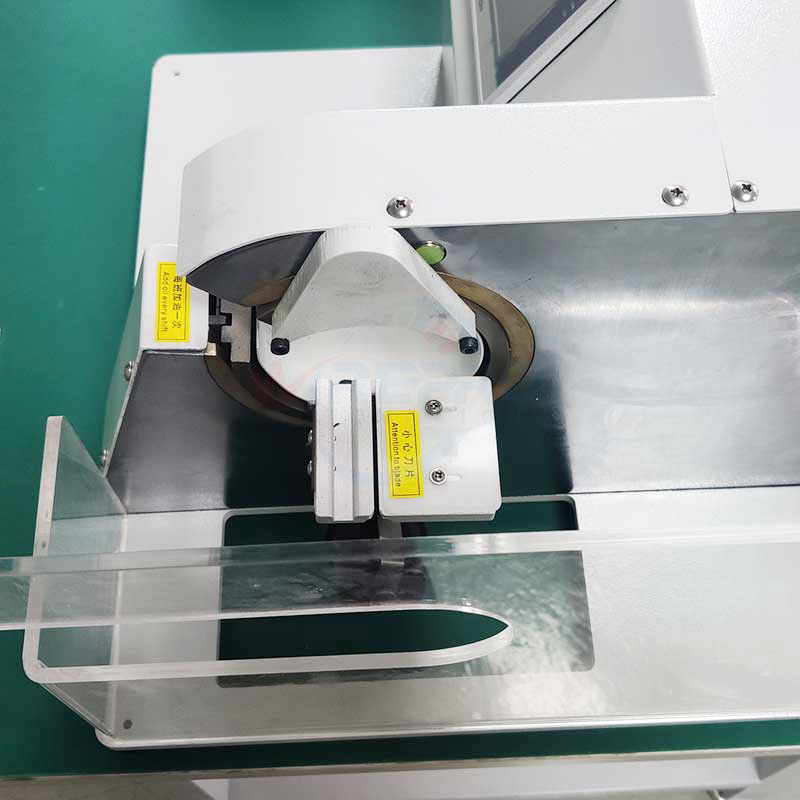

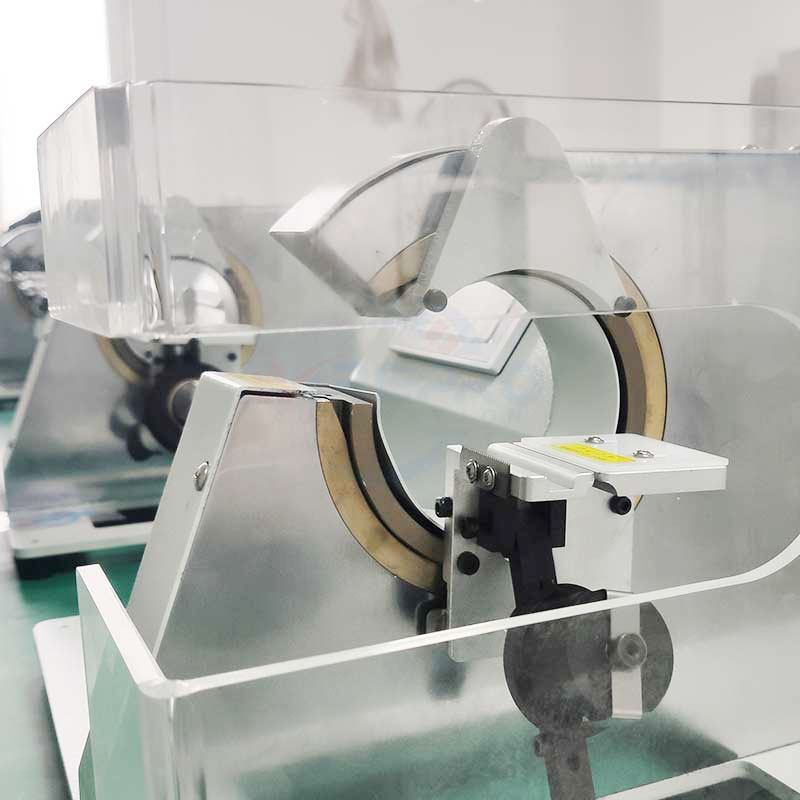

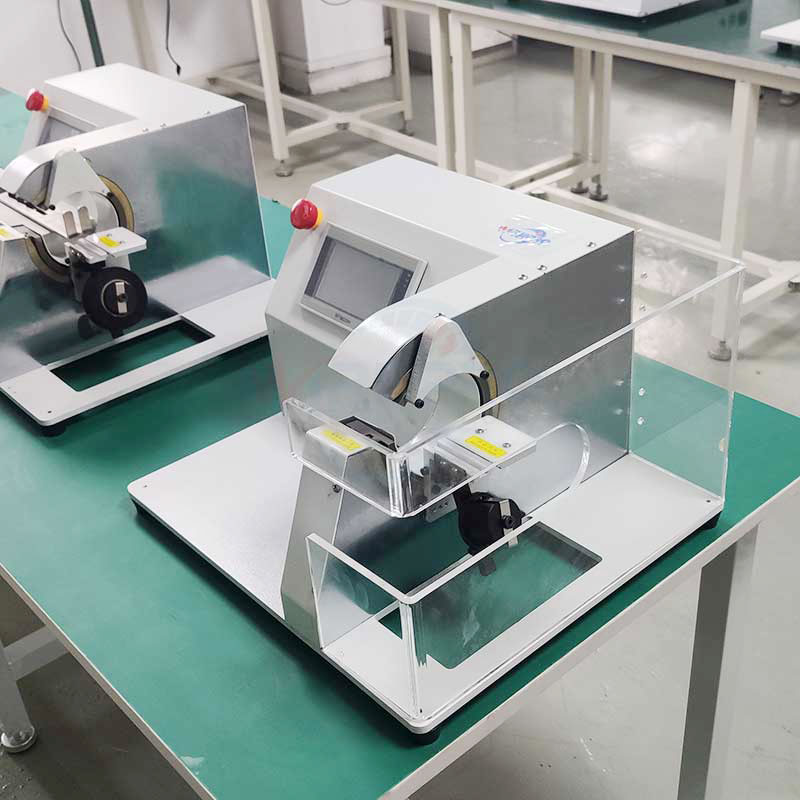

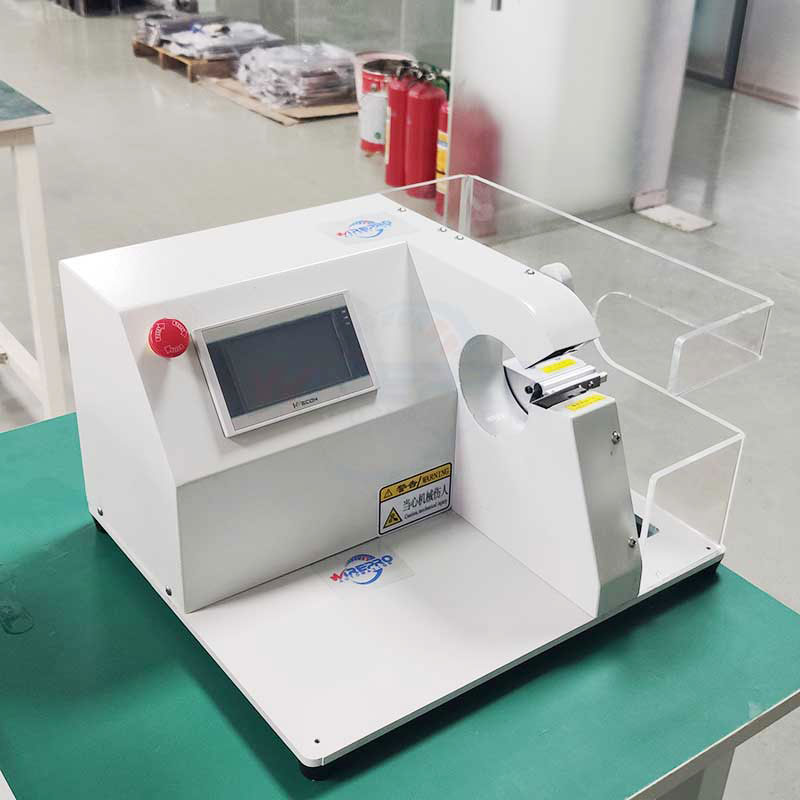

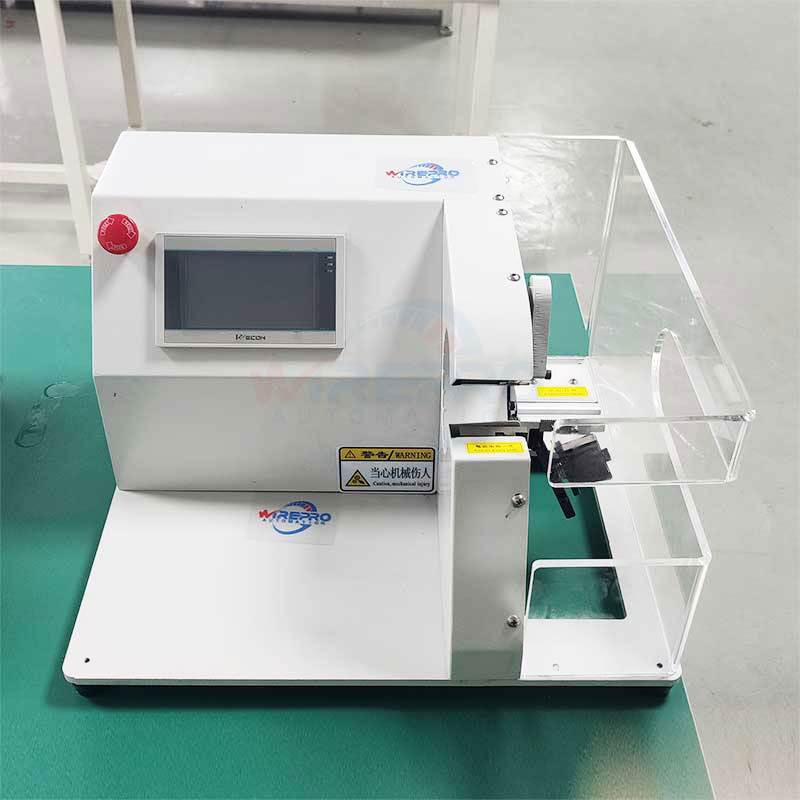

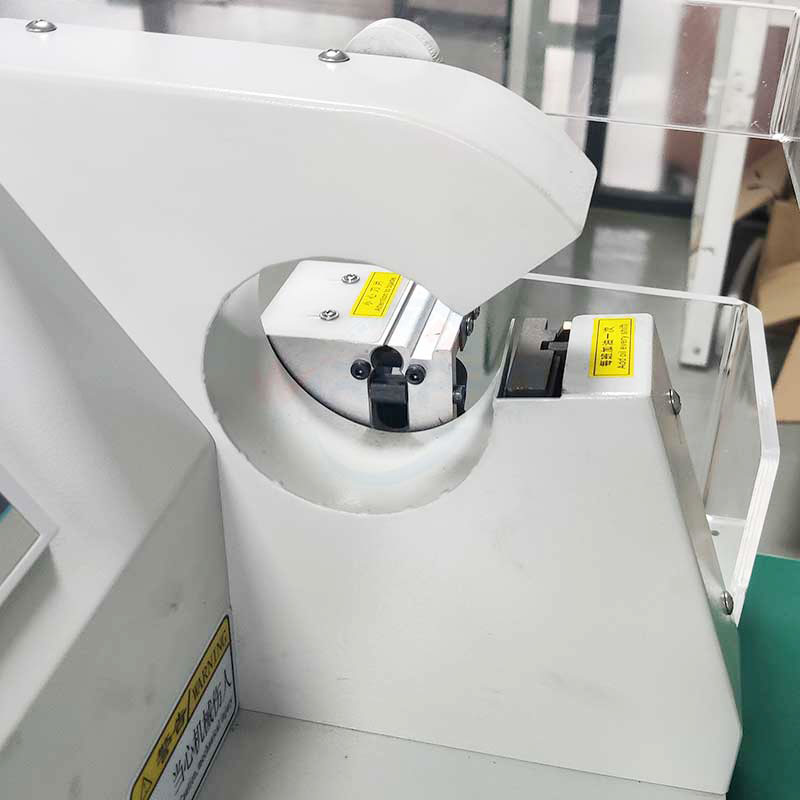

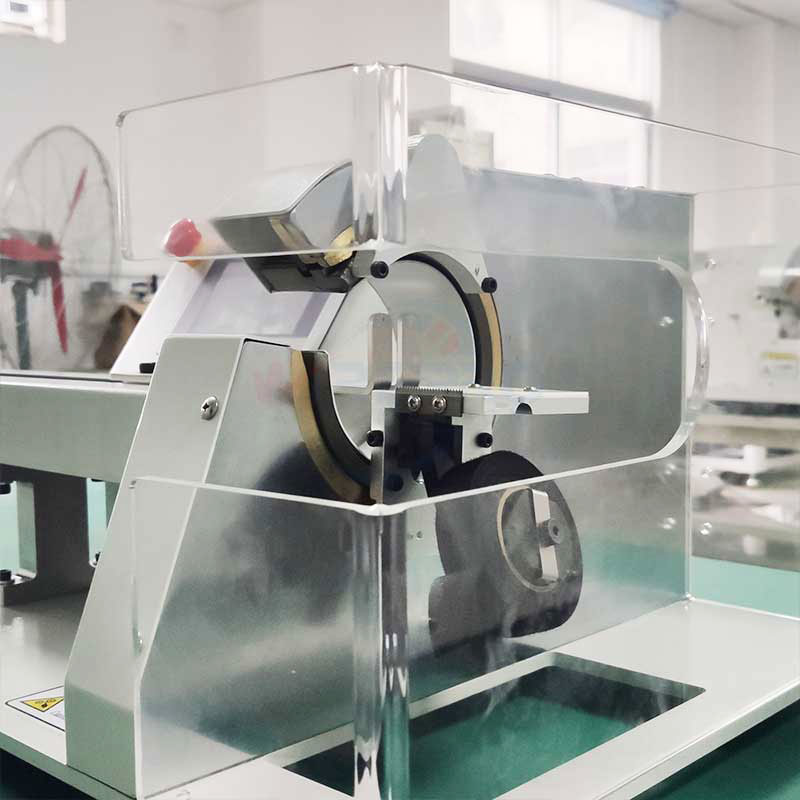

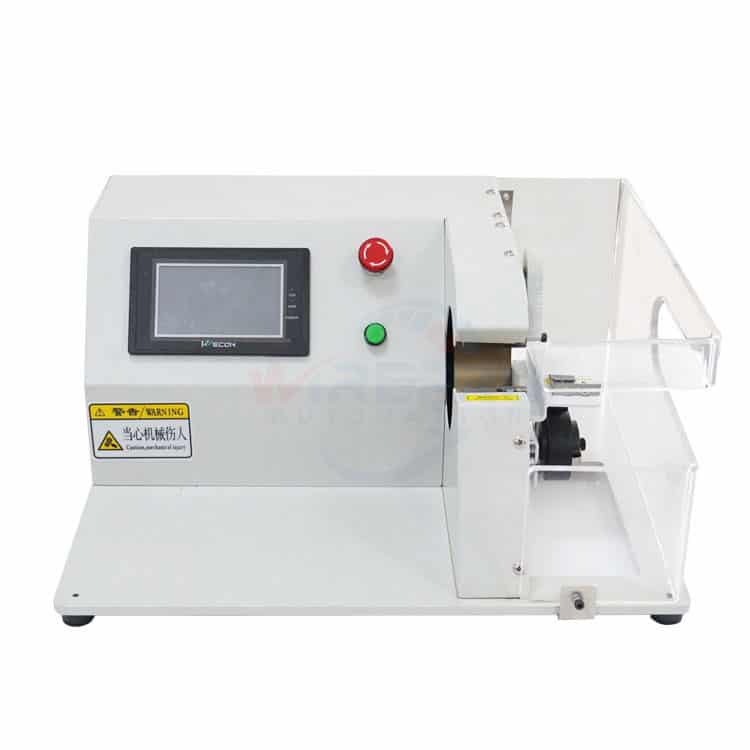

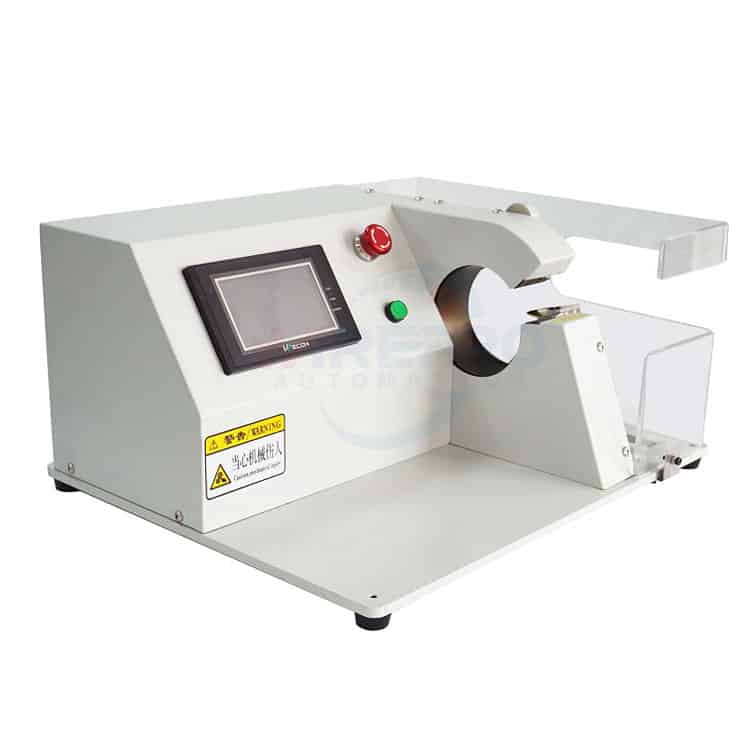

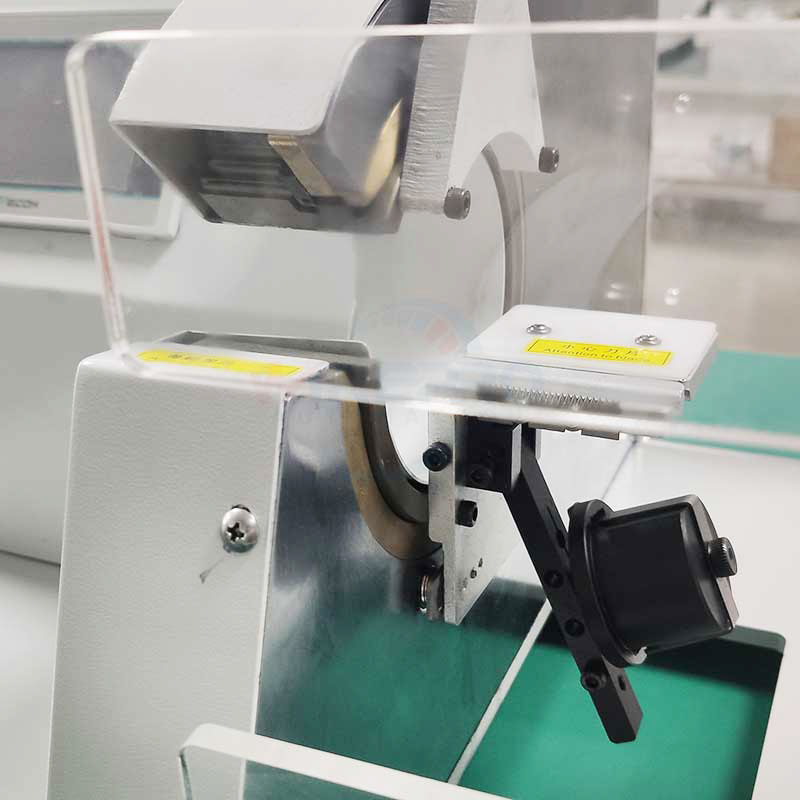

HW-D25 small size tape wrap around harness taping machine
Description
HW-D25 supports wire harness continuous & spot taping. It can work with different types of material tape without back paper, such as cloth tape, PVC tape, etc. It’s mostly used for continuous taping.
Features:
1. Different materials tapes are available
2. The finished products maintain flat, no wrinkles
3. Support different winding method switching: same position point winding, different positions spiral winding
4. Wrapping laps and wrapping speed can be set, display the output
5. Changing blades very quickly
HW-D25 Harness taping machine video:
Technical Data
| Model | HW-D25 | HW-D30 |
| Features | Manual control feeding speed | Auto control feeding speed |
| Available Wire Harness Dia | Φ2-25mm | Φ3-30mm(can custom 3-40mm) |
| Tape Width | 9-19mm (other can custom) | 5-25mm (other can custom) |
| Tape inner diameter | Ф37,Ф32 are common used, others can custom | Ф37,Ф32 are common used, others can custom |
| Tape out diameter | Max 110mm | Max 100mm ( max 170 can custom) |
| Wrapping Length | No limit | No limit |
| Power Supply | 110/220VAC | 110/220VAC |
| Dimensions | 40*41*34cm | 65*52*40cm |
| Weight | 35kg | 45kg |
Application
HW-HD35 supports wire harness continuous & spot taping.
