Model: HT-S33

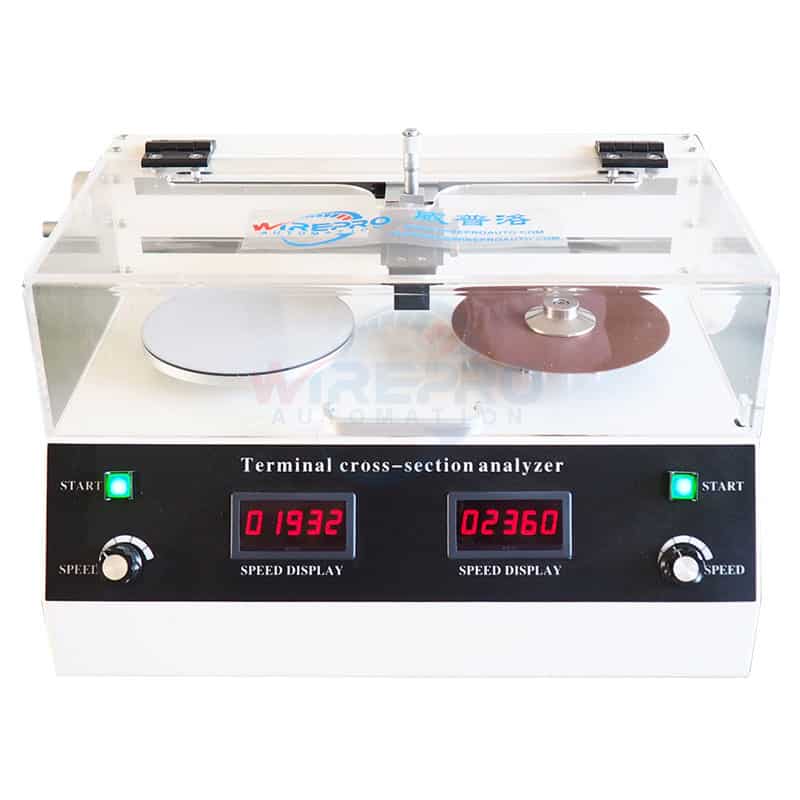

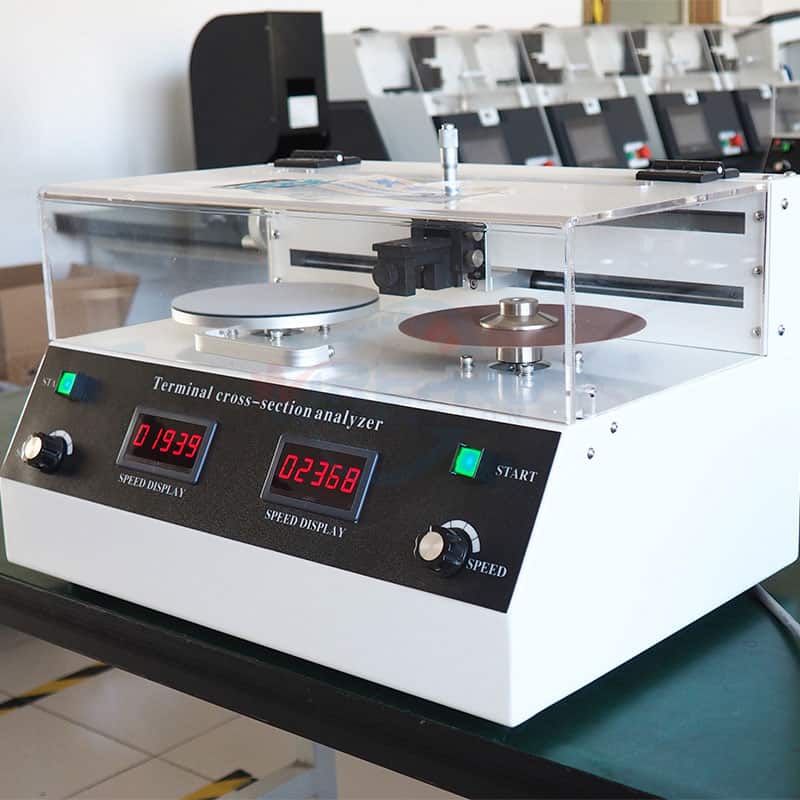

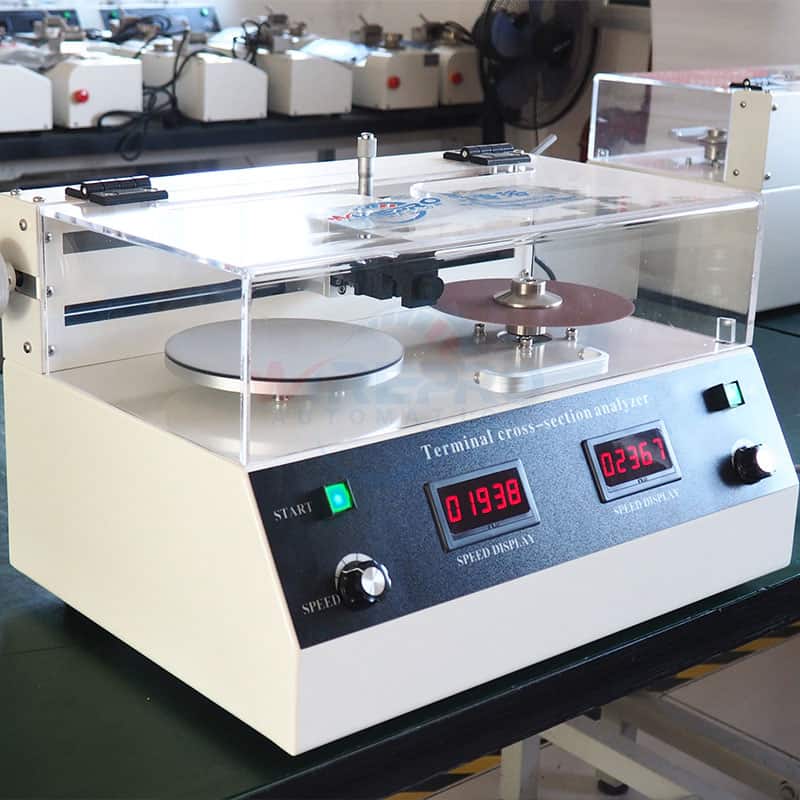

The terminal section analyzer is a precision detection and analysis equipment specially developed for the quality inspection of the wire harness.
HT-S33 Terminal cross section analyzer analysis system
Description
The terminal section analyzer is a precision detection and analysis equipment specially developed for the quality inspection of the wire harness.

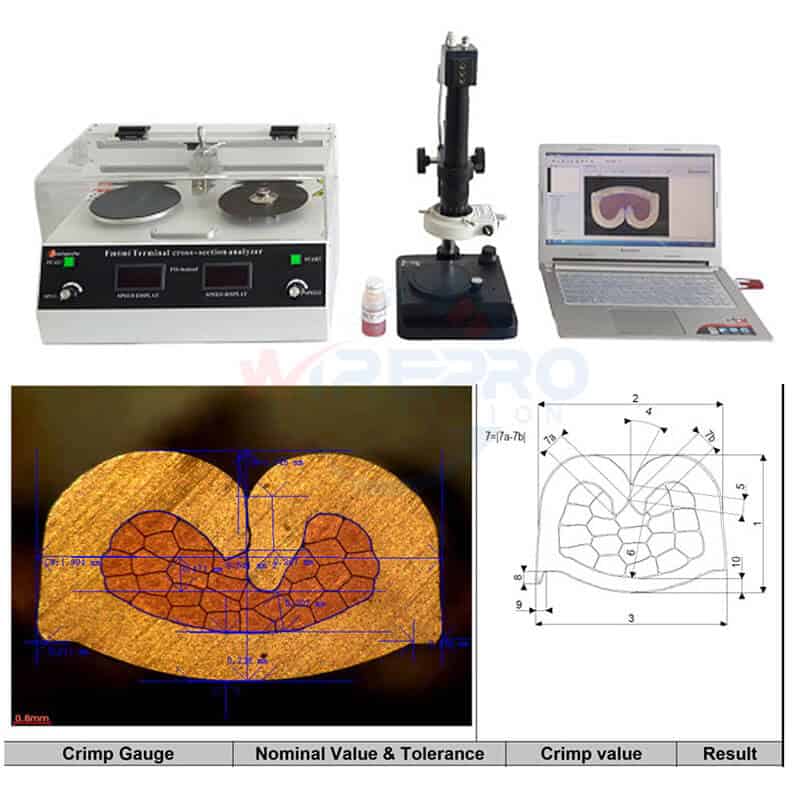

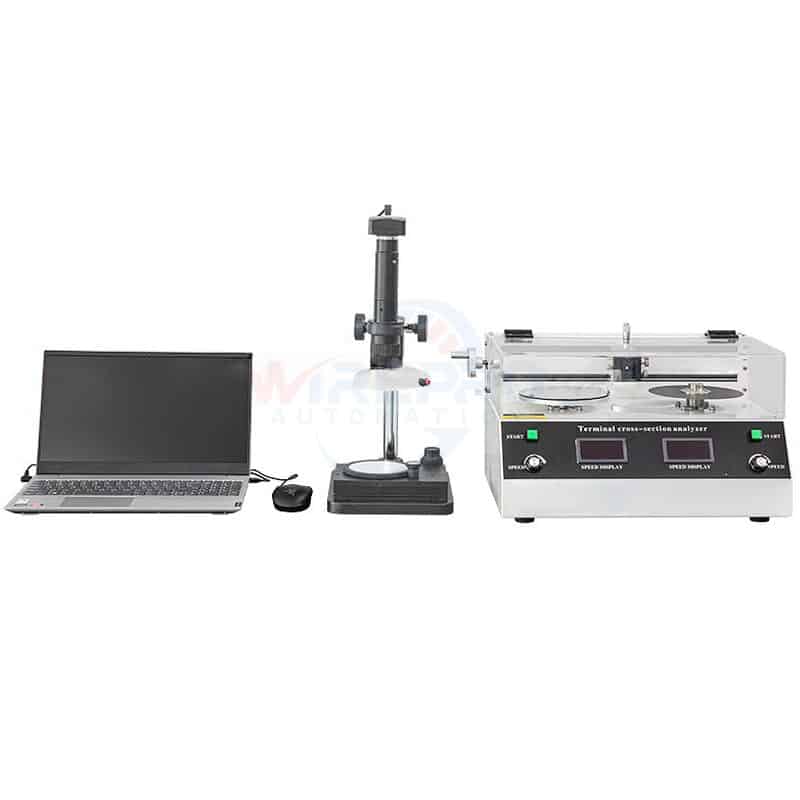

The whole system consists of terminal cutting equipment, grinding equipment, corrosion cleaning section image acquisition system, wire harness terminal picture measurement and analysis system, and other units.
It can complete one analysis in 5 minutes, which greatly improves the testing.
The machine is easy to operate, with a high-quality image acquisition system, accurate measurement analysis.
1. High-performance microscopes and dedicated software make it easy to measure the length and calculate the area.
2. Ultra-high-definition observation of objects can produce erect three-dimensional images, strong stereoscopic effect, clear and wide imaging
3. Configuration of high-precision wire harness terminal picture measurement and analysis system, combined with the high-quality optical system and the perfect combination of resolution cameras, which makes the cross-section image clearer and more accurate.
Terminal section analyzer video:
Technical Data
| Model | HT-S33 |
| Applivable wire range | 0.01m㎡~120m㎡ |
| Cutting speed | 0-4000 rpm/min |
| Cut disk | Φ150X0.5mm |
| Abrasive paper for metallographic | 1200# |
| Precision | 0.001mm |
| Terminal corrosion | Liquid cleaning |
| Lighting source | All white adjustable LED lighting device |
| Power supply | 220V |
| Power | 180W |
| Weight | About 30kgs |
| Dimensions | 45*33*30cm |
