Model: TU-S20-6
This series of machines are mainly used for crimping of large square wire terminals, like copper lug.

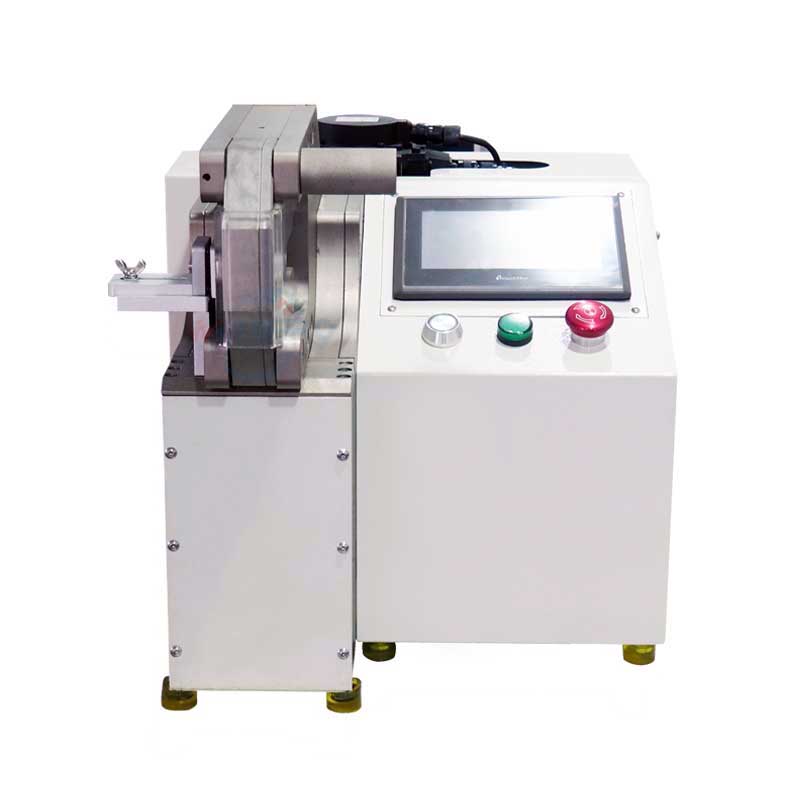

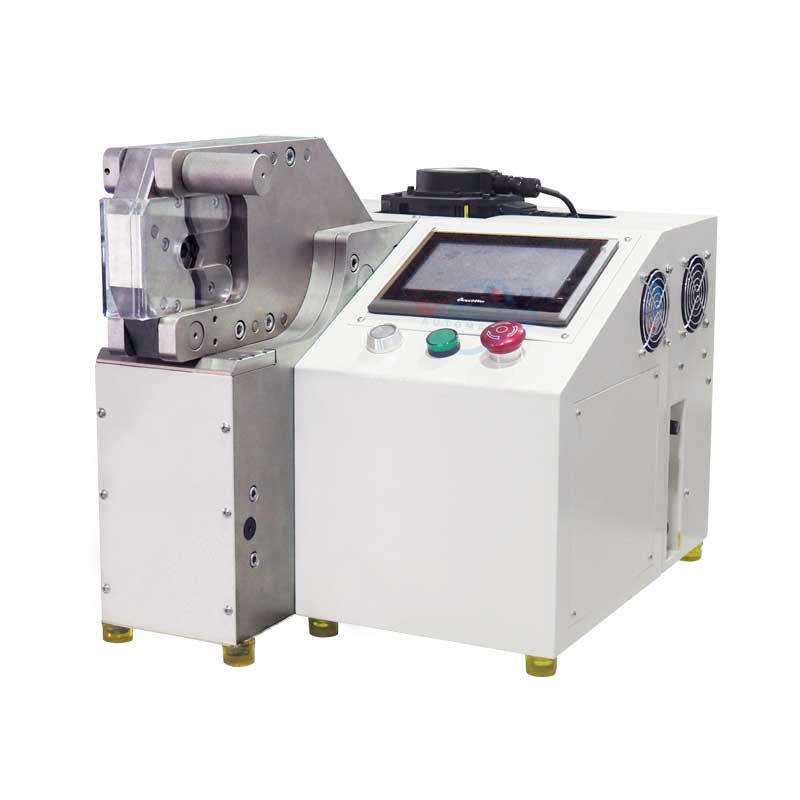

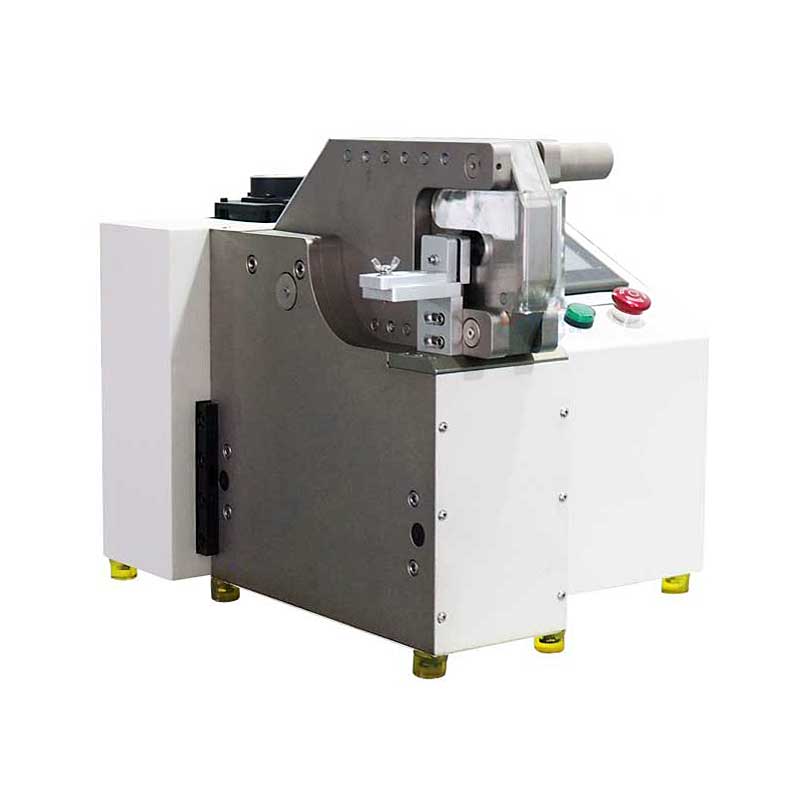

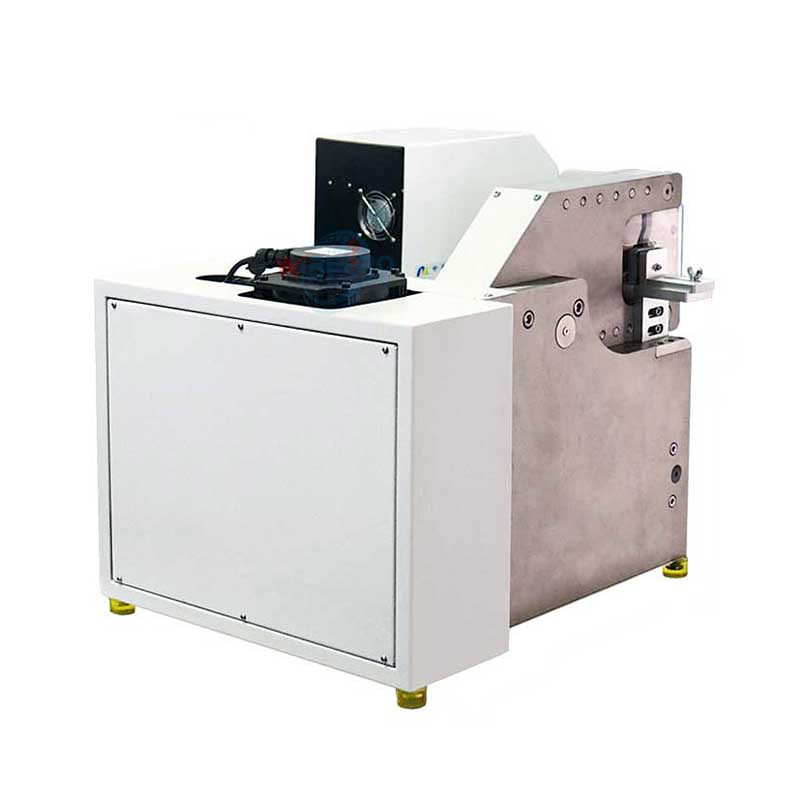

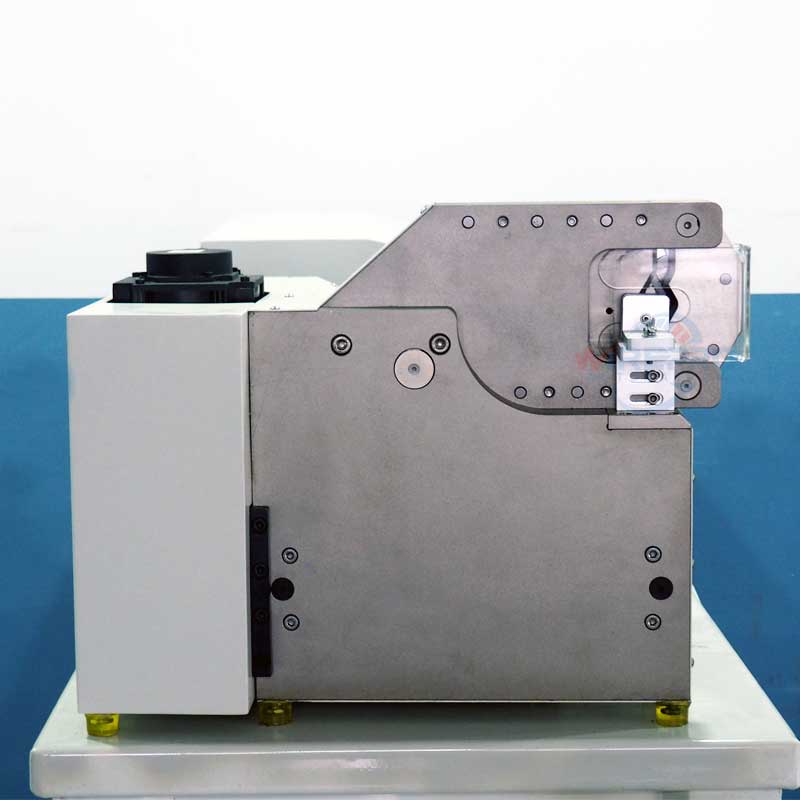

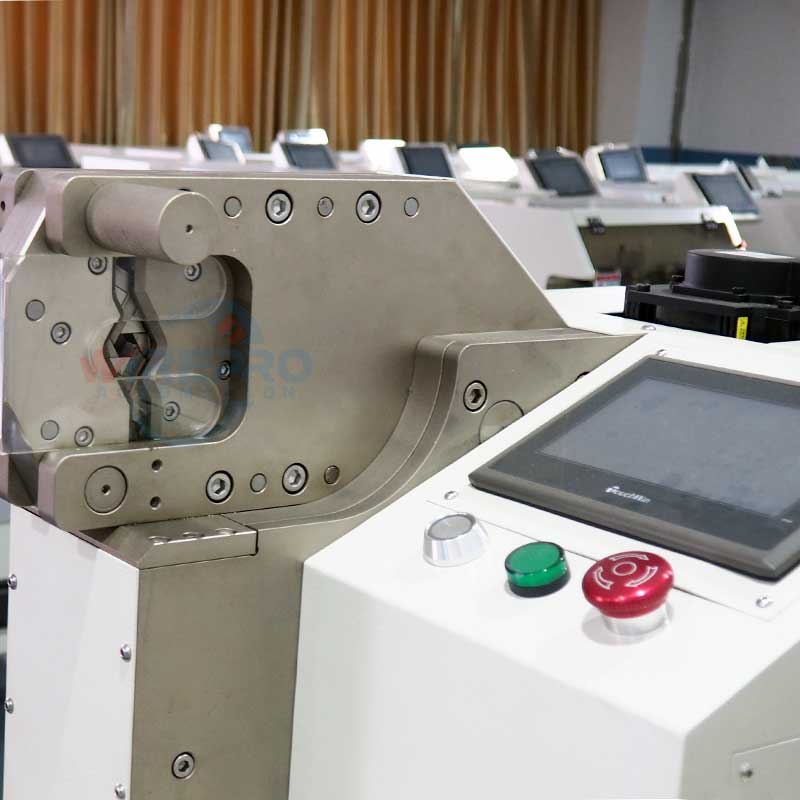

TU-S20-6 Hexagon shape lug terminal crimping machine
Description
TU-S20-6 is designed for hexagon shape crimping the tube terminal with a large square;
It doesn’t need to change the crimping applicator when crimping the closed tube-shaped terminal from size 10-120 mm2. The crimping stroke can be changed easily as per the terminal size.
Features:

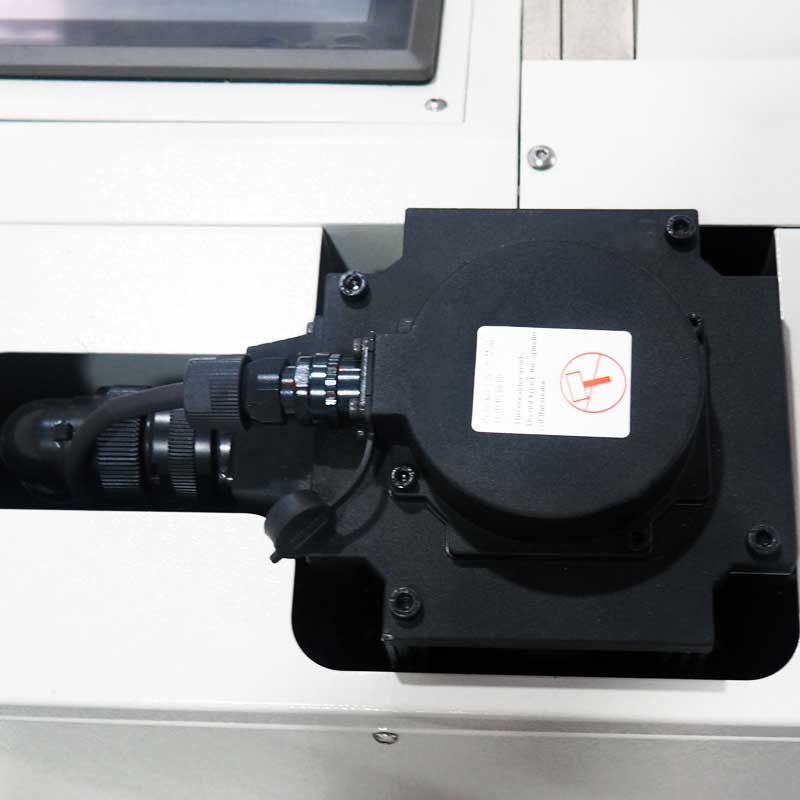

1. Industrial level control chip and high precise servo driving to ensure ts high speed and stable running;

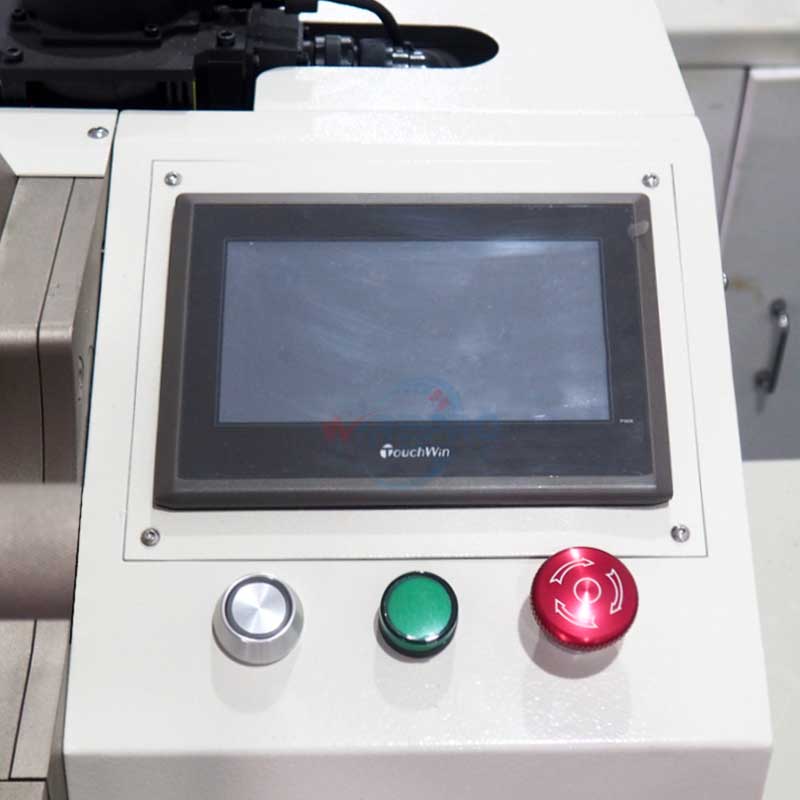

2. With the PLC control system, and the operation is by touch screen;
3. No need to change the applicator with high accuracy;

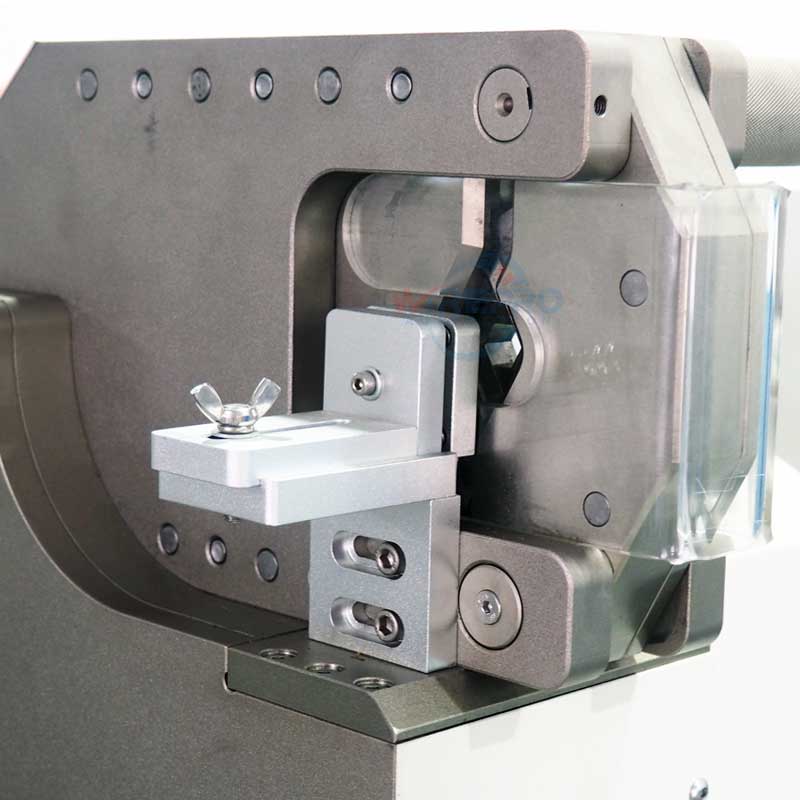

4. It can adjust the crimp position as per the actual size of the cable

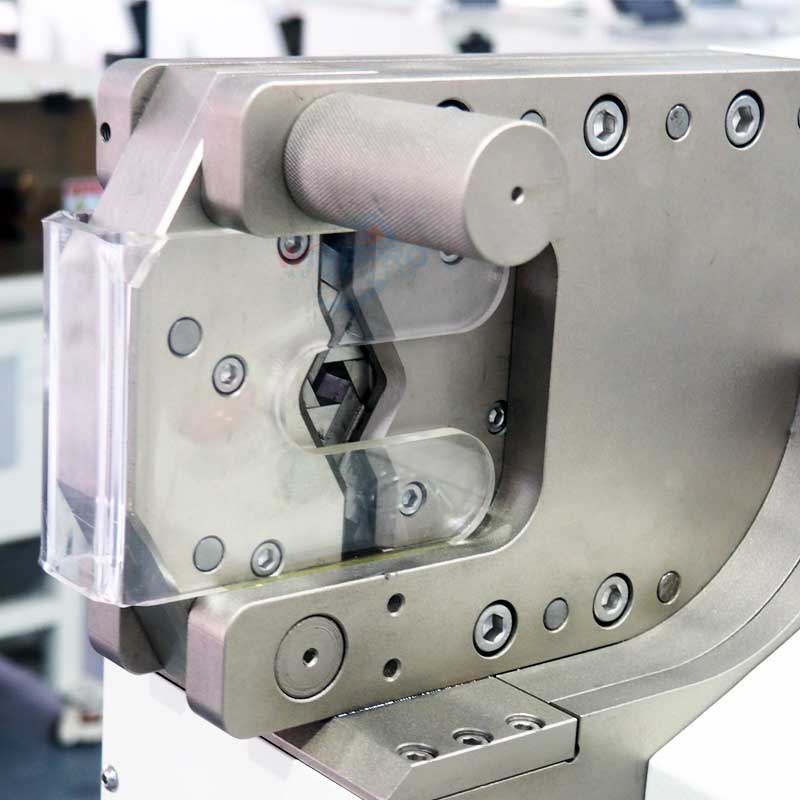

5. Crimping joint can be completely opened, and is suitable for primping the middle connection or the large terminal.
6. Compact structure, space-saving, and low working noise.
Technical Data
|
Model
|
TU-S20-6 |
TU-S08-6
|
|
Cable range
|
6mm²-120mm²
|
2.5mm² – 35mm²
|
|
Crimping Force
|
20T
|
8T
|
|
Diameter
|
32mm
|
24mm
|
|
Crimping Width
|
12.5mm (can custom)
|
8mm (can custom) |
|
Power Source
|
220V 50-60Hz
|
220V 50-60Hz |
| Power | 2300W | 1500W |
|
Machine Size
|
50*45*48cm |
64*35*45cm
|
|
Machine Weight
|
120kgs
|
80kgs
|
Application
Cable lug terminal crimping samples
