Model: HB-T40
This machine can wind wire to round shape & 8 shape and automatic cut the cable tie & twist it.

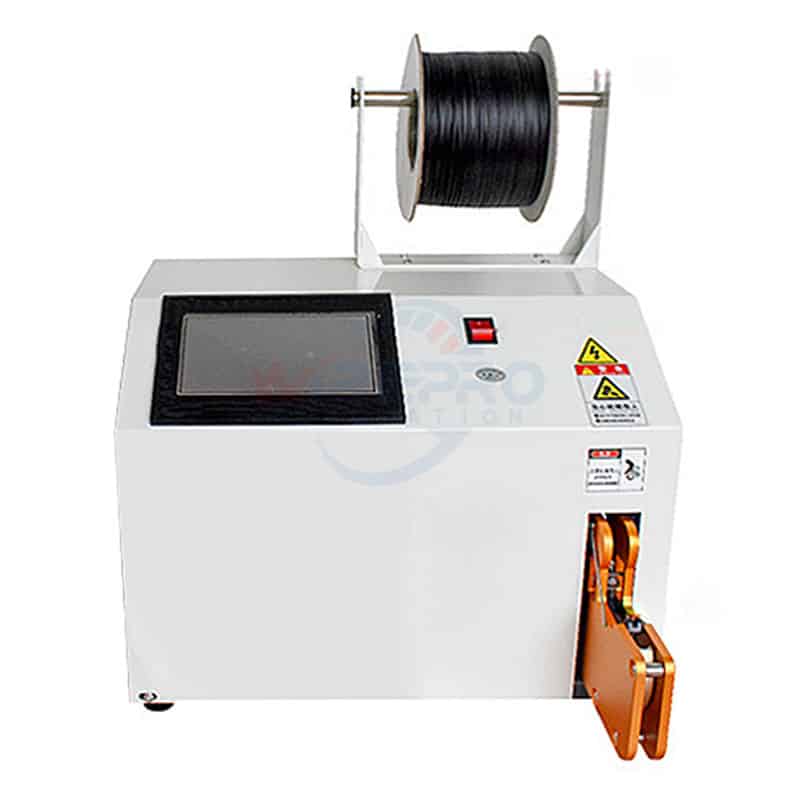

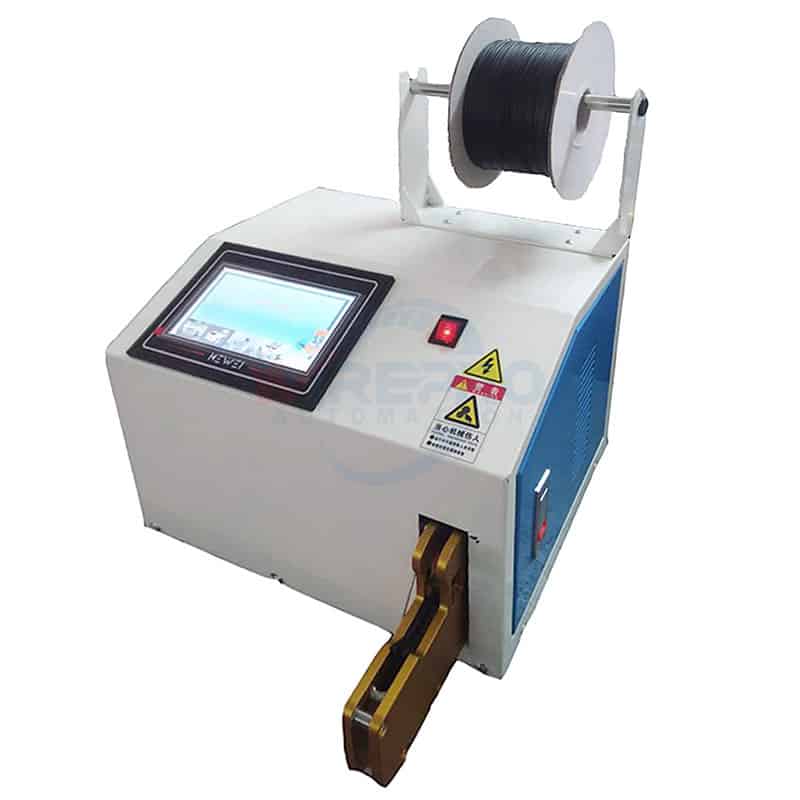

HB-T35 electric wire roller tying cable tie twisting machine
Description
This machine can wind wire to round shape & 8 shape and automatic cut the cable tie & twist
it. It is widely used to bundle AC/DC power cord, USB data cable, video cable, HDMI
cable, and other types of transmission wires.
Feature:
1. It is equipped with step motors, adopted PLC touch screen to control cable tie length
2. The winding speed and winding cycle are both adjustable
3. Improve the working efficiency compared with the manual operation
4. Reasonable price and good quality, easy to operate
Wire roll tying machine video
Technical Data
| Model | HB-T35 | HB-T45 | HB-T60 |
| Bundling Diameter | Φ5-35mm | Φ20-45mm | Φ25-60mm |
| Cable Tie Length | 60-140mm | 110-200mm | 130-260mm |
| Number of Bindings | Can be set, 2-6 cycles is good | ||
| Cable Tie | Plastic or rubber-coated iron core wire | ||
| Power Supply | 110/220VAC,50/60Hz | ||
| Power | 60W | ||
| Dimensions | 32*45*50cm | ||
| Weight | 32kg | 32kg | 33kg |
Application
Wire roll, small wire spool winding
