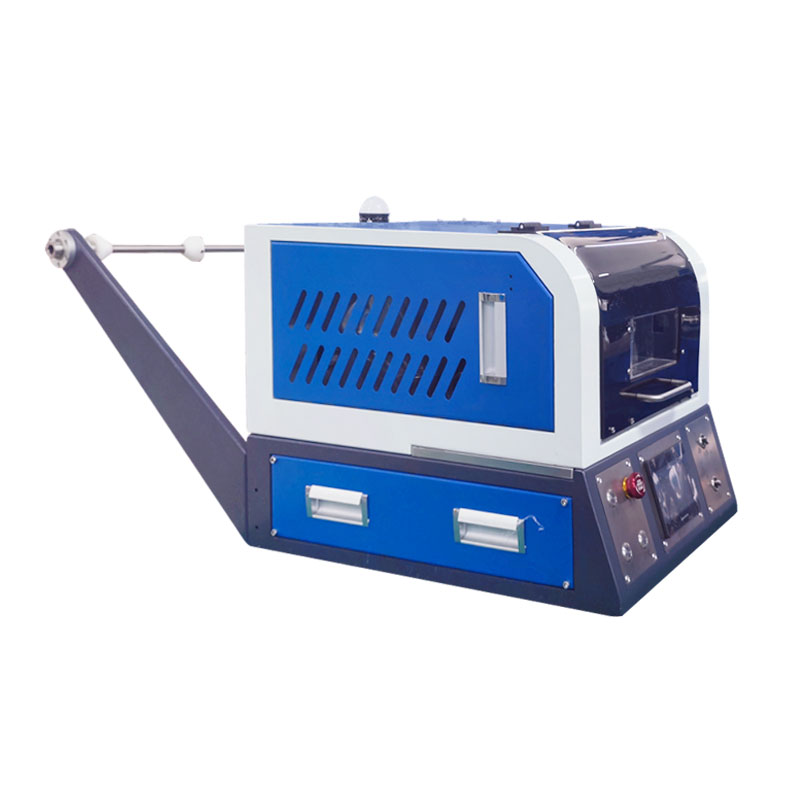

Model: RC-A02

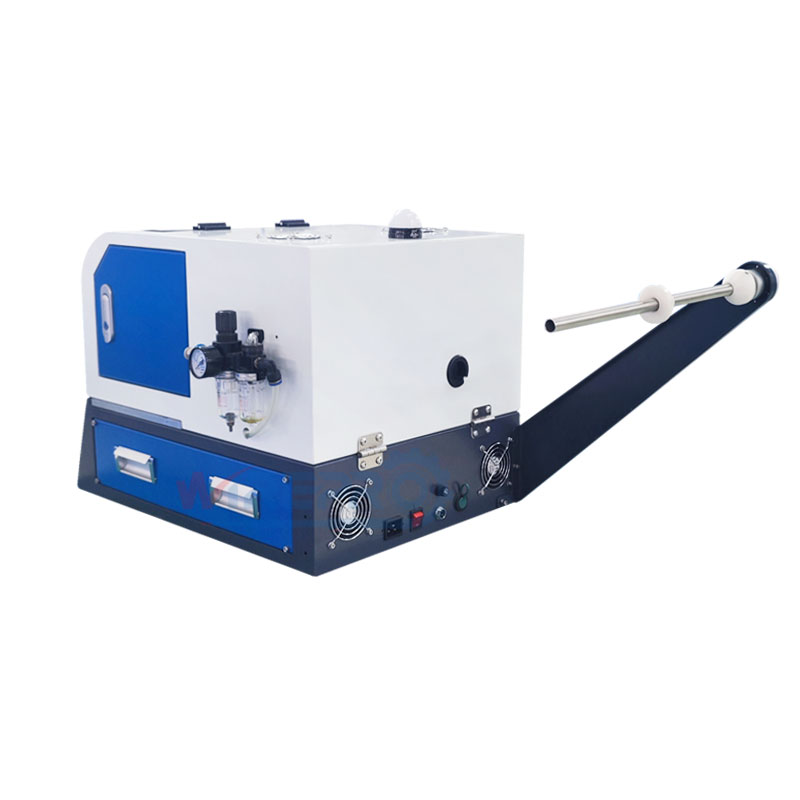

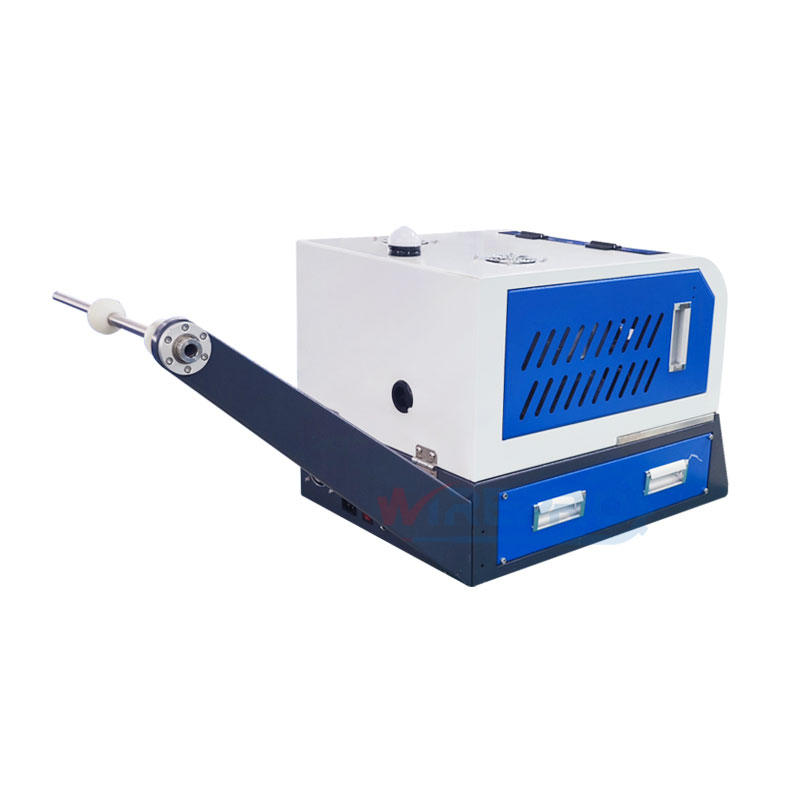

RC-A02 is a desk type machine for heat shrink tube automatic feeding cutting, loading on the wire, and heating tube machine.
RC-A02 harness shrinkable tube tube cutting loading heating desktop small machine
Description
RC-A02 is a desk type machine for heat shrink tube automatic feeding cutting, loading on the wire, and heating tube machine.

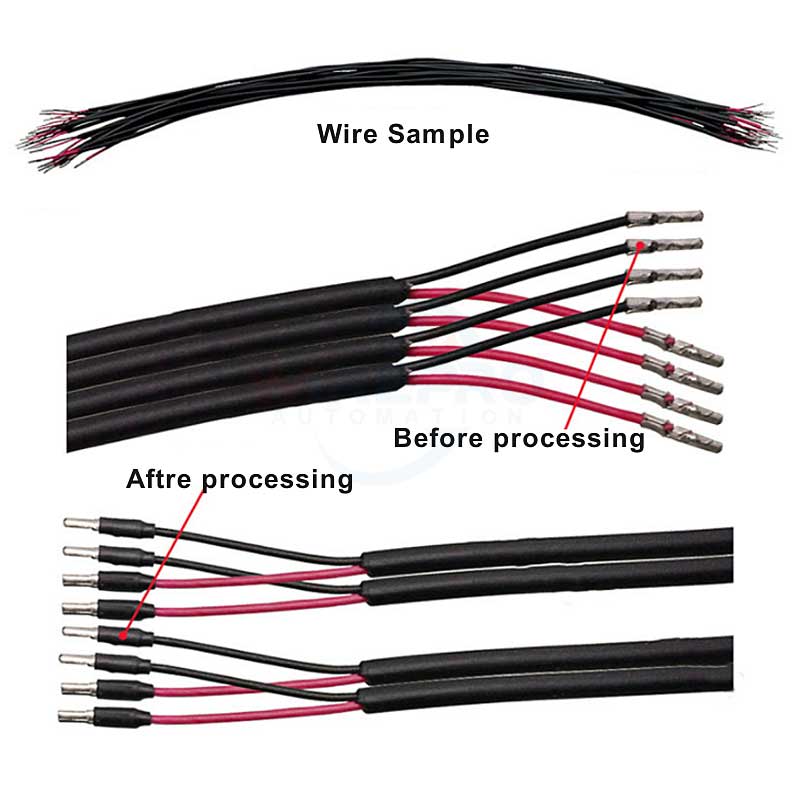

Applicable wires for equipment: machine board terminals, 187/250, ground ring/U-shaped, new energy wires, multi-core wires, etc.
Features:

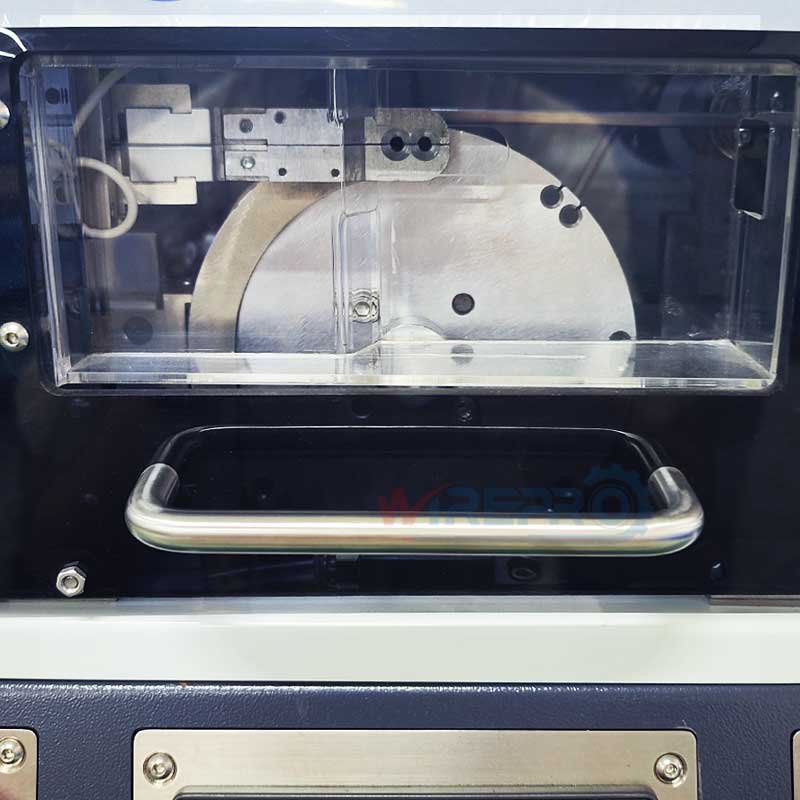

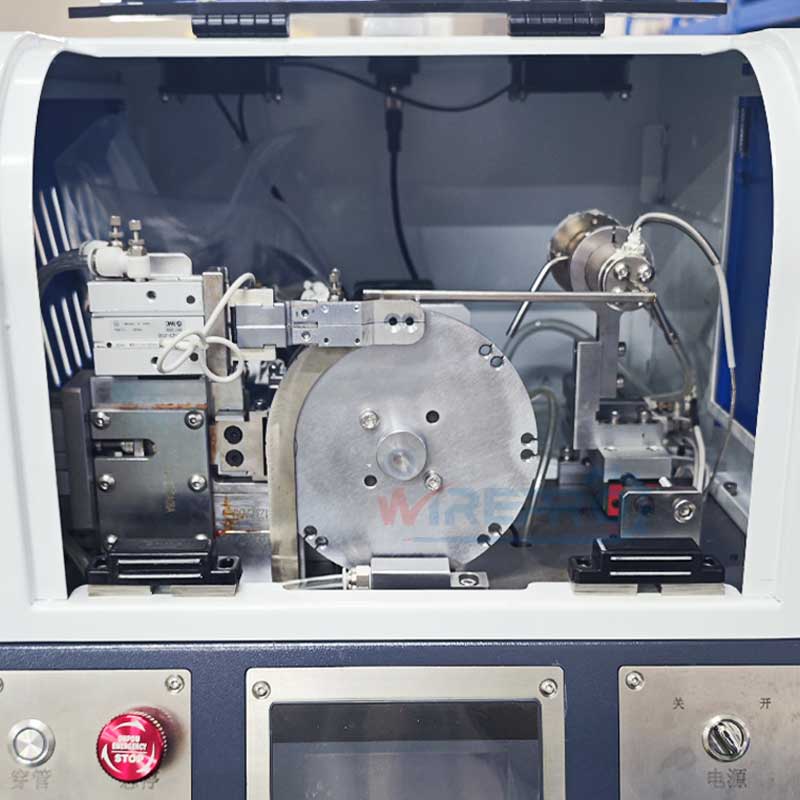

1. The equipment adopts vertical turntable and stepper motor control.

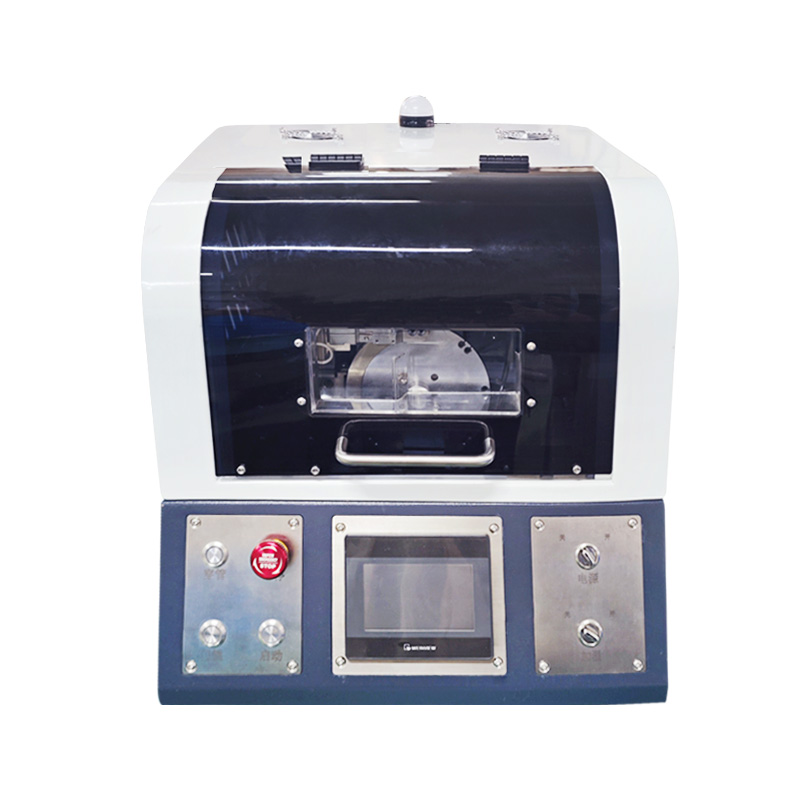

2. The equipment is controlled by PLC + touch screen, which is easy to operate and displays faults.
3. Equipment limit adjustment components must have positioning guides to facilitate fine-tuning and specification replacement by operators.
Video:
Technical Data
| Model | RC-A02 |
| Available Tube Diameter | Custom a range from 1-12mm |
| Available Tube Length | Custom a range 5-60 mm |
| Tube Length Tolerance | ± 0.3 mm |
| Tube Positioning Tolerance | ± 0.2 mm |
| Production Rate | 700-1200 pcs/hour |
| Yield | 99% |
| Compressed Air Supply | 0.5 – 0.6 Mpa |
| Power | 220/110V |
| Power Supply | 1900W |
| Dimensions | 70*80*120cm |
| Weight | about 150kg |
Application
