Model: TP-S02
This wire splicing machine works with a copper strip, which replaces the traditional welding method. 2T force.

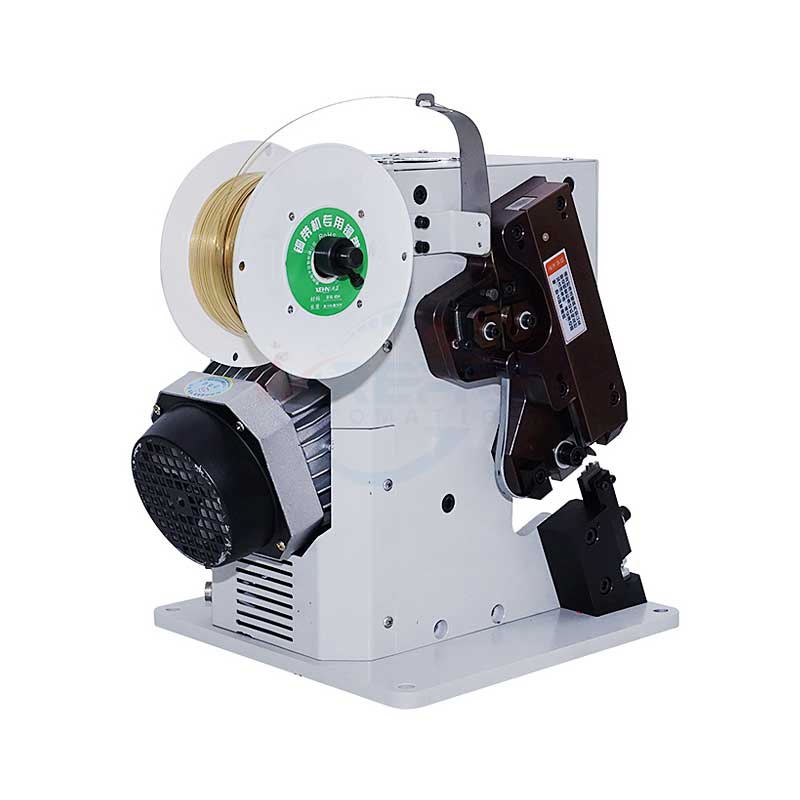

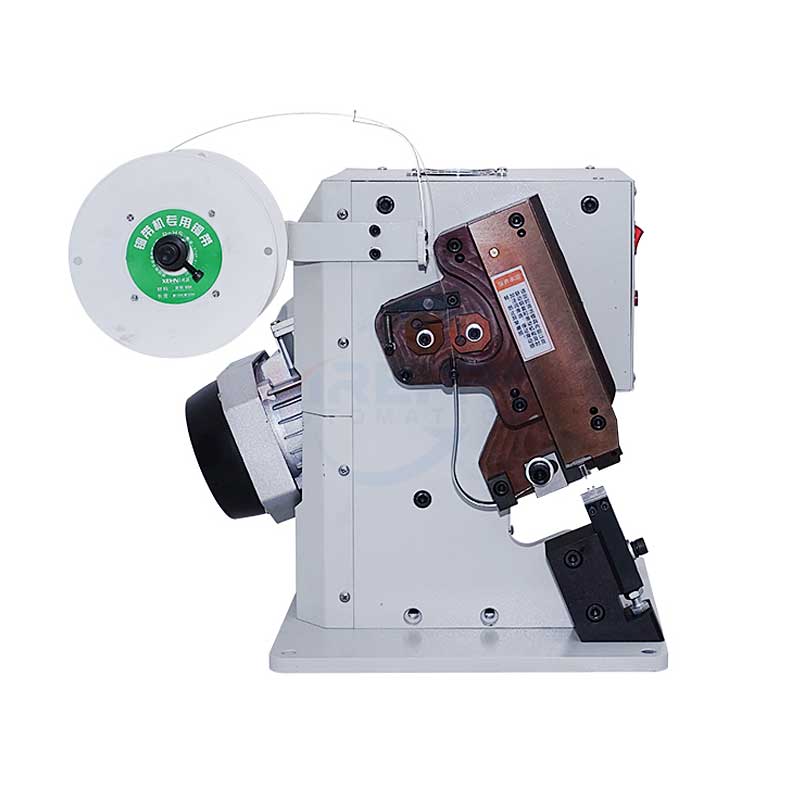

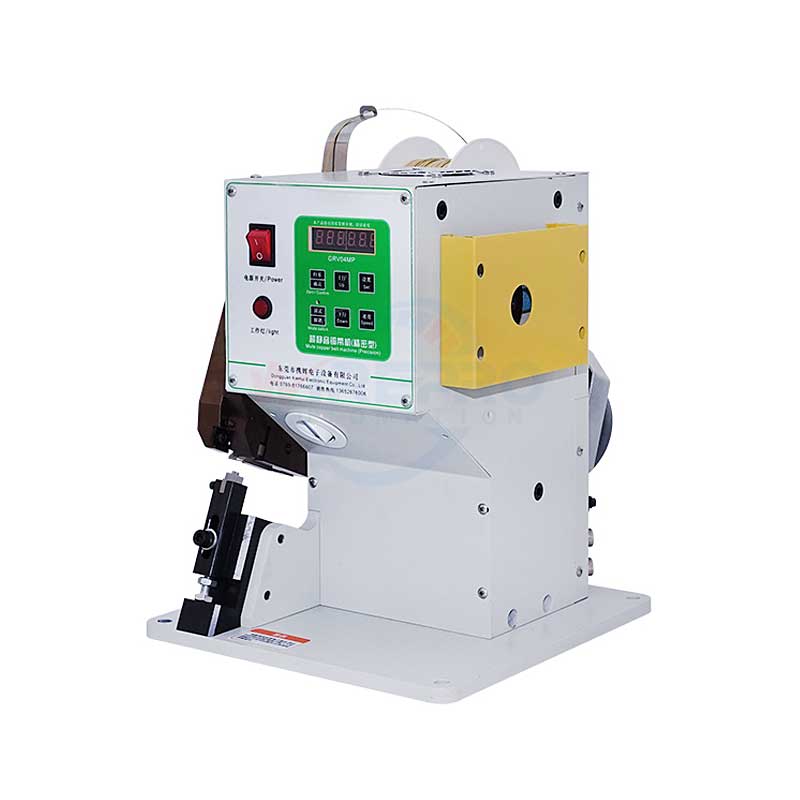

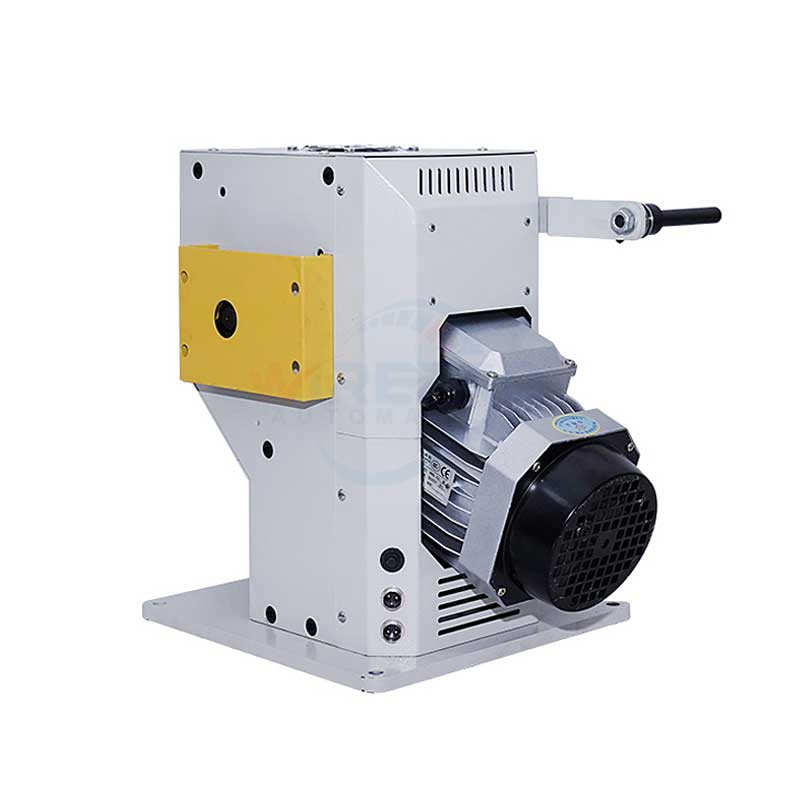

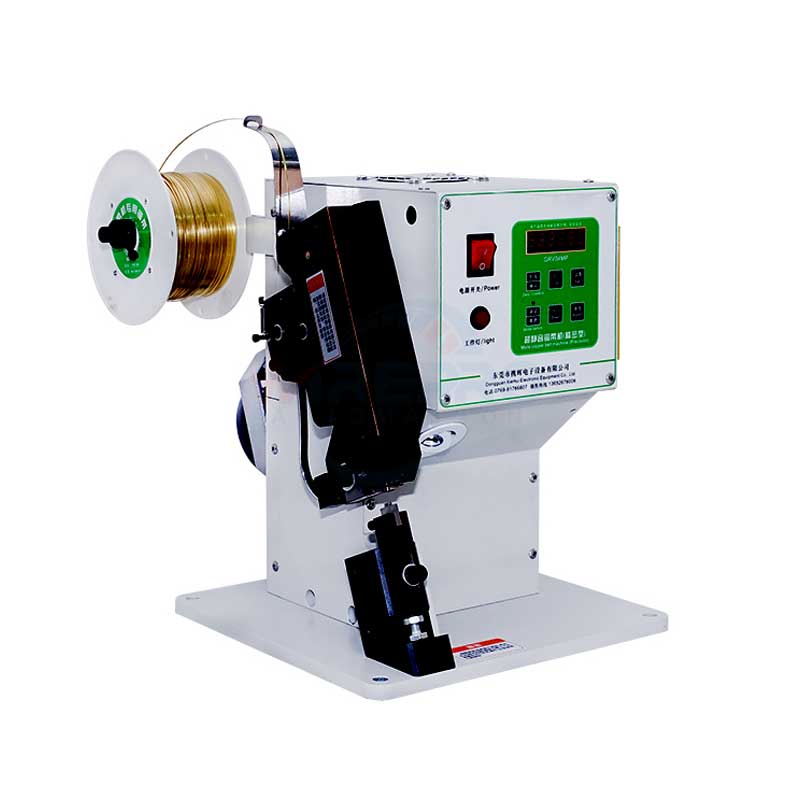

TP-S02 Harness copper strip crimping copper tape splicing machine
Description
Features：
1. This machine is mainly used for splicing wires with copper strips, which replaces the traditional welding method

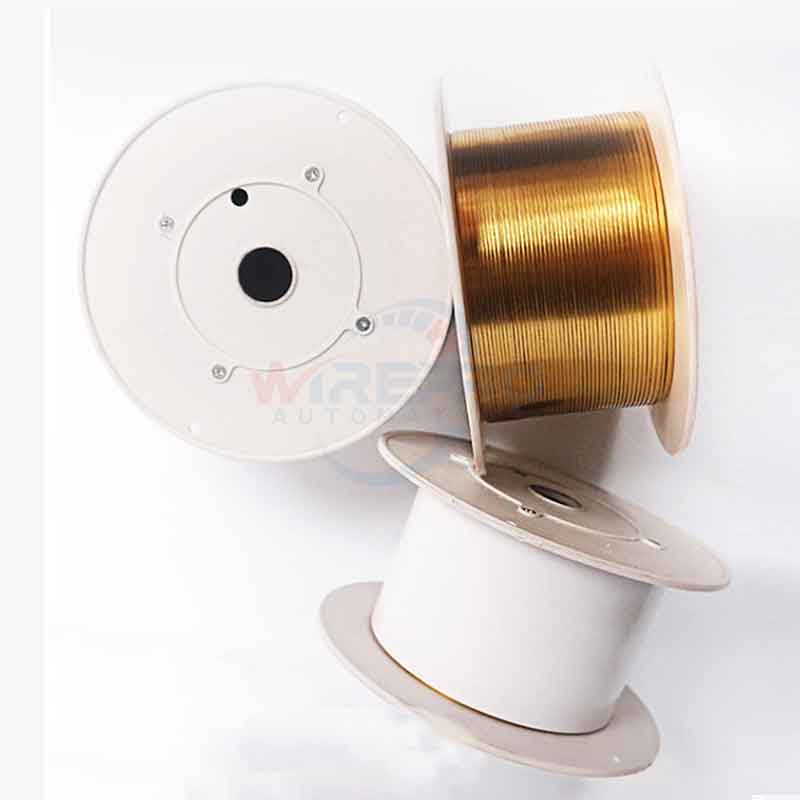

2. Using a special continuous copper strip terminal, cutting and splicing can be done at once.
3. The copper belt is treated by special grain, and the endurance is very strong after riveting.
4. Scope of application: the connection between the xenon lamp and the resistor, the connection between the slide switch and the wire, the connection between the high-temperature heating elements, and the connection between the thermosensitive elements.
Video:
Technical Data
|
Model
|
TP-S02
|
|
Stroke
|
23mm
|
|
Crimping force
|
2T
|
| Maximum Copper Strip Length | 60MM/Maximum Copper Strip Length 22MM |
| Maximum Copper Strip Width | 6MM |
| Maximum Crimping Width | 6.5MM |
|
Adjustable height
|
8mm
|
|
Power
|
550 W
|
|
Power supply
|
220V/50HZ
|
|
Weight
|
45KG
|
|
Dimension
|
300*420*450mm
|
Application
