Model: TA-SW1
This series machine is a fully automatic two-ends wire cutting stripping & terminal crimping machine & one end wire seal automatic feeding and loading machine.

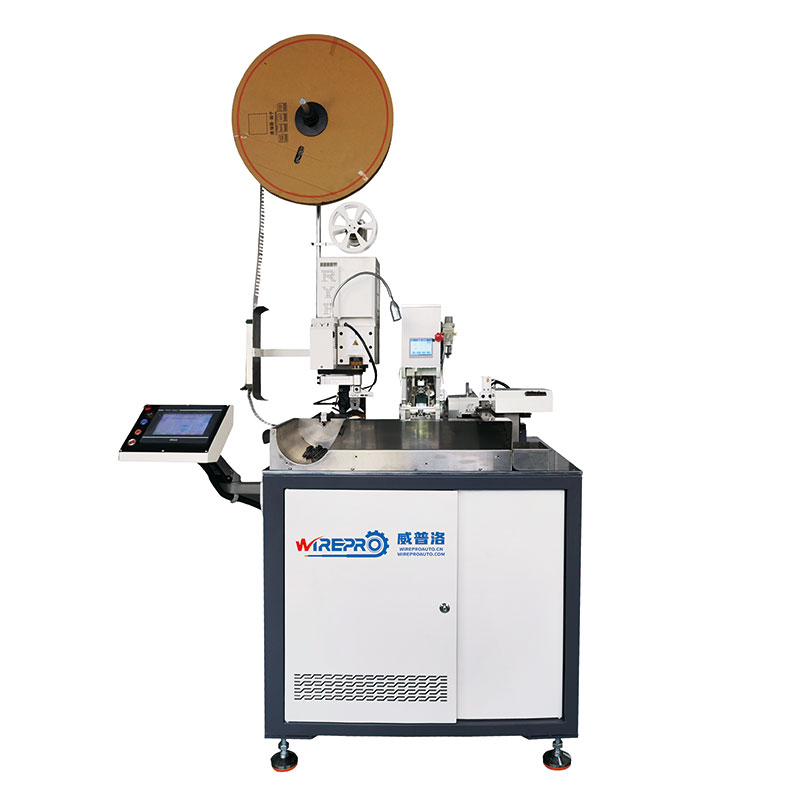

TA-SW1 full automatic wire cutting striping crimping and wire seal loading machine
Description
1. The machine will first load the wire seal and then strip the rubber jacket, which avoids the bad press and fillet phenomenon on the wire copper wire
2. The two ends of the wire can be cut, stripped, and crimp, one end loading the wire seals.
3. The pressure induction system for crimping can be installed
3. The parameters such as wire cutting length, stripping length, and glue depth are all controlled by a touch screen, which is easy to learn and understand and can be operated skillfully after simple learning.
4. Applicators can be used and can be quickly exchanged.
5. Conveyor belt table length can be customized.
| Model | TA-DS02 |
| Wire range | AWG#18-#28 |
| Cut length | 40-1500mm （can custom） |
| Cutting tolerance | ±0.5mm + L*0.2% |
| Stripping length | R<10mm; L<15mm |
| Crimping strength | 2T ultra-silence |
| Productivity | 2200pcs / hour ( based on wire length 150mm) |
| Power supply | AC220V 50HZ single phrase |
| Power | 2.5KW |
| Air compression | 0.5MPA(5kgf/cm) |
| Control | MSP430E micro-controller,165NA/MIPS woking mode |
| Dimensions | 103*84*200mm |
| Weight | 380kg |
Application
The series machines are designed for stripping big-size cable.
