Model: SF-U01
Automatic flat Ribbon Cable Cut & Stripping Machine.

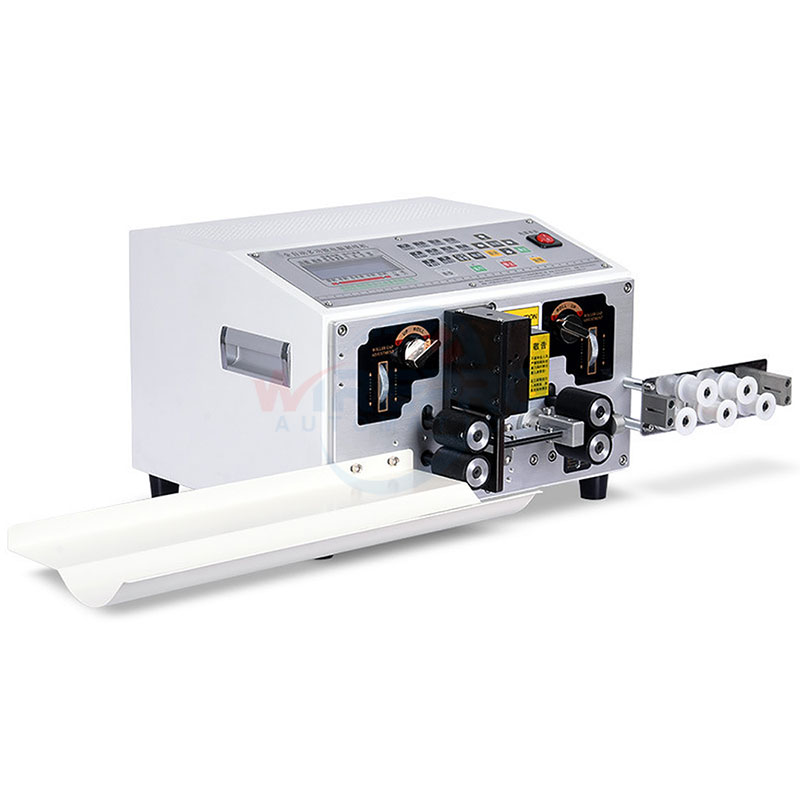

SF-U01 full automatic flat ribbion cable cutting stripping machine
Description
This series of machines are specially used for flat cable stripping. Processing methods include cutting, stripping, which can add twisting or splitting wire system. Widely used in the wire harness processing industry for automotive electrical appliances, instrumentation, lamps, household appliances, etc.
1. Twisting and splitting functions can be customed.
2. Suitable for different size flat cable
3. Length can be set in a large range
4. Simple operation and convenient maintenance
5. Fast speed, high precision, and stable performance.
Video
Technical Data
| Model | SF-U01 | SF-T02 |
| Features | Cut & Strip | Cut & Strip & Twist |
| Available Wire Width | 8-16mm | |
| Cutting Length | 1-99999mm | |
| Cutting Length Tolerances | ±(0.002*L)mm | |
| Stripping Length | 0-20mm | |
| Display Screen | Chinese / English LCD Screen | |
| Drive Method | 4 wheels drive | |
| Power Supply | 110/220VAC, 50/60Hz | |
| Twisting Length | ~ | 4-15mm |
| Production Rate | 2000-3500pcs/h | 2000-3500pcs/h |
| Power | 400W | 400W |
| Dimensions | 42*40*28cm | 42*40*28cm |
| Weight | 28kg | 30kg |
Application
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
