Model: TP-FW7

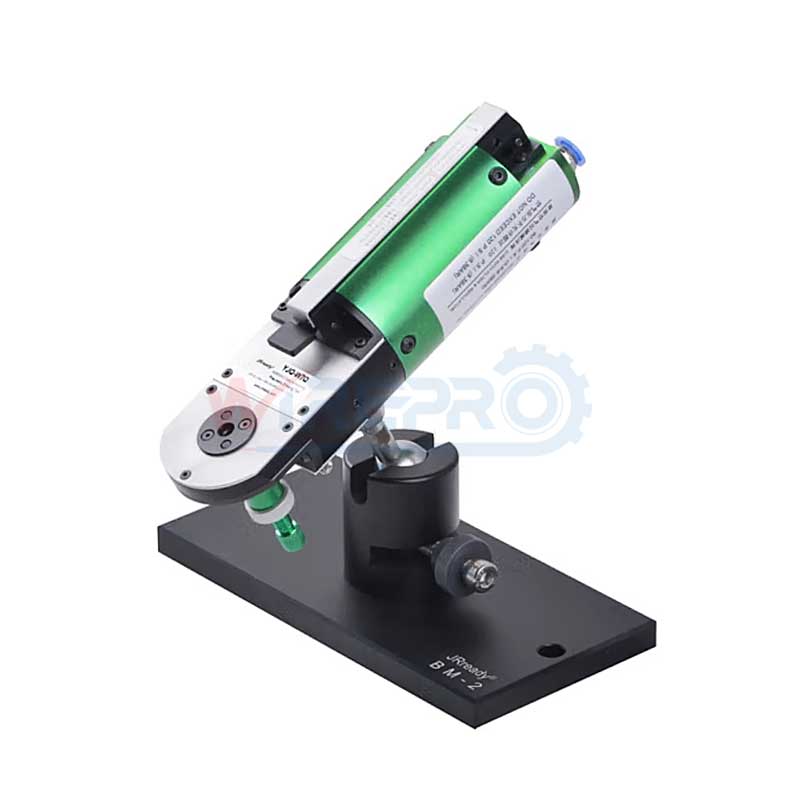

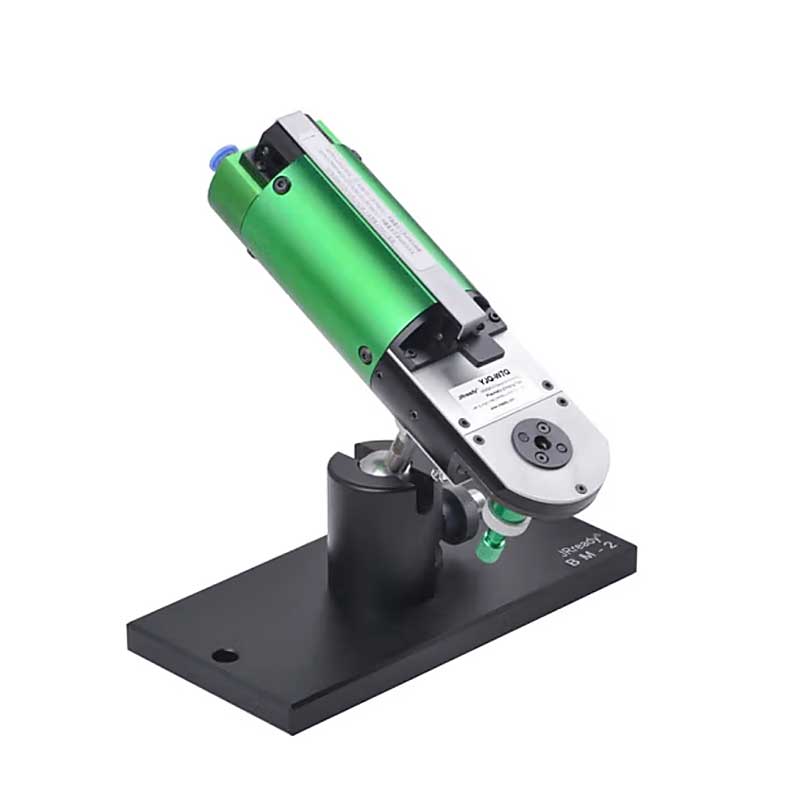

TP-FW1 TP-FW7 Four indent wire terminal crimping machine
Description
Suitable for crimping copper lugs (DT, DTG, SC, JGK, JGY, JG, JM,
C45, GT – 1, GTY – 1), Contacts size below 35 mm2.
1. Fast crimping & one-time shaping， the pull force is 1.3 times that of a 6-sided crimp

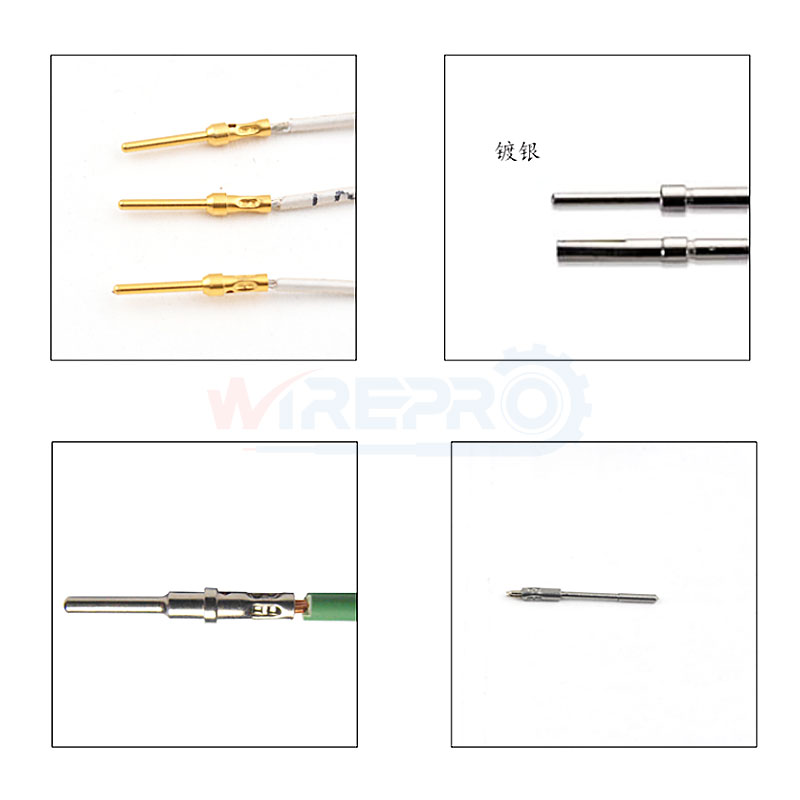

2. Suitable for rotary contacts

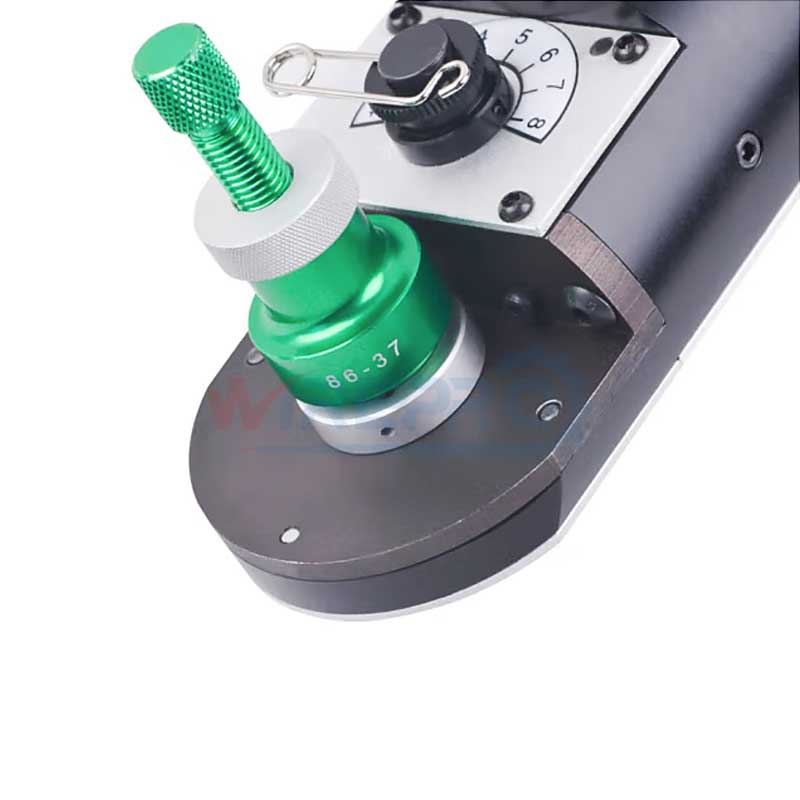

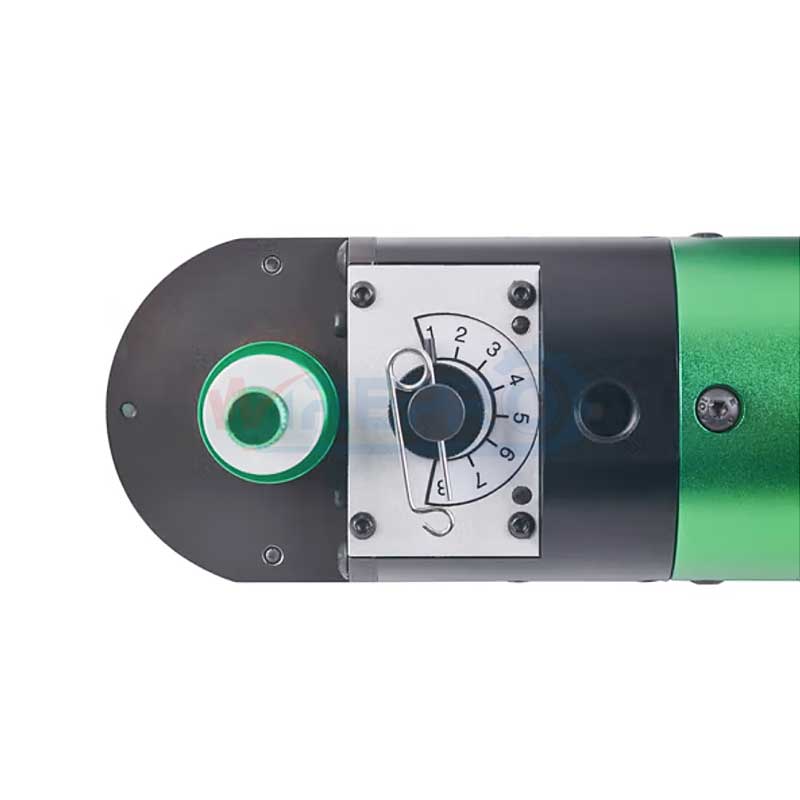

3. Continuously adjustable crimp depth; min adjusting range: 0.1 mm
4. Distance locking devices to ensure high crimping quality

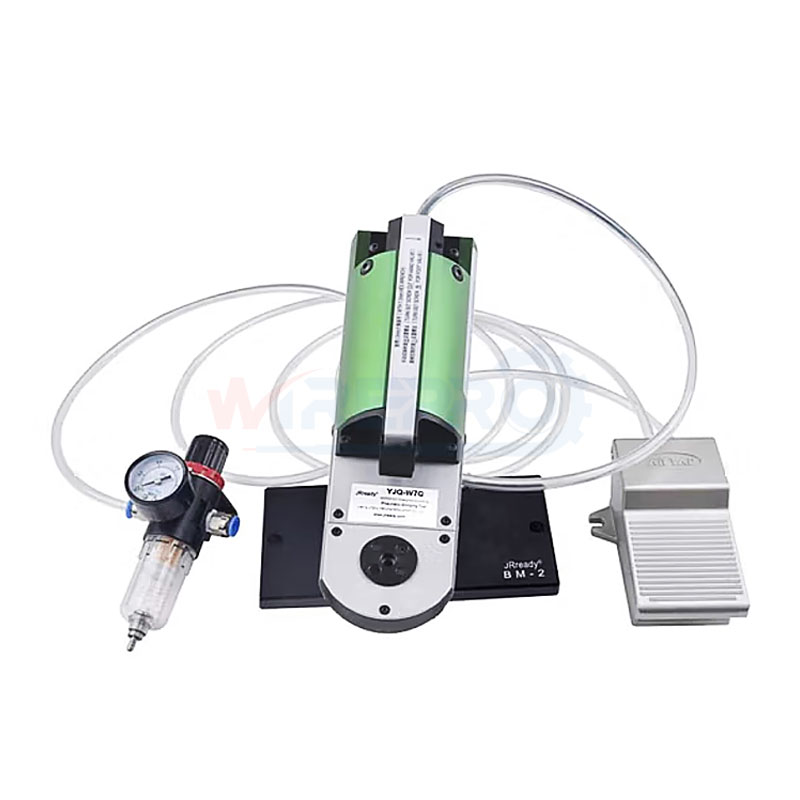

5. Force completely produced from compressed air, safe & energy saving
6. Convenient gauge calibration
7. Small size, suitable for line operation
| Model | TP-FW1 | TP-FW7 |
| Fetures | For small wire | For small wire |
| Available Wire | 0.032-0.52mm² | 0.07-1.32mm² |
| Available Wire | AWG 20-32 | AWG 16-28 |

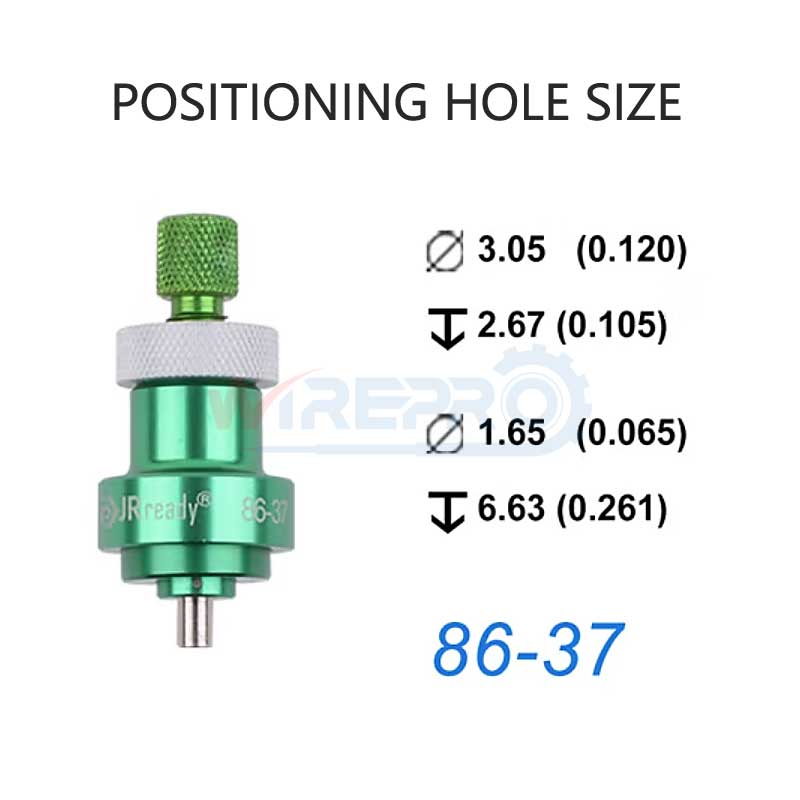

| Opening Dia | 3.6mm | 3.96mm |
| Indentation Length | 1.77mm | 2.0mm |
Application
