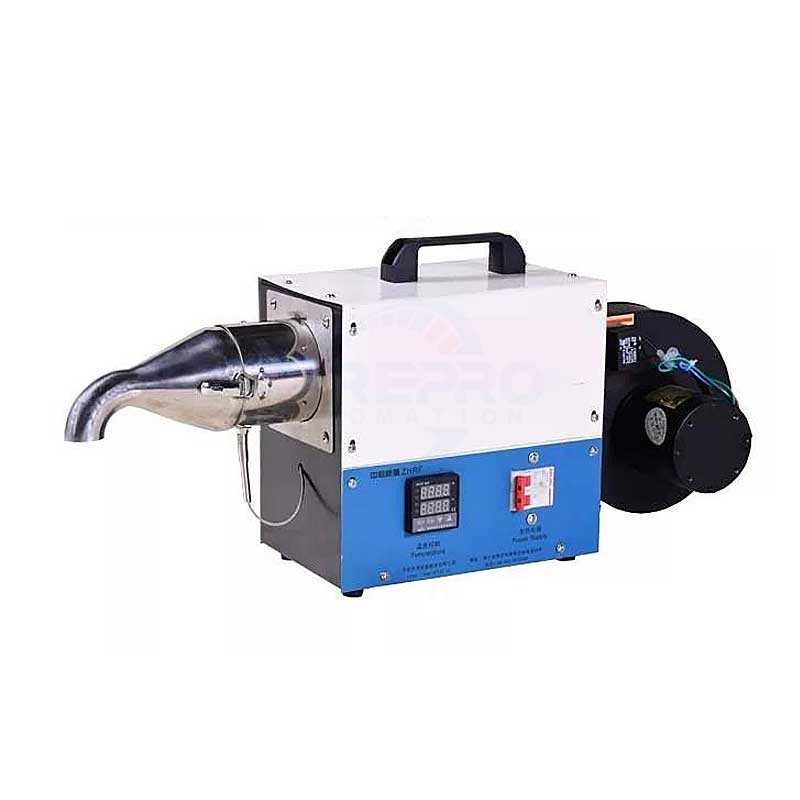

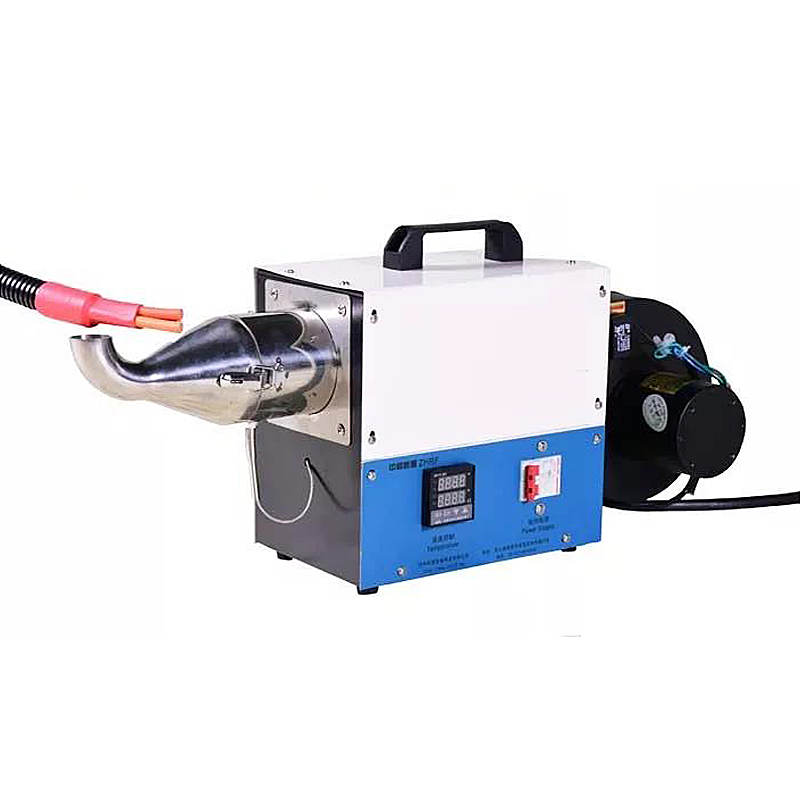

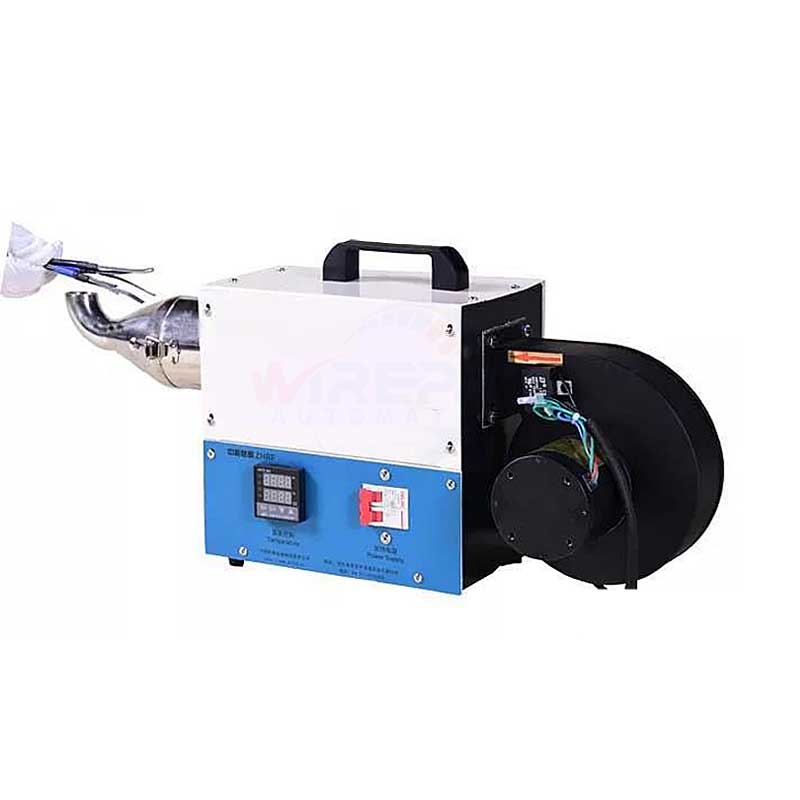

RG-S25 RG-S32 for cable wiring harness shrinkable tubing heating small heat gun

Model: RG-S25 RG-S32

RG-S25 RG-S32 heat-shrinkable tube heating air gun are suitable for heating shrinkage of heat-shrinkable tubes.

Description

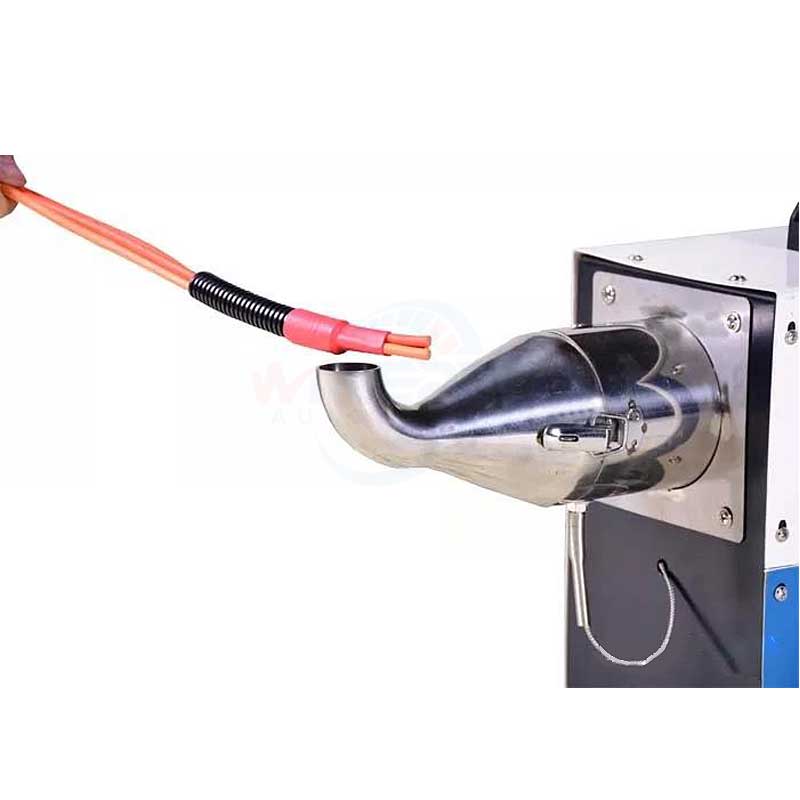

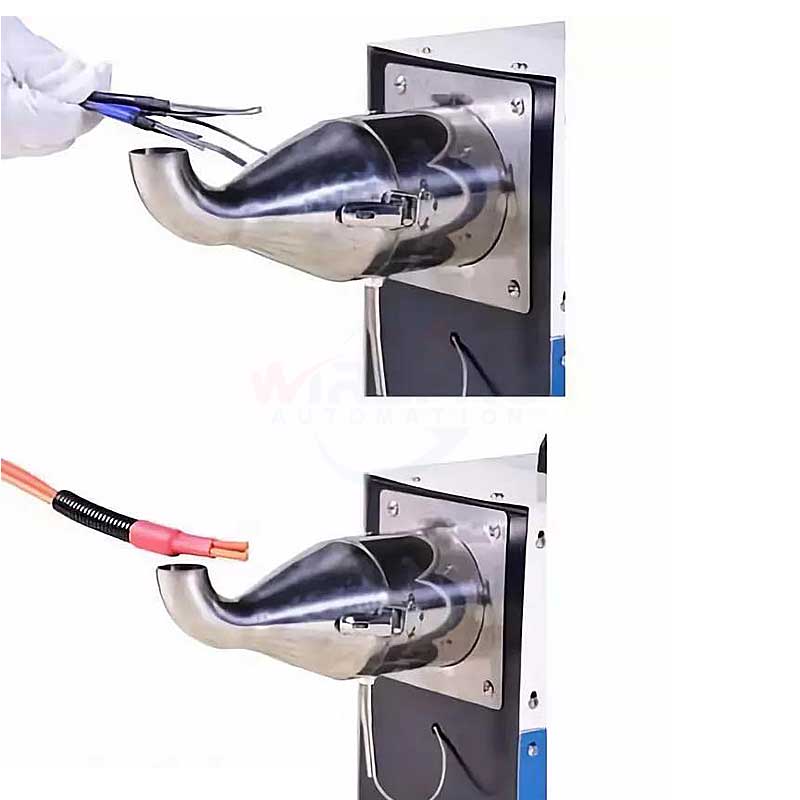

RG-S25 RG-S32 heat-shrinkable tube heating air gun are suitable for heating shrinkage of heat-shrinkable tubes. Main useed for thermal shrinkage of PVC pipe, PE heat shrinkable tube, PVC heat shrinkable tube, capacitors, batteries, wire terminals, heat-shrinkable sleeves/membranes, etc.

1. It can be installed on the assembly line.
2. It can adjust the temperature according to the production process requirements and control the temperature accurately.
3. The shrinkage time is short, suitable for any size of the heat-shrinkable tube.
4. It is small in size and light in weight and makes it easy to move.
5. Its thermal efficiency is high, it can work continuously without pausing, is durable and accurate in temperature control. It can work continuously for 24 hours, very durable.

Technical Data

Model RG-S25 RG-S32

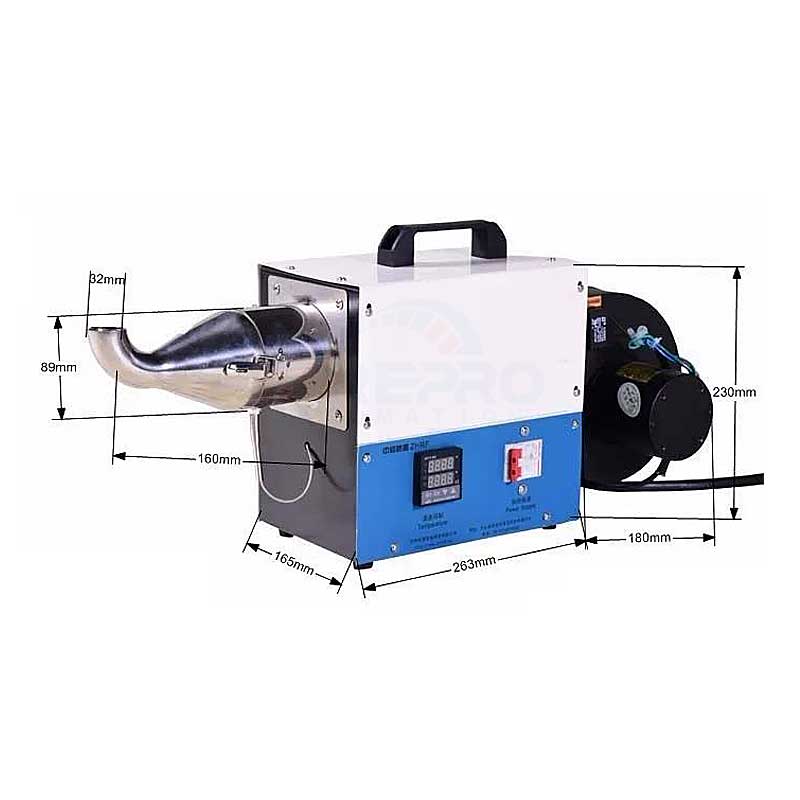

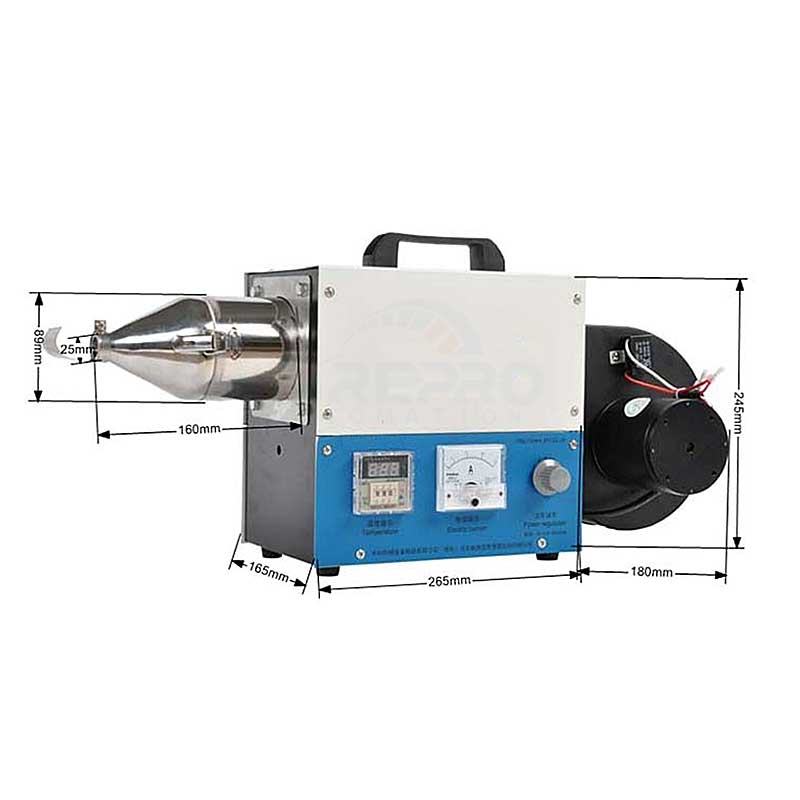

Air outle diameter 25mm 32mm
Insulation layer material Multi-fiber thermal insulation cotton
Heater    Heating wire
Heater power 3KW
Heating wire life 10000h
Power regulation Adjust the voltage through a potentiometer Intelligent temperature adjustment
Blower power 50W 40W
Max air volume 198M3/H,the actual air volume is about 38M3/H 138M3/H,the actual air volume is about 80M3/H
Static pressure 298pa 218pa
Max working temperature <350℃ <395℃
Power supply 220V
Power 3050W
Weight 10KG

Application
