Model: PF-RS65 PF-RS85

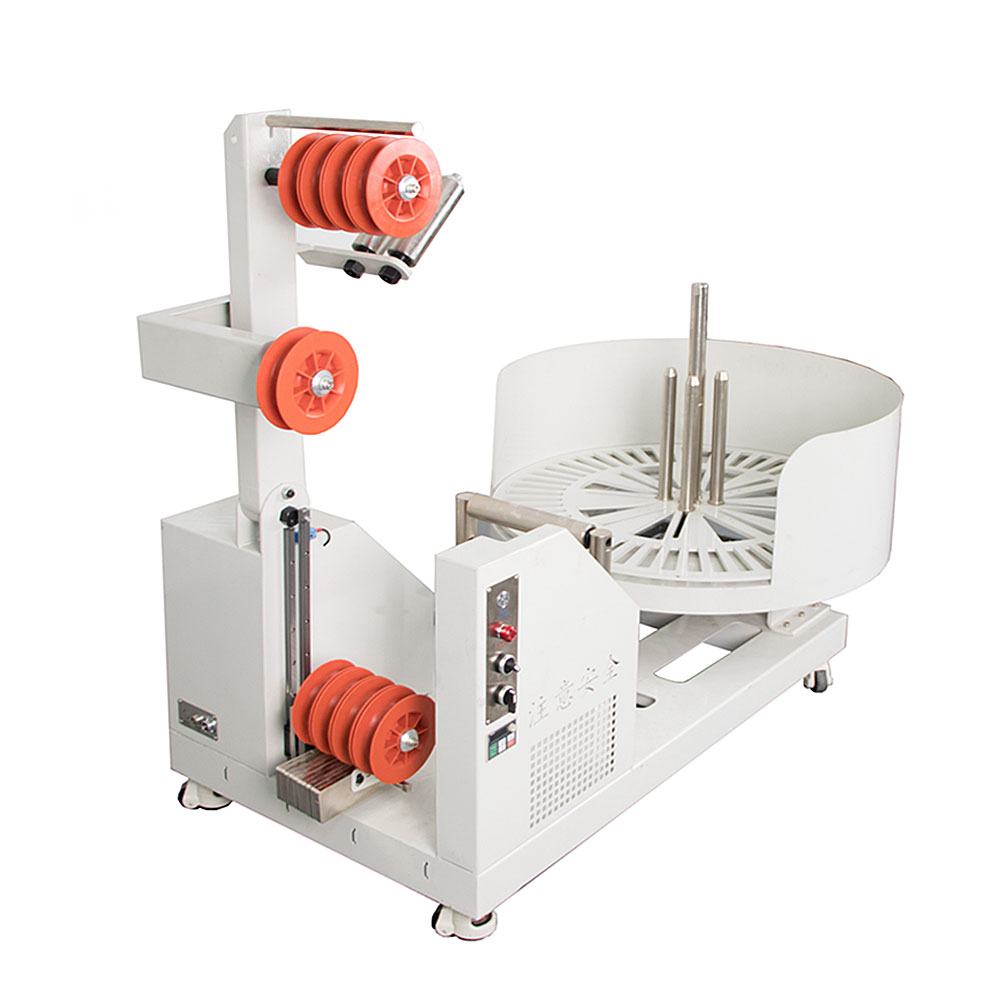

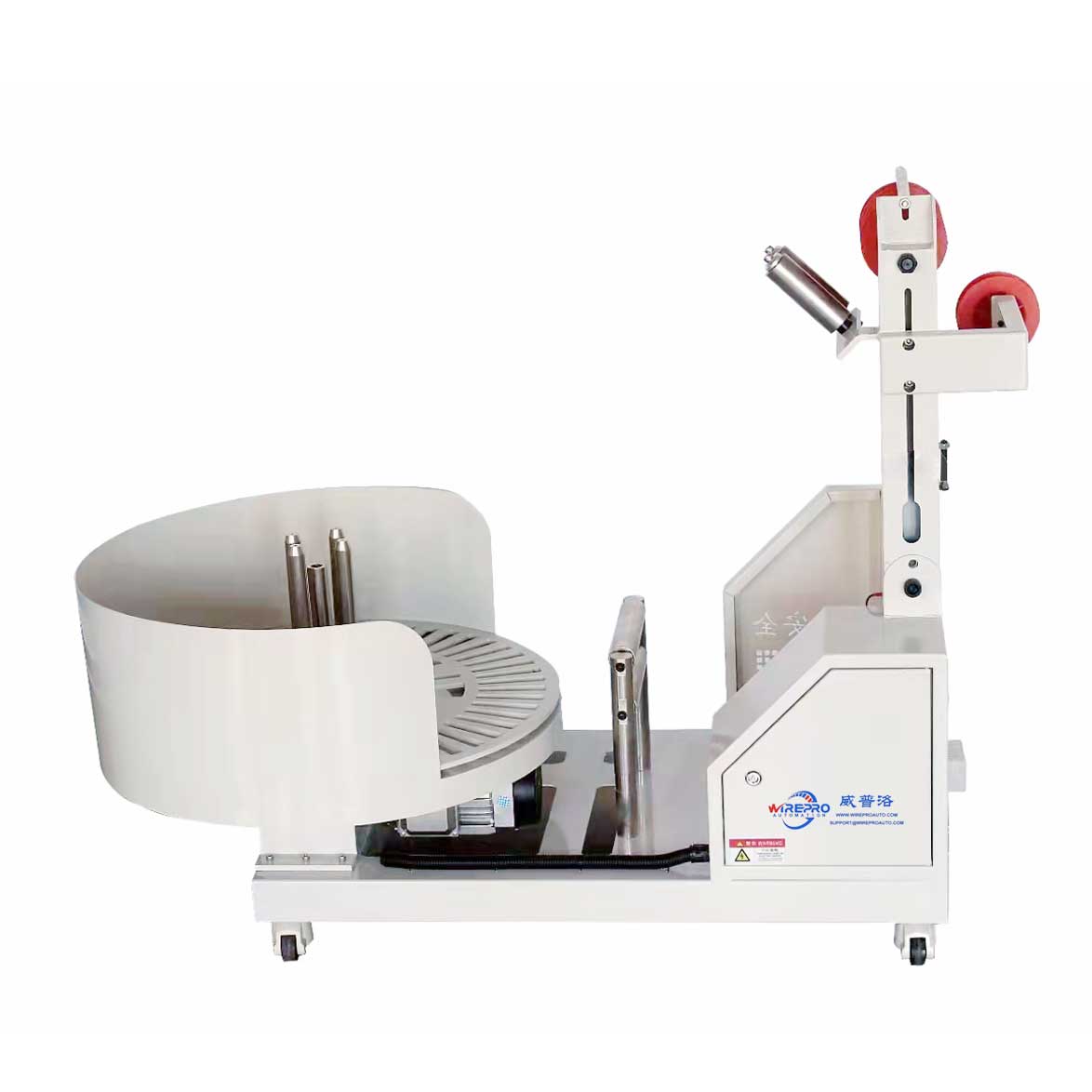

This is an automatic wire payoff machine, it supports cable spool and cable roll pre-feeding to work with automatic machines.
PF-RS65 PF-RS85 for cable spool and roll automatic wire payoff machine
Description
This is an automatic wire payoff machine, it supports cable spool and cable roll pre-feeding to work with automatic machines, like a fully automatic terminal crimping machine, wire winding machine, wire cutting machine, and wire soldering machine.
Support max spool diameter 650mm and 850mm.
Features:
1. Infinitely variable speed, no need to manually adjust the speed
2. Active wire feeding, automatic induction with brakes
3. Guide rails at a constant speed, no resistance, low noise
4. There are protective parts on both sides, safer
| Model | PF-RS65 | PF-RS85 |
| Available Wire Diameter | ≤ Φ30mm (solid wire please recomfirm) | ≤ Φ30mm (solid wire please recomfirm) |
| Max Load Weight | 100kgs | 200kg |
| Available Spool Out Dia | 100-650mm | 100-850mm |
| Available Spool Inner Dia | 38-200mm | 38-200mm |
| Feeding Speed | 0-50m/min | 0-100m/min |
| Available Wire | Wire, cable etc, wire roller or wire spool | |
| Placement mode | wire spool verticalmente | |
| Power Supply | 220V | |
| Drive Type | Inverter & motor & reducer | |
| Dimensions | 160*76*80cm | 165*95*80cm |
| Weight | 135kg | 150kg |
Application
Work with full automatic wire cutting and stripping machine, terminal crimping machine and so on.
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
