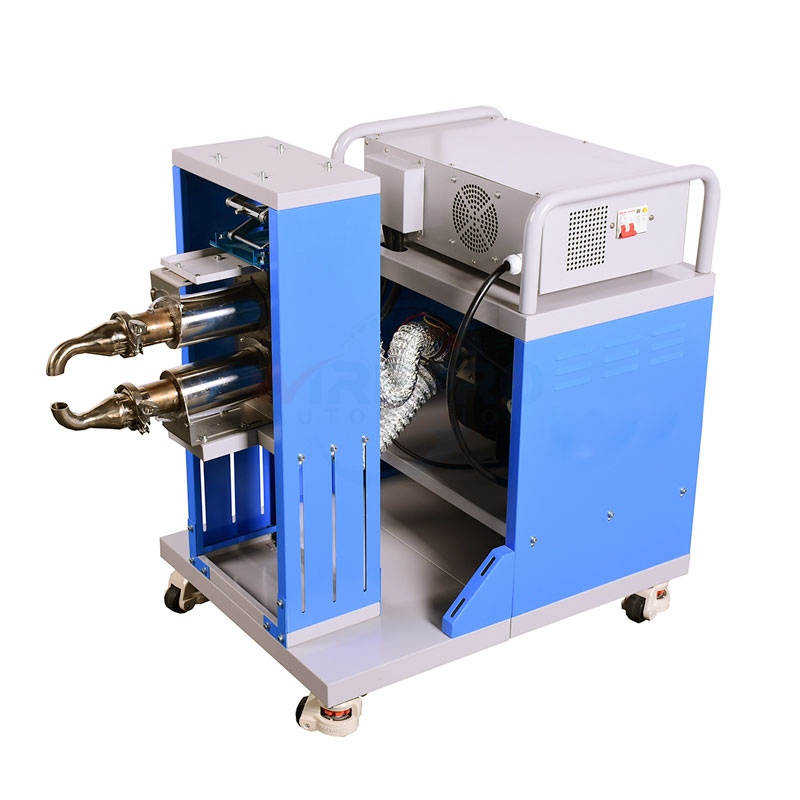

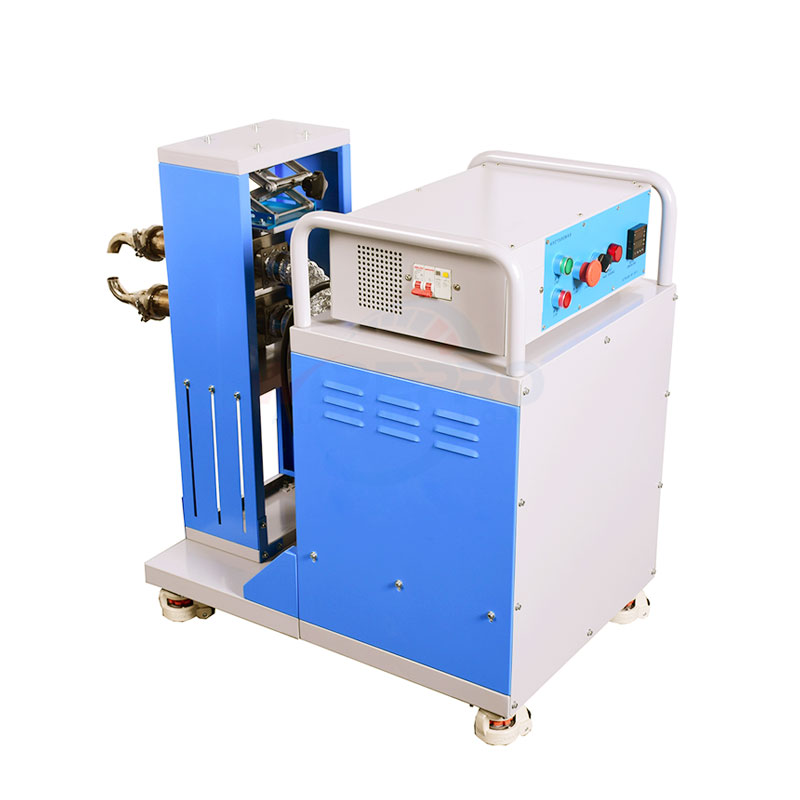

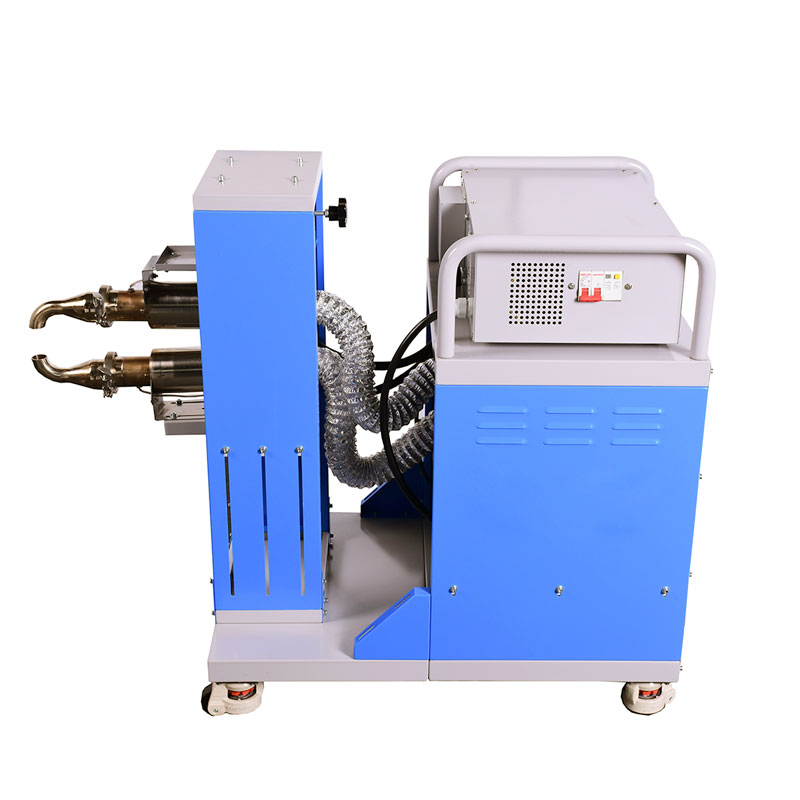

RG-B50 For big cable shrink wrap pipe two electric heating guns machine
Model: RG-B50
The RG-B50 double-outlet heat-shrinkable tube heating air gun is suitable for heat shrinkable tube heating and shrinking. It is especially suitable for installing on the assembly line, heating by double air vents, and heating by large-diameter heat-shrinkable tubes.
High thermal efficiency, accurate temperature control, and power can be adjusted.
The RG-B50 double-outlet heat-shrinkable tube heating air gun is suitable for heat shrinkable tube heating and shrinking. It is especially suitable for installing on the assembly line, heating by double air vents, and heating by large-diameter heat-shrinkable tubes.
High thermal efficiency, accurate temperature control, and power can be adjusted.
Features
1. Digital display temperature adjustment, each outlet is equipped with a temperature sensor, which can adjust the temperature according to requirements. And the double outlets are for unified temperature control.
2. The temperature can be adjusted digitally according to needs. The power output is stable.
3. Ingenious wind tunnel design, air passes evenly through the inside/outside of the spiral heating wire, nearly 100% heat exchange, and low wind pressure loss, high heat exchange efficiency.
4. Double-layer heat insulation, double-layer stainless steel sturdy cabinet design, safe and reliable to use, can maintain high-temperature work for a long time. It can work continuously for 24 hours without interruption, is durable and long-lasting.
5. It is small in size, light in weight, and easy to move.
Technical Data
Model
RG-B50
Air outle diameter
Standard 50mm; Optional 25mm
Insulation layer material
Multi-fiber thermal insulation cotton
Heater
Heating wire
Heater power
2*2KW
Heating wire life
10000h
Power regulation
Adjust the voltage through a potentiometer
Blower power
50W
Max air volume
198M3/H,the actual air volume is about 98M3/H
Static pressure
298pa
Max working temperature
<350℃ (temperature control ±2℃)
Power supply
220V
Power
4100W
Weight
20KG

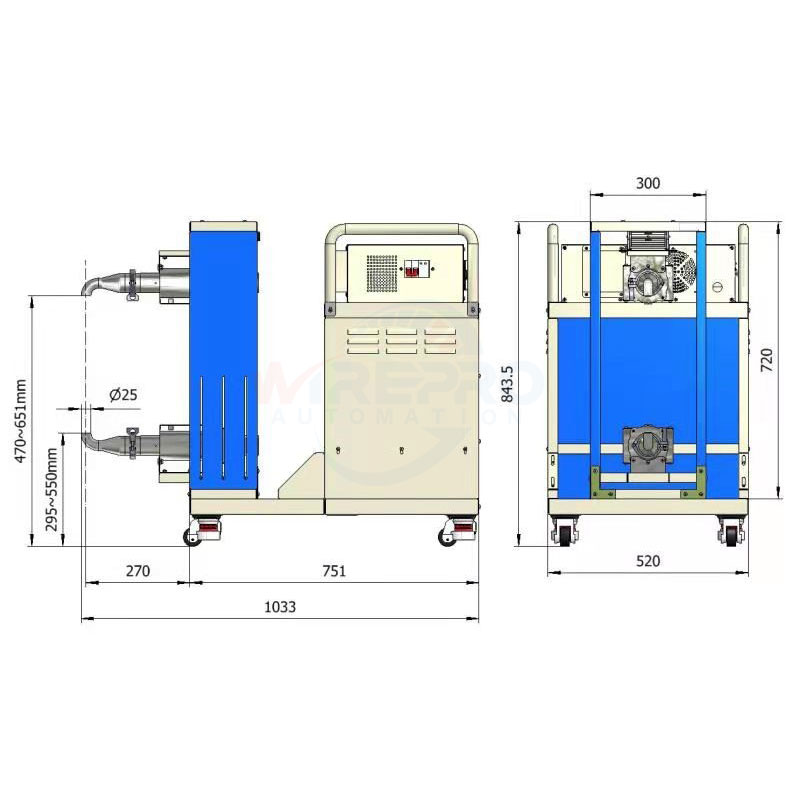

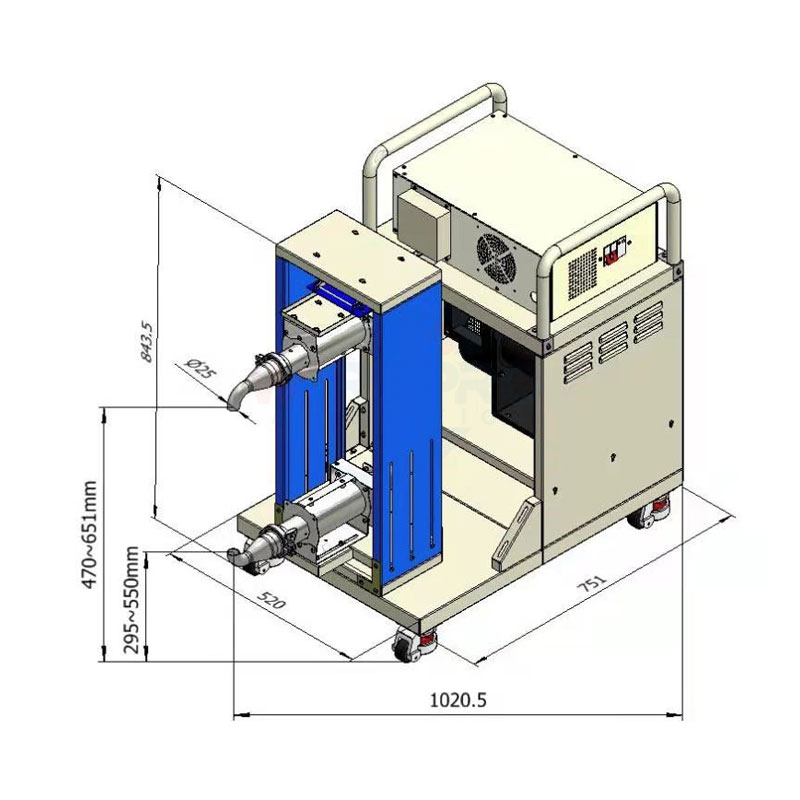

Dimension
91*52*85cm
Application
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
