Model: TP-E60
Just need to change the crimping dies for different terminals. If there are a lot of different kinds of terminals to be crimped, this crimper is the best choice.
TP-E60 Electrical small size machine wire terminal crimping tool
Description
It is suitable for crimping various terminals and can provide you with various crimping molds. Customize the mold according to the terminal are avaliable.
Features:
1. Mainly use electricity, easy to move

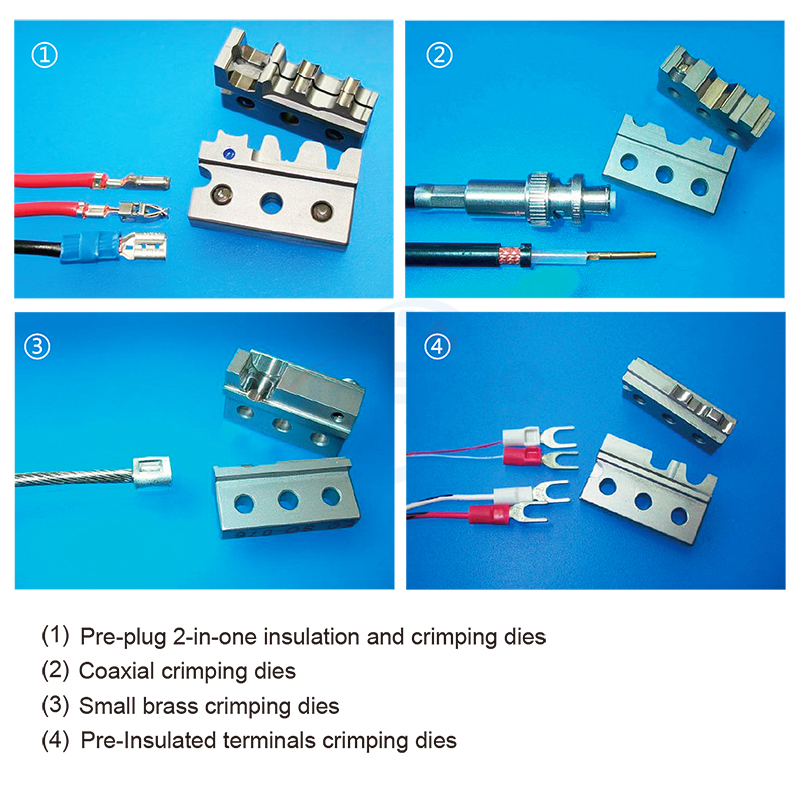

2. The crimping dies are interchangeable for crimping different

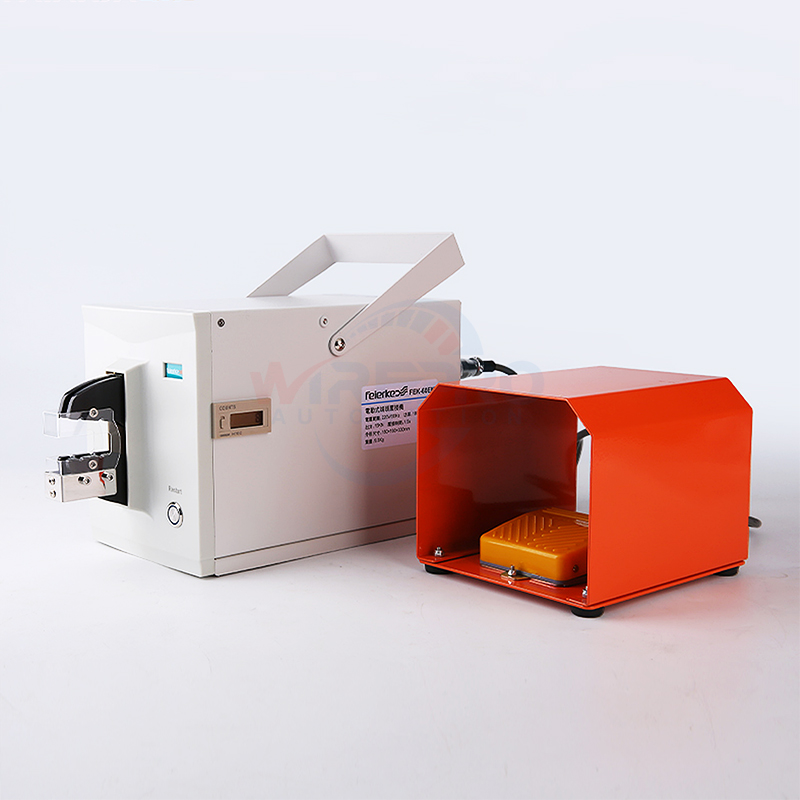

3. Operated by footswitch
4. Compact and light
Technical Data
| Model | TP-E60 |
| Crimping force | 2.5 Ton |
| Application | Crimping different terminals |

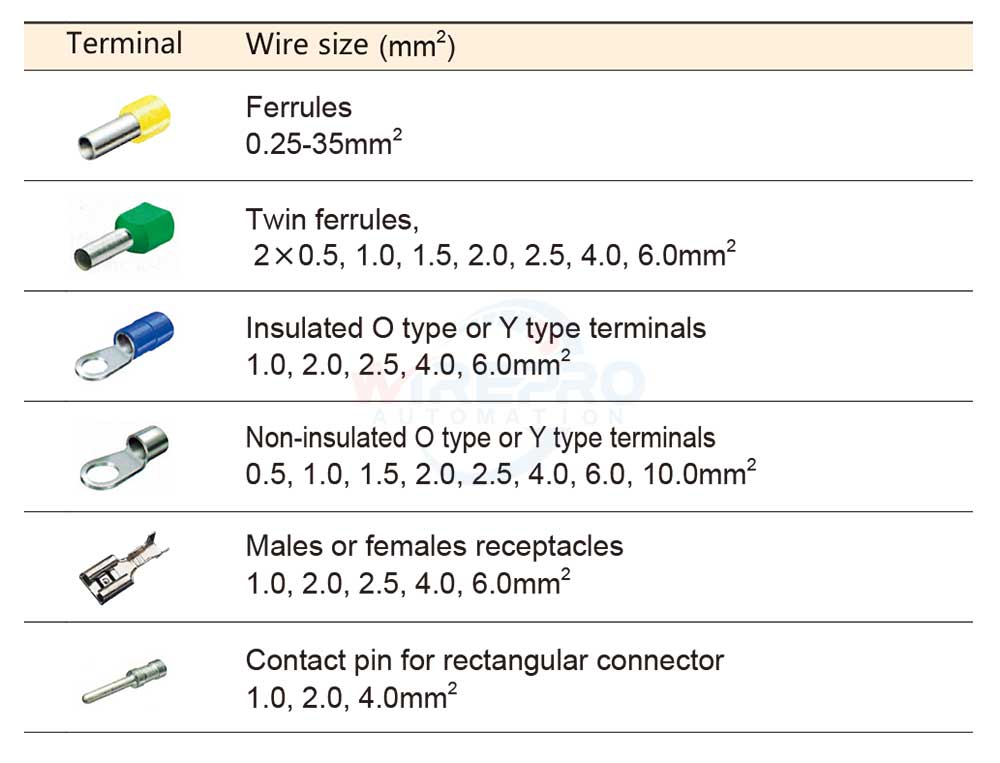

| Crimping dies | non-insulated terminals: ≤16mm² ;
Insulated Terminal: ≤6mm² ; tubuler terminal: ≤35mm². |
| Air Pressure | 220V / 110V |
| Dimension | 14X22X32 cm |
| Weight | 10kgs |
Application
Wire stripping and ring terminal crimping
