Model: TU-S08
This series of semi-automatic terminal crimping machines are suitable for various terminals, very easy to change the applicator.

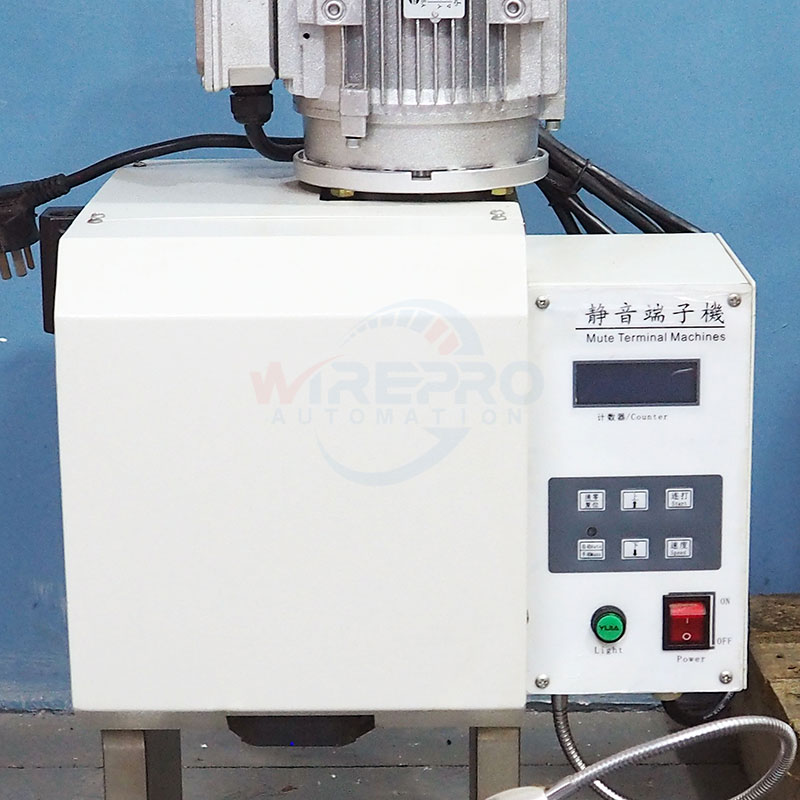

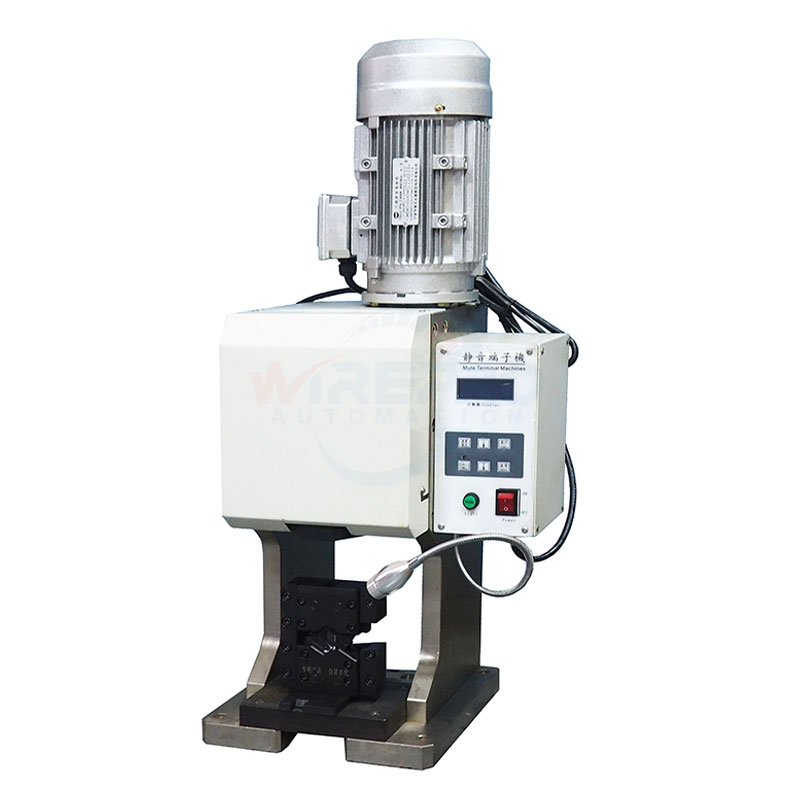

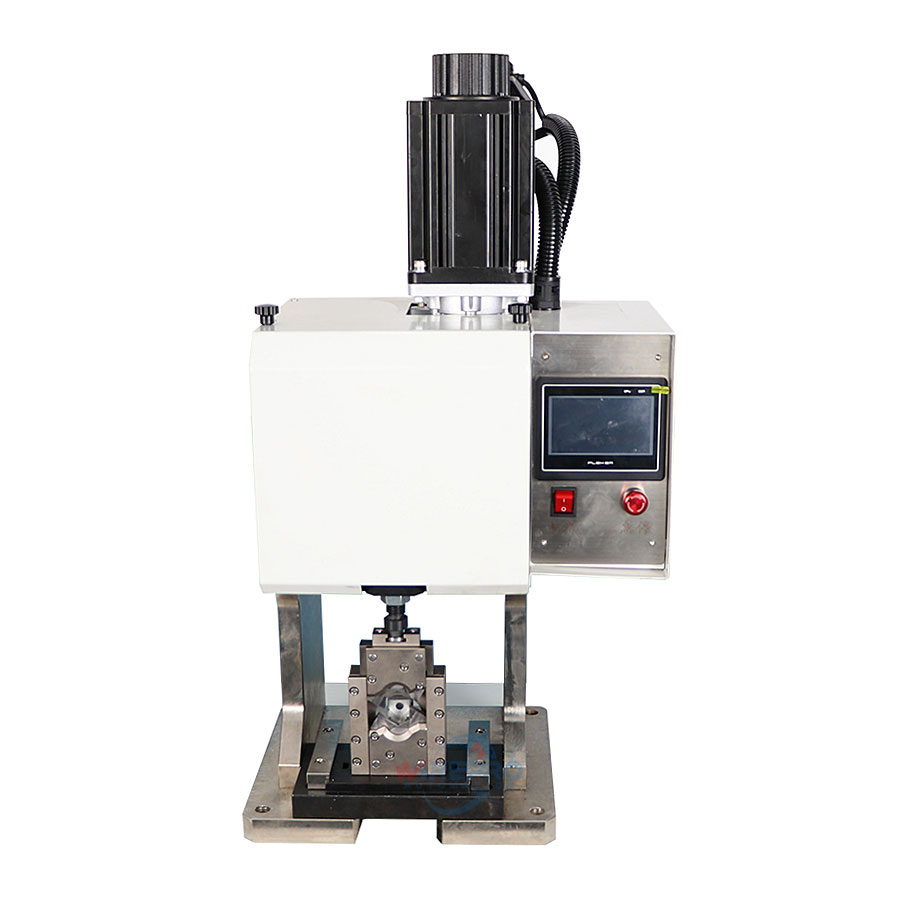

TU-S08 Electrical servo battery tubular connector lug crimping machine
Description
This machine is mainly used for crimping large square battery tubular connectors, and a lug crimping machine for 1-35mm2 cable.
Equip with hexagonal, quadrilateral applicator, no need to change the crimping applicator for crimping 1-35mm2 tubular terminal. The applicator will instantly change the size of the knife edge.
1. Industrial grade control chip cooperates with the high precision servo drive to make the machine run stable
2. PLC control system can instantaneously change the crimping range for different terminals
3. No need to change the crimping applicator for different sizes of terminals
4. Support hexagonal, quadrilateral, and M-shape crimping
5. The position can be adjusted for different square wire
6. compact structure, save space, work noise is small.
Video
Technical Data
|
Model
|
TU-S08 |
|
Cable range
|
Max about 35mm², based on terminal
|
|
Crimping Force
|
8T
|
|
Stroke
|
30mm
|
|
Crimping Tolerance
|
±0.03mm
|
|
Speed
|
10-30 pcs/min |
|
Driving Mode
|
Ball Screw
|
|
Control System
|
Motion Control Board + Touch Screen Control
|
|
Reducer
|
Planet Reducer
|
|
Adaptive Mold
|
Hexagon Mold(Mold Exchange-Free), M-type,OPT, Quadrangle Mold
|
|
Power Source
|
220V 50-60Hz
|
|
Motor Power
|
1.5KW Servo Motor
|
|
Machine Size
|
66*50*82cm |
|
Machine Weight
|
95kgs
|
Application
Cable lug terminal crimping samples
