Model: HT-E50 HT-E100
In the WIREPRO product line, this series of electric vertical machines are tensile tester machines for big terminal crimping effect testing.

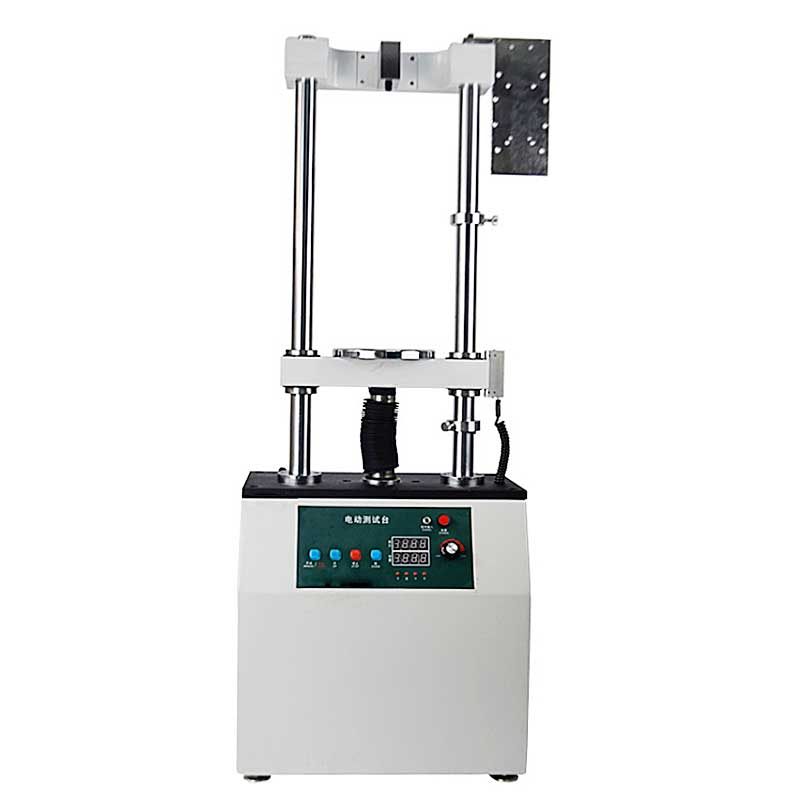

HT-E50 HT-E100 Electric stand type heavy duty tensile testing machine
Description

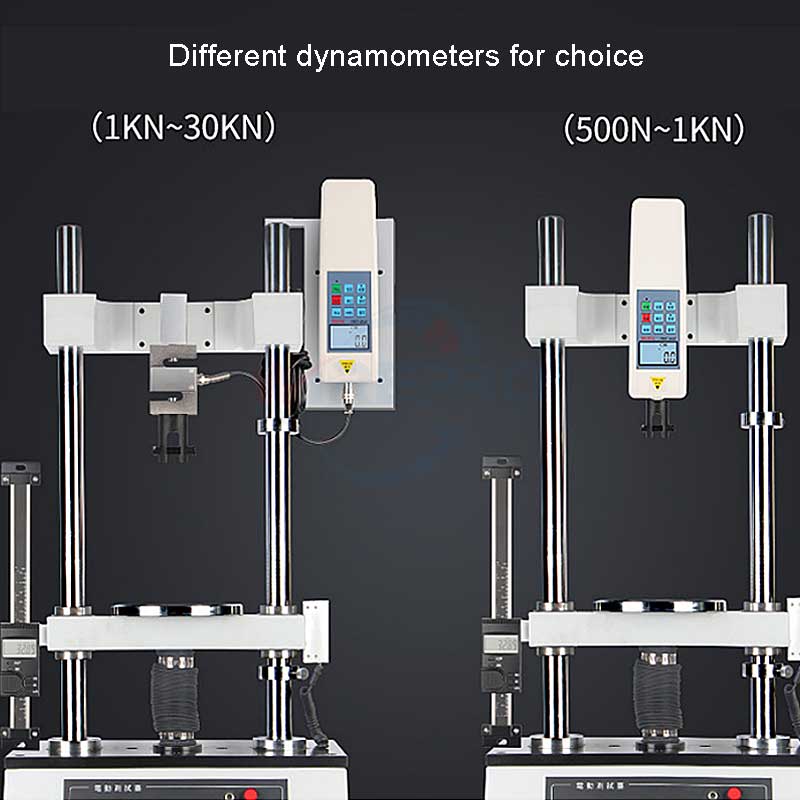

This series of electric vertical machines are a push-pull load test stand specially equipped for HF series and NK series force gauges.

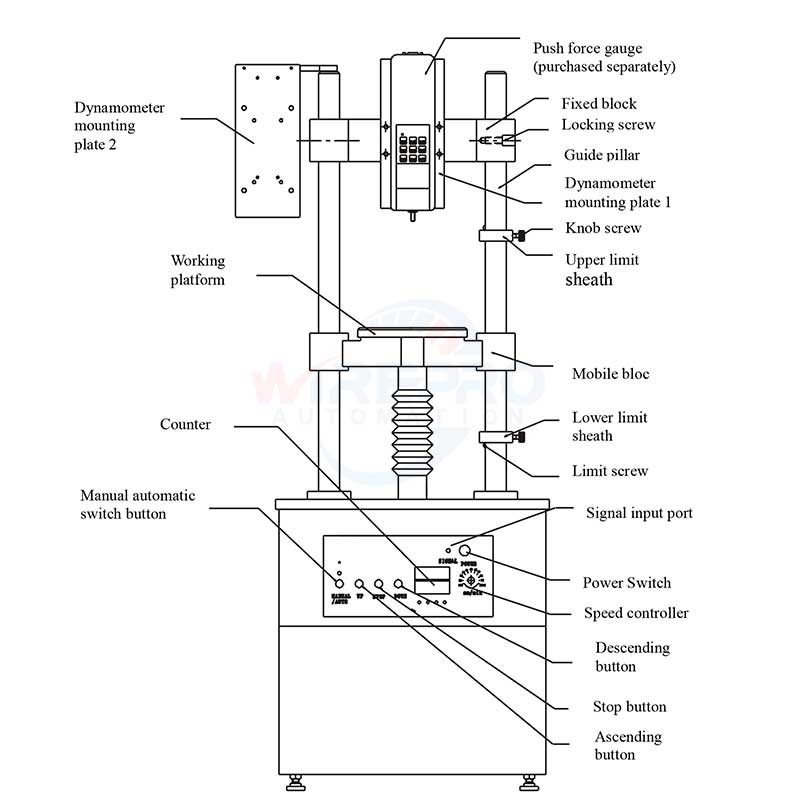

This product adopts a dual vertical pole structure, featured by good stability, wide application, and easy to use, etc., with the functions of step-less speed regulation, manual (crawl), and automatic switching.
This product is appropriate for the push-pull load, plug power, and other destructive tests in the industries of rubber, plastics, light textile, building doors and windows, composite materials, wire and cable, auto parts, power machinery, and research institutions etc.

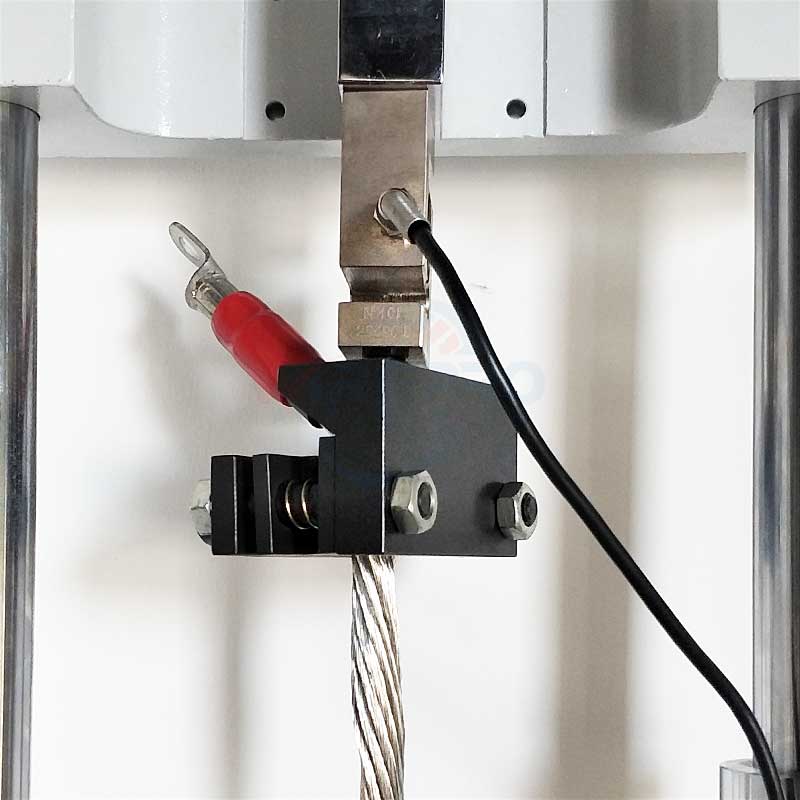

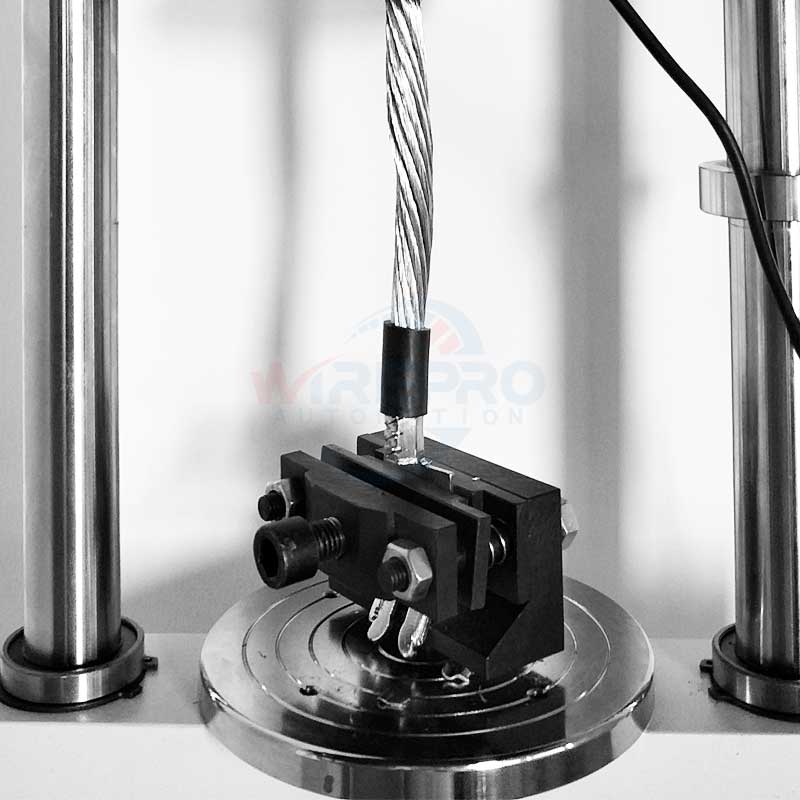

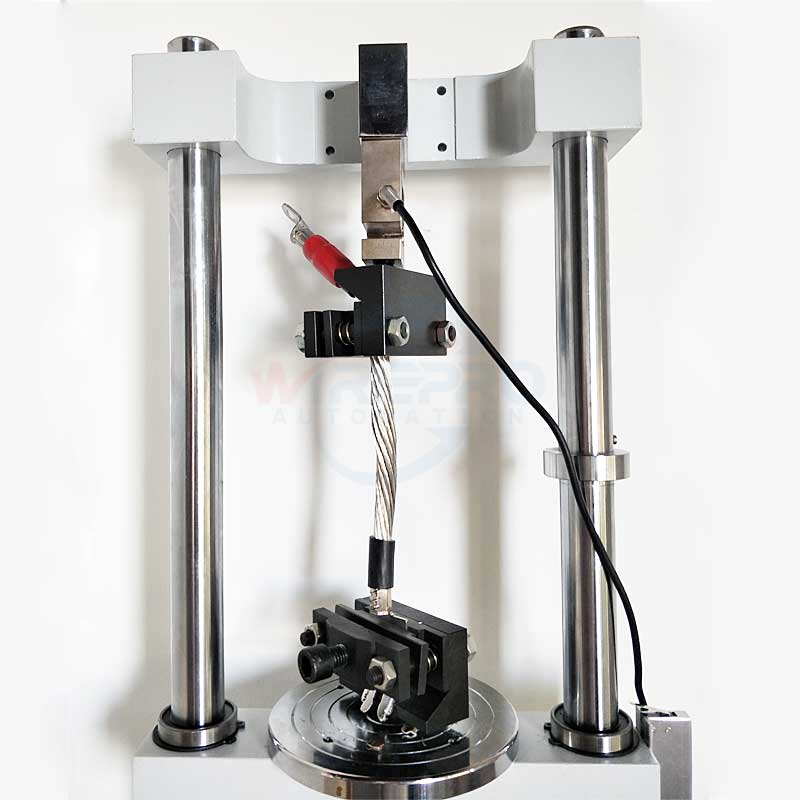

In the WIREPRO products line, this product is mainly used for terminal full force testing.
Features：
1. Double pole structure, easy to use, good stability, and wide application range.
2. Electric loading, stepless speed regulation, gear drive
3. Compact structure and stable drive

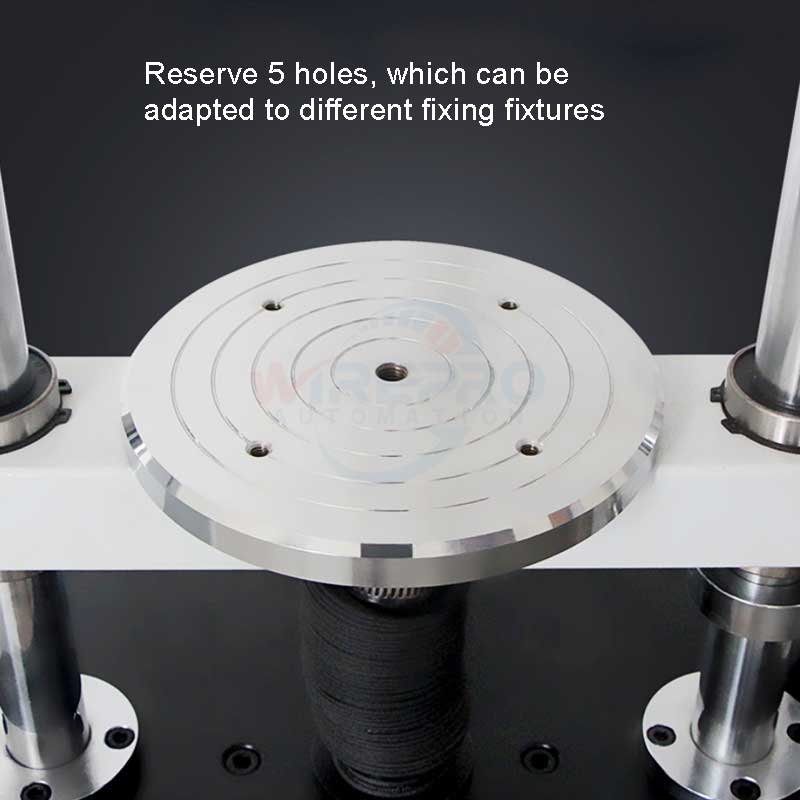

4. Simple operation, can be used with a variety of fixtures
Description
Technical Data
| Model | HT-E50 | HT-E100 | HT-E200 |
| Max Loading Force | 5000N | 10000N | 20000N |
| Max Stroke | 220mm(220mm-1000mm can be customized) | ||
| Test speed | 15~240 mm/min | ||
| Power supply | AC 220V | ||
| Weight | 56kg | 65kg | 65kg |
| Dimensions | 40*25*105 cm | 43*20*116 cm | 43*20*116 cm |
