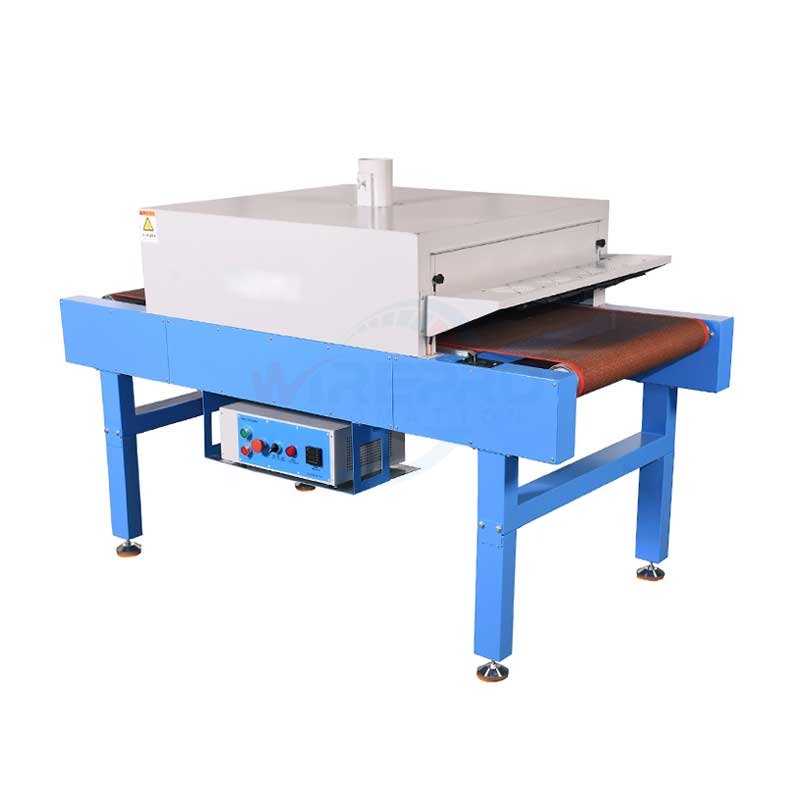

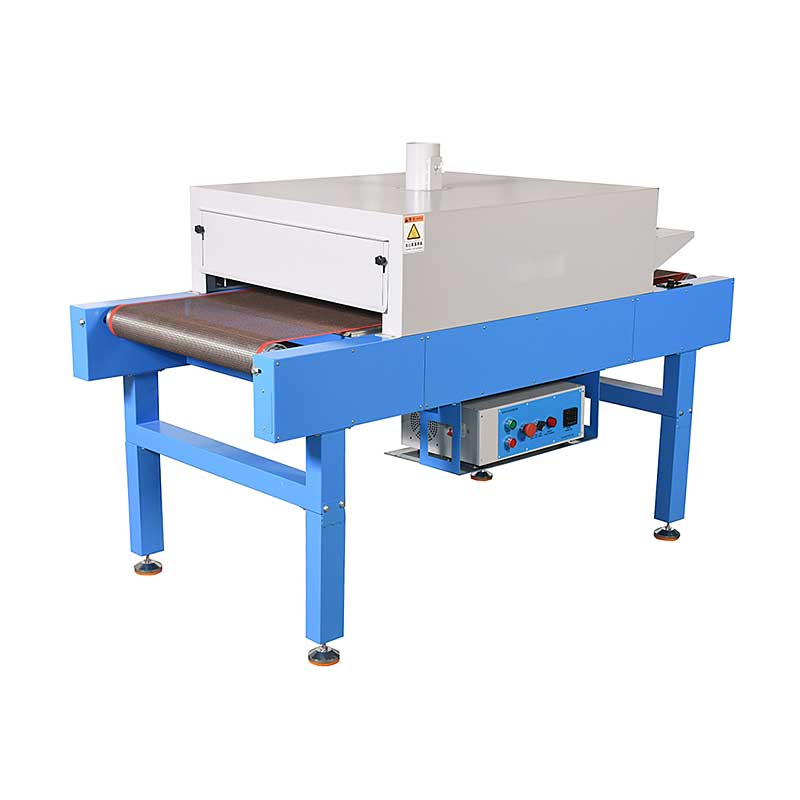

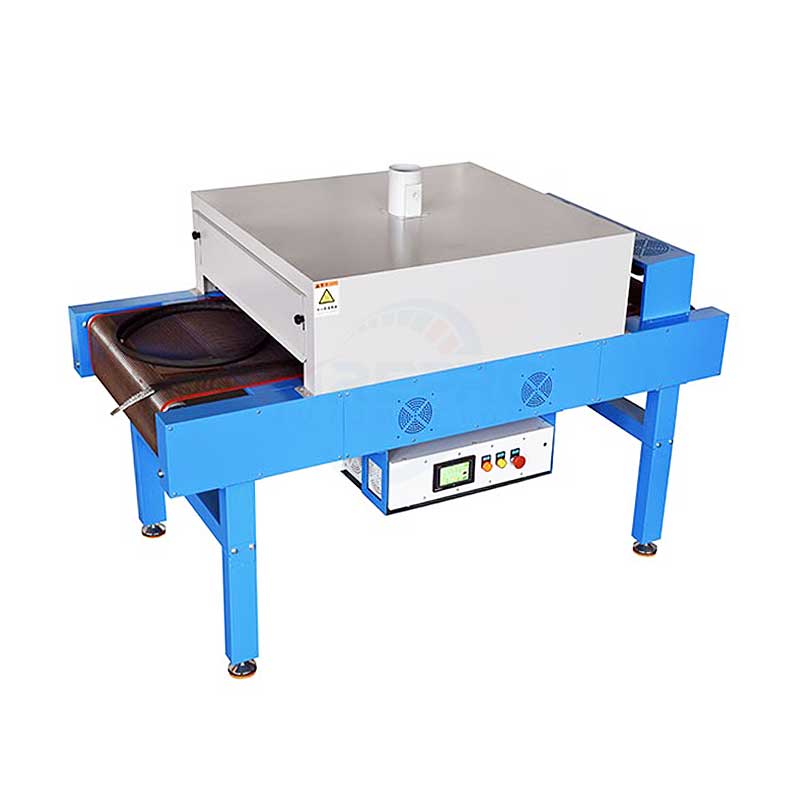

RD-65AM intelligent temperature double side heat-shrinkable tube heating shrinking equipment.
Suitable for heating and shrinking heat-shrinkable tubes of wire harness processing enterprises. The temperature can be adjusted according to the production process requirements, and the shrinking time is short, suitable for any length of the heat-shrinkable tube.

Equipment composition:
Equipment support + conveying system + heating system + cooling system + control system

Features:

1. Remote opening control
This machine has a remote control interface, which can remotely control the start and stop of the machine.
2. Heat insulation design of heating zone.
The double design of the heating zone shell is filled with thermal insulation material to isolate the internal and external temperature, which saves energy and protects the working environment. In the heating box, a multi-angle heat reflection inner wall can achieve a uniform heating effect.
3. Adjustable height in and out of the warehouse

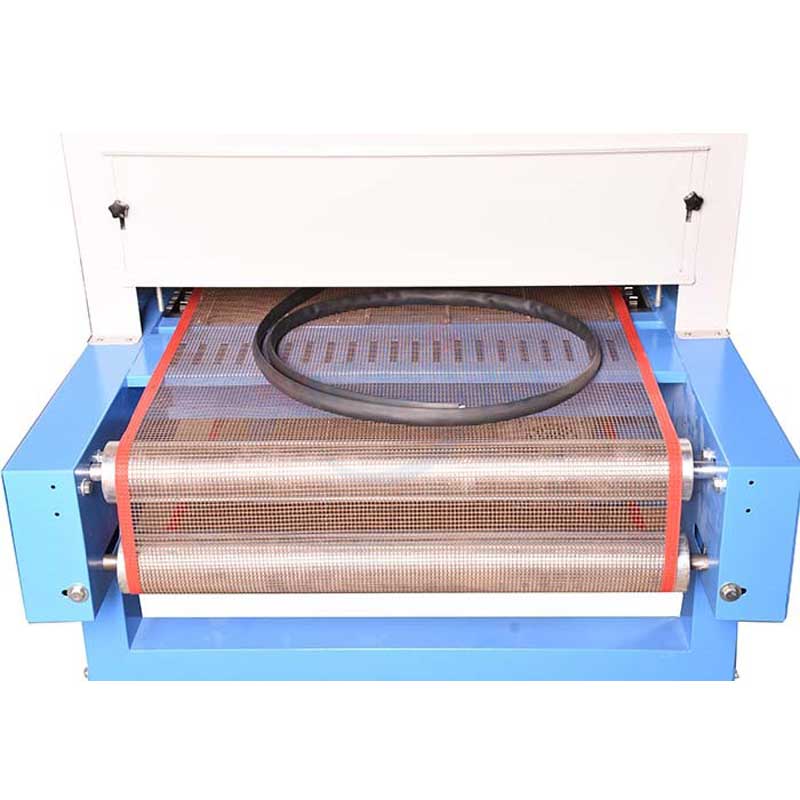

The conveyor belt heating box is completely enclosed, and the input and output ends of the heating box are equipped with sliding and liftable shutters, which effectively shield the heat source from leaking, protect the working environment, save energy.
4. Adjustable infrared heating tube height
The infrared heating tube can quickly adjust the height. The repeatability of the distance setting from the light source to the conveyor belt.
5. Removable bracket
The bracket of the equipment can be disassembled freely, which increases the adaptability and mobility of the equipment.
6. Shutdown delay function
In order to protect the conveyor belt and prolong the service life of the conveyor belt, this machine is equipped with a shutdown delay function. After the machine stops working, it can be shut down after the conveyor cools down for one minute.
7. Cooling system
The outlet is equipped with a cooling fan to cool the heated, heat-shrinkable tube.
